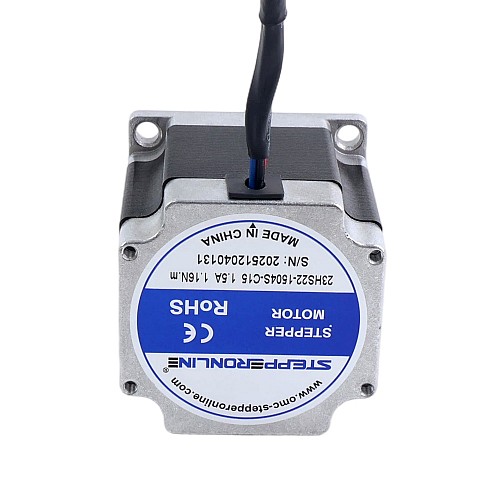

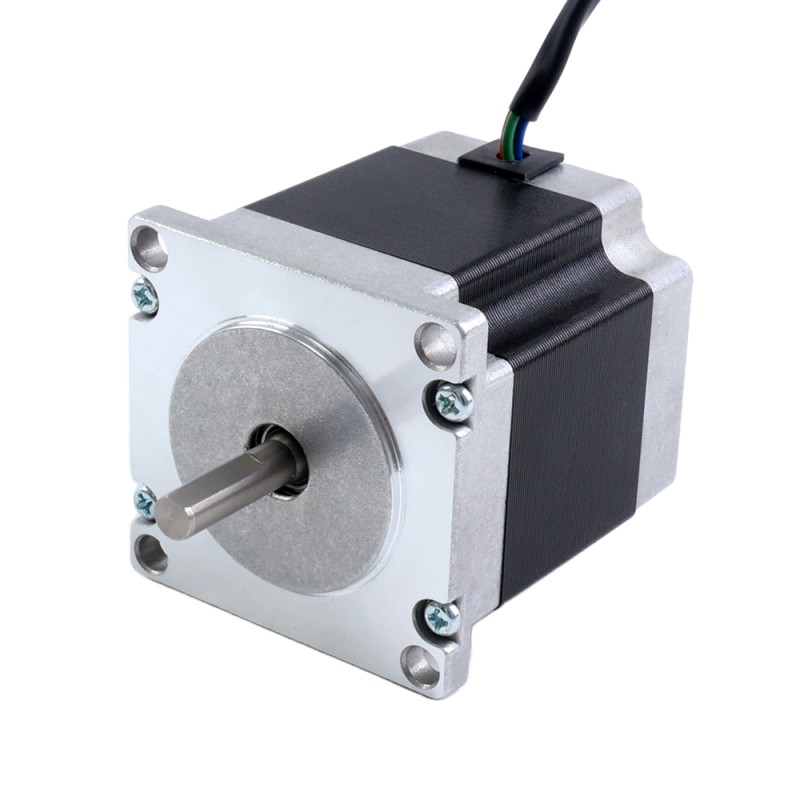

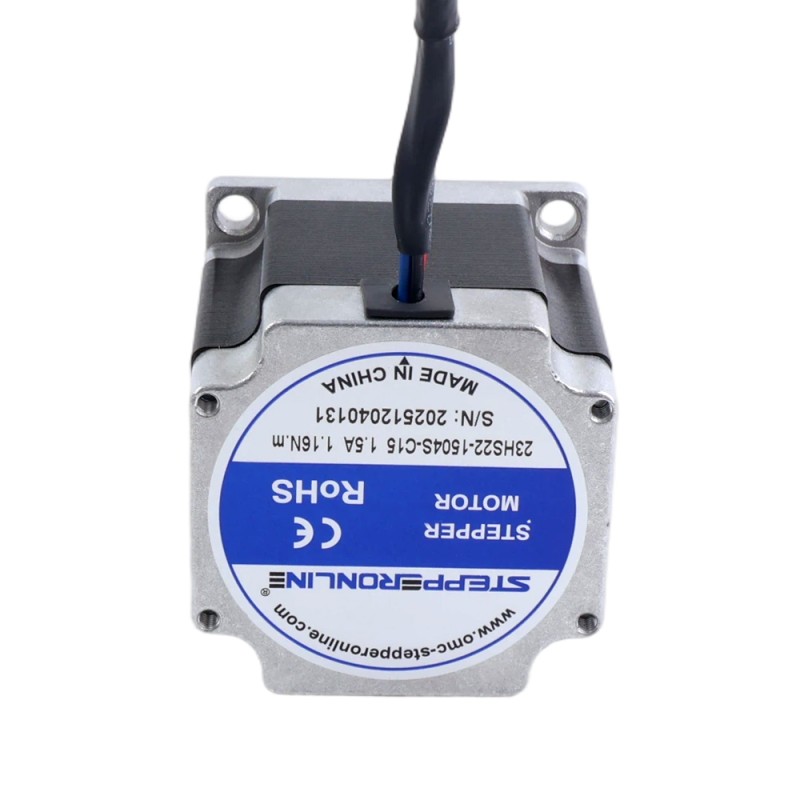

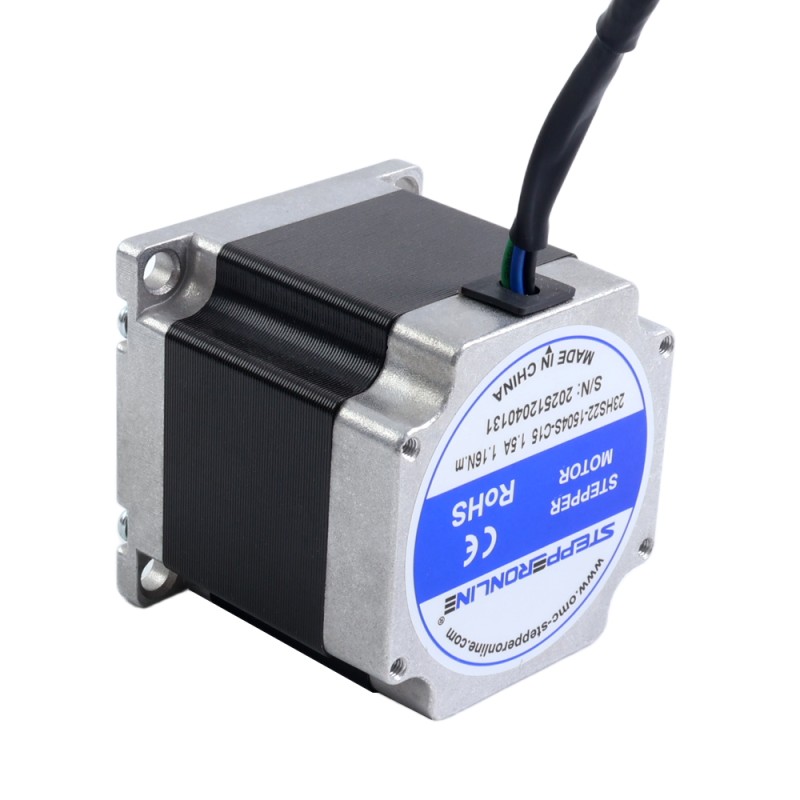

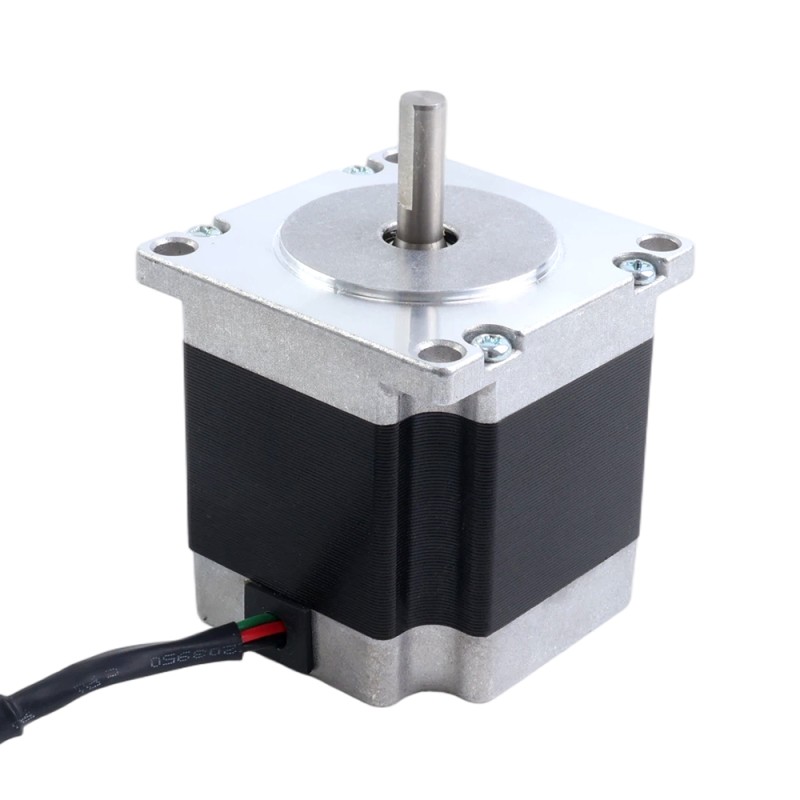

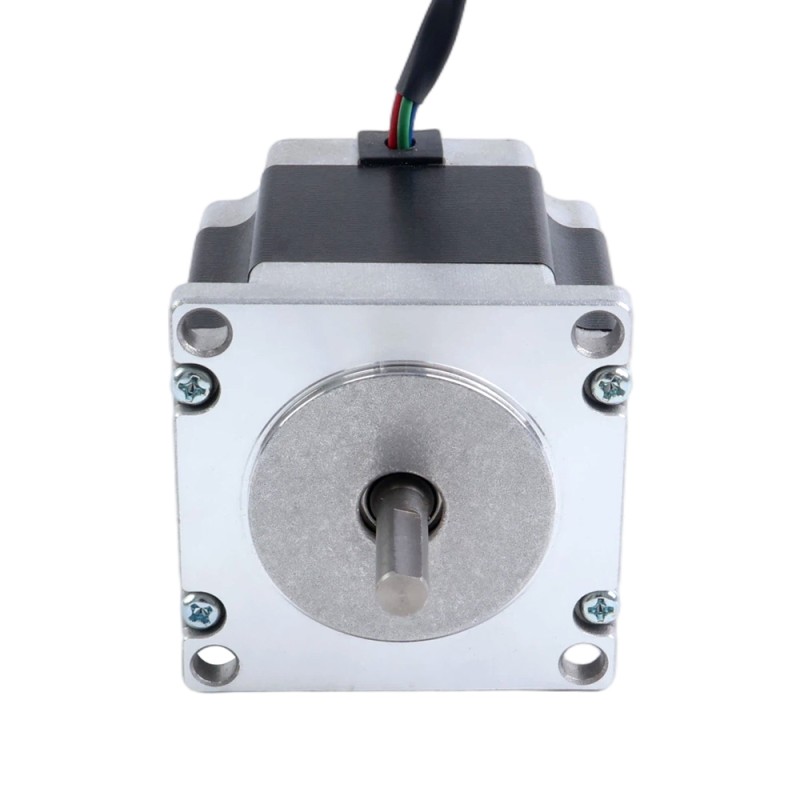

Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 762mm Cable & Molex Connector
0 reviews - Write a review
C$14.56
5 + C$14.09
10 + C$13.66
50 + C$13.25
100 + C$12.86
  • In Stock: 200
  • Model: 23HS22-1504S-C15
  • Gross Weight: 0.75kg
  • Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

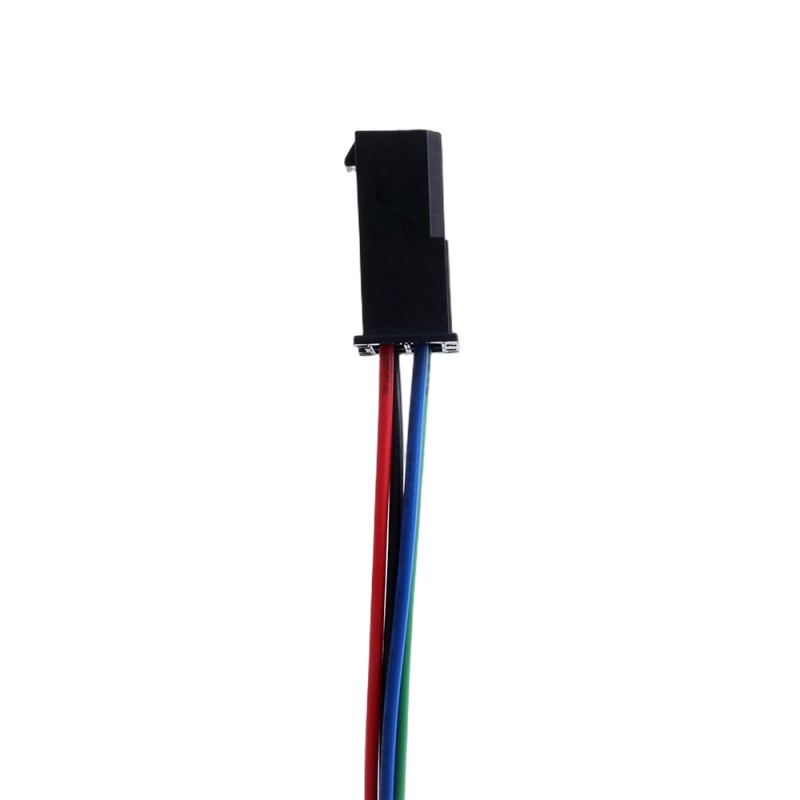

This bipolar Nema 23 stepper motor features a 1.8° step angle and delivers a holding torque of 1.16Nm(164.3oz.in), with each phase drawing 1.5A. This motor features an additional MOLEX 39013046 connector compared to the standard 23HS22-2804S model, with a longer cable length of 762mm.

Electrical Specification

  • Manufacturer Part Number: 23HS22-1504S-C15
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 1.16Nm(164.3oz.in)
  • Rated Current/phase: 1.5A
  • Phase Resistance: 3.6ohms
  • Inductance: 13mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 56mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Cable Length: 762mm
  • Weight: 0.68kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Removing the connector makes this motor identical to the standard model, but at a more favorable price.
Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 116
Holding Torque(oz.in) 164.3
Inductance(mH) 13
Phase Resistance(ohms) 3.6
Rated Current(A) 1.5
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 56
Frame Size(mm) Nema 23 (57 x 57)
IP Rating 40
Lead Length(mm) 762
No. of Lead 4
Output Shaft Type D
Product Series S
Shaft Diameter(mm) 6.35
Shaft Length(mm) 21
Single Shaft/Dual Shaft Single Shaft


  • Motor Shaft
  • Cable
  • Connector
  • Encoder
  • Brake
  • Gearbox


File Size
23HS22-1504S-C15_Full_Datasheet.pdf 266.42KB Download
