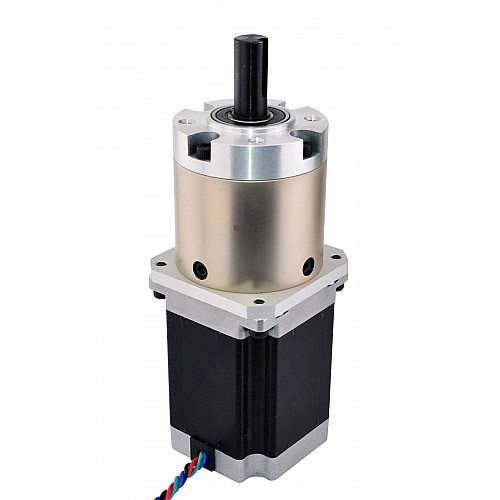

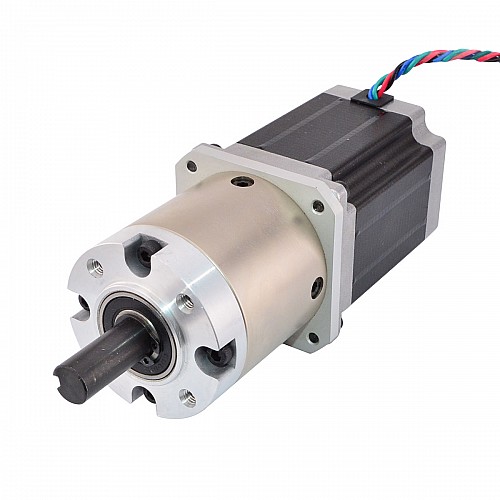

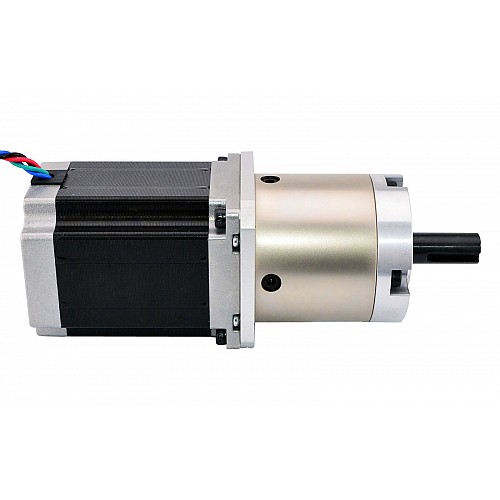

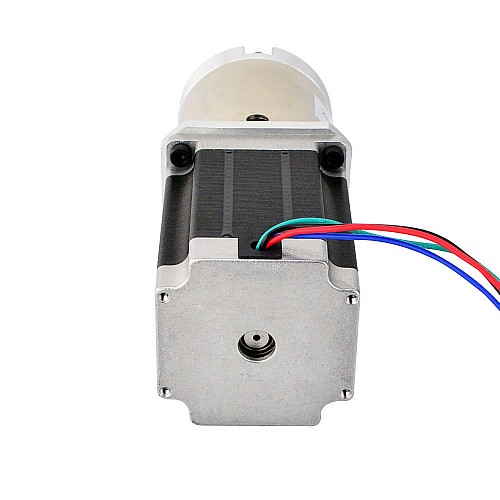

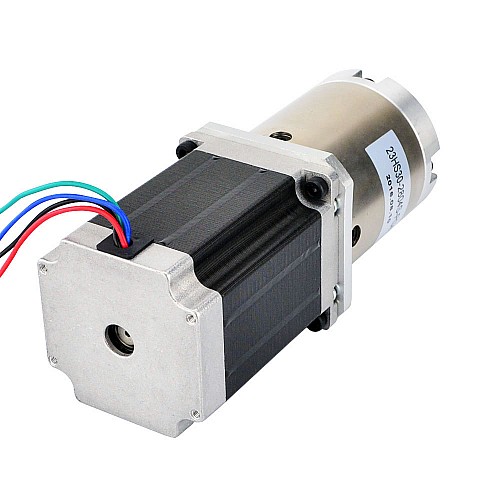

Nema 23 Stepper Motor Bipolar L=76mm w/ Gear Ratio 15:1 Planetary Gearbox

Hot

Nema 23 Stepper Motor Bipolar L=76mm w/ Gear Ratio 15:1 Planetary Gearbox

0 reviews - Write a review

C$90.74

5 + C$86.48

10 + C$82.58

50 + C$79.03

100 + C$75.78

In Stock: 10000
Model: 23HS30-2804S-PG15
Gross Weight: 2.00kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 23 stepper motor with 76mm body and 2.8A rated current, integrated a planetary gearbox of 15.3:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 23HS30-2804S-PG15
Motor Type: Bipolar Stepper
Step Angle: 0.12deg
Holding Torque without Gearbox: 1.89Nm(267.65oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 1.13ohms
Inductance: 4.8mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 15.3:1
Efficiency: 80%
Backlash at No-load: <=3deg
Max.Permissible Torque: 30Nm(4248oz.in)
Moment Permissible Torque: 50Nm(7080oz.in)
Shaft Maximum Axial Load: 100N
Shaft Maximum Radial Load: 200N

Physical Specifications

Frame Size: 57 x 57mm
Motor Length: 76mm
Gearbox Length: 60mm
Shaft Diameter: Φ12mm
Shaft Length: 30mm
Keyway length: 20mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1.9kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	2.8
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	1.89
Inductance(mH)	4.8
Phase Resistance(ohms)	1.13
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	136
Frame Size(mm)	Nema 23 (57 x 57)
Gear Ratio(xx:1)	15.3
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	12
Shaft Length(mm)	30
Single Shaft/Dual Shaft	Single Shaft

File	Size
23HS30-2804S-PG15_Full_Datasheet.pdf	140.02KB	Download
23HS30-2804S-PG15.STEP	3.84MB	Download
23HS30-2804S-PG15_Torque_Curve.pdf	172.69KB	Download
23HS30-2804S_Torque_curve.pdf	180.81KB	Download
