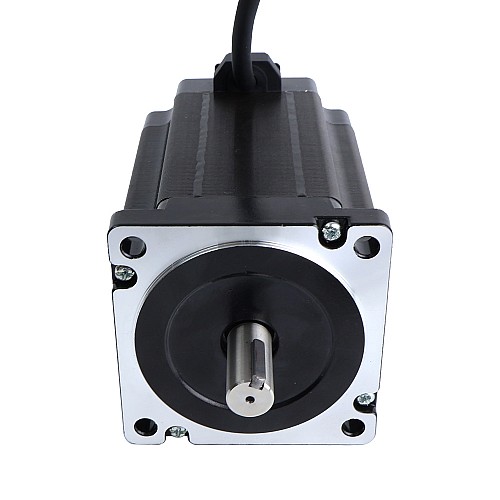

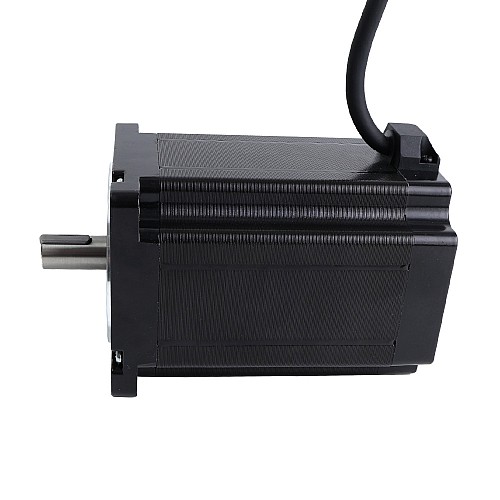

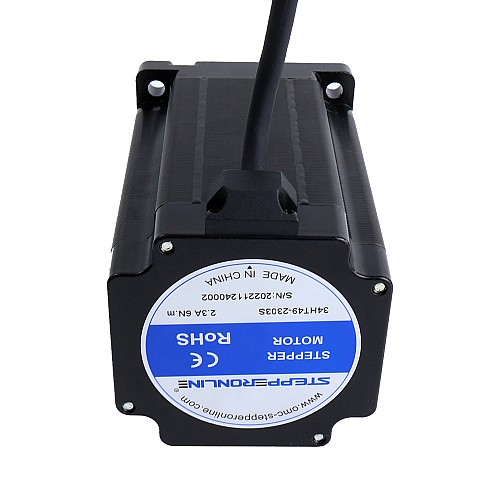

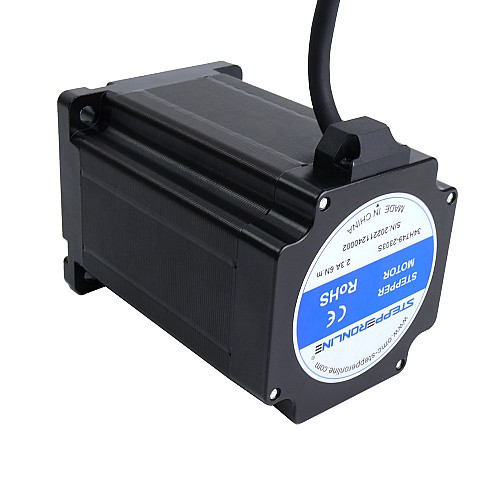

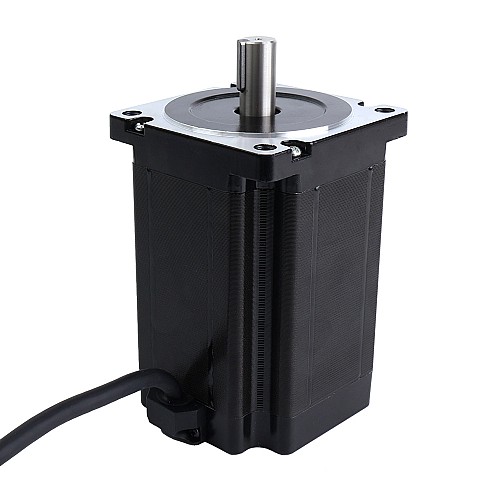

Nema 34 1.2deg 3-phase Stepper Motor 2.3A 6Nm(849.8oz.in)

Discontinued

Nema 34 1.2deg 3-phase Stepper Motor 2.3A 6Nm(849.8oz.in)

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 34HT49-2303S
Gross Weight: 5.80kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Electrical Specification

Manufacturer Part Number: 34HT49-2303S
Number of phase: 3
Step Angle: 1.2deg
Holding Torque: 6Nm(849.8oz.in)
Rated Current/phase: 2.3A
Phase Resistance: 2.3ohms
Inductance: 19mH±20%(1KHz)

Physical Specification

Frame Size: 86 x 86mm
Body Length: 125mm
Shaft Diameter: Φ14mm
Shaft Length: 29.5mm
Keyway Length: 20mm
Lead Length: 2500mm

Connection

U	V	W
Red	Blue	Black

Electrical Specification
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	600
Holding Torque(oz.in)	849.8
Inductance(mH)	19
No. of Phase	3
Phase Resistance(ohms)	2.3
Rated Current(A)	2.3
Step Angle(deg.)	1.2
Physical Specification
Body Length(mm)	125
Frame Size(mm)	Nema 34 (86 x 86)
Lead Length(mm)	2500
Product Series	S
Shaft Diameter(mm)	14
Shaft Length(mm)	29.5
