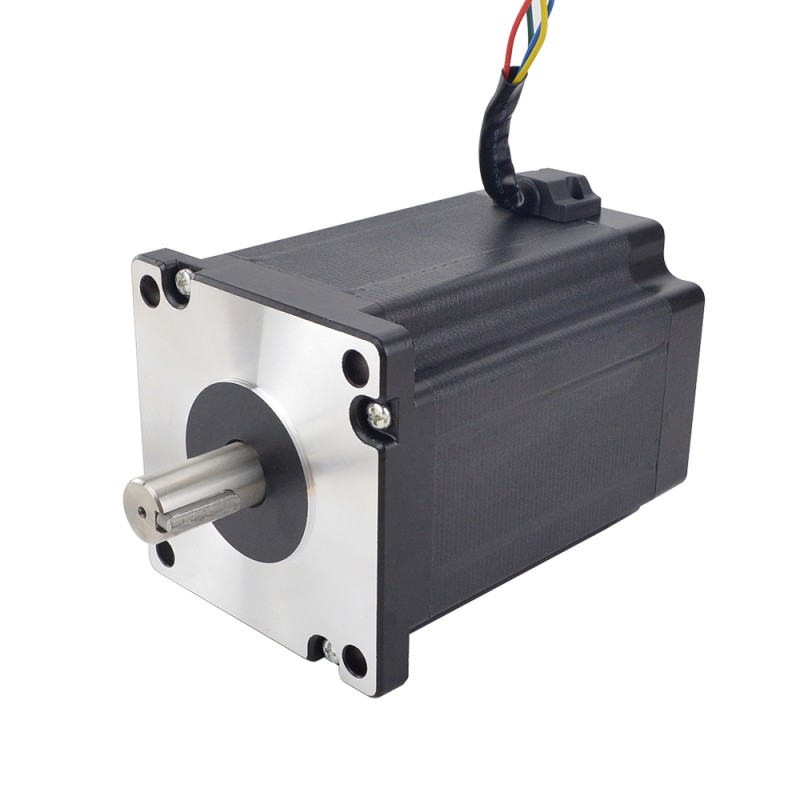

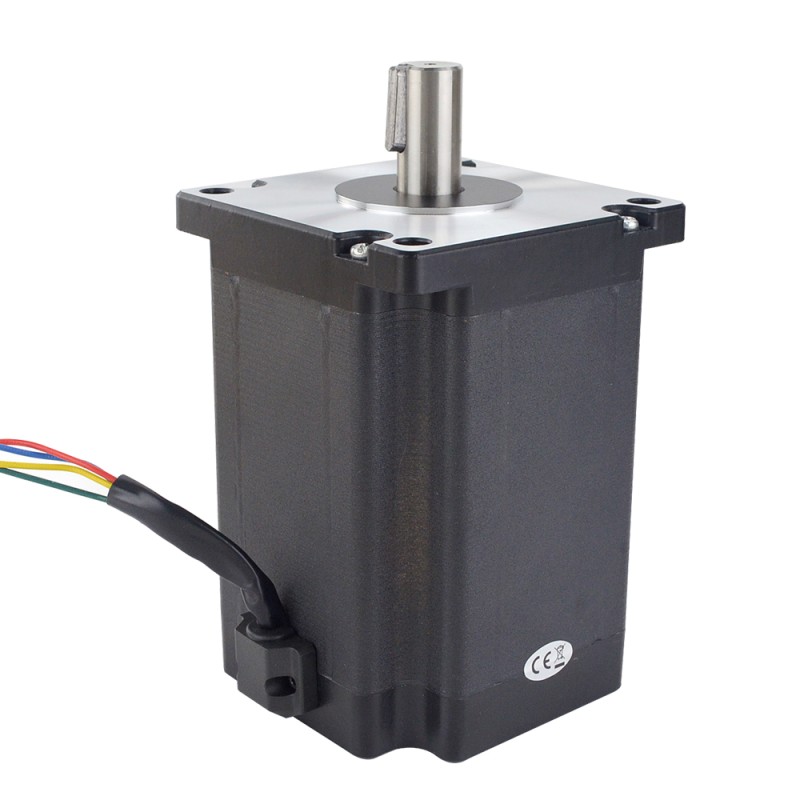

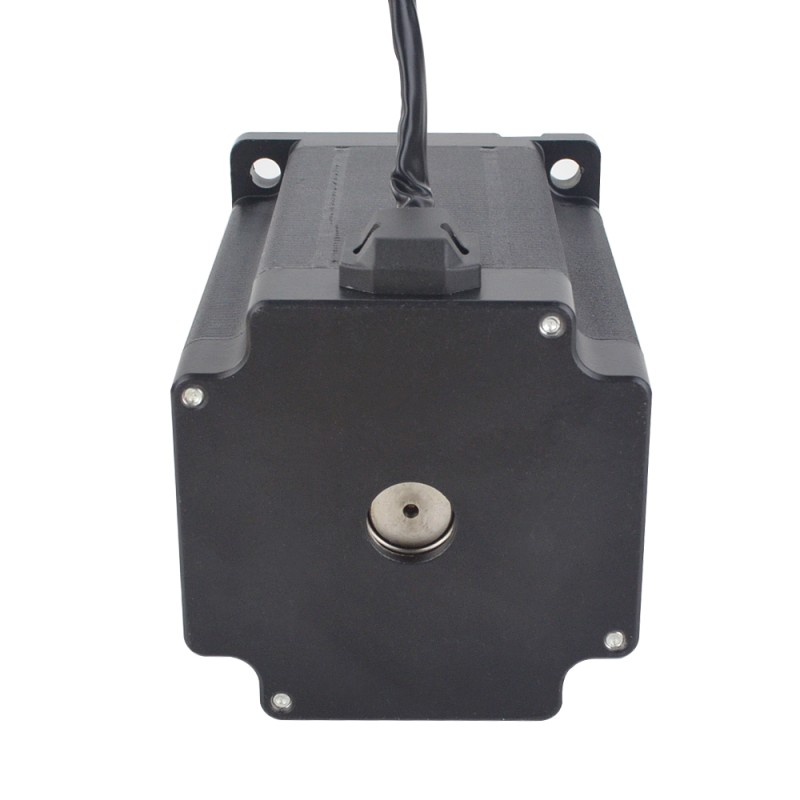

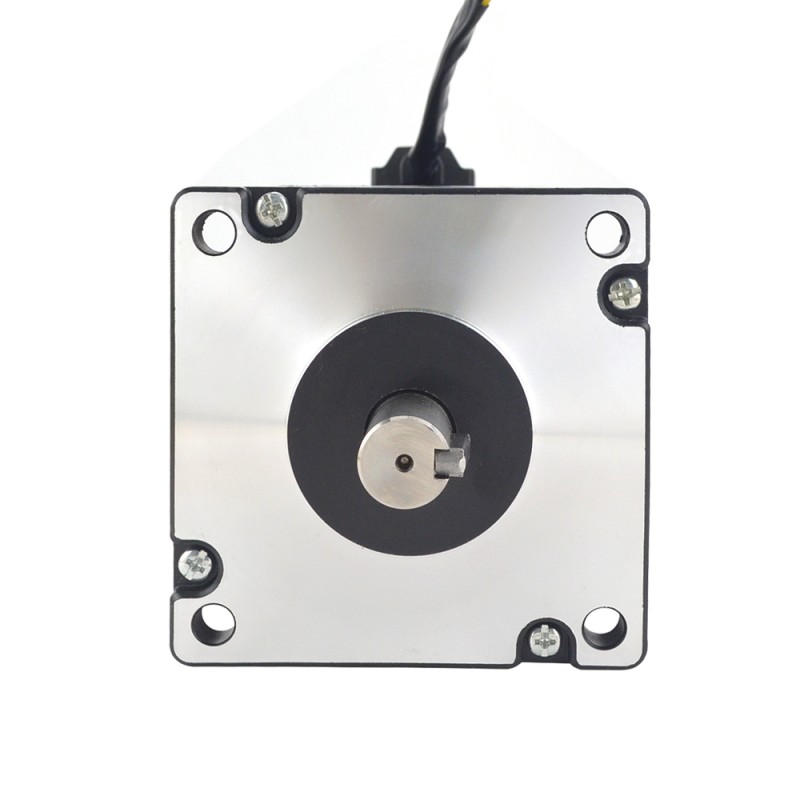

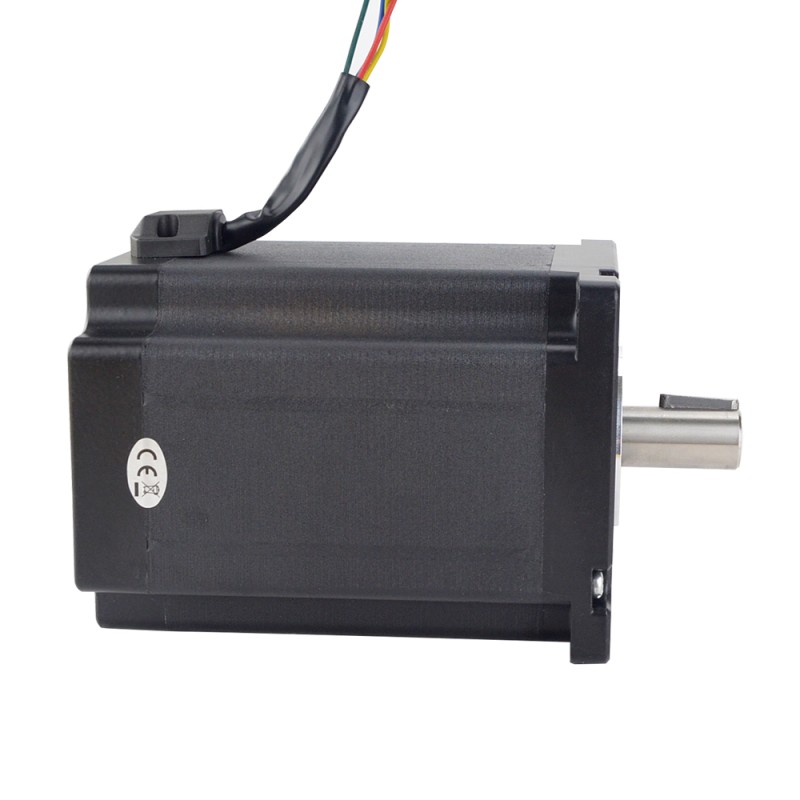

Nema 42 CNC Stepper Motor Bipolar 18 Nm(2549.52oz.in) 6.0A 110x150mm 4 Wires

Discontinued

Nema 42 CNC Stepper Motor Bipolar 18 Nm(2549.52oz.in) 6.0A 110x150mm 4 Wires

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 42HS59-6004S1
Gross Weight: 12.00kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 1

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 42HS59-6004S1
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 18 Nm(2549.52oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.75ohms
Inductance: 15.5mH ± 20%(1KHz)

Physical Specification

Frame Size: 110 x 110mm
Body Length: 150mm
Shaft Diameter: Φ19mm
Shaft Length: 40mm
Key Way Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 10.9kg

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

Resources

Full Datasheet: 42HS59-6004S1.pdf

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 42HS59-7004S.

Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque(Ncm)	1800
Holding Torque(oz.in)	2549.52
Inductance(mH)	15.5
Phase Resistance(ohms)	0.75
Rated Current(A)	6
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	150
Frame Size(mm)	Nema 42 (110 x 110)
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	Keyway
Product Series	S
Shaft Diameter(mm)	19
Shaft Length(mm)	40
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	10900
