Nema 8 Ball Screw Electric Cylinder 0.5A Stroke 20mm 0.01Nm(1.42oz.in) Lead 1mm(0.03937") with Limit Switch
0 reviews - Write a review
C$375.14
5 + C$353.29
10 + C$333.85
50 + C$316.42
100 + C$300.73
  • In Stock: Pre-order
  • Model: LCB8S12BSS05-20D
  • Gross Weight: 0.34kg
  • Certificated: ISO, CE

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

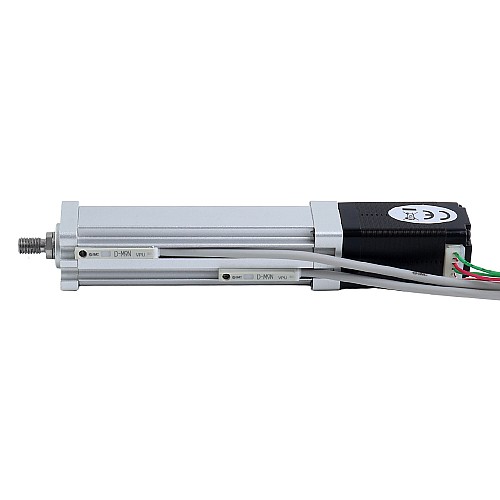

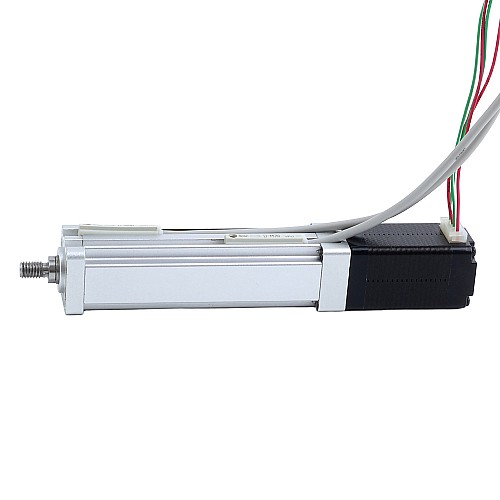

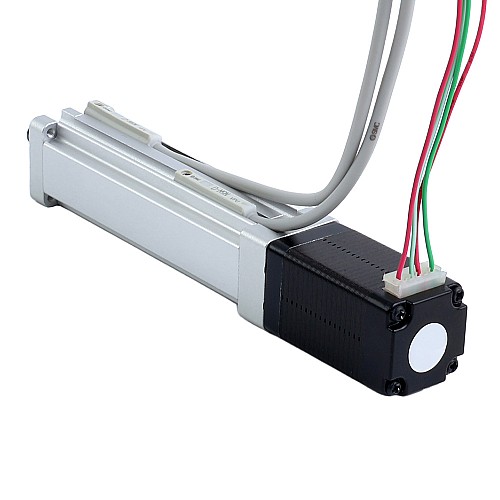

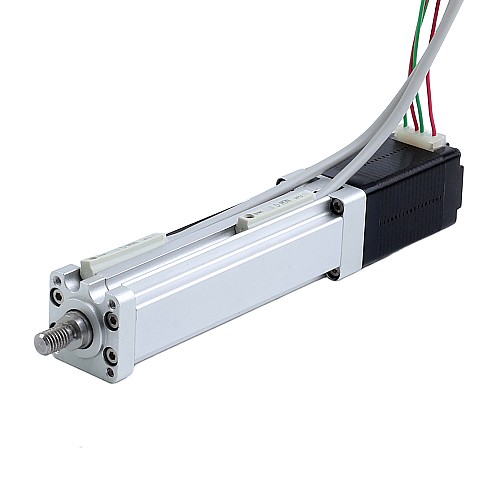

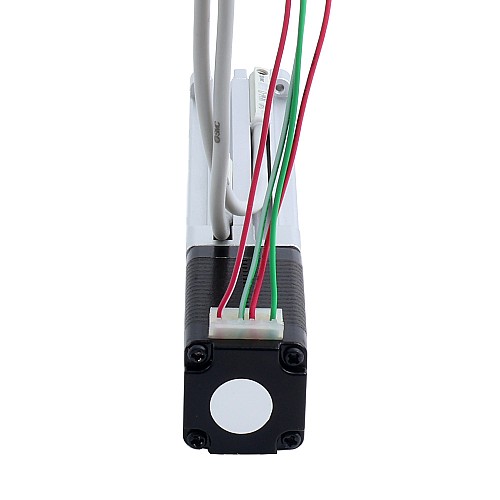

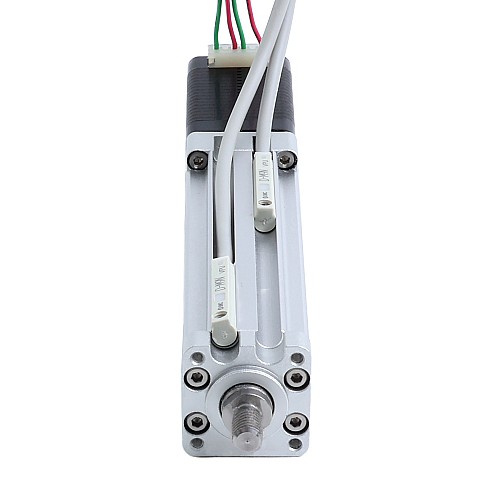

This LCB series mini electric cylinder integrates a Nema 8 stepper motor with a rated current of 0.5A and a body length of 30mm. It is equipped with a 4mm diameter ball screw that features a 1mm lead and a 20mm stroke length, forming a compact linear actuator ideal for a wide range of automation applications.
This electric cylinder can be optionally equipped with accessories such as an encoder, a handwheel, and a brake, thereby enhancing its functionality and flexibility to meet a variety of application requirements.

Electrical Specification

  • MPN: LCB8S12BSS05-20D
  • Screw Type: Ball Screw
  • Step Angle: 1.8deg
  • Holding Torque: 0.01Nm(1.42oz.in)
  • Rated Current/phase: 0.5A
  • Phase Resistance: 5.00ohms ± 10%
  • Inductance: 1.5mH ± 20%(1KHz)
  • Switch Output Type: NPN

Physical Specification

  • Motor Size: 20 x 20 x 30mm
  • Lead Screw Diameter: 4mm
  • Stroke Length: 20mm(0.7874")
  • Lead/Step: 0.005mm(0.00019685")
  • Lead/Revolution: 1mm(0.03937")
  • Number of Motor Wiring: 4
  • Motor Wiring Length: 320mm
  • Number of Limit Switches: 2
  • Limit Switch Wiring Length: 500mm
  • Weight: 0.14kg

Motor Connection

Pin No.
1
2
3
4
Bipolar
A+
A-
B+
B-
Wires
Red
Red/White
Green
Green/White

Magnetic Switch Wiring

Pin No.
1
2
3
Bipolar
DC 5~24V
GND
Signal Line
Wires
Brown
Blue
Black
Electrical Specification
Holding Torque(Ncm) 1
Holding Torque(oz.in) 1.42
Inductance(mH) 1.5
Phase Resistance(ohms) 5.00
Rated Current(A) 0.5
Step Angle(deg.) 1.8
Physical Specification
Frame Size(mm) Nema 08 (20 x 20)
Lead Screw Diameter(mm) 4
Lead Travel/Revolution(mm) 1
Lead Travel/Step(mm) 0.005
Linear Motor Type Ball Screw
Stroke Length(mm/ft) 20/0.07



File Size
LCB8S12BSS05-20D_Full_Datasheet.pdf 149.62KB Download
