8HS15-0604S-EGS5
Output Shaft TypeD
Single Shaft/Dual ShaftSingle Shaft
Frame Size(mm)Nema 08 (20 x 20)
Product TypeGeared Stepper Motor
Question

Downloads

8HS15-0604S-EGS5_Full_Datasheet.pdfPDF · 171.29KB8HS15-0604S-EGS5.STEPSTEP · 10.53MBLog in to download8HS15-0604S_torque_curve.pdfPDF · 213.05KB
Same series
ModelOutput Shaft TypeSingle Shaft/Dual ShaftFrame Size(mm)Product TypePriceStock
8HS11-0204S-EGS10DSingle ShaftNema 08 (20 x 20)Geared Stepper MotorC$74.30In stock
8HS11-0204S-EGS100DSingle ShaftNema 08 (20 x 20)Geared Stepper MotorC$105.79In stock
8HS11-0204S-EGS20DSingle ShaftNema 08 (20 x 20)Geared Stepper MotorC$90.05In stock
8HS11-0204S-EGS5DSingle ShaftNema 08 (20 x 20)Geared Stepper MotorC$74.30In stock
8HS11-0204S-EGS50DSingle ShaftNema 08 (20 x 20)Geared Stepper MotorC$90.05In stock
8HS15-0604S-EGS10DSingle ShaftNema 08 (20 x 20)Geared Stepper MotorC$77.95In stock
8HS15-0604S-EGS100DSingle ShaftNema 08 (20 x 20)Geared Stepper MotorC$109.43In stock
8HS15-0604S-EGS20DSingle ShaftNema 08 (20 x 20)Geared Stepper MotorC$93.68In stock
8HS15-0604S-EGS5DSingle ShaftNema 08 (20 x 20)Geared Stepper MotorC$77.95In stock
8HS15-0604S-EGS50DSingle ShaftNema 08 (20 x 20)Geared Stepper MotorC$93.68In stock

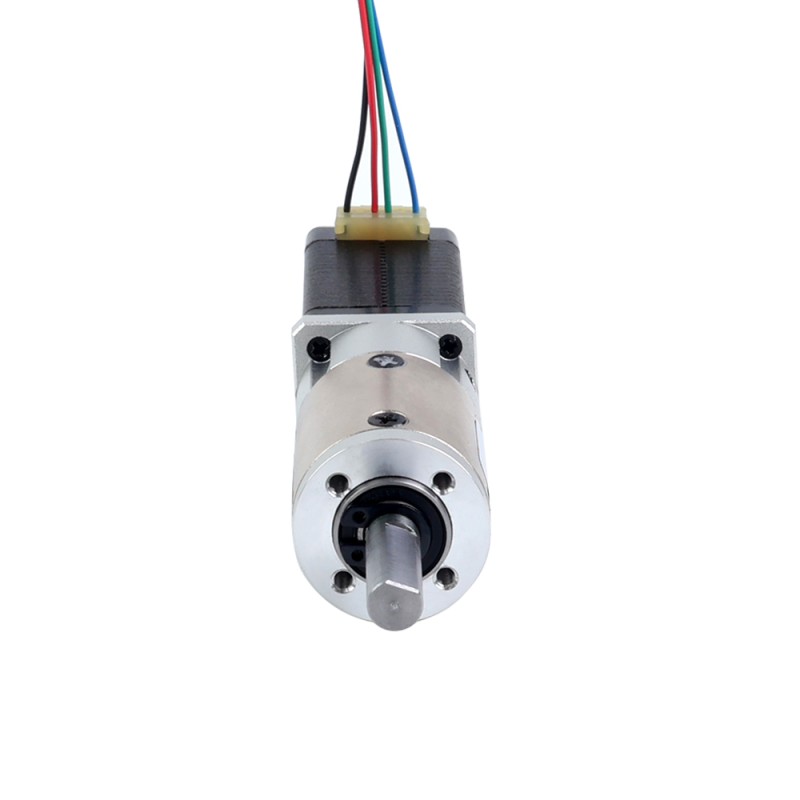

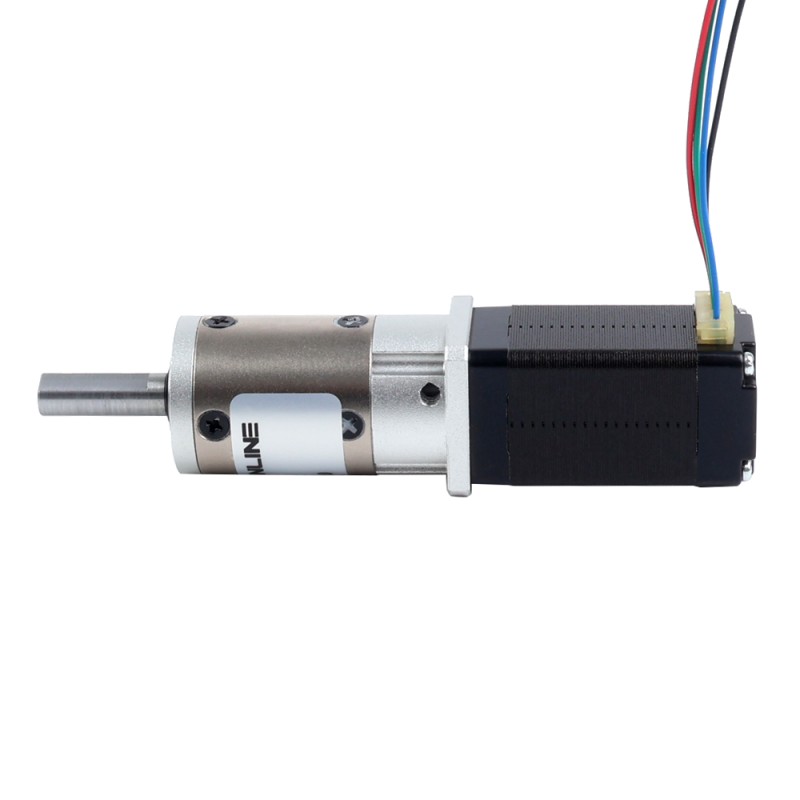

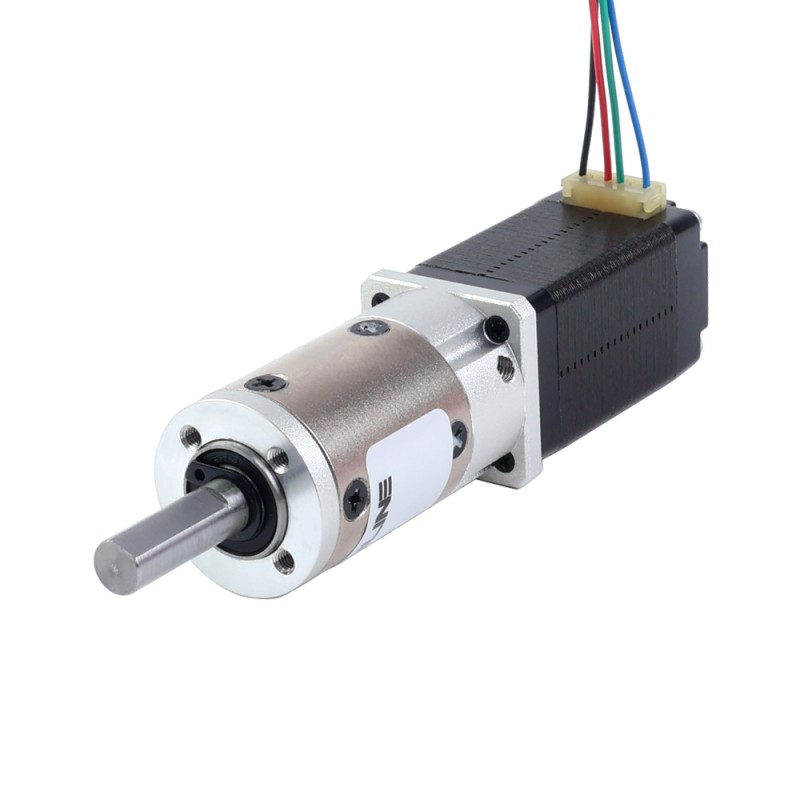

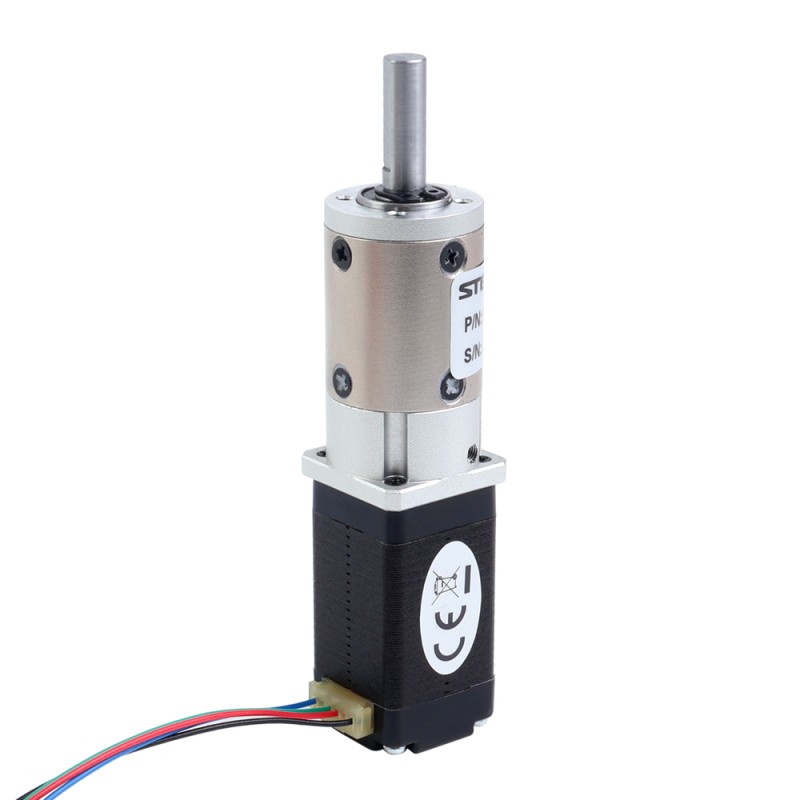

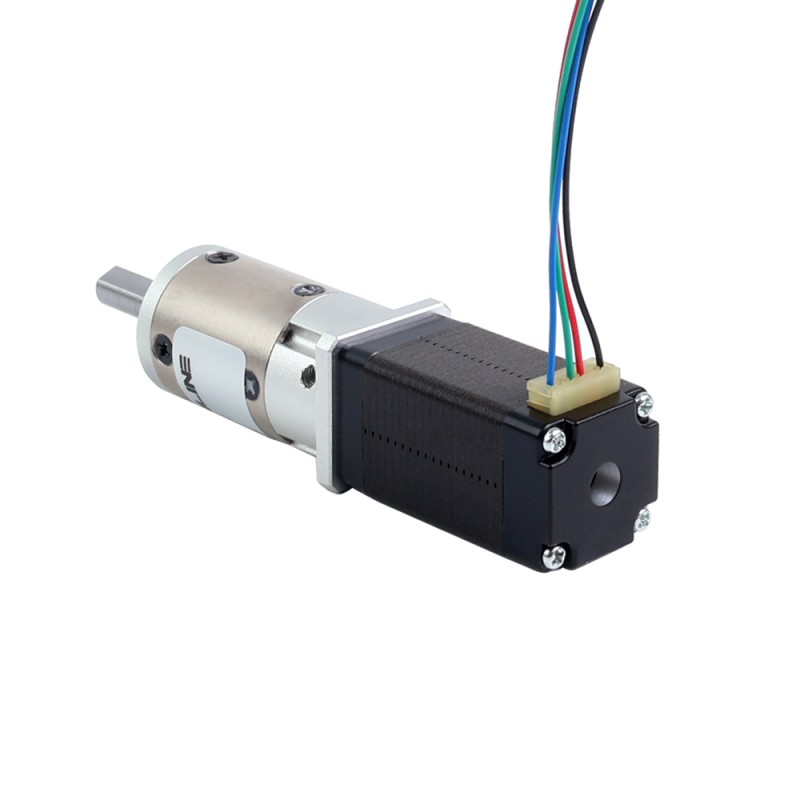

Nema 8 Stepper Motor Bipolar L=39.3mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox
This Nema 8 stepper motor comes with a holding torque of 0.04Nm(5.66oz.in) and is equipped with a hi... Read More
0 reviews • Write a review
from
C$77.95
5 + C$72.02
10 + C$66.95
50 + C$62.52
100 + C$58.67

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 8 stepper motor comes with a holding torque of 0.04Nm(5.66oz.in) and is equipped with a high-precision EG series gearbox with a gear ratio of 5:1. Compared to the motors with PG series gearboxes, precision and accuracy of this motor with EG series gearbox has been significantly improved, with a maximum backlash of up to 15arcmin.
With its superior precision and reliability, motors with EG series delivers outstanding performance, making it the ideal choice for applications where accuracy, durability and value are critical.

Electrical Specification

  • Part Number: 8HS15-0604S-EGS5
  • Motor Type: Bipolar Stepper
  • Holding Torque without Gearbox: 0.04Nm(5.66oz.in)
  • Rated Current/phase: 0.60A
  • Phase Resistance: 11.00ohms±10%
  • Inductance: 5.50mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Gearbox Specifications

  • Gearbox Type: Spur Planetary
  • Gear Material: Alloy Steel
  • Gear Ratio: 5:1
  • Efficiency: 96%
  • Backlash at No-load:<=15arcmin
  • Maximum Permissible Torque: 2.00Nm(283.22oz.in)
  • Moment Permissible Torque: 4.00Nm(566.45oz.in)

Physical Specification

  • Frame Size: 22 x 22mm
  • Motor Length: 39.3mm
  • Gearbox Length: 40mm
  • Output Shaft Type: D-cut
  • Output Shaft Diameter: Φ6mm
  • Output Shaft Length: 19.5mm

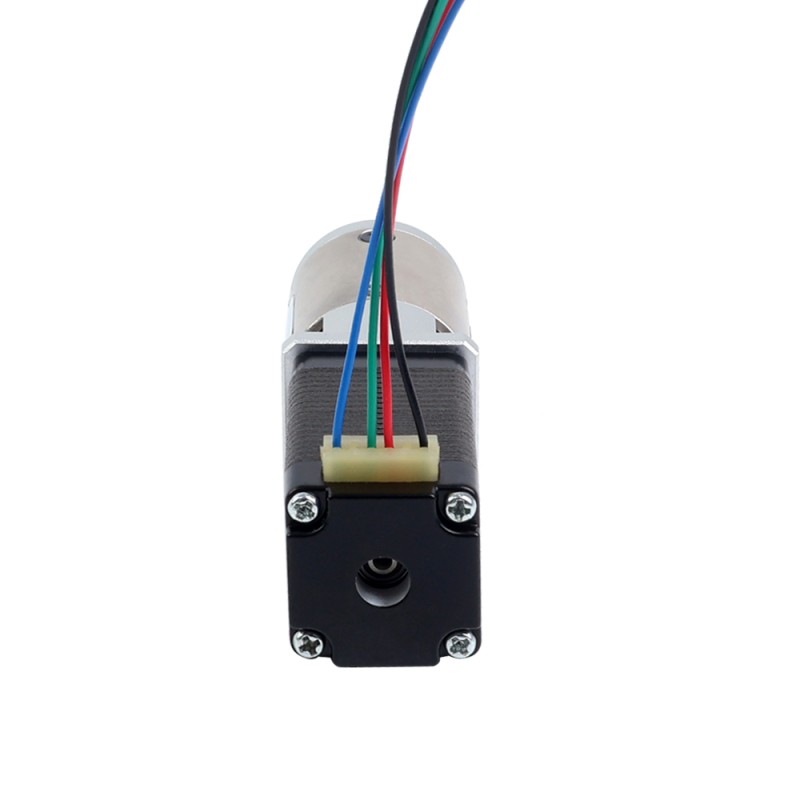

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product TypeGeared Stepper Motor
Electrical Specification
Bipolar/UnipolarBipolar
Current(A)0.6
Has Torque/Thrust Curve?No
Holding Torque w/o Gearbox(N.m)0.04
Inductance(mH)5.5
Phase Resistance(ohms)11.0
Physical Specification
Backlash at No-load<=15 arcmin
Frame Size(mm)Nema 08 (20 x 20)
Gear MaterialAlloy Steel
Gear Ratio(xx:1)5
Gearbox TypePrecision Planetary
IP Rating40
No. of Lead4
Output Shaft TypeD
Shaft Diameter(mm)6
Shaft Length(mm)19.5
Single Shaft/Dual ShaftSingle Shaft

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

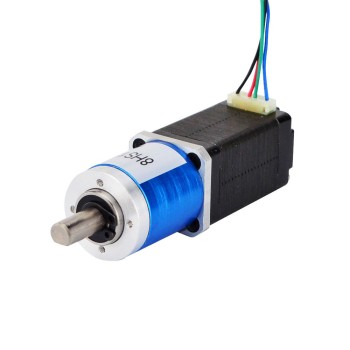

Nema 8 Stepper Motor Bipolar L=38mm w/ Gear Ratio 19:1 Planetary Gearbox
