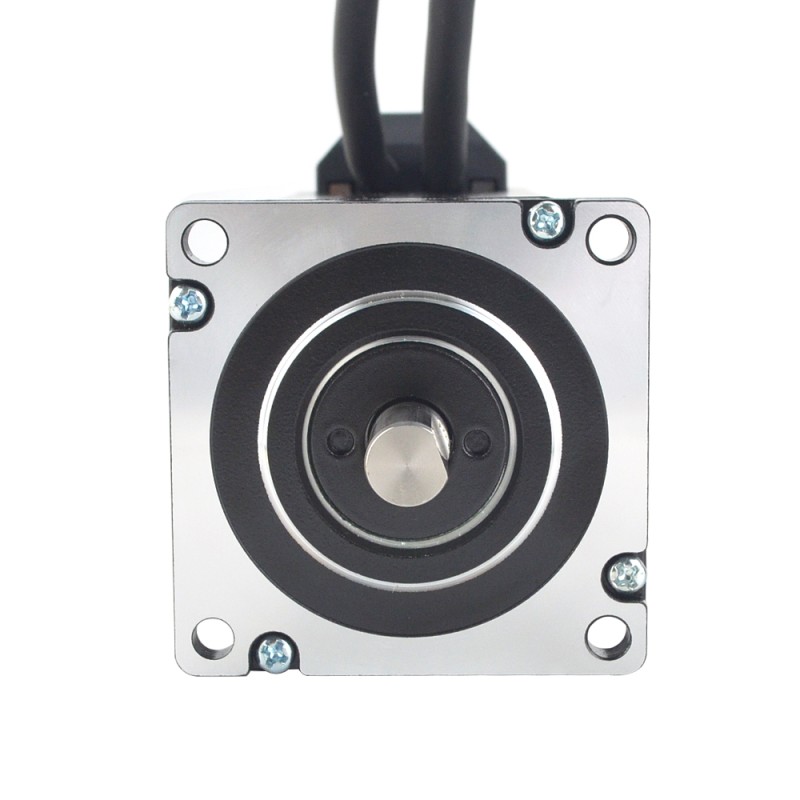

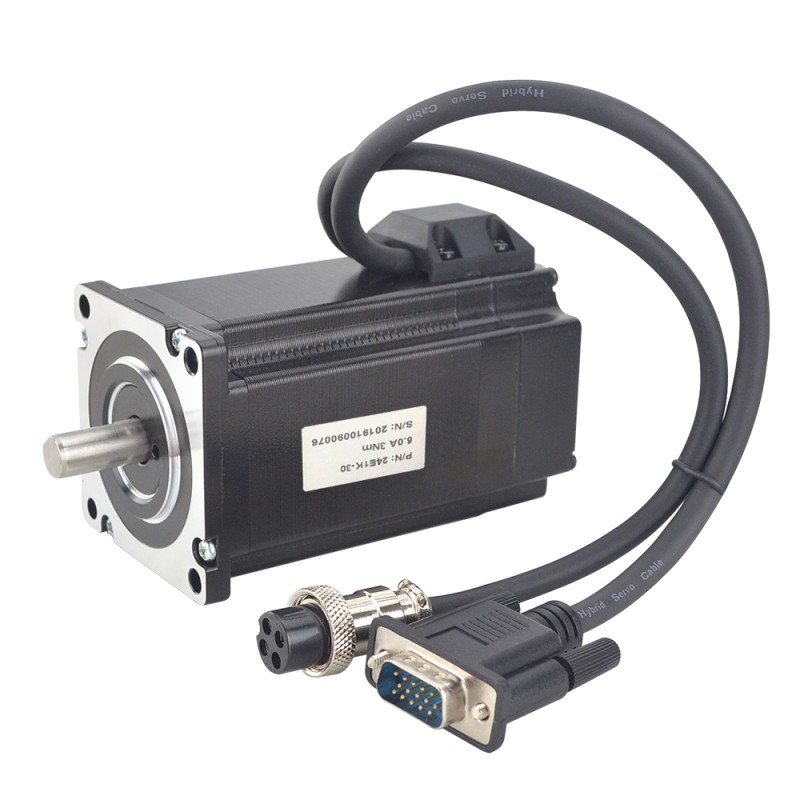

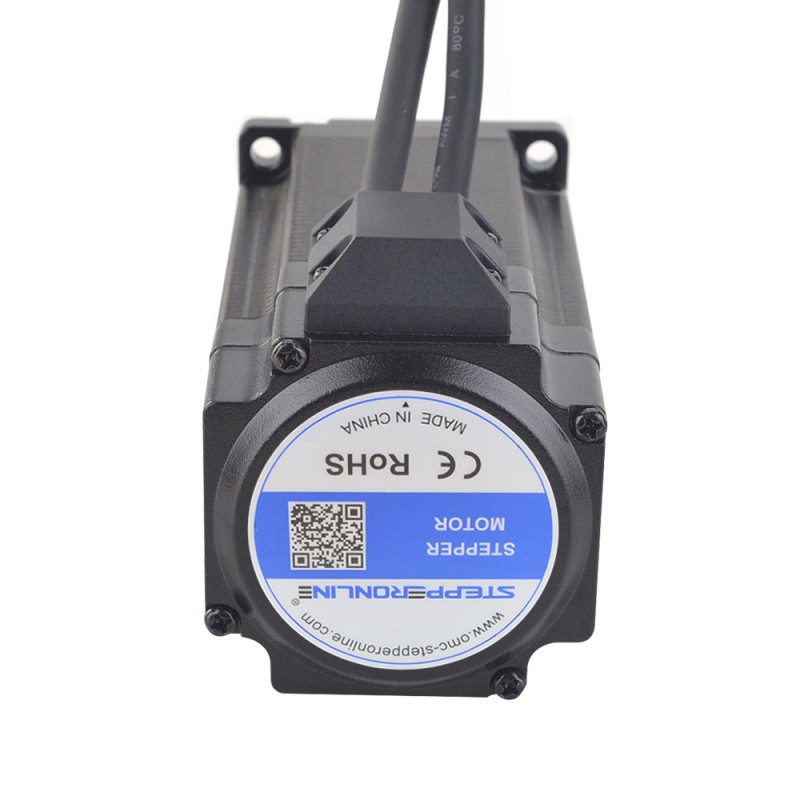

P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.83oz.in) with Encoder 1000PPR(4000CPR)

P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.83oz.in) with Encoder 1000PPR(4000CPR) - 24E1K-30 | StepperOnline CA
P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.83oz.in) with Encoder 1000PPR(4000CPR) - 24E1K-30 | StepperOnline CA
P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.83oz.in) with Encoder 1000PPR(4000CPR) - 24E1K-30 | StepperOnline CA
P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.83oz.in) with Encoder 1000PPR(4000CPR) - 24E1K-30 | StepperOnline CA
P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.83oz.in) with Encoder 1000PPR(4000CPR) - 24E1K-30 | StepperOnline CA
P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.83oz.in) with Encoder 1000PPR(4000CPR) - 24E1K-30 | StepperOnline CA
P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.83oz.in) with Encoder 1000PPR(4000CPR) - 24E1K-30 | StepperOnline CA
P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.83oz.in) with Encoder 1000PPR(4000CPR) - 24E1K-30 | StepperOnline CA
P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.83oz.in) with Encoder 1000PPR(4000CPR) - 24E1K-30 | StepperOnline CA
P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.83oz.in) with Encoder 1000PPR(4000CPR) - 24E1K-30 | StepperOnline CA
P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.83oz.in) with Encoder 1000PPR(4000CPR) - 24E1K-30 | StepperOnline CA
P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.83oz.in) with Encoder 1000PPR(4000CPR) - 24E1K-30 | StepperOnline CA
P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.83oz.in) with Encoder 1000PPR(4000CPR) - 24E1K-30 | StepperOnline CA
P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.83oz.in) with Encoder 1000PPR(4000CPR) - 24E1K-30 | StepperOnline CA
24E1K-30
Shaft Diameter(mm)10
Shaft Length(mm)21
Output Signal Channels2
Holding Torque(Ncm)300
Question

Downloads

24E1K-30_Torque_Curve.pdfPDF · 185.96KB24E1K-30_Full_Datasheet.pdfPDF · 182.61KB24E1K-30.STEPSTEP · 7.63MBLog in to download
Same series
ModelShaft Diameter(mm)Shaft Length(mm)Output Signal ChannelsHolding Torque(Ncm)PriceStock
24E1K-3010212300C$69.89In stock
24HS34-5004D-E100010212300C$48.94In stock
24HS34A-5004D-E10008302300C$48.81In stock
24HS40-5004-ME1K10213400C$47.78In stock
24HS40-5004D-E100010212400C$53.46In stock
24HS40A-5004D-E10008302400C$53.33In stock

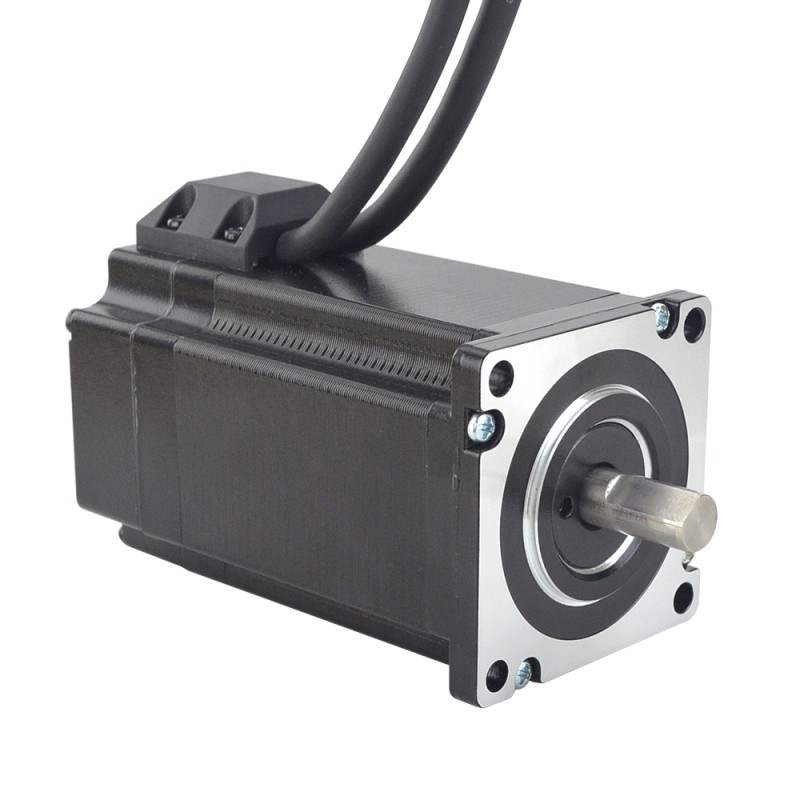

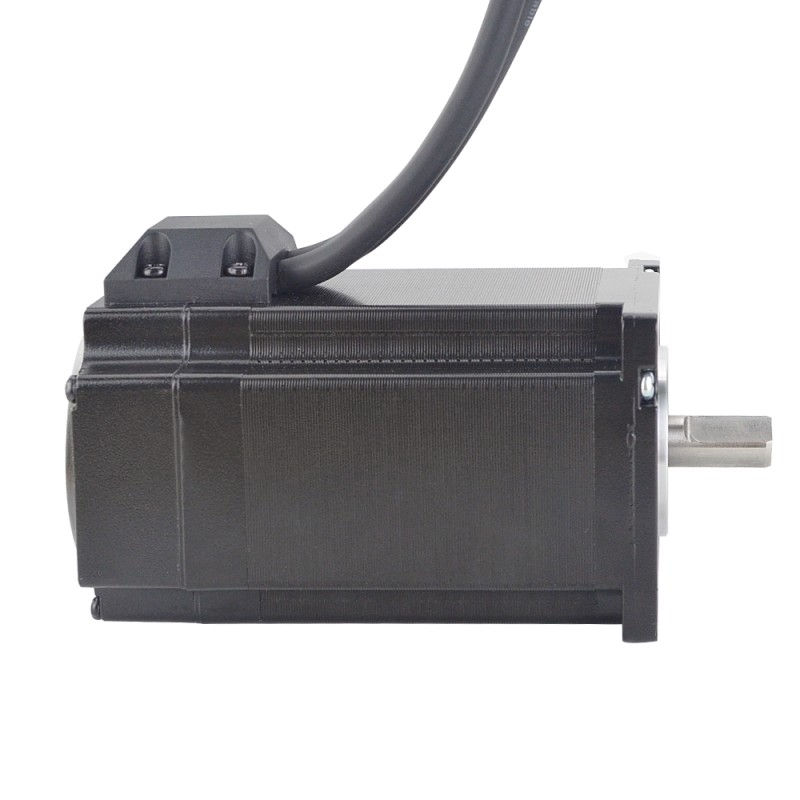

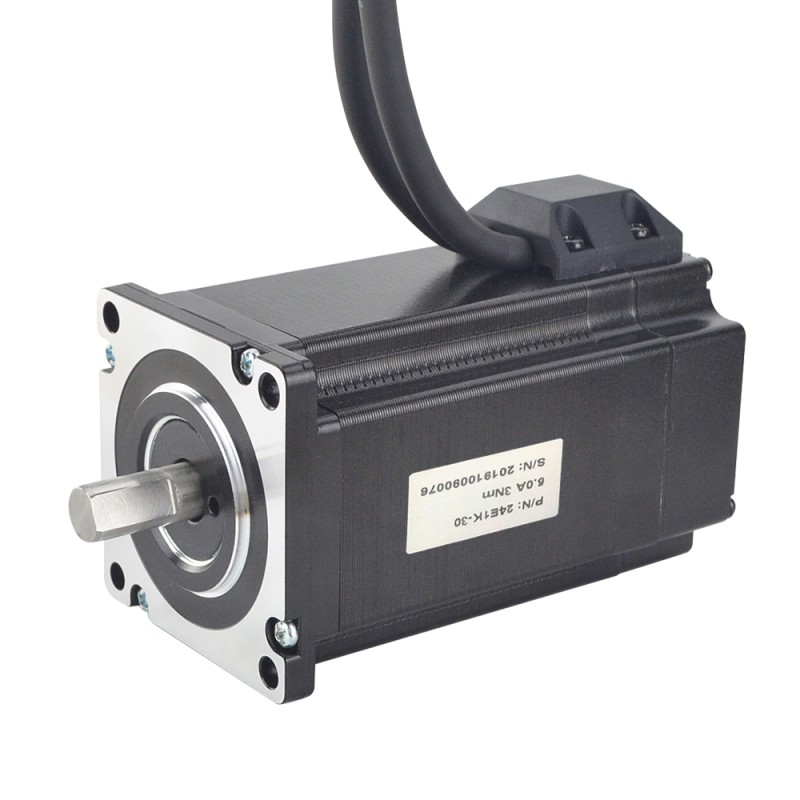

P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.83oz.in) with Encoder 1000PPR(4000CPR)
Electrical SpecificationManufacturer Part Number: 24E1K-30 Number of phase: 2 Step Angle: 1.8... Read More
0 reviews • Write a review
from
C$69.89
5 + C$67.02
10 + C$64.37
50 + C$61.90
100 + C$59.64

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

  • Manufacturer Part Number: 24E1K-30
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 3Nm(424.83oz.in)
  • Rated Current/phase: 5.0A
  • Phase Resistance: 0.45ohms
  • Inductance: 1.8mH ± 20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 60 x 60mm
  • Body Length: 107mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 21mm
  • D-Cut Shaft Length: 15mm
  • Lead Length: 270mm
  • Weight: 1.3kg

Encoder Specification

  • Output Circuit Type: Differential type
  • Encoder Type: Optical Incremental
  • Output Signal Channels: 2 channels
  • Supply Voltage Min: 5V
  • Supply Voltage Max: 5V
  • Output High Voltage: ＜4V
  • Output Low Voltage: ＜1V

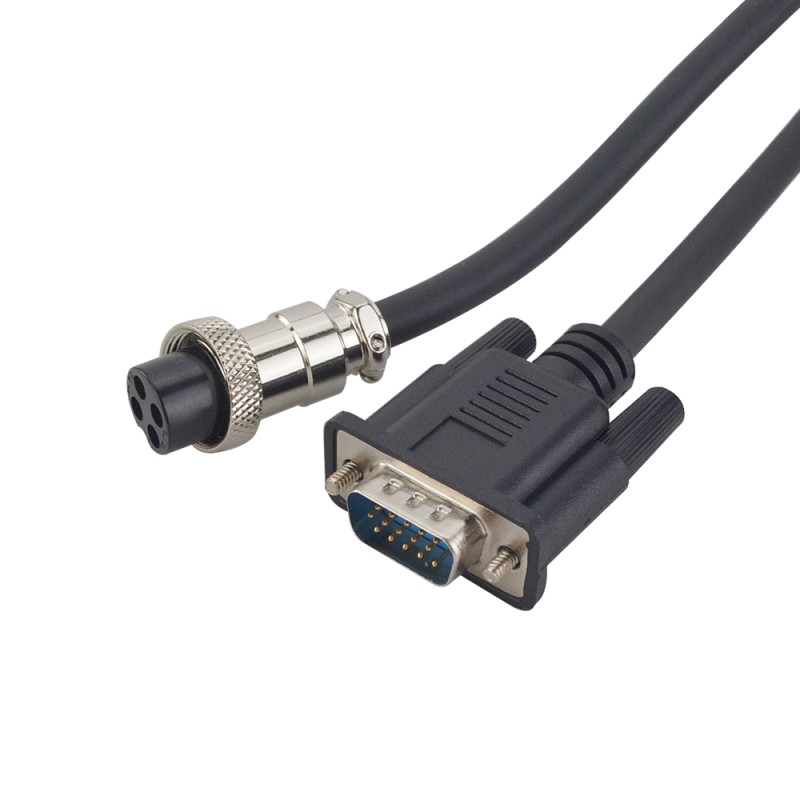

Connection

PIN
1
2
3
4
Motor
A+
A-
B+
B-

PIN
2
3
1
13
11
12
Encoder
VCC
EGND
EA+
EA-
EB+
EB-
Product Type
Product TypeClosed Loop Stepper Motor
Electrical Specification
Encoder Resolution1000PPR
Encoder TypeOptical Incremental
Has Torque/Thrust Curve?Yes
Holding Torque(Ncm)300
Holding Torque(oz.in)424.83
Inductance(mH)1.8
Output Circuit TypeDifferential
Output Signal Channels2
Phase Resistance(ohms)0.45
Rated Current(A)5.0
Physical Specification
Body Length(mm)107
Frame Size(mm)Nema 24 (60 x 60)
Product SeriesP
Shaft Diameter(mm)10
Shaft Length(mm)21

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Digital Stepper Driver 1.0-4.5A 18-50VDC for Nema 17, 23, 24 Stepper Motor
🔥 Bestseller
Digital Stepper Driver 1.0-4.5A 18-50VDC for Nema 17, 23, 24 Stepper Motor
The DM542T is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It has achie..
from
C$28.49
Add to Cart
Add to Wish List Compare this Product
Quickview

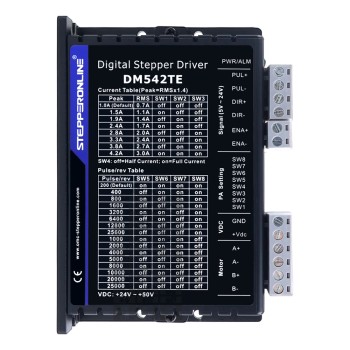

TE Series Digital Stepper Driver 1.0-4.2A 24-50VDC for Nema 17, 23 Motor
