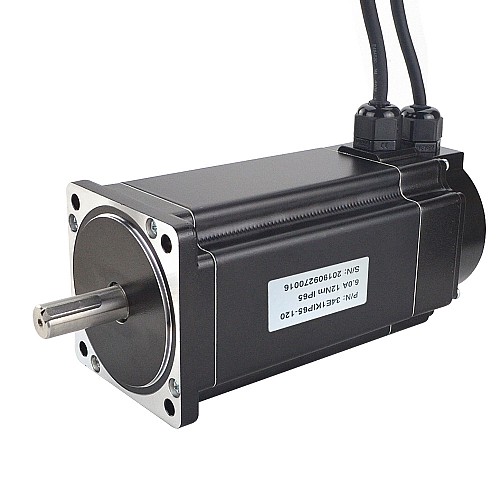

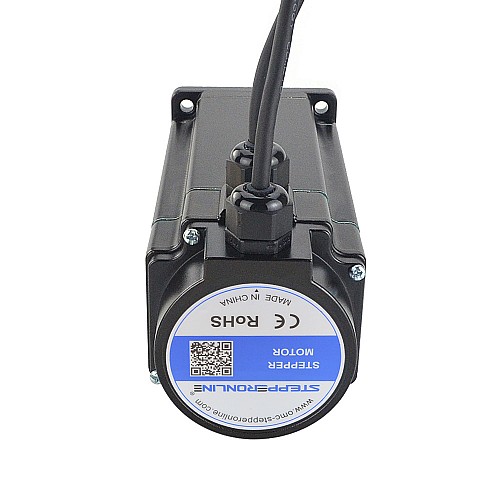

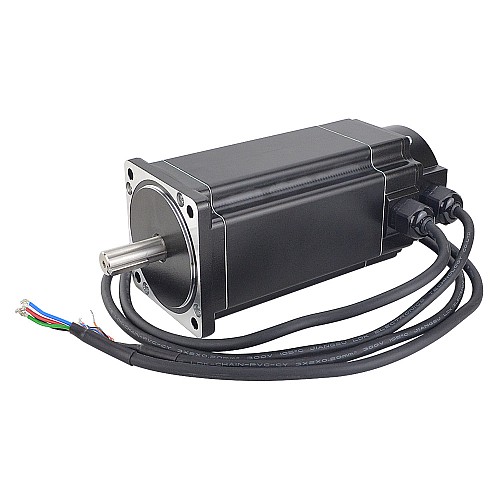

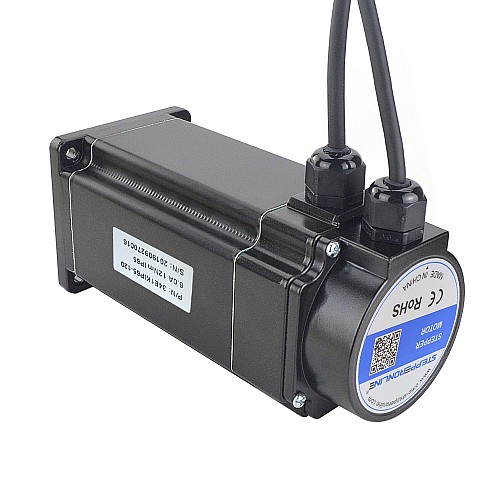

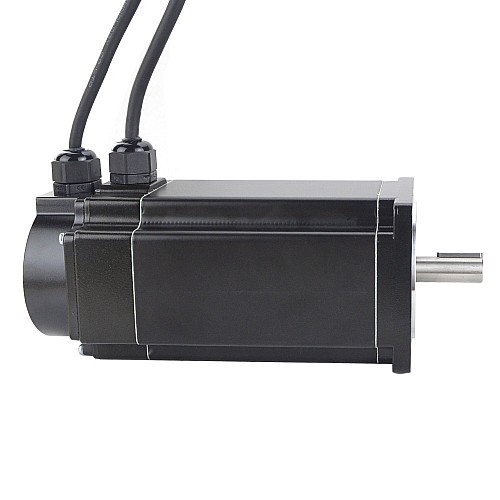

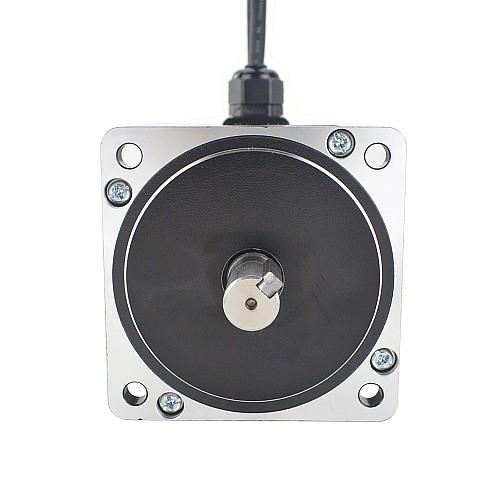

P Series Ip65 Waterproof Nema 34 Closed Loop Stepper Motor 12Nm(1700oz.in) with Encoder 1000PPR(4000CPR)

0 reviews - Write a review

C$212.93

5 + C$200.58

10 + C$189.59

50 + C$179.75

100 + C$170.87

In Stock: 10000
Model: 34E1KIP65-120
Gross Weight: 6.30kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This P series closed loop nema 34 stepper motor with IP65 waterproof ratings and 12Nm(1700oz.in), that meaning this IP65 stepper motor can be totally protected against dust, and can be protected against low pressure jets if water from all directions - limited ingress permitted.

Electrical Specification

Manufacturer Part Number: 34E1KIP65-120
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 12Nm(1700oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.72ohms
Inductance: 7.3mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 164.5mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
keyway Length: 25mm
Lead Length: 1000mm
IP Rating: IP65
Weight: 5.0kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2channels
Supply Voltage Min: 5V
Supply Voltage Max: 5V
Output High Voltage: ＜4V
Output Low Voltage: ＜1V

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

EGED	+5VCC	EA-	EA+	EB-	EB+
Black	Red	Blue/White	Blue	Orange/White	Orange

Product Type
Product Type	Waterproof Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Encoder Resolution	1000PPR(4000CPR)
Encoder Type	Incremental
Holding Torque(Ncm)	1200
Holding Torque(oz.in)	1700
Inductance(mH)	7.3
Insulation Class	B 130C(266F)
Open-loop/Closed-loop	Closed-loop
Phase Resistance(ohms)	0.72
Rated Current(A)	6.0
Physical Specification
Body Length(mm)	164.5
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	65
Lead Length(mm)	1000
Output Shaft Type	D
Shaft Diameter(mm)	14
Shaft Length(mm)	37
Single Shaft/Dual Shaft	Single Shaft
Weight(Kg)	5.0
