Name: RSD-60G-12 | RSD-60G-12 MEANWELL 12V 5A 60W Reliable Railway DC-DC Converter | StepperOnline CA
Brand: MEANWELL
SKU: RSD-60G-12
Price: 48 CAD
Availability: InStock

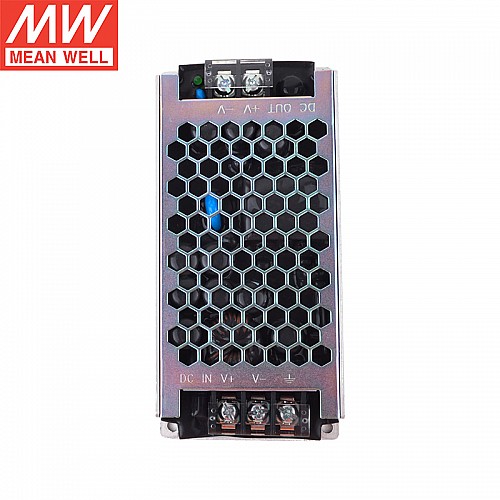

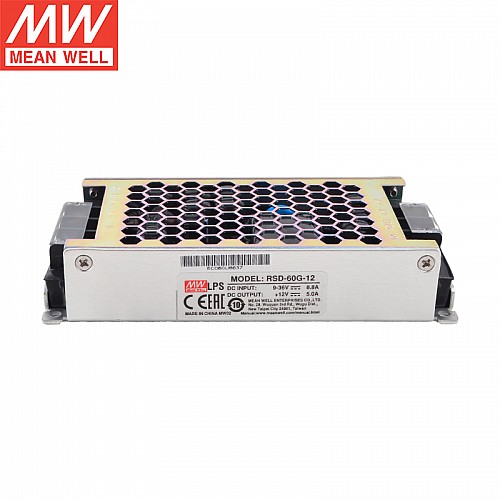

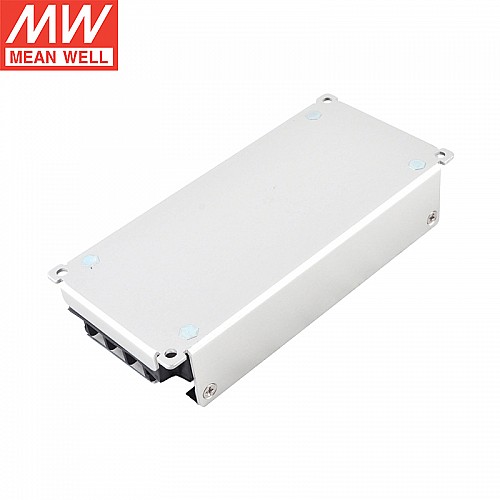

RSD-60G-12 MEANWELL 12V 5A 60W Reliable Railway DC-DC Converter

0 reviews - Write a review

C$48.00

5 + C$46.74

10 + C$45.91

50 + C$45.07

100 + C$43.82

In Stock: 10000
Brand: MEANWELL
Model: RSD-60G-12
Gross Weight: 0.40kg
Certificated: ISO, CE, RoHS

Sold: 25

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Features

Brand MEANWELL
12V DC 5A output
DC input voltage range: 9 ~ 36VDC
Rated power: 60W
Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
Ultra compact and 1U low profile(25mm)
4 : 1 wide input range
No minimum load required
Protections: Short circuit / Overload / Over voltage / Input reverse polarity
4000VDC I/O isolation (Reinforced isolation)
Half encapsulated, cooling by free air convection
-40~+70℃wide working temperature
Built-in constant current limiting circuit
LED indicator for power on
3 years warranty

Applications

Bus, tram, metro or railway system
Highly vibrating, highly dusty, extremely low or high temperature harsh environment
Wireless network
Telecom or datacom system
Industry control system

Electrical Specification
Efficiency(%)	92
Max. Output Current(A)	5
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	128 x 60 x 25
Input Voltage(VAC/VDC)	9 - 36
Output Voltage(VDC)	12
PFC Function	No
Power Type	DC-DC Converter
Power(W)	60
Physical Specification
Inventory Method	Shared Inventory
