Name: RSP-1500-12 | RSP-1500-12 MEANWELL 1500W 12VDC 125A 115/230VAC Power Supply With Single Output | StepperOnline CA
Brand: MEANWELL
SKU: RSP-1500-12
Price: 781.93 CAD
Availability: PreOrder

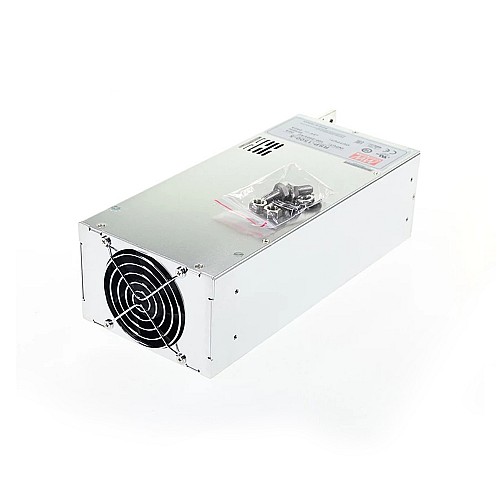

RSP-1500-12 MEANWELL 1500W 12VDC 125A 115/230VAC Power Supply With Single Output

0 reviews - Write a review

C$781.93

5 + C$759.11

10 + C$737.57

50 + C$717.22

100 + C$697.97

In Stock: Pre-order
Brand: MEANWELL
Model: RSP-1500-12
Gross Weight: 3.00kg
Certificated: ISO, CE, RoHS

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

Brand MEANWELL
12V DC 125A output
AC input voltage range: 90 ~ 264VAC
Rated power: 1500W
Universal AC input / Full range
Built-in active PFC function
High efficiency up to 91%
Forced air cooling by built-in DC Fan
Output voltage programmable
Active current sharing up to 4000W(3+1)
Built-in remote ON-OFF control / remote sense / auxiliary power / DC OK signal
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
5 years warranty

Applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
RF application

Electrical Specification
Efficiency(%)	87%
Max. Output Current(A)	125
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	278 x 127 x 83.5
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	90 - 264 / 127 - 370
Output Voltage(VDC)	12
PFC Function	Yes
Power Type	Switching Power Supply
Power(W)	1500
Physical Specification
Inventory Method	Shared Inventory
