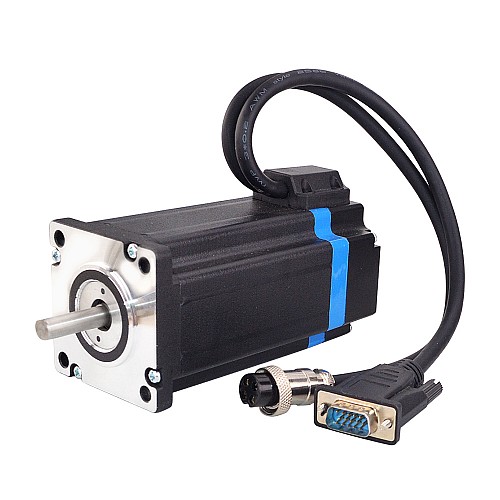

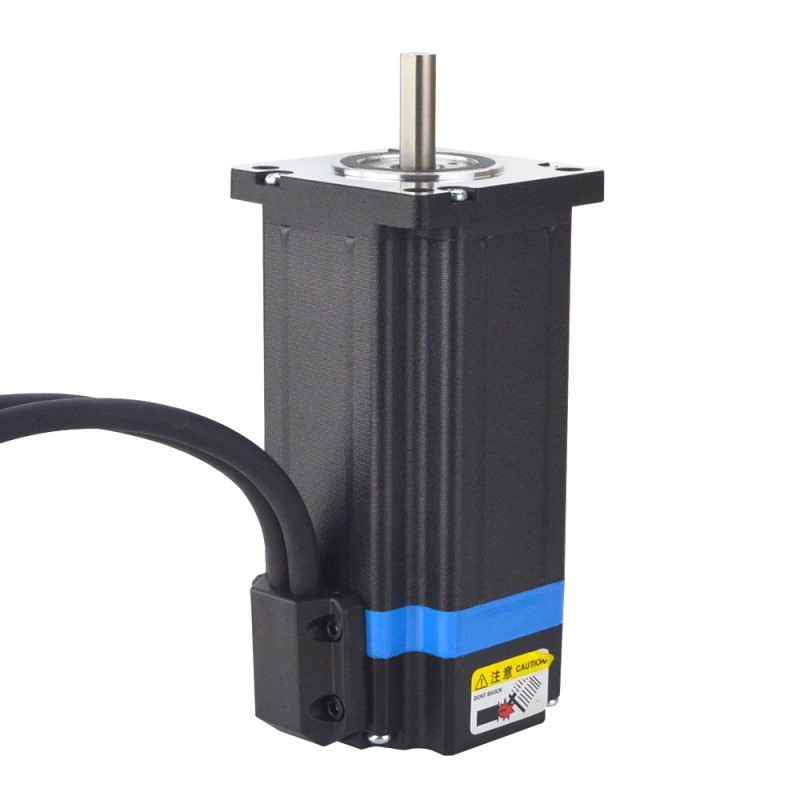

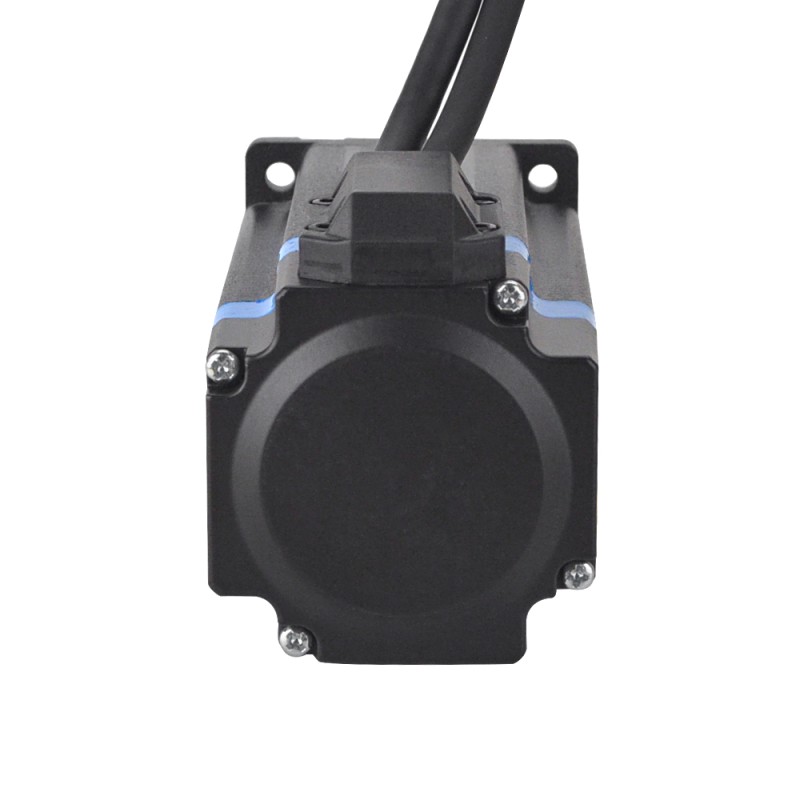

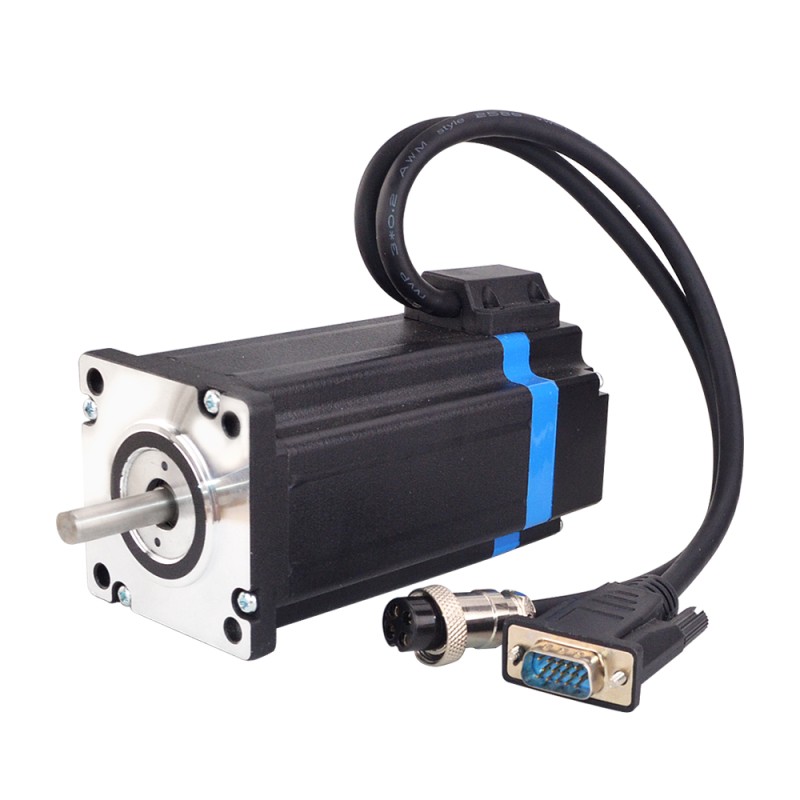

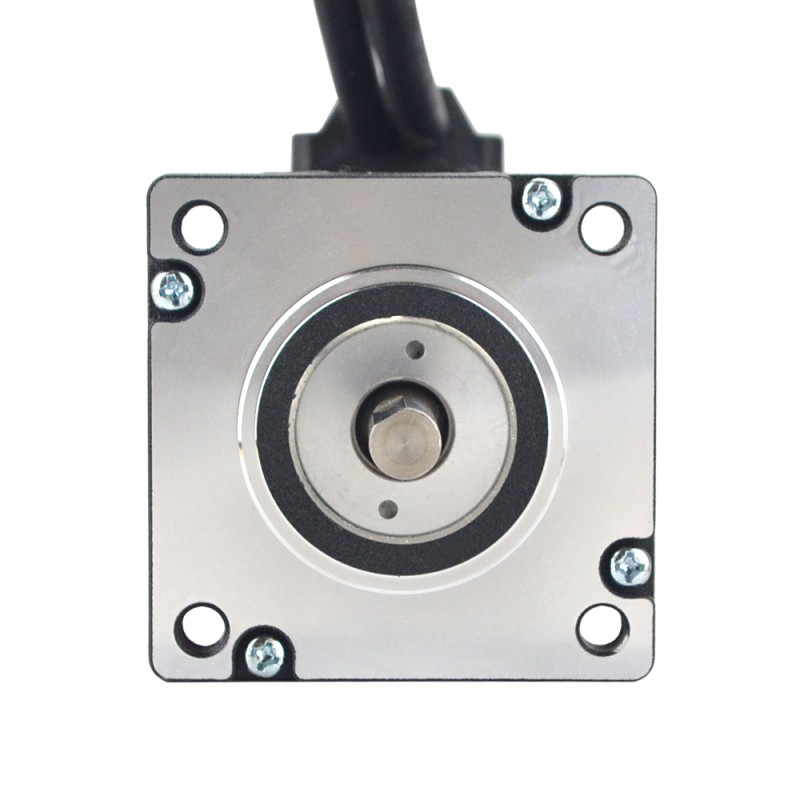

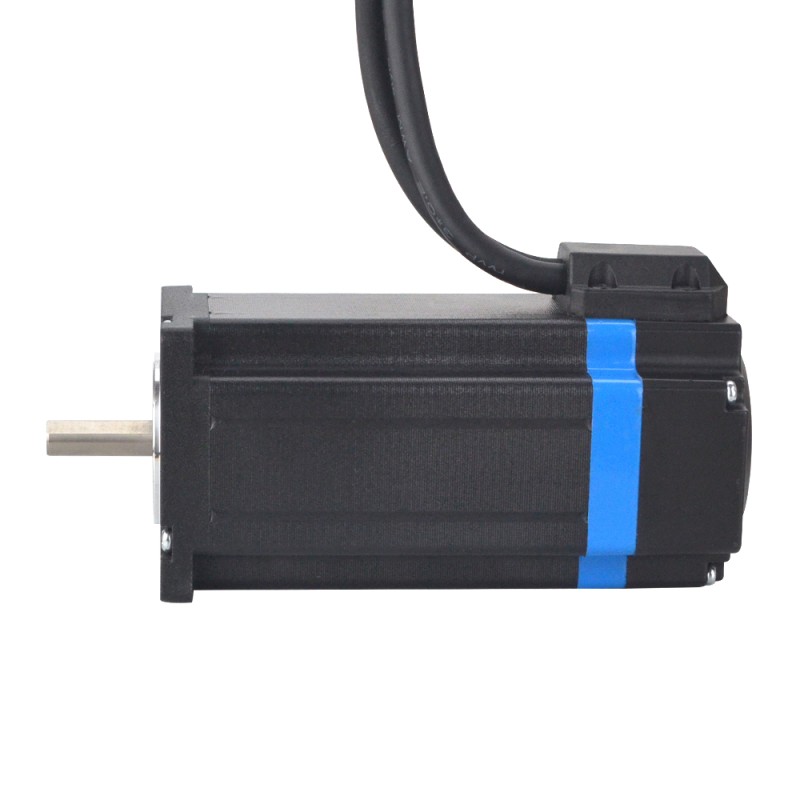

S Series Nema 24 Closed Loop Stepper Motor 4.25 Nm/601.97 oz.in Encoder 1000PPR(4000CPR)

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 24HS40-5804D-E1000
Gross Weight: 2.00kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Motor Specification

Manufacturer Part Number: 24HS40-5804D-E1000
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Frame Size: 60 x 60mm
Holding Torque: 4.25 N.m(601.97 oz.in)
Rated Current/phase: 5.8 A
Shaft Diameter: Φ8 mm
Full D-cut Shaft Length: 25 mm
Phase Resistance: 0.82 ohm
Inductance: 2.7 mH ± 20%(1KHz)
Number of Leads: 4
Lead Length: 300 mm

Encoder Specification

Driving Voltage : 5V
Output current : 55mA
Resolution : 1000ppr
Output Signal : 2 Channels
Bore Diameter : Φ8mm
Output Frequency : ≤1MHz
Running Speed : ≤5000rpm
IP Protection : IP20

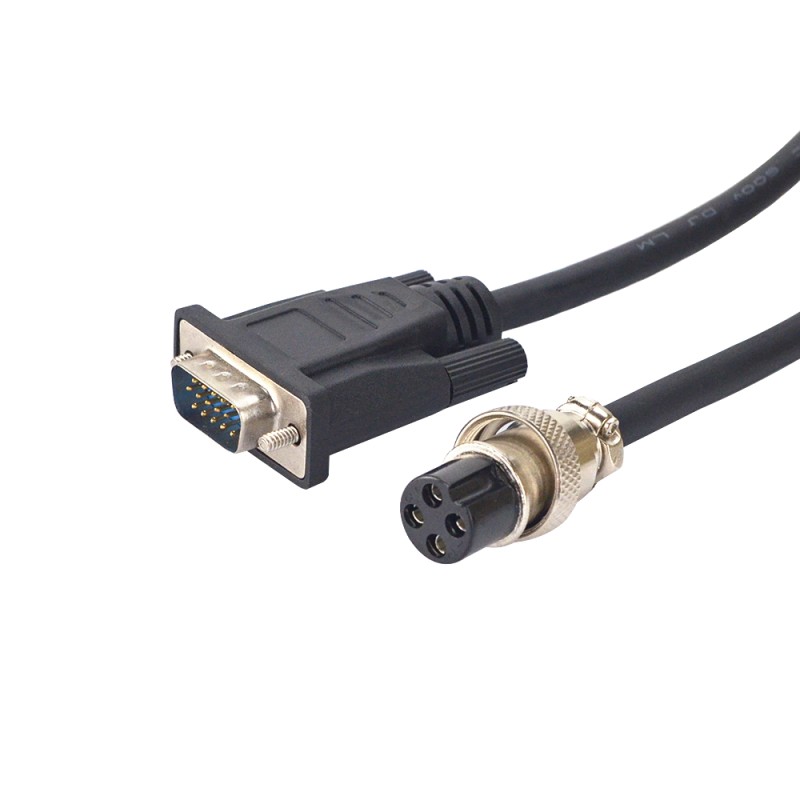

Connection

A+	A-	B+	B-
White	Green	Blue	Black

Resources

Motor Datasheet: 24HS40-5804D-E1000.pdf
Torque Curve: 24HS40-5804D-E1000 Torque Curve.pdf

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 24HS40-5004D-E1000.
