Name: SDR-75-48 | SDR-75-48 MEANWELL 76.8W 48VDC 1.6A 115/230VAC Single Output Industrial DIN RAIL With Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: SDR-75-48
Price: 49.39 CAD
Availability: PreOrder

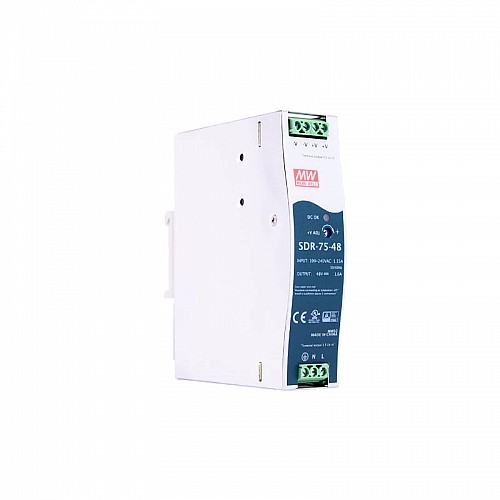

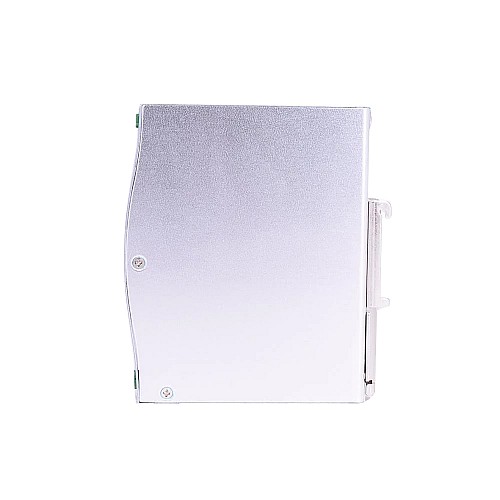

SDR-75-48 MEANWELL 76.8W 48VDC 1.6A 115/230VAC Single Output Industrial DIN RAIL With Power Supply

0 reviews - Write a review

C$49.39

5 + C$47.94

10 + C$46.59

50 + C$45.30

100 + C$44.09

In Stock: Pre-order
Brand: MEANWELL
Model: SDR-75-48
Gross Weight: 0.51kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Features

Brand MEANWELL
48V DC 1.6A output
AC input voltage range: 88 ~ 264VAC
Rated power: 76.8W
High efficiency 90% and low power dissipation
150% peak load capability
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

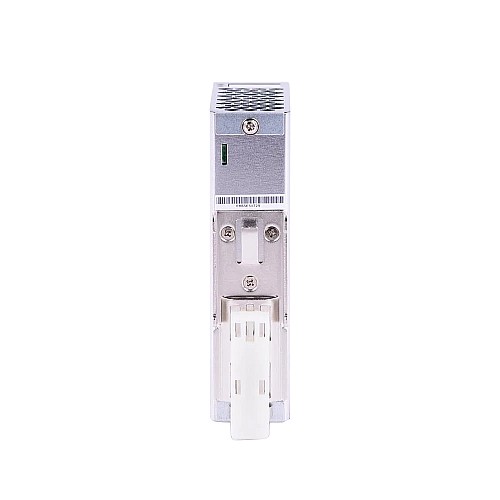

Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
100% full load burn-in test
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Electrical Specification
Efficiency(%)	90%
Max. Output Current(A)	1.6
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	32 x 125.2 x 102
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	88 - 264 / 124 - 370
Output Voltage(VDC)	48
PFC Function	No
Power Type	DIN Rail Power Supply
Power(W)	76.8
Physical Specification
Inventory Method	Shared Inventory
