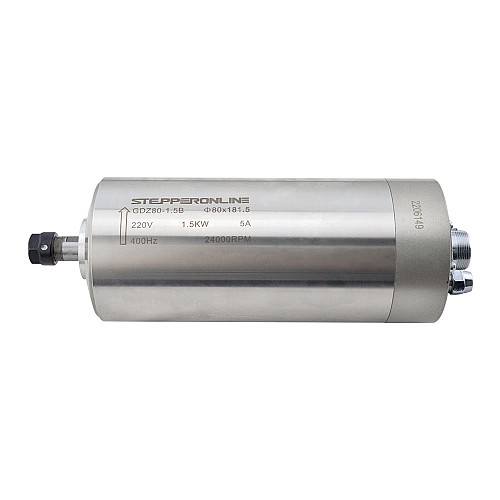

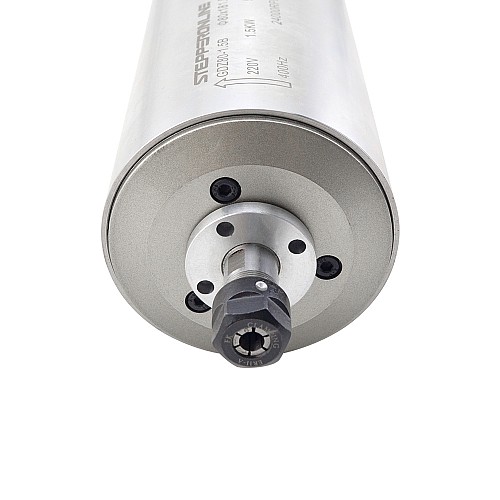

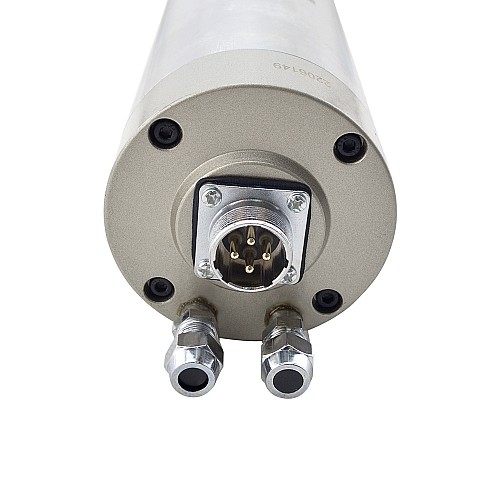

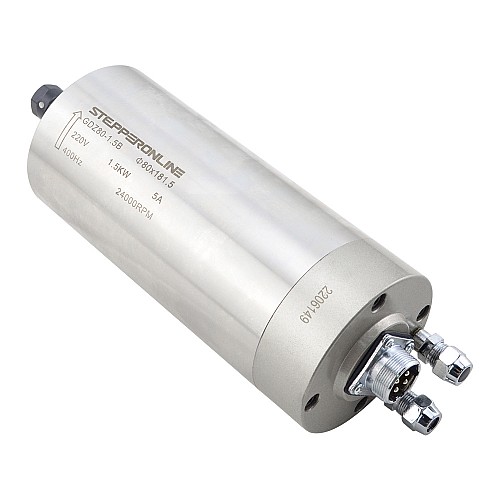

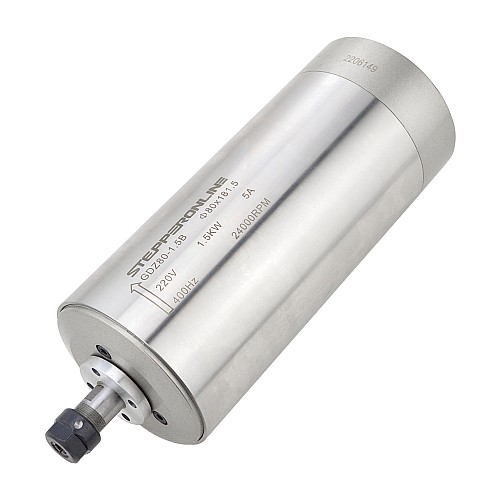

Spindle Motor Water Cooled 220V 1.5KW 24000RPM 400Hz ER11 Collet Wood Engraving Milling Machine

0 reviews - Write a review

€70.07

5 + €68.03

10 + €66.10

50 + €64.28

100 + €62.55

In Stock: Pre-order
Model: GDZ80-1.5B
Gross Weight: 4.45kg
Certificated: ISO

Sold: 62

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Specification

Manufacturer Part Number: GDZ80-1.5B
Material: Stainless steel
Size: Ø80x181.5(Middle body diameter: 80mm, Length:181.5mm)
Power: 1.5KW
Voltage: 220VAC
Current: 5A
Frequency: 0 ~ 400Hz
Speed: 0 ~ 24000RPM
Cooling: Water cooled
Bearing Lubrication: Grease
Collet size: ER11 Collet(6mm)
Weight: 4.1kg

Operating Environment
Cooling Method	Water cooled
Spindle Motor Specification
Bearing Lubrication	Grease
Body Length(mm)	181.5
Collet Size	ER11
Diameter(mm)	80
Material	Stainless steel
Power(Kw)	1.5
Shape	Round
Voltage(VAC)	220
Electrical Specification
Current(A)	5
Frequency(Hz)	0 - 400
Speed(rpm)	0 - 24000
Physical Specification
Bearings	2x7002C(P4 DT), 1x7002C(P4)
Weight(Kg)	4.1
