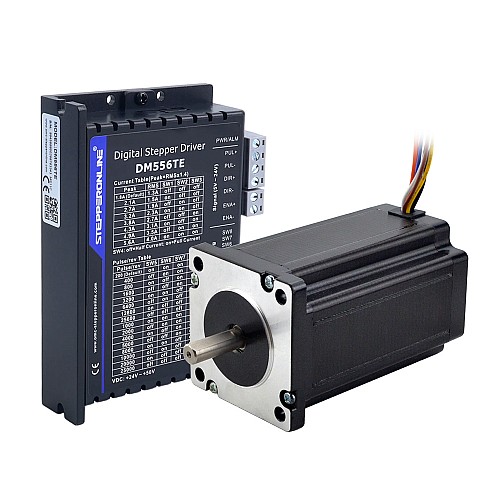

TES Series 1 Axis Stepper CNC Kit 3.4Nm(481.48oz.in) Nema 24 Stepper Motor & Driver DM556TE

0 reviews - Write a review

C$54.93

5 + C$53.27

10 + C$51.72

50 + C$50.26

100 + C$48.87

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This CNC kit included:

1 x DM556TE: TE Series Digital Stepper Driver 1.8-5.6A 24-50VDC for Nema 23, 24, 34 Motor
1 x 24HS39-3008D: Dual Shaft Nema 24 Bipolar 4Nm(566oz.in) 60x60x100mm 8 Wires

Output Peak Current: 1.8~5.6A(1.3~4.0RMS)
Input Voltage: +24~50VDC
Logic Input Voltage: 5~24VDC
Logic Input Current: 7~20mA
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ
Motor winding open circuit detection
Optically isolated inputs with 5V to 24V
Only supports single pulse
Automatic idle-current reduction
Pulse input frequency up to 200KHz
Step & direction(PUL/DIR) control
Multi-Stepping for smooth motor movement
Soft-start with no "jump" when powered on
Protections for over-voltage and over-current
TTL compatible and optically isolated inputsto 5.6A
16 selectable micro-step resolutions of 200-25,600 via DIP switches
8 selectable output current settings of 1.8A to 5.6A via DIP switches
Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
Motor auto-identification and parameter auto-configuration for optimal torque from wide-range motors

Tags: Output Shaft Type: D, Holding Torque(Ncm): 340, Holding Torque(oz.in): 481.48, Frame Size(mm): Nema 24 (60 x 60), No. of Phase: 2, Product Type: Open Loop Stepper Kit, Product Series: TS Series, Shaft Inner Diameter(mm): 8, Number of Axes: 1, Has Torque/Thrust Curve?: Yes, Input Voltage Reference(V): 24 - 50DC
