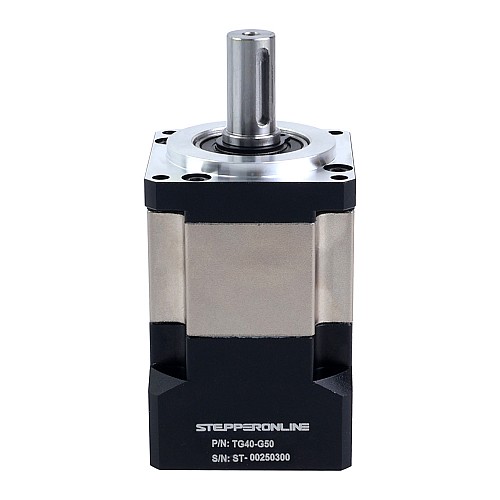

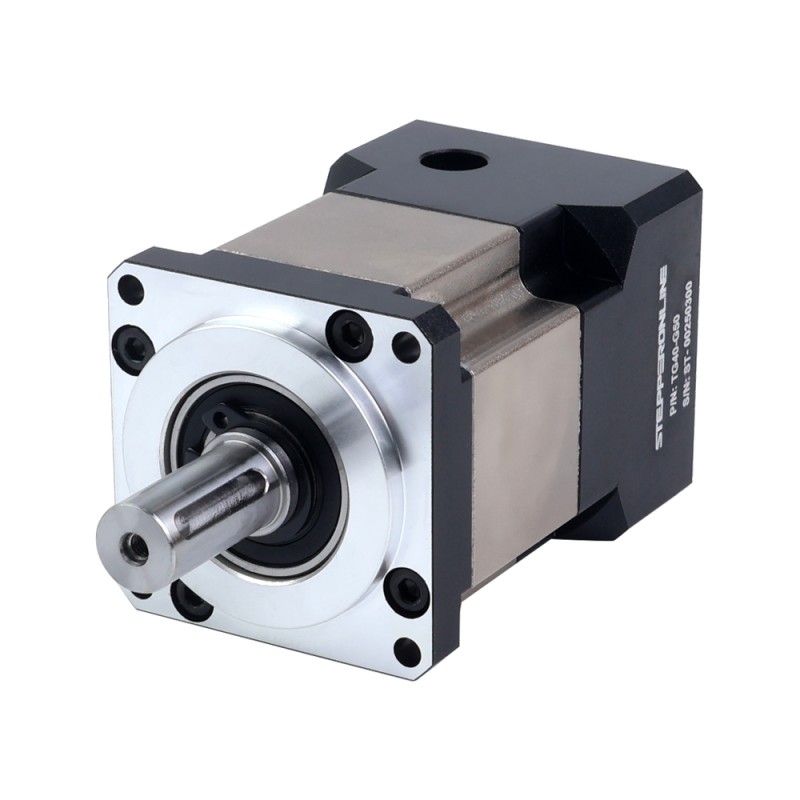

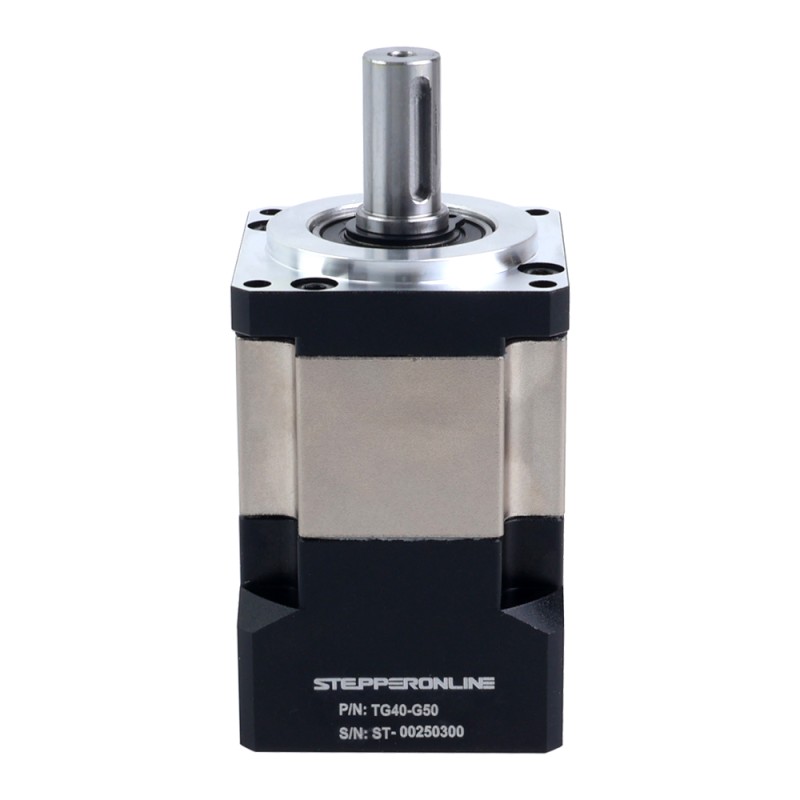

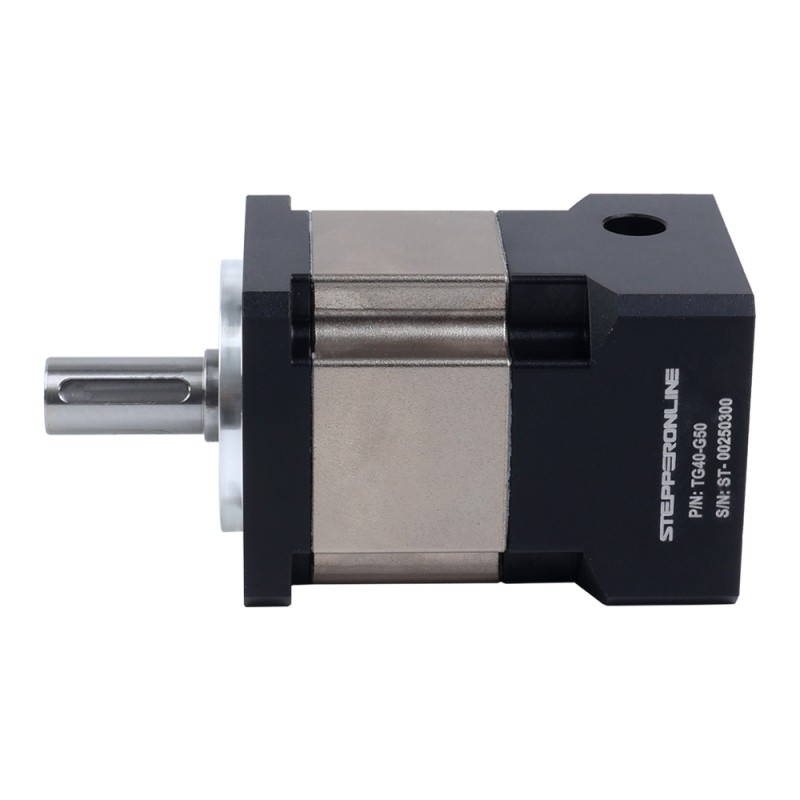

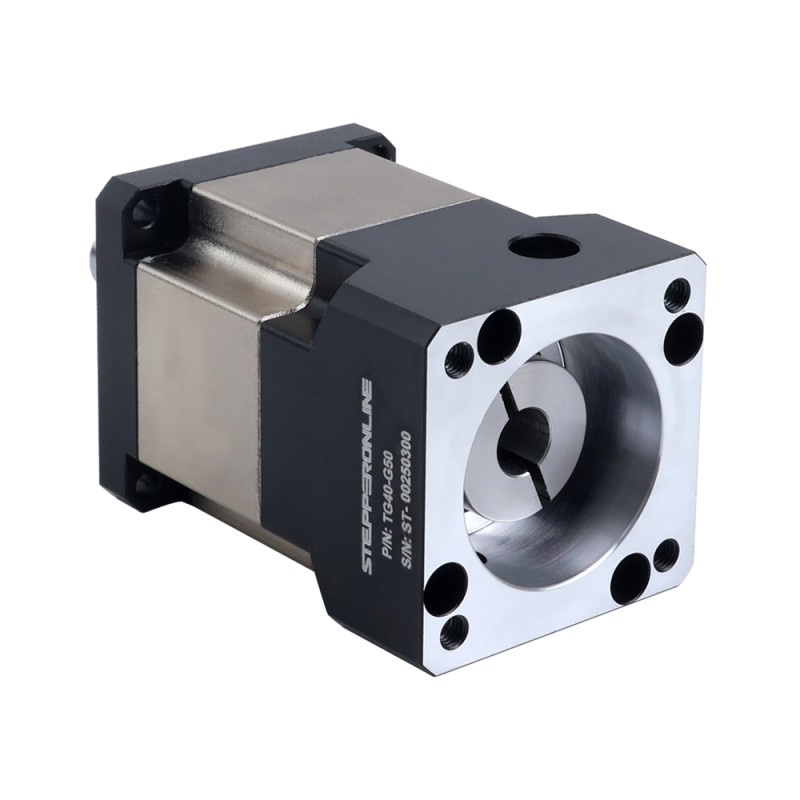

TG Series 40mm 50:1 Planetary Gearbox Backlash 20arc-min for Servo Motors

0 reviews - Write a review

C$73.57

5 + C$70.54

10 + C$67.74

50 + C$65.16

100 + C$62.77

In Stock: 10000
Model: TG40-G50
Gross Weight: 0.48kg
Certificated: ISO, CE, REACH

Available Options

Ships from (Click country for real-time stock)

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

The TG series planetary gearbox offers a gear ratio of 50:1 and features a precision-machined 40mm servo motor interface. With a guaranteed backlash of less than 20arc-min, this high performance unit offers exceptional positioning accuracy and operational reliability, making it ideal for applications requiring precise motion control at a competitive price.

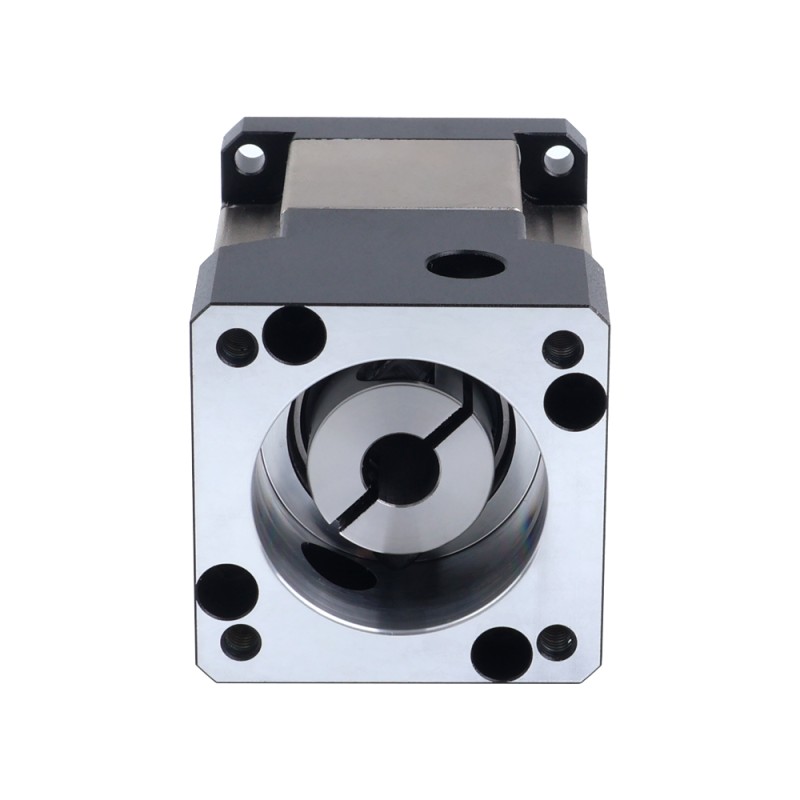

This in-line planetary gearbox can match most servo motors on the market.

Gearbox Specifications

Part Number: TG40-G50
Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 50:1
Efficiency: 94%
Rotor Inertia: 0.03kg.cm²
Backlash at No-load: <=20arc-min
Max.Permissible Torque: 10Nm(88.51lb-in)
Moment Permissible Torque: 20Nm(177.01b-in)
Noise: <=55dB
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 42 x 42mm
Gearbox Length: 62mm

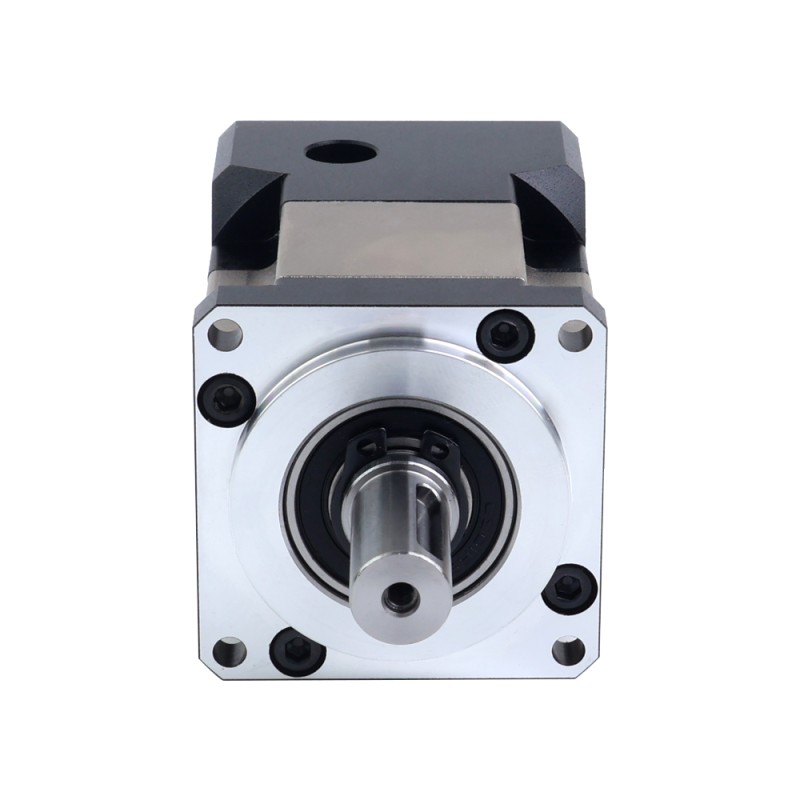

Output Shaft Type: Keyway
Output Shaft Diameter: Φ10mm
Output Shaft Length: 25mm
Input Shaft Diameter: Φ8mm
Max. Input Shaft Length: 26.5mm

Other optional reduction ratios.

4 : 1	7 : 1	16 : 1	25 : 1
28 : 1	35 : 1	40 : 1	70 : 1

Physical Specification
Backlash at No-load	<=20arcmin
Frame Size(mm)	42 x 42
Gear Material	Alloy Steel
Gear Ratio(xx:1)	50
Gearbox Length(mm)	62
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	8
Input Shaft Length(mm)	26.5
Inventory Method	Dedicated Inventory
Matching Motor Size	Frame 40 Servo Motor
Output Shaft Diameter(mm)	10
Output Shaft Length(mm)	25
Output Shaft Type	Keyway
Product Series	TG
