Name: UHP-200A-4.5 | UHP-200A-4.5 MEANWELL 180W 4.5VDC 40A 115/230VAC Slim Type With PFC Switching Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: UHP-200A-4.5
Price: 63.79 CAD
Availability: PreOrder

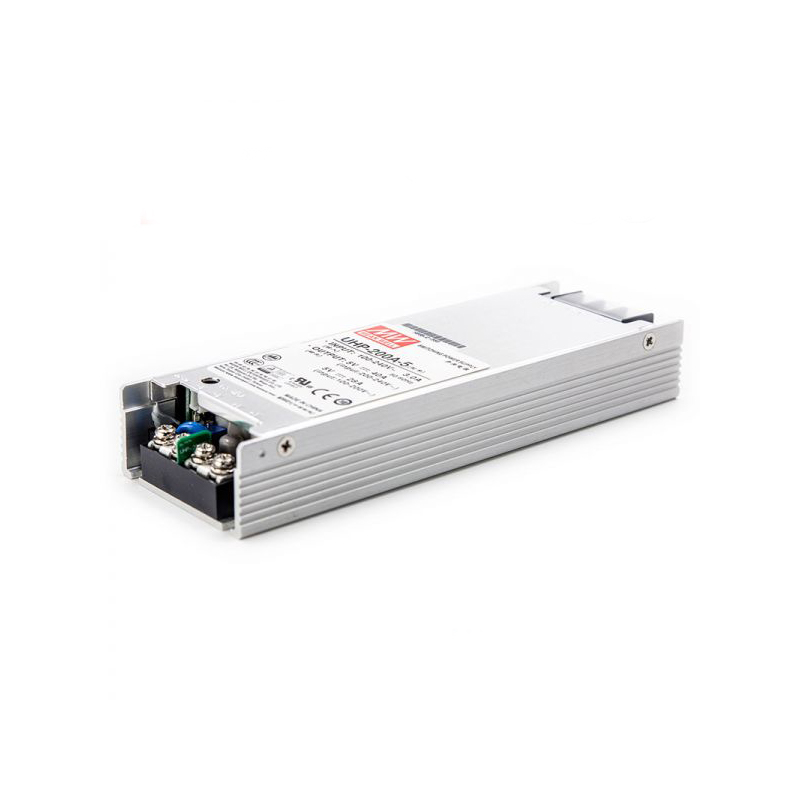

UHP-200A-4.5 MEANWELL 180W 4.5VDC 40A 115/230VAC Slim Type With PFC Switching Power Supply

0 reviews - Write a review

C$63.79

5 + C$61.92

10 + C$60.18

50 + C$58.50

100 + C$56.94

In Stock: Pre-order
Brand: MEANWELL
Model: UHP-200A-4.5
Gross Weight: 0.42kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Features

Brand MEANWELL
4.5V DC 40A output
AC input voltage range: 90 ~ 264VAC
Rated power: 180W
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Low profile(26mm)
Built-in active PFC function
Fanless design, 200W convection
Protections: Short circuit / Overload / Over voltage / Over temperature
Low leakage current <1.0mA
LED indicator for power on
3 years warranty

Applications

LED signage display
Moving sign
LED channel letter
LED TV wall

Electrical Specification
Efficiency(%)	88%
Max. Output Current(A)	40
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	167 x 55 x 26
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	90 - 264 / 127 - 370
Output Voltage(VDC)	4.5
PFC Function	Yes
Power Type	Switching Power Supply
Power(W)	180
Physical Specification
Inventory Method	Shared Inventory
