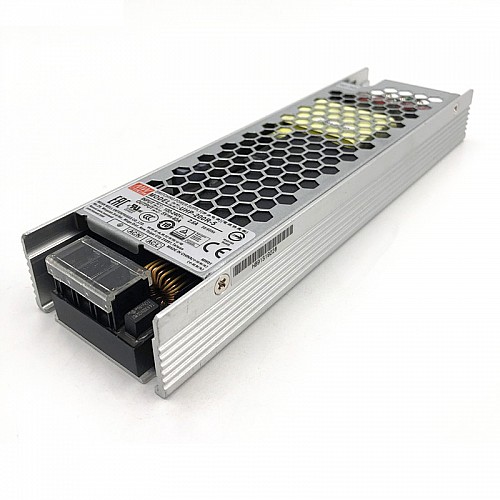

UHP-200R-5 MEANWELL 200W 5VDC 40A 115/230VAC Slim Type With PFC Switching Power Supply

Name: UHP-200R-5 | UHP-200R-5 MEANWELL 200W 5VDC 40A 115/230VAC Slim Type With PFC Switching Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: UHP-200R-5
Price: 74.67 CAD
Availability: PreOrder

0 reviews - Write a review

C$74.67

5 + C$72.49

10 + C$70.43

50 + C$68.48

100 + C$66.64

In Stock: Pre-order
Brand: MEANWELL
Model: UHP-200R-5
Gross Weight: 0.47kg
Certificated: ISO, CE, RoHS

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

Brand MEANWELL
5V DC 40A output
AC input voltage range: 90 ~ 264VAC
Rated power: 200W
Slim and Low profile(26mm)
Fanless design, 200W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
-30~+70℃ working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter(Note.5)
LED indicator for power on
3 years warranty
Built-in DC OK active signal and redundant fuction.

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
LED display application
Power Source Equipment for PoE(55V model)

Electrical Specification
Efficiency(%)	91%
Max. Output Current(A)	40
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	194 x 55 x 26
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	90 - 264 / 127 - 370
Output Voltage(VDC)	5
PFC Function	Yes
Power Type	Switching Power Supply
Power(W)	200
Physical Specification
Inventory Method	Shared Inventory
