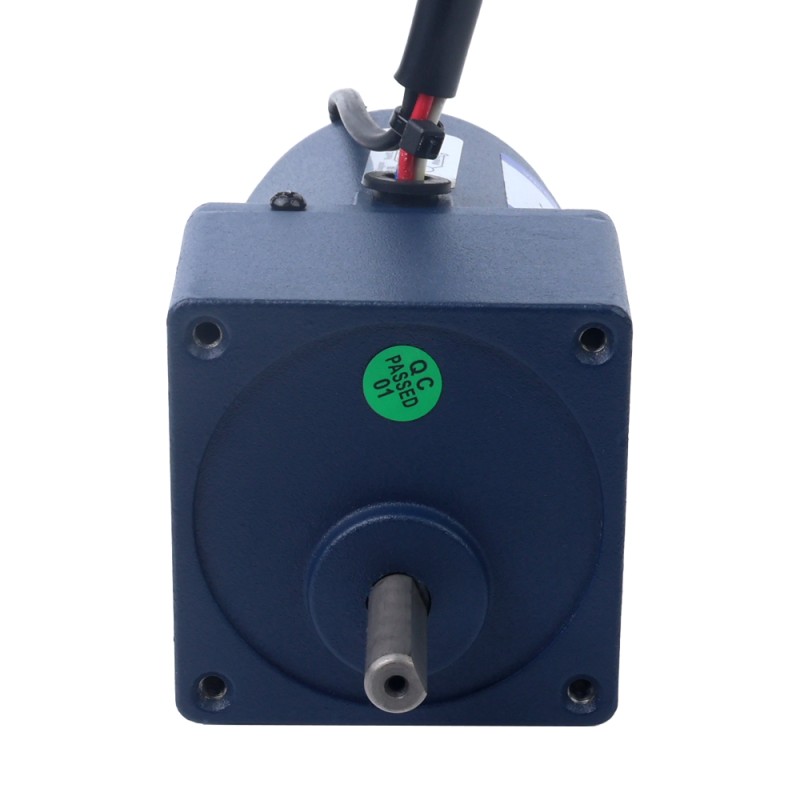

US On Sale - 6W 110VAC 60Hz 3-51.67RPM 0.82Nm(116.12oz.in) Flange 60mm Spur Gearbox Single-phase AC Variable Speed Motor
This 60x60mm single-phase AC motor with adjustable speed control is operated with 110VAC. It has a s... Read More
0 reviews • Write a review
from Save -21%
C$34.89
C$44.25

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

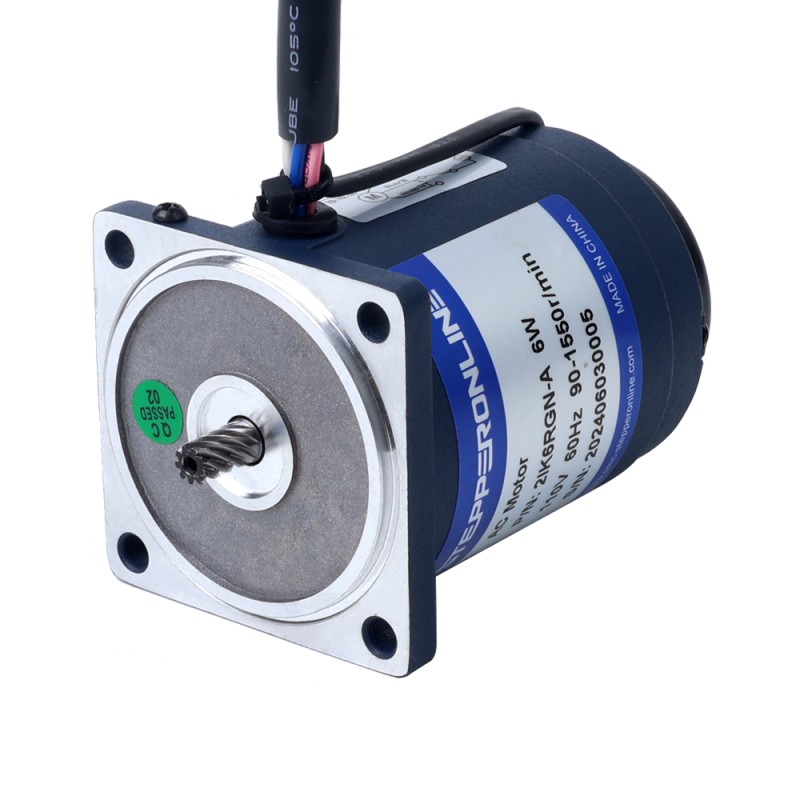

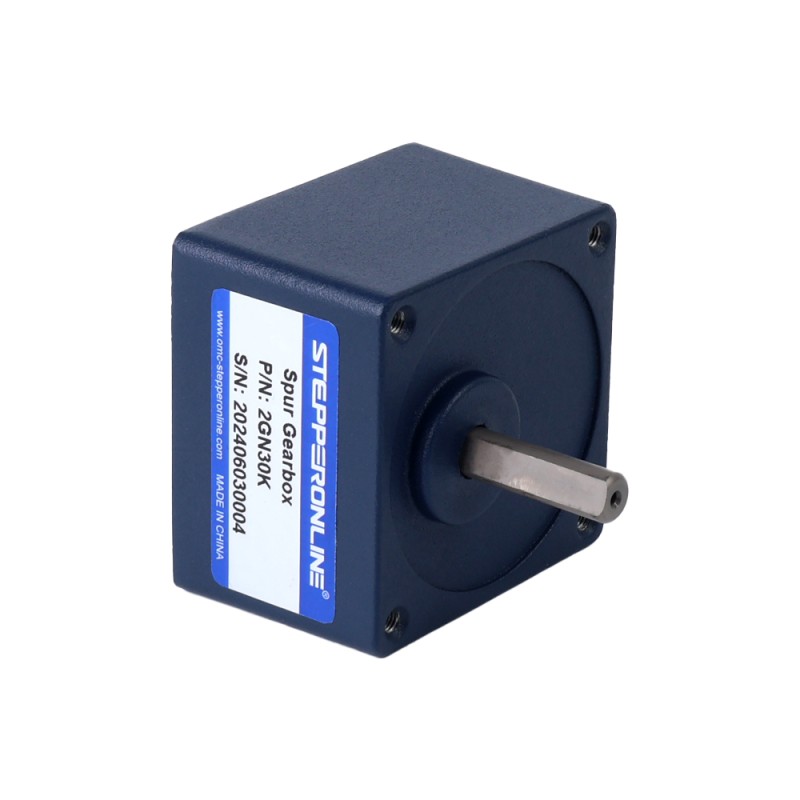

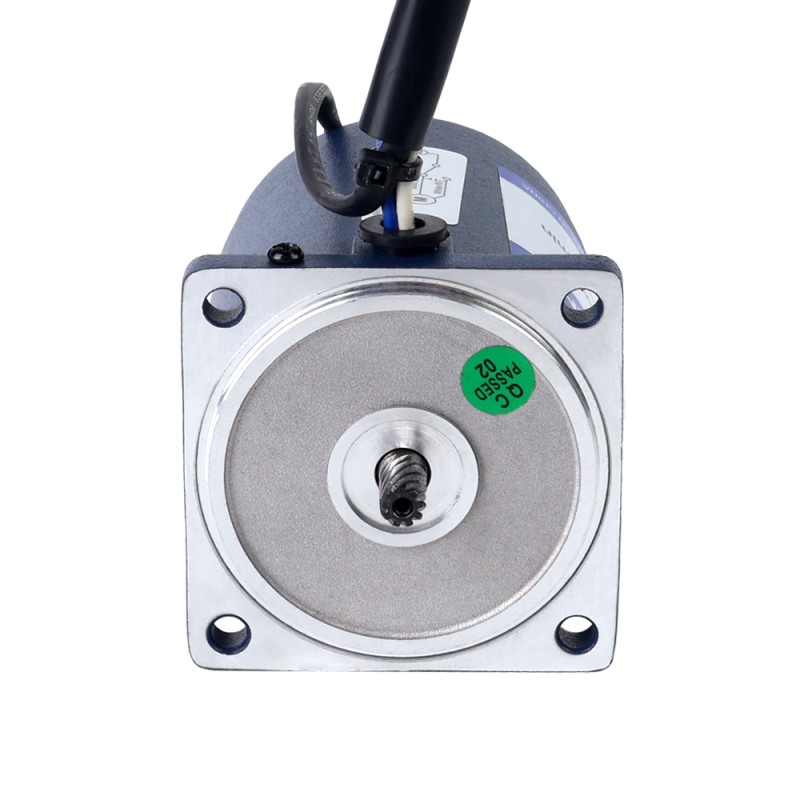

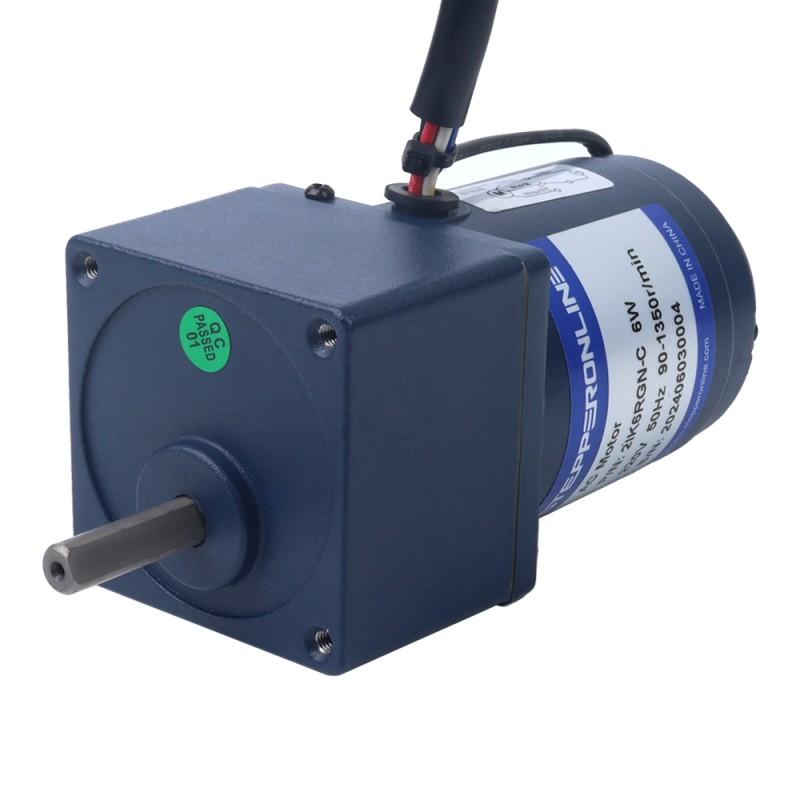

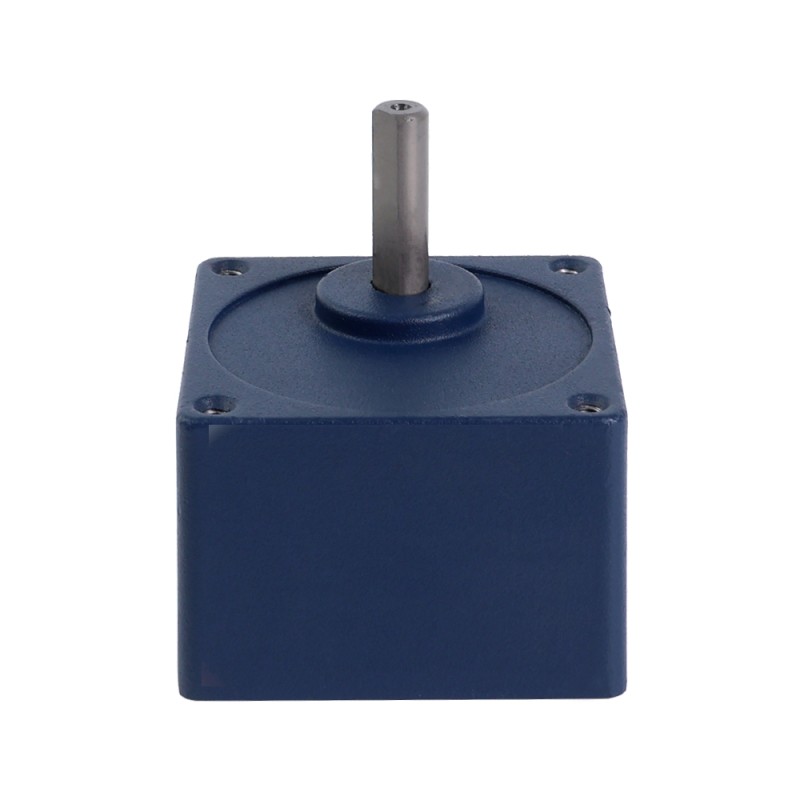

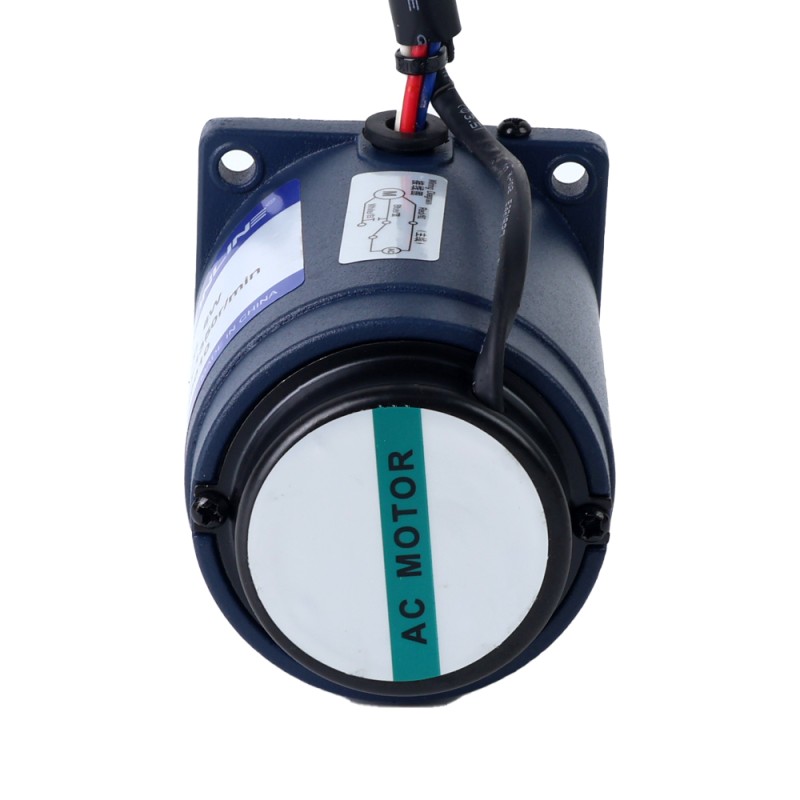

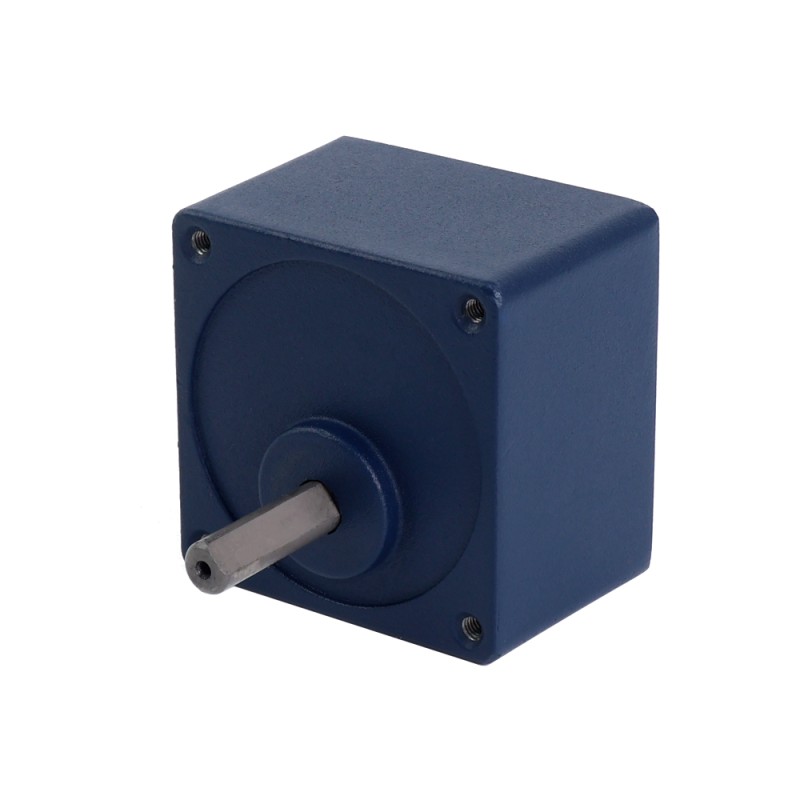

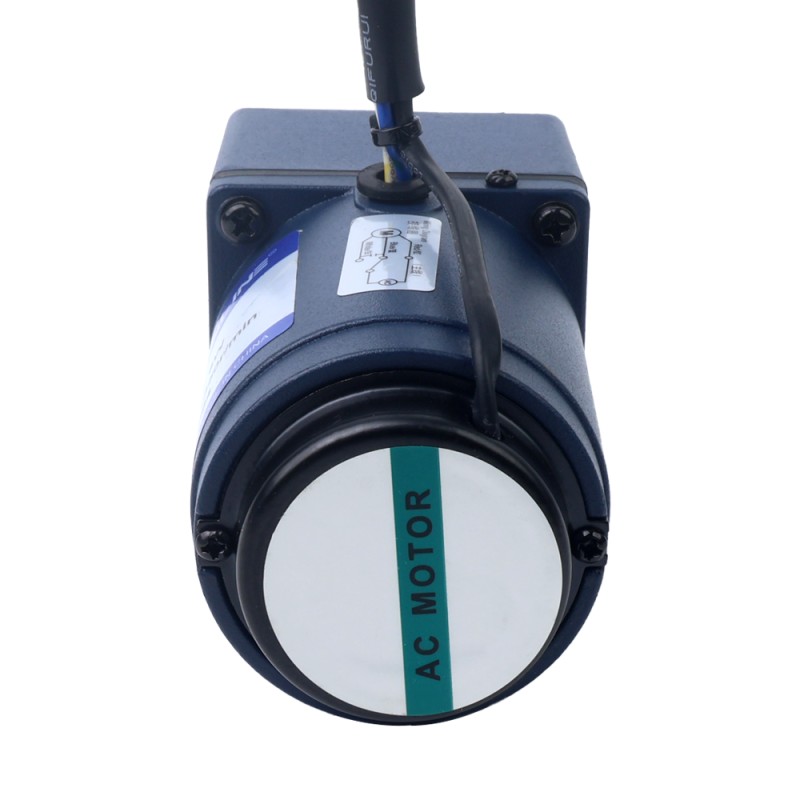

This 60x60mm single-phase AC motor with adjustable speed control is operated with 110VAC. It has a speed range of 3-51.67rpm and a gearbox with a gear ratio of 30. Designed for simple and easy wiring through quick connect and easy speed control through panel mounting. It is ideal for applications requiring precise speed control and is designed for easy operation and wiring. The simple brushless structure, high reliability, relatively high efficiency and long life make it an excellent and cost-effective choice for constant speed applications such as industrial equipment, home appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 2IK6RGN-A/2GN30K
  • Gearbox Type: Spur Gearbox
  • Output Power: 6W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 0.21A
  • Gear Ratio: 30:1
  • Speed Range: 3-51.67rpm
  • Maximum Torque: 0.82Nm(116.12oz.in)
  • Capacitor: 3.0μF/250VAC

Physical Specifications

  • Frame Size: 60x60mm
  • Body Length: 129mm
  • Shaft Type: D-cut
  • Shaft Diameter: Φ8mm
  • Shaft Length: 30mm
  • Weight: 1.25kg

Wiring

Electrical Specification
Current(A) 0.21
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Max. Torque(Nm) 0.82
Output Power(W) 6
Speed Range(rpm) 3-51.67
Physical Specification
Frame Size(mm) 60 x 60
Gear Ratio(xx:1) 30
Gearbox Type Spur Gearbox
Output Shaft Type D
