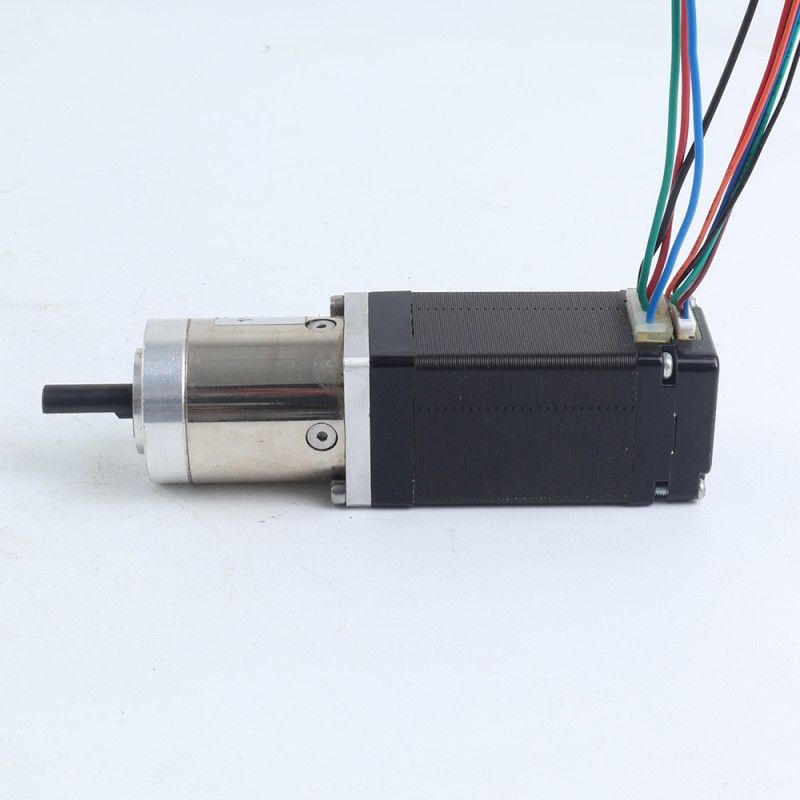

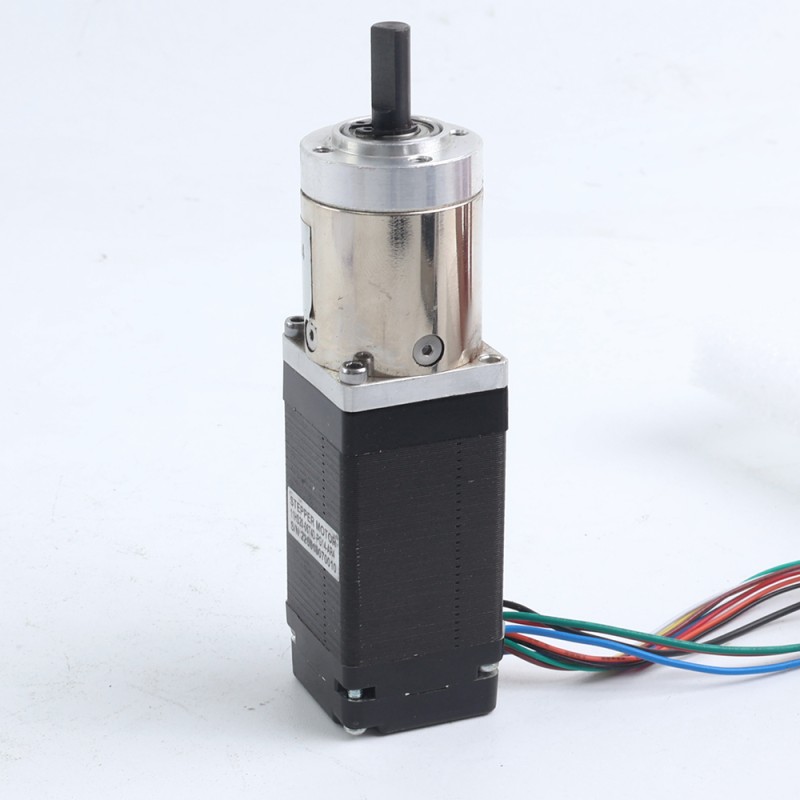

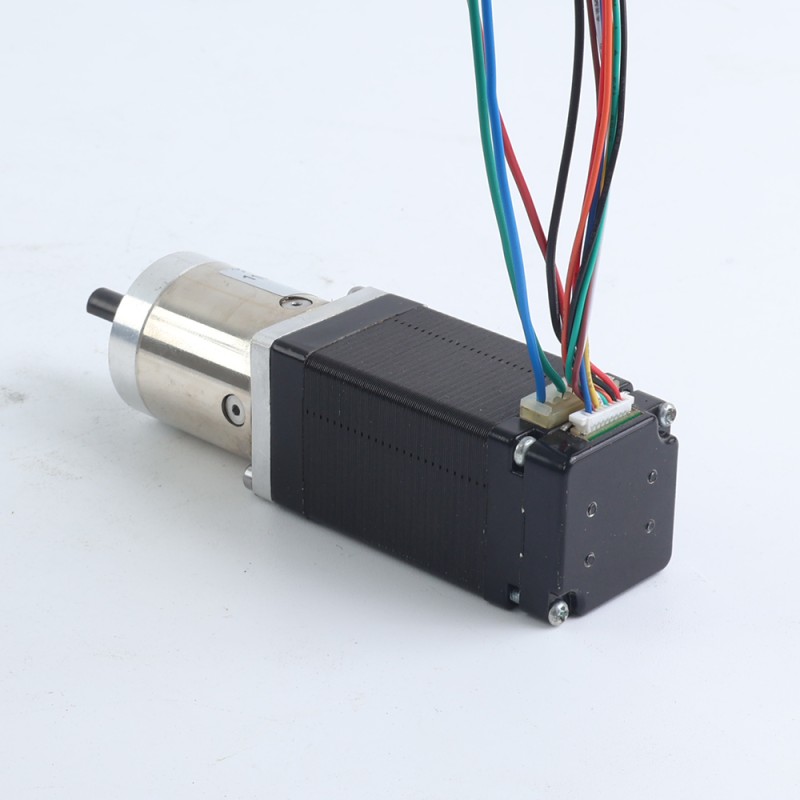

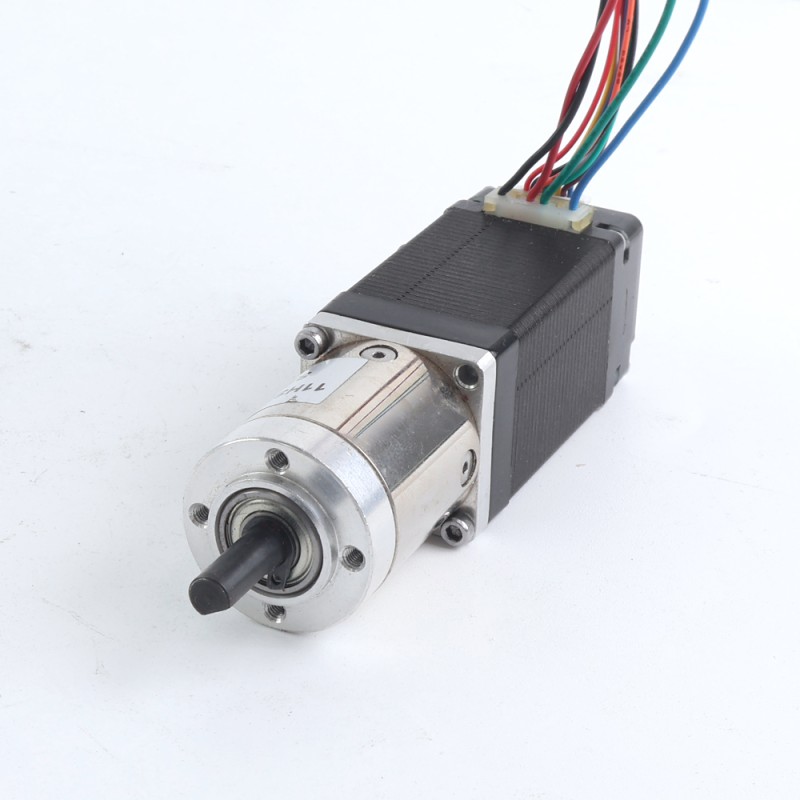

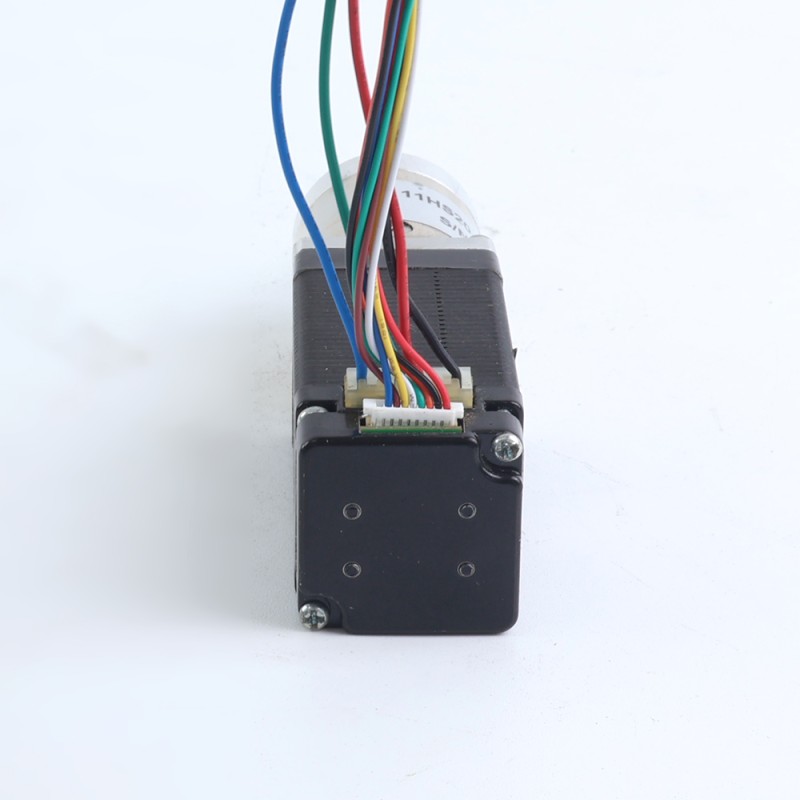

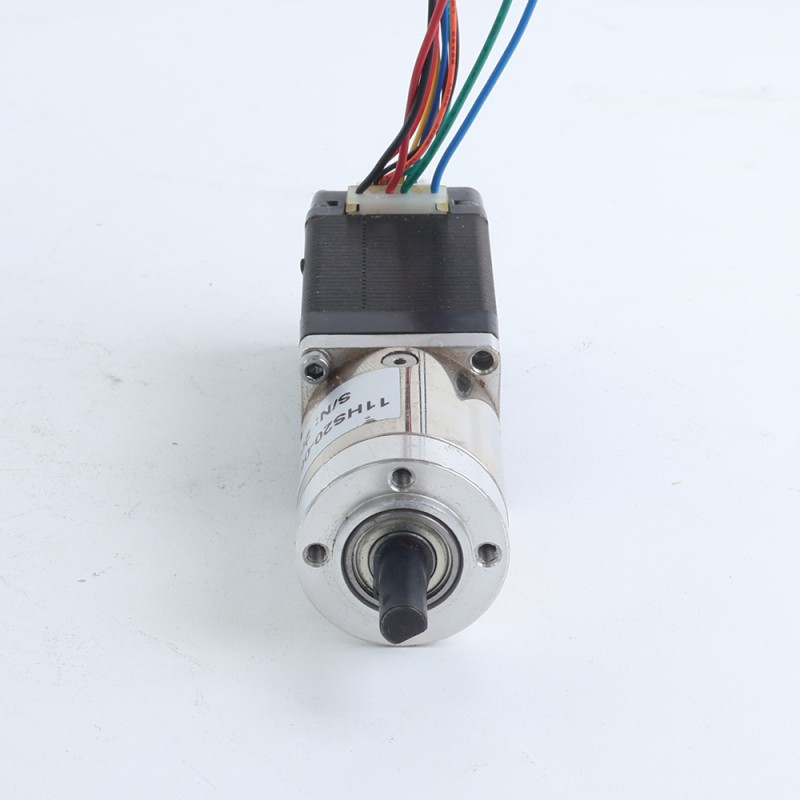

Used - Stock in China - Nema 11 Stepper Motor with Gearbox Gear Ratio 14:1 & Magnetic Encoder 1000PPR(4000CPR)

This Nema 11 geared motor is the Joint 4 motor in AR4 kit. It is integrated with a planetary gearbox of 14:1 gear ratio and a very thin and cost-effective magnetic incremental encoders with 3 channels and 1000PPR(4000CPR) resolution. It's also a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

• Manufacturer Part Number: 11HS20-0674D-PG14-AR4
• Motor Type: Bipolar Stepper
• Step Angle：1.8deg
• Holding Torque: 14Ncm(19.88oz.in)
• Rated Current/phase: 0.67A
• Phase Resistance: 12ohms
• Inductance: 7.5mH±20%(1KHz)
• Insulation Class: B 130°C[266°F]

Gearbox Specifications

• Gearbox Type:Planetary
• Gear Ratio: 13.73:1
• Efficiency: 81%
• Backlash at No-load: <=1deg
• Max.Permissible Torque: 3Nm(425oz.in)
• Moment Permissible Torque: 5Nm(708oz.in)
• Shaft Maximum Axial Load: 5N
• Shaft Maximum Radial Load: 25N

Encoder Specification

• Output Circuit Type: Differential
• Encoder Type: Magnetic Incremental
• Encoder Resolution: 1000PPR(4000CPR)
• Output Signal Channels: 3 channels
• SupplyVoltage Min: 3.3V
• SupplyVoltage Max: 5.5V
• Output Current: 20mA
• Output HighVoltage: 5V
• Output LowVoltage: 0.2V
• Output Frequency Max: 400kHZ

Physical Specification

• Frame Size: 28 x 28mm
• Motor Length: 51mm
• Gearbox Length:35mm
• Shaft Diameter: Φ6mm
• Shaft Length: 18mm
• D-cut Length: 12mm
• Number of Leads: 4
• Lead Length: 500mm
• Weight: 312g

Motor and Encoder Connection
