23HS32-4004S-C8-USED
Output Shaft TypeD
No. of Lead4
Single Shaft/Dual ShaftSingle Shaft
Holding Torque(Ncm)240
Question

Downloads

23HS32-4004S-C8_Full_Datasheet.pdfPDF · 79.05KB23HS32-4004S-C8_Torque_Curve.pdfPDF · 213.89KB
Same series
ModelOutput Shaft TypeNo. of LeadSingle Shaft/Dual ShaftHolding Torque(Ncm)PriceStock
23HS22-1504S-C14D4Single Shaft116C$12.96In stock
23HS22-2804DD4Dual Shaft120C$25.64In stock
23HS22-2804SD4Single Shaft124C$19.39In stock
23HS22-2804S1D4Single Shaft126C$19.39In stock
23HS22-3008DO8Dual Shaft126C$22.69In stock
23HS26-2004HHollow4Dual Shaft145C$37.09In stock
23HS30-1006SD6Single Shaft135C$32.16In stock
23HS30-2694DD4Dual Shaft185C$27.43In stock
23HS30-2694SD4Single Shaft185C$27.43In stock
23HS30-2804DD4Dual Shaft185C$35.25In stock
23HS30-2804SD4Single Shaft200C$26.48In stock
23HS30-2804S-RVKeyway4Single Shaft190C$37.77In stock
23HS30-2804S-USEDD4Single Shaft190C$11.11In stock
23HS30-2804S1D4Single Shaft185C$32.16In stock
23HS30-2804S2D4Single Shaft190C$26.48In stock
23HS30-2904SD4Single Shaft190C$26.48In stock
23HS30-3004SD4Single Shaft189C$26.48In stock
23HS30-3006DO6Dual Shaft135C$32.16Backorder
23HS32-4004SD4Single Shaft240C$27.43In stock
23HS32-4004S-C8-USEDD4Single Shaft240C$25.06In stock
23HS33-4008DD8Dual Shaft283C$38.83In stock
23HS33-4008SD8Single Shaft283C$40.90In stock
23HS39-5004SD4Single Shaft300C$21.21In stock
23HS39-5004S-USEDD4Single Shaft300C$21.63In stock
23HS41-1804SD4Single Shaft240C$36.51In stock
23HS45-3504SD4Single Shaft300C$44.92In stock
23HS45-4204DD4Dual Shaft280C$54.91In stock
23HS45-4204SD4Single Shaft300C$41.62In stock
23HS45-4204S-RVKeyway4Single Shaft300C$51.95In stock
23HS45-4204S1D4Single Shaft300C$41.62In stock
View all in category

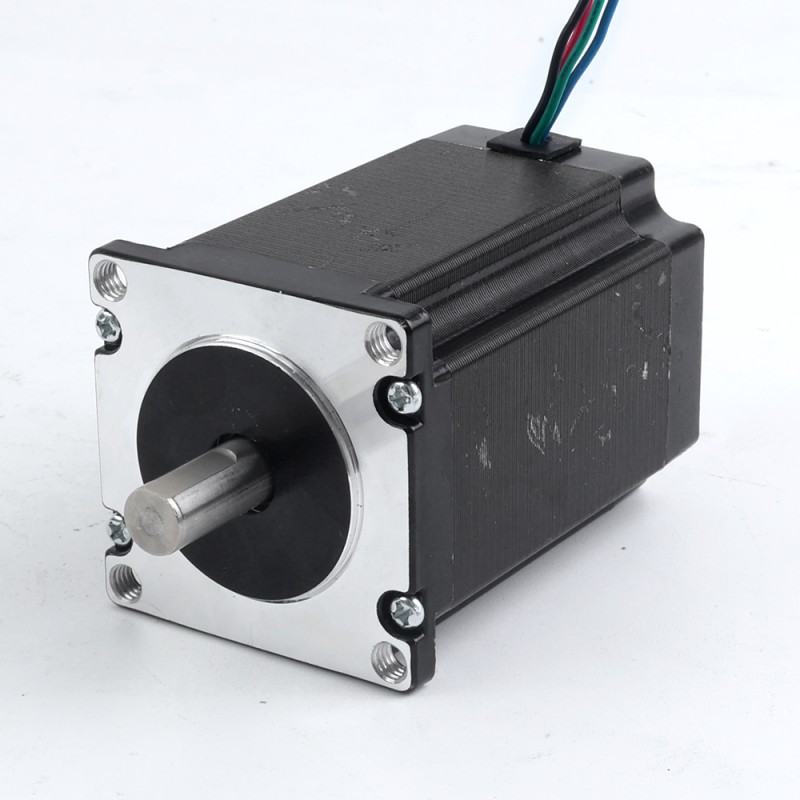

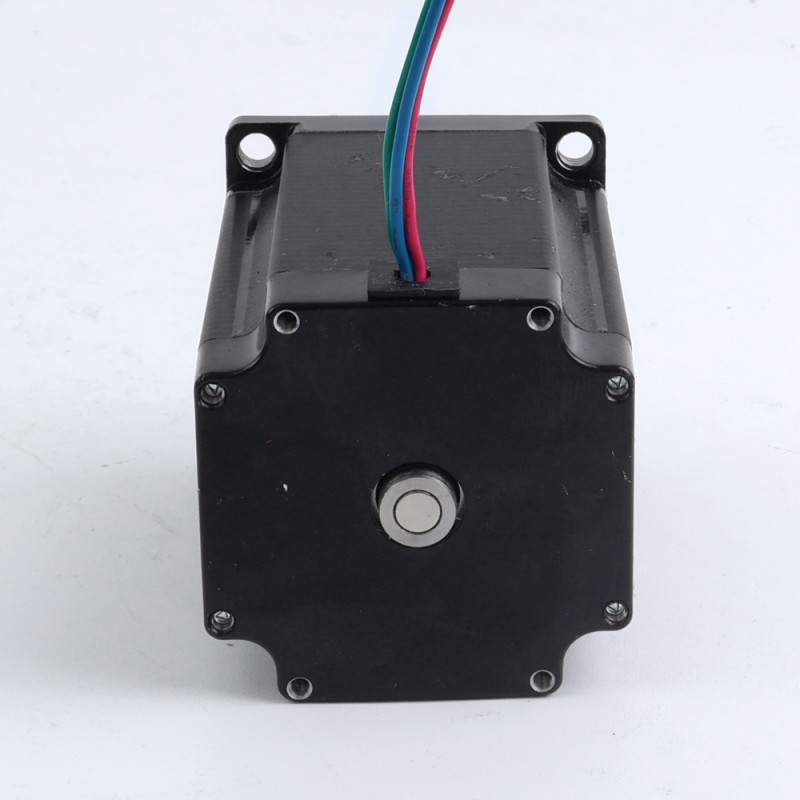

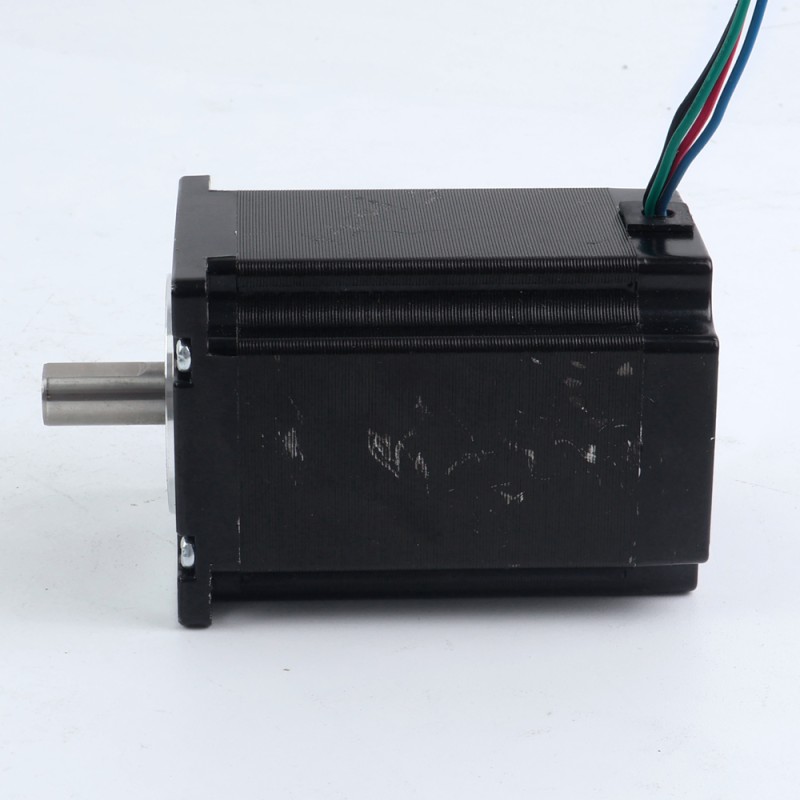

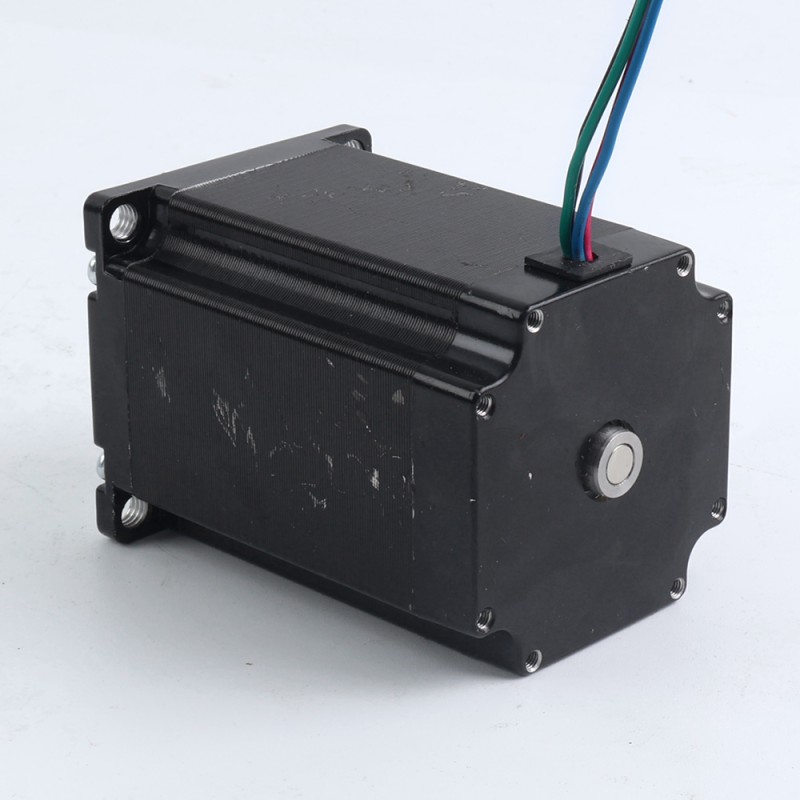

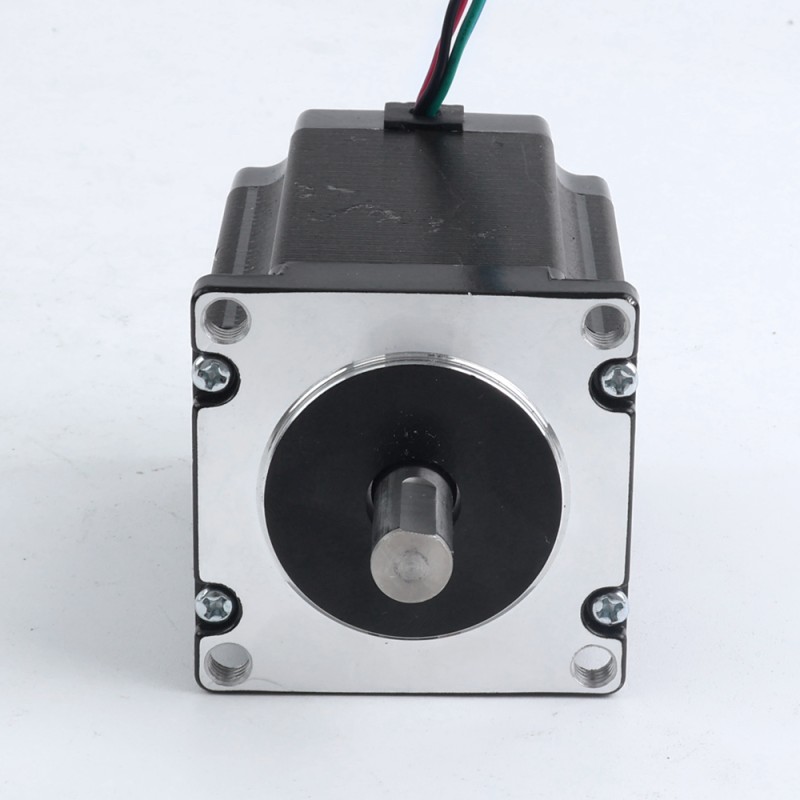

Used - Stock in China - Nema 23 Stepper Motor 2.4Nm(339.87oz.in) 4A 57x57x82mm 10mm Shaft 4 Wires
This bipolar NEMA 23 stepper motor features a 1.8° step angle and delivers a holding torque of 2.4... Read More
0 reviews • Write a review
from Save -39%
C$25.06
C$41.05

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This bipolar NEMA 23 stepper motor features a 1.8° step angle and delivers a holding torque of 2.4Nm(339.87 oz.in), with a phase current of 4.0A. This motor is a customized version of the standard 23HS32-4004S model, featuring a 10mm shaft diameter, a 190mm cable length, and an additional connector.

Electrical Specification

  • Manufacturer Part Number: 23HS32-4004S-C8
  • Number Of Phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 2.4Nm(339.87oz.in)
  • Rated Current/phase: 4.0A
  • Phase Resistance: 0.65ohms
  • Inductance: 3.2mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 82mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 190mm
  • Weight: 1.2kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 240
Holding Torque(oz.in) 339.87
Inductance(mH) 3.2
Phase Resistance(ohms) 0.9
Rated Current(A) 4.0
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 82
Frame Size(mm) Nema 23 (57 x 57)
IP Rating 40
Lead Length(mm) 190
No. of Lead 4
Output Shaft Type D
Product Series S
Shaft Diameter(mm) 10
Shaft Length(mm) 21
Single Shaft/Dual Shaft Single Shaft
Weight(g) 1200
