Used - Stock in Germany - EG Series Planetary Gearbox Gear Ratio 50:1 for 10mm Shaft Nema 23 Stepper Motor

EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor - EG23-G50-D10 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor - EG23-G50-D10 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor - EG23-G50-D10 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor - EG23-G50-D10 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor - EG23-G50-D10 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor - EG23-G50-D10 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor - EG23-G50-D10 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor - EG23-G50-D10 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor - EG23-G50-D10 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor - EG23-G50-D10 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor - EG23-G50-D10 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor - EG23-G50-D10 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor - EG23-G50-D10 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor - EG23-G50-D10 | StepperOnline CA
EG23-G50-D10-USED
Output Shaft TypeKeyway
Gear Ratio(xx:1)50
Backlash at No-load<=20 arcmin
Input Shaft Diameter(mm)10
Question

Downloads

EG23-G50-D10_Full_Datasheet.pdfPDF · 135.77KBEG23-G50-D10.STEPSTEP · 944.26KBLog in to download
Same series
ModelOutput Shaft TypeGear Ratio(xx:1)Backlash at No-loadInput Shaft Diameter(mm)PriceStock
EG23-G10-D10Keyway10<=15 arcmin10C$49.43In stock
EG23-G10-D6Keyway10<=15 arcmin6.35C$49.43In stock
EG23-G10-D8Keyway10<=15 arcmin8C$49.43In stock
EG23-G20-D10Keyway20<=20 arcmin10C$67.96In stock
EG23-G20-D6Keyway20<=20 arcmin6.35C$67.96In stock
EG23-G20-D8Keyway20<=20 arcmin8C$67.96In stock
EG23-G5-D10Keyway5<=15 arcmin10C$49.43In stock
EG23-G5-D6Keyway5<=15 arcmin6.35C$49.43In stock
EG23-G5-D8Keyway5<=15 arcmin8C$49.43In stock
EG23-G50-D10Keyway50<=20 arcmin10C$67.96In stock
EG23-G50-D10-USEDKeyway50<=20 arcmin10C$71.89In stock
EG23-G50-D6Keyway50<=20 arcmin6.35C$67.96In stock
EG23-G50-D6-USEDKeyway50<=20 arcmin6.35C$47.97In stock
EG23-G50-D8Keyway50<=20 arcmin8C$67.96In stock
Used - Stock in Germany - EG Series Planetary Gearbox Gear Ratio 50:1 for 10mm Shaft Nema 23 Stepper Motor
The size of this gearbox is 60 x 60mm and the input shaft diameter is 10mm. This high-precision pl... Read More
0 reviews • Write a review
from Save -10%
C$71.89
C$79.87

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

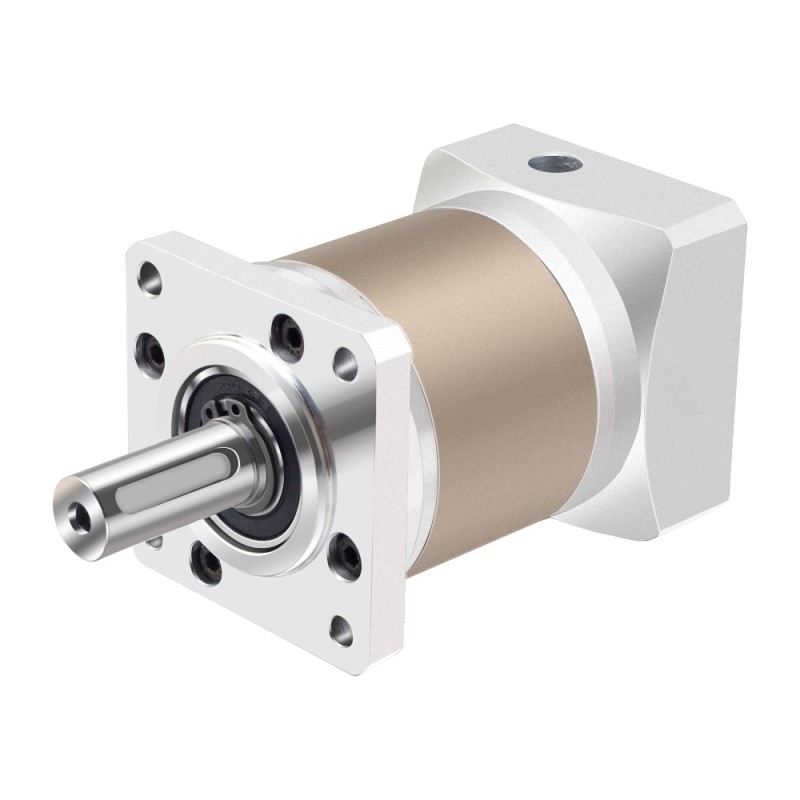

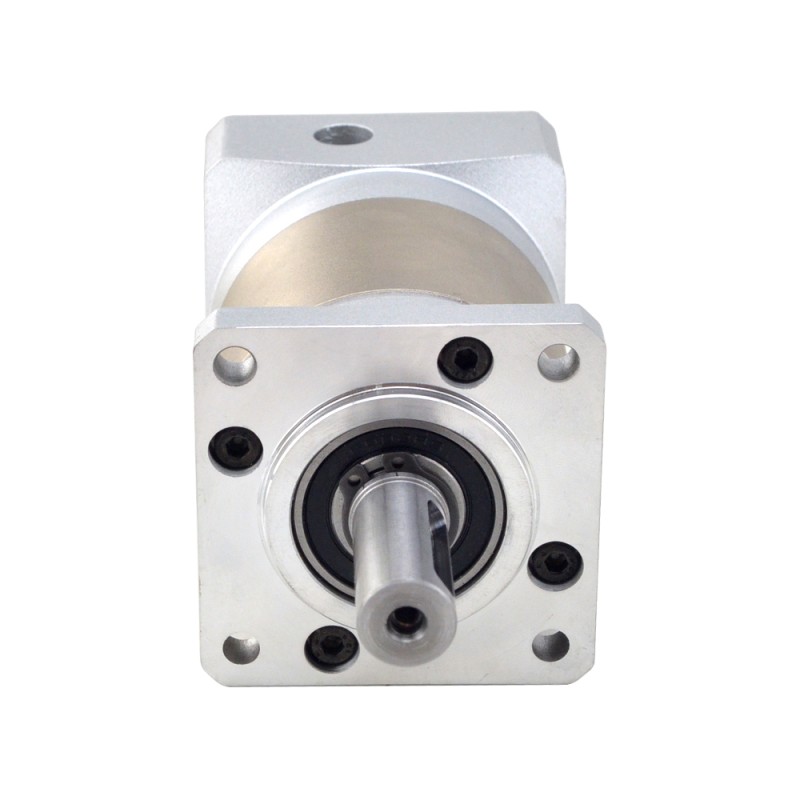

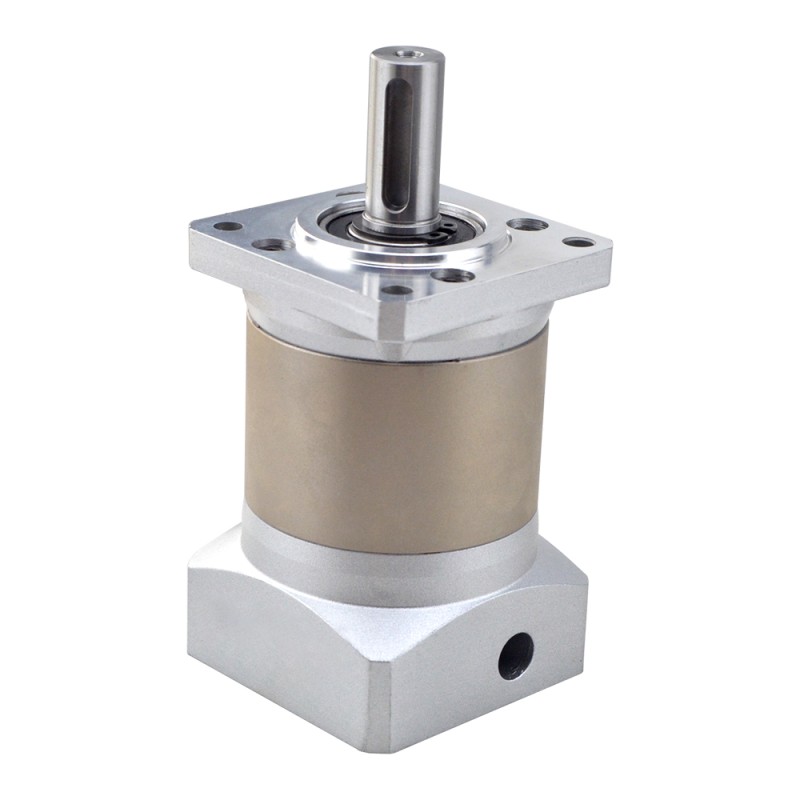

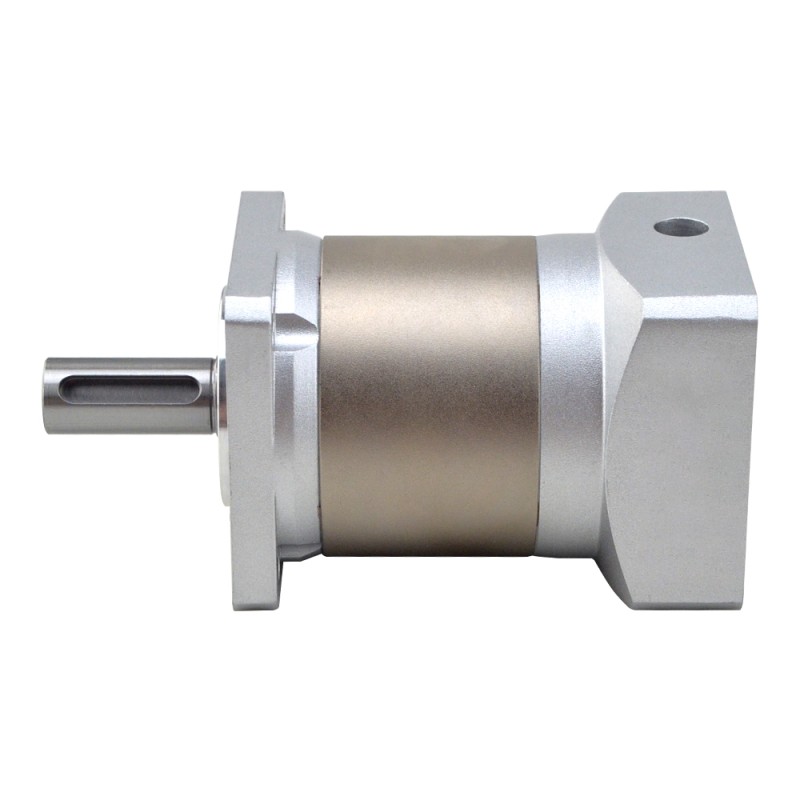

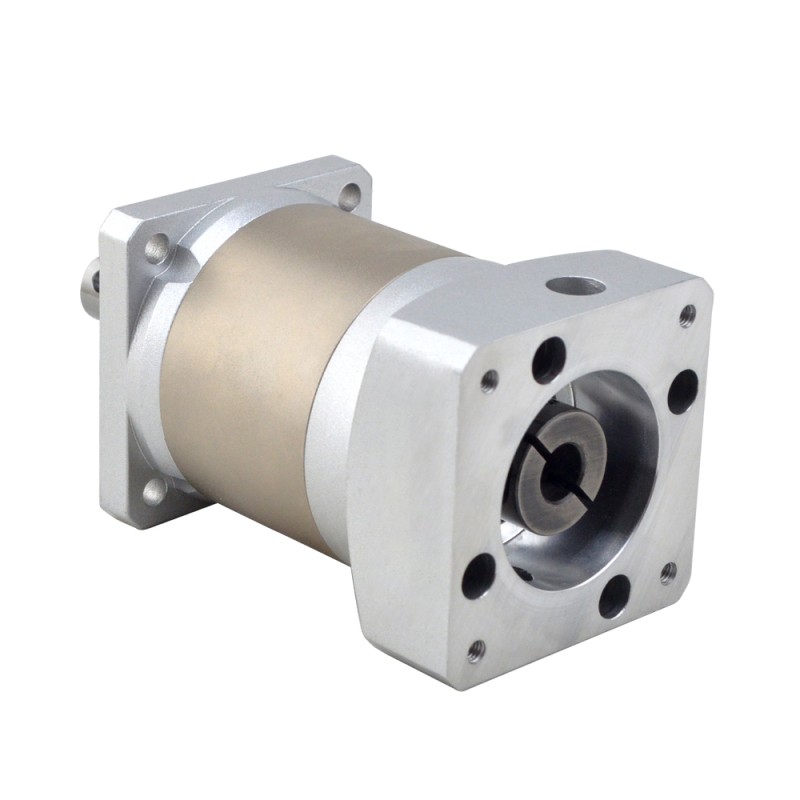

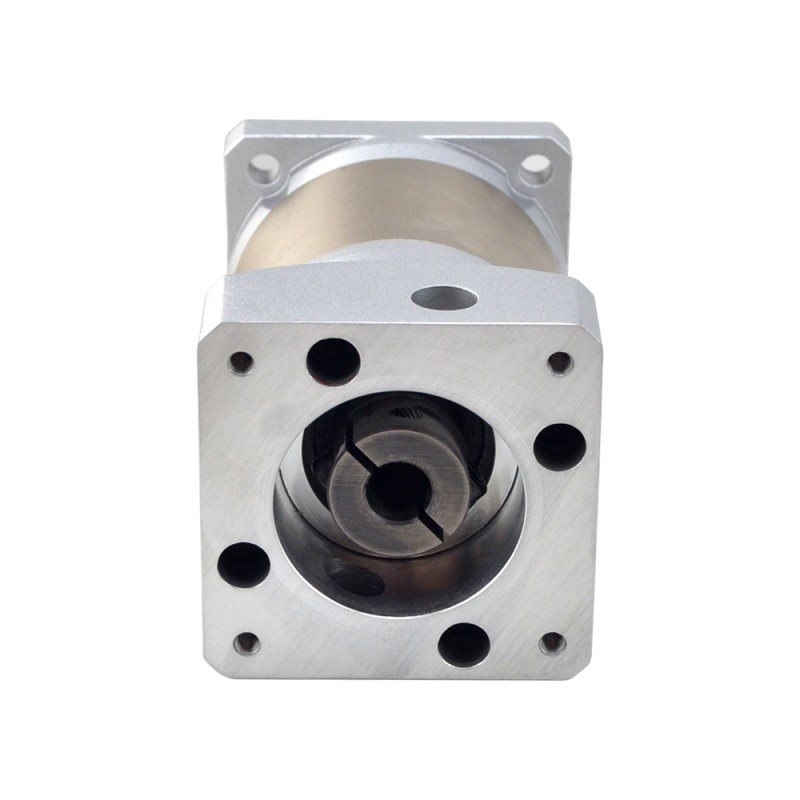

The size of this gearbox is 60 x 60mm and the input shaft diameter is 10mm. This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 50:1 and a maximum 20arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This inline planetary gearbox built-in an input shaft coupling which can match any standard 10mm diameter shaft of Nema 23 stepper motor and brushless dc motor.

Gearbox Specifications

  • Part Number: EG23-G50-D10
  • Gearbox Type: Spur Planetary
  • Gear Material: Alloy Steel
  • Gear Ratio: 50:1
  • Efficiency: 94%
  • Rotor Inertia: 0.03kg·cm²
  • Backlash at No-load: <=20arcmin
  • Max.Permissible Torque: 25Nm(221.27lb-in)
  • Moment Permissible Torque: 50Nm(442.54lb-in)
  • Noise: <=55dB(1000rpm)/65dB(3000rpm)
  • Waterproof Rating: IP54
  • Lifetime: 20000hours

Physical Specifications

  • Frame Size: 60 x 60mm
  • Gearbox Length: 89.5mm
  • Output Shaft Type: Key way
  • Output Shaft Diameter: Φ14mm
  • Output Shaft Length: 35mm
  • Input Shaft Diameter: Φ10mm
  • Input Shaft Length: 12-31mm
Physical Specification
Backlash at No-load <=20 arcmin
Frame Size(mm) 60 x 60
Gear Material Alloy Steel
Gear Ratio(xx:1) 50
Gearbox Length(mm) 89.5
Gearbox Type Spur Planetary
Input Shaft Diameter(mm) 10
Input Shaft Length(mm) 12 - 31
IP Rating 54
Matching Motor Size Nema 23 Stepper Motor
Output Shaft Diameter(mm) 14
Output Shaft Length(mm) 35
Output Shaft Type Keyway
Product Series EG
Weight(g) 1102

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Captcha
Quickview

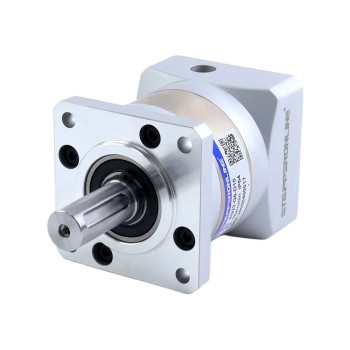

EG Series Planetary Gearbox Gear Ratio 5:1 Backlash 15arc-min for 10mm Shaft Nema 23 Stepper Motor
EG Series Planetary Gearbox Gear Ratio 5:1 Backlash 15arc-min for 10mm Shaft Nema 23 Stepper Motor
This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 5 :1 and a maximum 15arc-min backlash. It's an excellent choi..
from
C$49.43
Add to Cart
Add to Wish List Compare this Product
Quickview

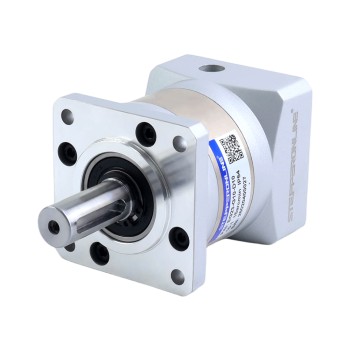

EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for 10mm Shaft Nema 23 Stepper Motor
