Name: WDR-120-48 | WDR-120-48 MEANWELL 120W 48VDC 2.5A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: WDR-120-48
Price: 89.36 CAD
Availability: PreOrder

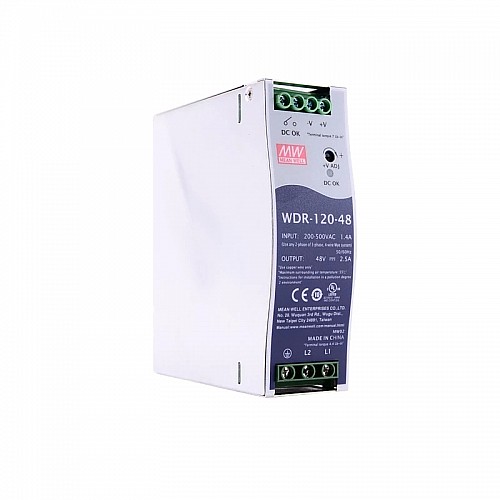

WDR-120-48 MEANWELL 120W 48VDC 2.5A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply

0 reviews - Write a review

C$89.36

5 + C$86.76

10 + C$84.29

50 + C$81.96

100 + C$79.77

In Stock: Pre-order
Brand: MEANWELL
Model: WDR-120-48
Gross Weight: 0.65kg
Certificated: ISO, CE, RoHS

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

Brand MEANWELL
48V DC 2.5A output
AC input voltage range: 180 ~ 550VAC
Rated power: 120W
Single and two phase wide input range 180~550VAC
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit

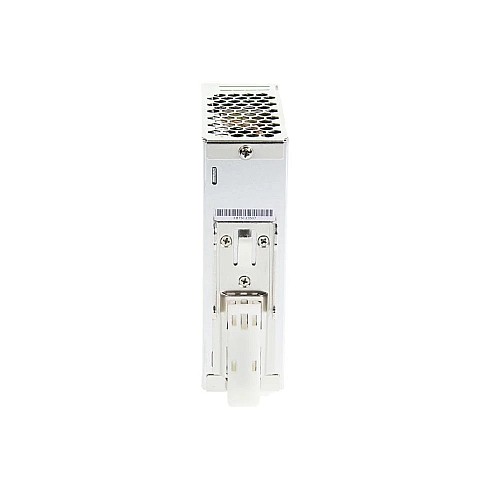

Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
100% full load burn-in test
Built-in DC OK relay contact
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Electrical Specification
Efficiency(%)	92%
Max. Output Current(A)	2.5
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	40 x 125.2 x 113.5
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	180 - 550 / 254 - 780
Output Voltage(VDC)	48
PFC Function	No
Power Type	DIN Rail Power Supply
Power(W)	120
Physical Specification
Inventory Method	Shared Inventory
