YS Series 1 Axis 4.30Nm(608.93oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply
This CNC kit includes: 1 x 34HS31-6004D-E1000: Nema 34 Closed Loop Stepper Motor 4.30Nm(608.93oz.in... Read More
0 reviews • Write a review
from
C$123.55
5 + C$119.94
10 + C$116.54
50 + C$113.33
100 + C$110.29

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

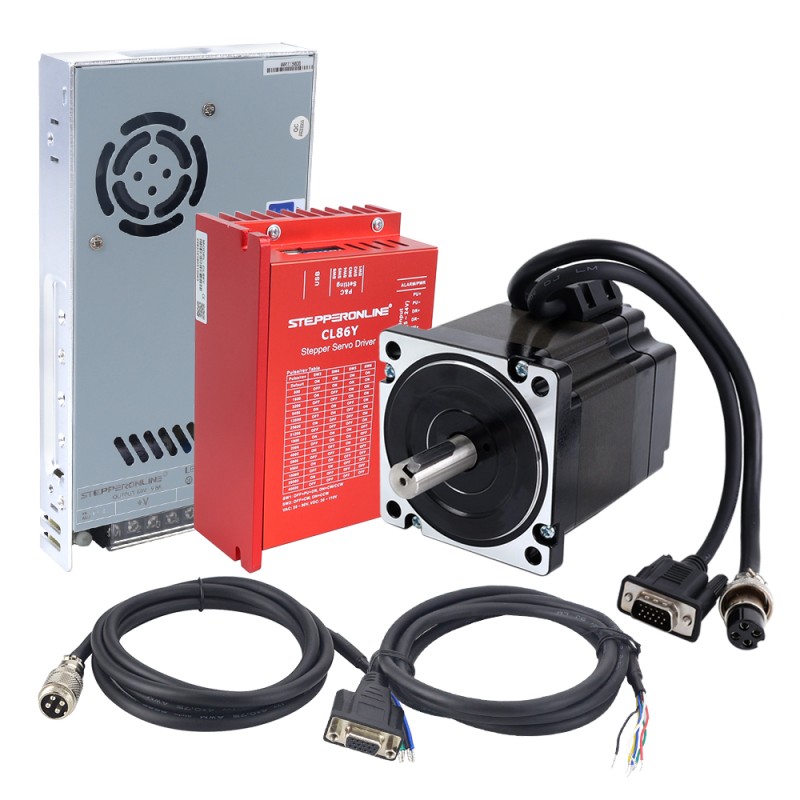

This CNC kit includes:
  • 1 x 34HS31-6004D-E1000: Nema 34 Closed Loop Stepper Motor 4.30Nm(608.93oz.in) with Encoder 1000PPR(4000CPR)
  • 1 x CL86Y: Y Series Closed Loop Stepper Driver 0-8.5A 20-80VAC/30-110VDC for Nema 34 Stepper Motor
  • 1 x LE-350-60: 350W 60V 5.8A 115/230V Switching Power Supply
  • 1 x CE2-M2-18: 1.7m(67") Motor AWG18 and Encoder Extension Cable

Motor Specification

  • Part Number: 34HS31-6004D-E1000
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 4.30Nm(608.93oz.in)
  • Rated Current/phase: 6.0A
  • Phase Resistance: 0.3ohms± 10%
  • Inductance: 2.1mH ± 20%(1KHz)
  • Frame Size: 86 x 86mm
  • Body Length: 98mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 37mm
  • Keyway Shaft Length: 25mm
  • Cable Length: 300mm
  • Insulation Class: B 130°C[266°F]

Encoder Specification

  • Output Circuit Type: Differential type
  • Encoder Type: Optical Incremental
  • Encoder Resolution: 1000PPR(4000CPR)
  • Output Signal Channels: 2 channels
  • Minimum Supply Voltage: 4.5V
  • Maximum Supply Voltage: 5V
  • Output Current: 25mA
  • Output High Voltage: 4.5V
  • Output Low Voltage: 4.2-4.3V
  • Output Frequency Max: 60kHZ

Driver Specification

  • Output Peak Current: 0~8.5A（0~6RMS）
  • Input Voltage: 20~80VAC/30~110VDC(Typical 48/60VDC)
  • Logic Input Current: 7~20mA
  • Pulse Input Frequency: 0~200kHz
  • Pulse Width: 2.5μS
  • Isolation Resistance: 500MΩ

Power Supply Specification

  • Part Number: LE-350-60
  • Input Voltage: 115/230VAC±20%
  • Input Frequency: 47-63Hz
  • Input Current: 40A/230VAC
  • Output Voltage: 60V
  • Output Current: 5.8A
  • Rated Output Power: 350W
  • Leakage Current: <0.5mA/230VAC
  • Dimensions: 215*115*30mm(L*W*H)
  • Internal EMI filter
  • High efficiency low cost
  • Forced air cooling by built-in DC fan
  • Over current, over voltage, short circuit and overheat protections

Motor and Encoder Connection

PIN
1
2
3
4
Motor
A+
A-
B+
B-

PIN
1
2
3
11
12
13
Encoder
EA+
VCC
GND
EB+
EB-
EA-
Product Type
Product Type Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution 1000PPR
Encoder Type Optical Incremental
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 430
Holding Torque(oz.in) 608.93
Inductance(mH) 2.1
Input Voltage Reference(V) 24 - 80AC / 36 - 110DC
Number of Axes 1
Output Circuit Type Differential type
Output Signal Channels 2
Phase Resistance(ohms) 0.3
Rated Current(A) 6.0
Physical Specification
Cable Length(mm) 2000
Frame Size(mm) Nema 34 (86 x 86)
Output Shaft Type Keyway
Power Supply Power Supply
Product Series YS Series
Shaft Diameter(mm) 14
Shaft Length(mm) 37

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

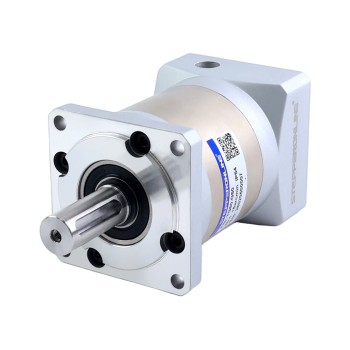

TG Series 60mm 50:1 Planetary Gearbox Backlash 15arc-min for Servo Motors
TG Series 60mm 50:1 Planetary Gearbox Backlash 15arc-min for Servo Motors
This high-precision 60mm planetary gearbox is belong to TG series gearbox, with a gear ratio 50:1 and a maximum 15arc-min backlash. It's an excellent ..
from
C$67.96
Add to Cart
Add to Wish List Compare this Product
Quickview
TS Series 3.0Nm(424.83oz.in) 1 Axis Closed Loop Stepper CNC Kit Nema 23 Motor & Driver
TS Series 3.0Nm(424.83oz.in) 1 Axis Closed Loop Stepper CNC Kit Nema 23 Motor & Driver
Items in Kit 1 x 23HS45-4204D-E1000: 3.0Nm Closed loop stepper motor 1 x CL57T-V41: Nema 23/Nema 24 Closed loop stepper motor driver V4.1 1 x..
from
C$93.29
Add to Cart
Add to Wish List Compare this Product
Quickview

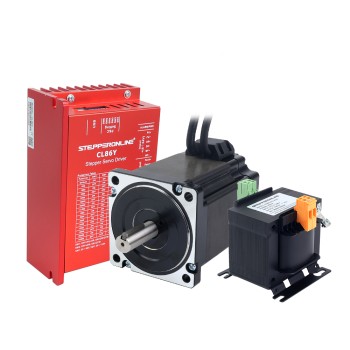

YS Series 1 Axis Closed Loop Stepper CNC Kit 6.50Nm(920.48oz.in) Nema 34 Motor w/ 1.5m Cables & AC Transformer
YS Series 1 Axis Closed Loop Stepper CNC Kit 6.50Nm(920.48oz.in) Nema 34 Motor w/ 1.5m Cables & AC Transformer
This CNC kit includes: 1 x 34HS39-6004D-E1K-1M5: S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) 1 x CL86Y..
from
C$130.47
Add to Cart
Add to Wish List Compare this Product
Quickview
5:1 Worm Gearbox NMRVS40 Worm Gear Speed Reducer 14mm Input Shaft Diameter
5:1 Worm Gearbox NMRVS40 Worm Gear Speed Reducer 14mm Input Shaft Diameter
The size of this gearbox is 86mmx86mm and the input shaft diameter is 14mm. This worm gearbox is designed for Nema 34 Stepper Motor or other 86mmx86..
from
C$59.81
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 34 Bracket for Stepper Motor Alloy Steel Bracket
Nema 34 Bracket for Stepper Motor Alloy Steel Bracket
Manufacturer P/N: ST-M7 The new designed NEMA 34 Stepper Motor 86mm Alloy Steel Mounting Bracket, this is the strongest and the most beautiful mounti..
from
C$8.92
Add to Cart
Add to Wish List Compare this Product
Quickview

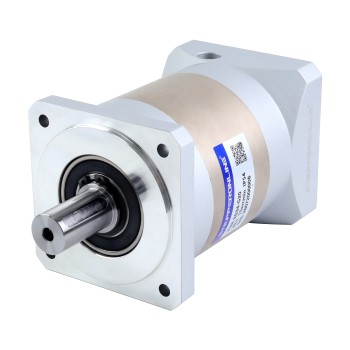

EG Series Planetary Gearbox Gear Ratio 20:1 Backlash 15arc-min for Nema 34 Stepper Motor
