1000VA Single-phase Square Control Transformer 220VAC to 4 x 70VAC 50/60Hz

0 reviews - Write a review

€73.76

5 + €70.73

10 + €67.92

50 + €65.34

100 + €62.94

In Stock: 10000
Model: TR1000-A70-A220
Gross Weight: 12.15kg
Certificated: ISO, CE

Sold: 3

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

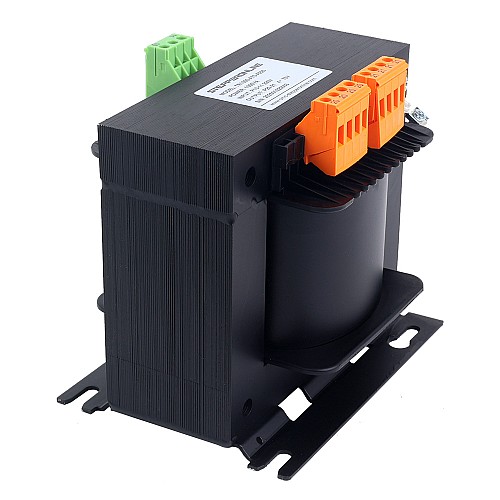

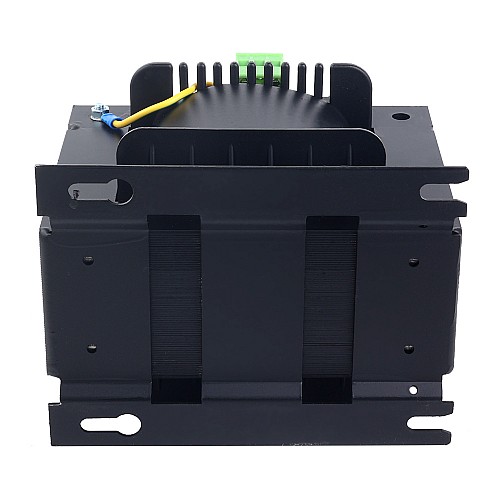

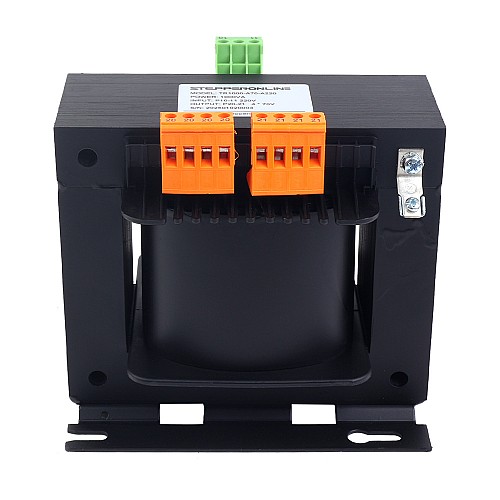

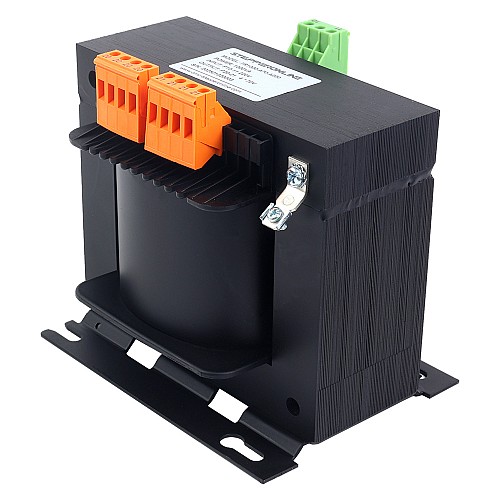

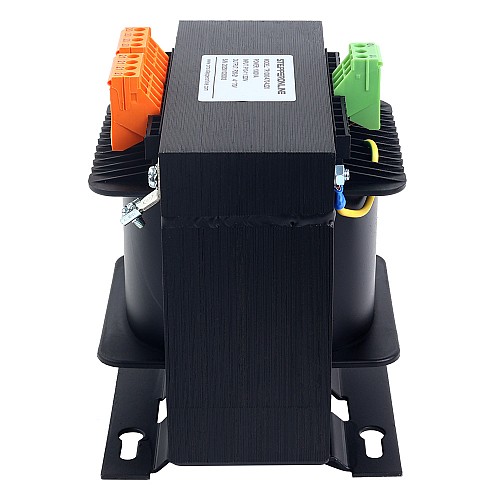

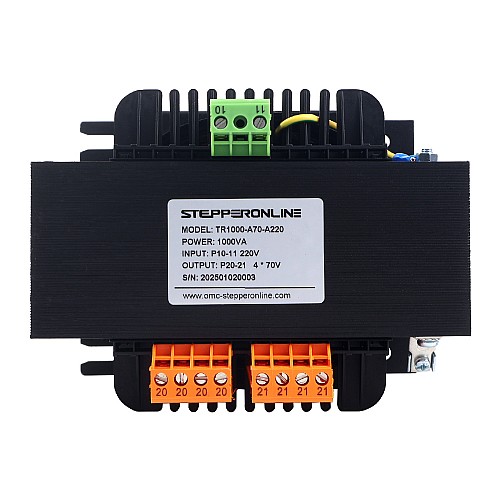

This is a 1000VA, 220VAC to 4 x 70VAC single-phase molded machine tool industrial control transformer. The transformer coil winding adopts vacuum varnishing insulation treatment process, which has reliable mechanical strength and insulation strength. It's onvenient wiring, safe and reliable, low energy consumption, small size and wide applicability make it widely used in industrial automation, motor control centers, process control systems, etc.

Specifications

Part Number: TR1000-A70-A220
Phase: Single Phase
Power: 1000VA
Output Voltage: 4 x 70VAC(P20 - P21)
Input Voltage: 220VAC ± 5%(P10 - P11)
Frequency: 50/60Hz
Coil Structure: Square
Insulation Class: Class B(130℃)
Frame Size: 169x127x165mm
Installation hole distance: 136x105mm

Electrical Specification
Frequency(Hz)	50/60
Input Voltage(V)	220V ± 5%
Insulation Class	B(130℃)
Output Voltage(VAC)	4 x 70
Power(VA)	1000
Voltage(V)	220V to 4 x 70V
Physical Specification
Transformer Type	Square
