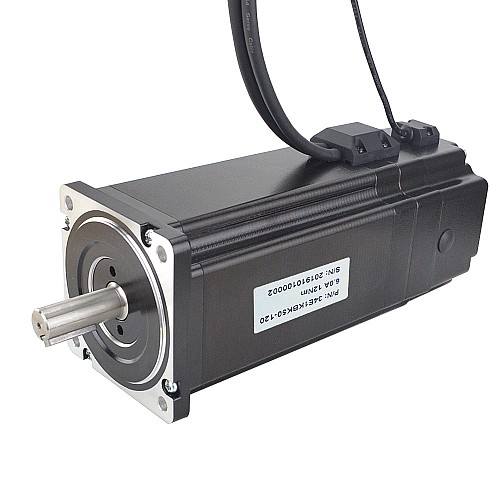

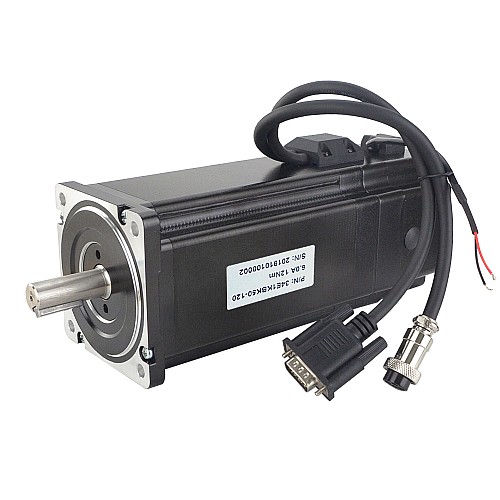

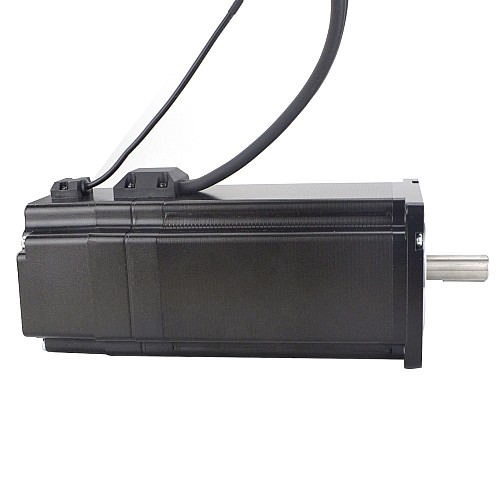

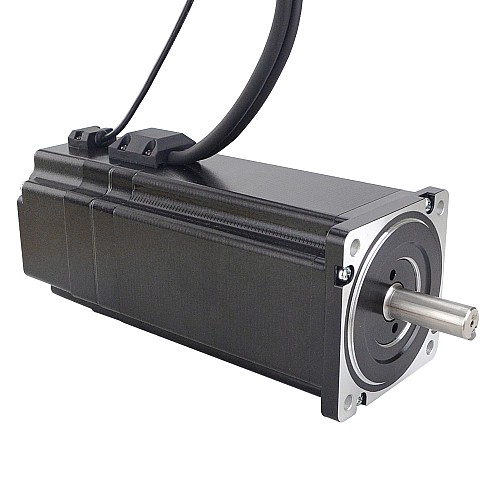

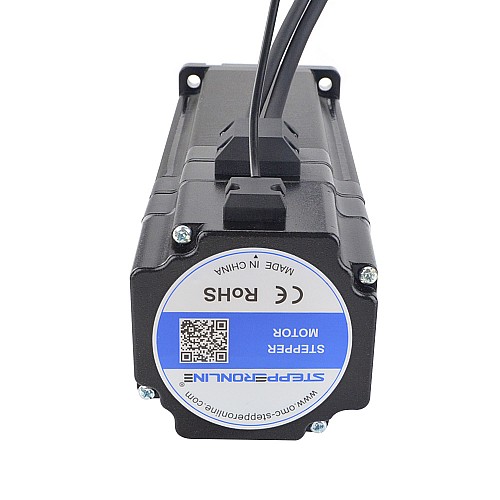

P Series Nema 34 Closed Loop Stepper Motor 12Nm(1700oz.in) with Electromagnetic Brake

1 reviews - Write a review

C$239.64

5 + C$228.36

10 + C$218.11

50 + C$208.72

100 + C$200.11

In Stock: 10000
Model: 34E1KBK50-120
Gross Weight: 6.72kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 324

Click country for real-time stock

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 34E1KBK50-120
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 12Nm(1700oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.72ohms
Inductance: 7.3mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

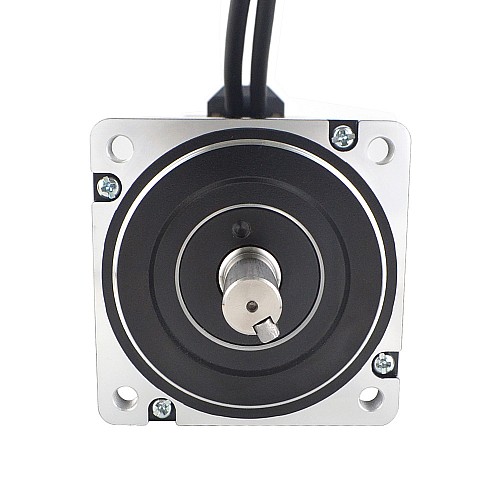

Frame Size: 86 x 86mm
Body Length: 150.6mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
keyway Length: 25mm
Number of Leads: 4
Lead Length: 270mm
Weight: 5.0kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Incremental
Output Signal Channels: 2channels
Supply Voltage Min: 5V
Supply Voltage Max: 5V
Output High Voltage: ＜4V
Output Low Voltage: ＜1V

Brake Connections

Red--24V+
Black--24V-
5.0Nm

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	EGND	EA+	EA-	EB+	EB-

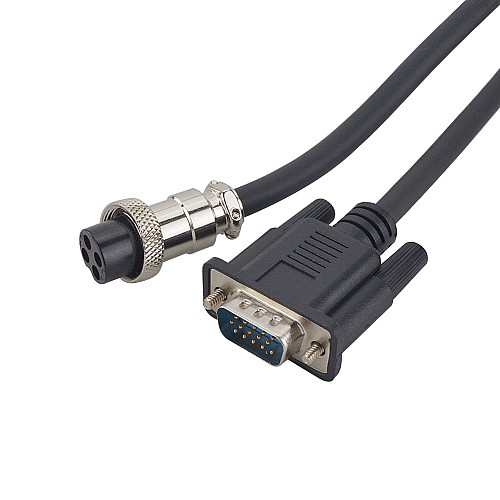

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Holding Torque(Ncm)	1200
Inductance(mH)	7.3
Output Circuit Type	Differential
Output Signal Channels	2
Phase Resistance(ohms)	0.72
Rated Current(A)	6
Stepper Motor with	Encoder/Brake
Brake Specification
Brake Current(A)	0.19
Brake Power(W)	4.8
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	500
Brake Type	Power Off Brake
Response Time(ms)	50
Physical Specification
Body Length(mm)	150.6
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
Shaft Length(mm)	37
