5IK120GU-AFT/5GU200KB
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)90 x 90
Current(A)1.65
Question

Downloads

5IK120GU-XXFT_5GUXXKB_manual.pdfPDF · 2.28MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK120GU-AFT/5GU100KBKeyway1PH 110VAC90 x 901.65C$87.44In stock
5IK120GU-AFT/5GU10KBKeyway1PH 110VAC90 x 901.65C$80.58In stock
5IK120GU-AFT/5GU15KBKeyway1PH 110VAC90 x 901.65C$80.58In stock
5IK120GU-AFT/5GU200KBKeyway1PH 110VAC90 x 901.65C$87.44In stock
5IK120GU-AFT/5GU20KBKeyway1PH 110VAC90 x 901.65C$83.74In stock
5IK120GU-AFT/5GU30KBKeyway1PH 110VAC90 x 901.65C$83.74In stock
5IK120GU-AFT/5GU3KBKeyway1PH 110VAC90 x 901.65C$76.60In stock
5IK120GU-AFT/5GU50KBKeyway1PH 110VAC90 x 901.65C$83.74In stock
5IK120GU-AFT/5GU5KBKeyway1PH 110VAC90 x 901.65C$76.60In stock
5IK120GU-AFT/5GU5KB-SALEKeyway1PH 110VAC90 x 901.65C$77.82In stock
5IK120GU-CFT/5GU100KBKeyway1PH 220VAC90 x 900.87C$87.44In stock
5IK120GU-CFT/5GU10KBKeyway1PH 220VAC90 x 900.87C$80.58In stock
5IK120GU-CFT/5GU15KBKeyway1PH 220VAC90 x 900.87C$80.58In stock
5IK120GU-CFT/5GU200KBKeyway1PH 220VAC90 x 900.87C$87.44In stock
5IK120GU-CFT/5GU20KBKeyway1PH 220VAC90 x 900.87C$83.74In stock
5IK120GU-CFT/5GU30KBKeyway1PH 220VAC90 x 900.87C$83.74In stock
5IK120GU-CFT/5GU3KBKeyway1PH 220VAC90 x 900.87C$76.60In stock
5IK120GU-CFT/5GU50KBKeyway1PH 220VAC90 x 900.87C$83.74In stock
5IK120GU-CFT/5GU5KBKeyway1PH 220VAC90 x 900.87C$76.60In stock
5IK120GU-S/S3FT/5GU100KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$87.44In stock
5IK120GU-S/S3FT/5GU10KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$80.58In stock
5IK120GU-S/S3FT/5GU15KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$80.58In stock
5IK120GU-S/S3FT/5GU200KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$87.44In stock
5IK120GU-S/S3FT/5GU20KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$83.74In stock
5IK120GU-S/S3FT/5GU30KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$83.74In stock
5IK120GU-S/S3FT/5GU3KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$76.60In stock
5IK120GU-S/S3FT/5GU50KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$83.74In stock
5IK120GU-S/S3FT/5GU5KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$76.60In stock
5IK40GN-AT/5GN100KKeyway1PH 110VAC90 x 900.66C$66.31In stock
5IK40GN-AT/5GN10KKeyway1PH 110VAC90 x 900.66C$61.29In stock
View all in category
120W 110VAC 60Hz 7.75RPM 20.00Nm(2832.23oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor
This 120W 90x90mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of ... Read More
0 reviews • Write a review
from
C$87.44
5 + C$85.09
10 + C$82.87
50 + C$80.75
100 + C$78.75

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
This 120W 90x90mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 200, a torque of 20.00Nm(2832.23oz.in) and a speed of 7.75rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK120GU-AFT/5GU200KB
  • Gearbox Type: Spur Gearbox
  • Output Power: 120W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 1.65A
  • Gear Ratio: 200:1
  • Speed: 7.75rpm
  • Torque: 20.00Nm(2832.23oz.in)

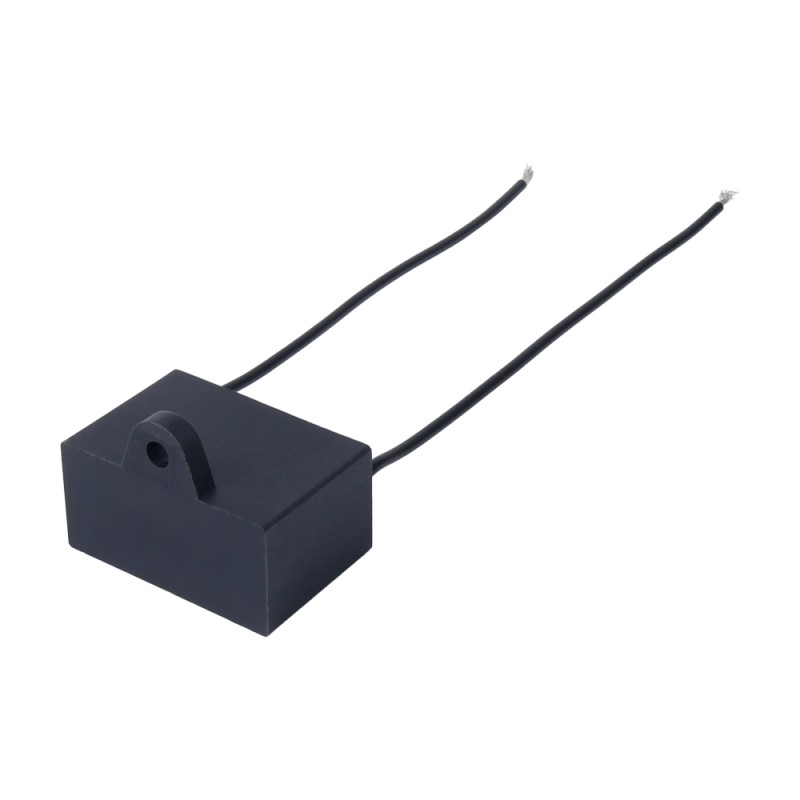

  • Capacitor: 25.0μF/250VAC

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 205mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ15mm
  • Shaft Length: 38mm
  • Weight: 5.05kg

Wiring

Electrical Specification
Current(A) 1.65
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Output Power(W) 120
Speed(rpm) 7.75
Torque(Nm) 20
Physical Specification
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 200
Gearbox Type Spur Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

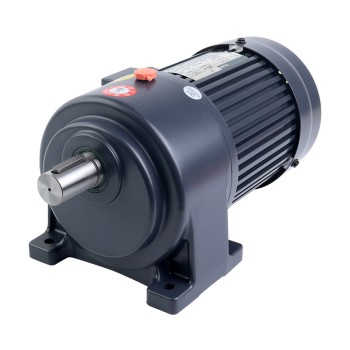

GH Series Horizontal Medium-Sized Geared Motor Power 0.1-3.7KW Gear Ratio 3-1800 with Brake
