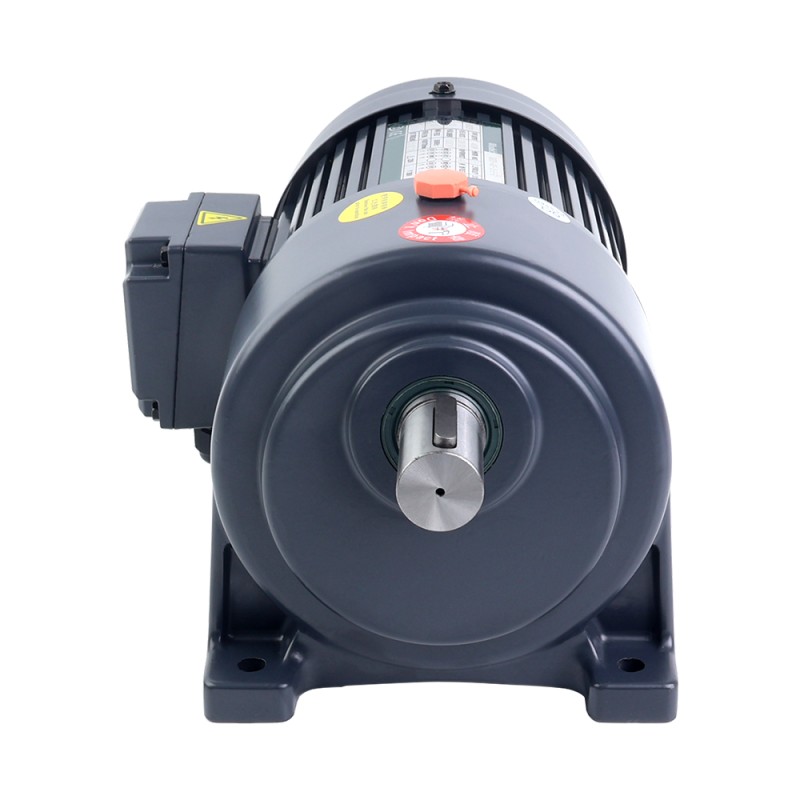

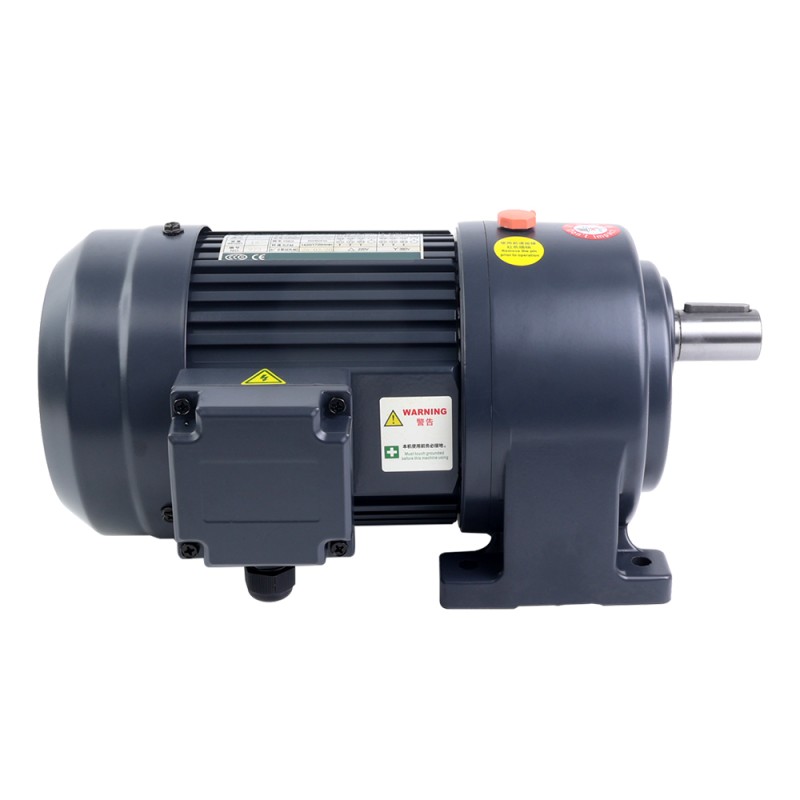

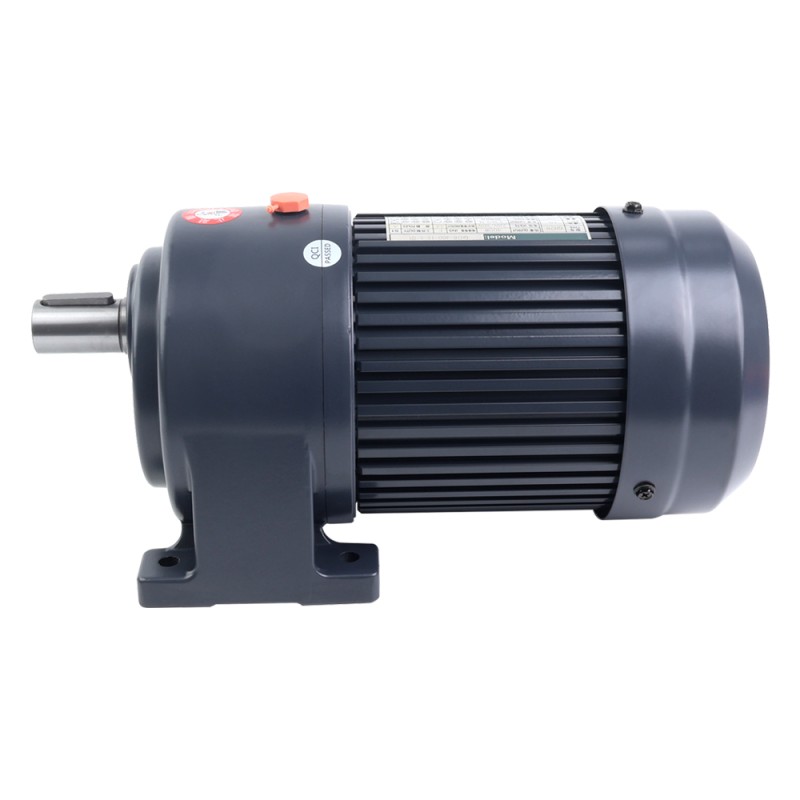

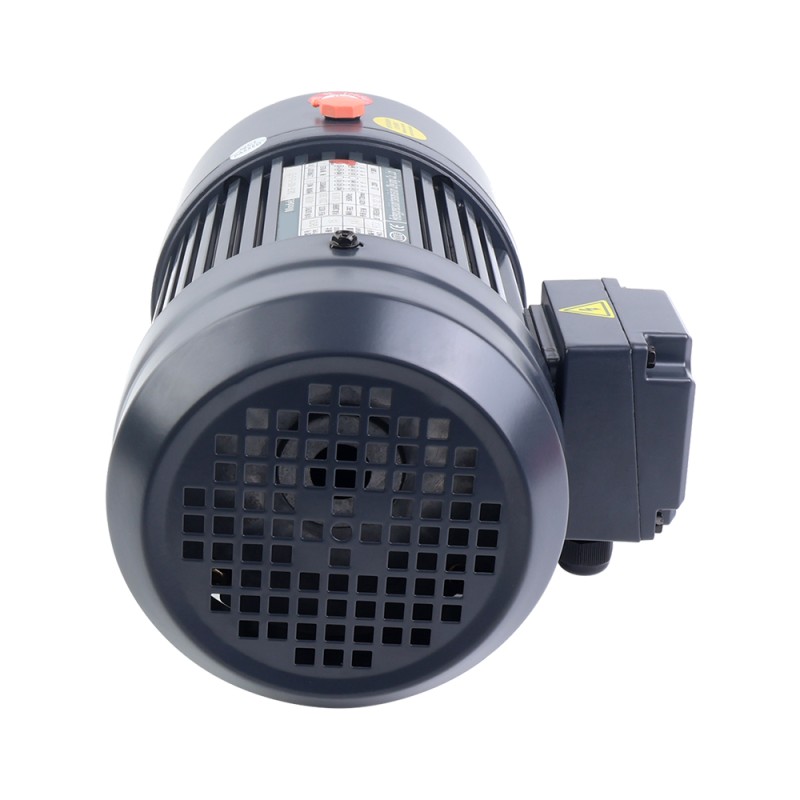

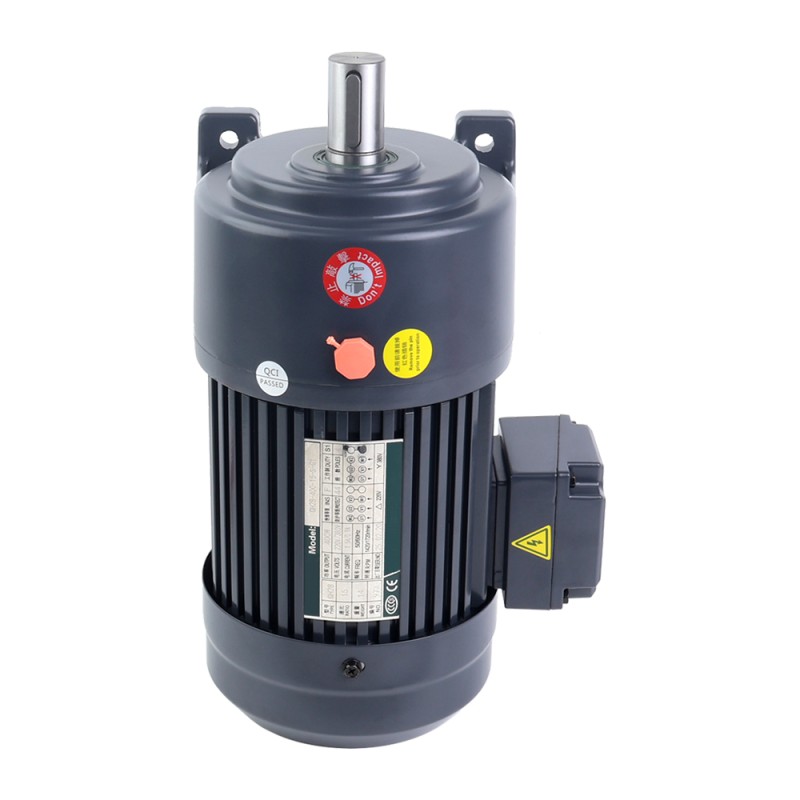

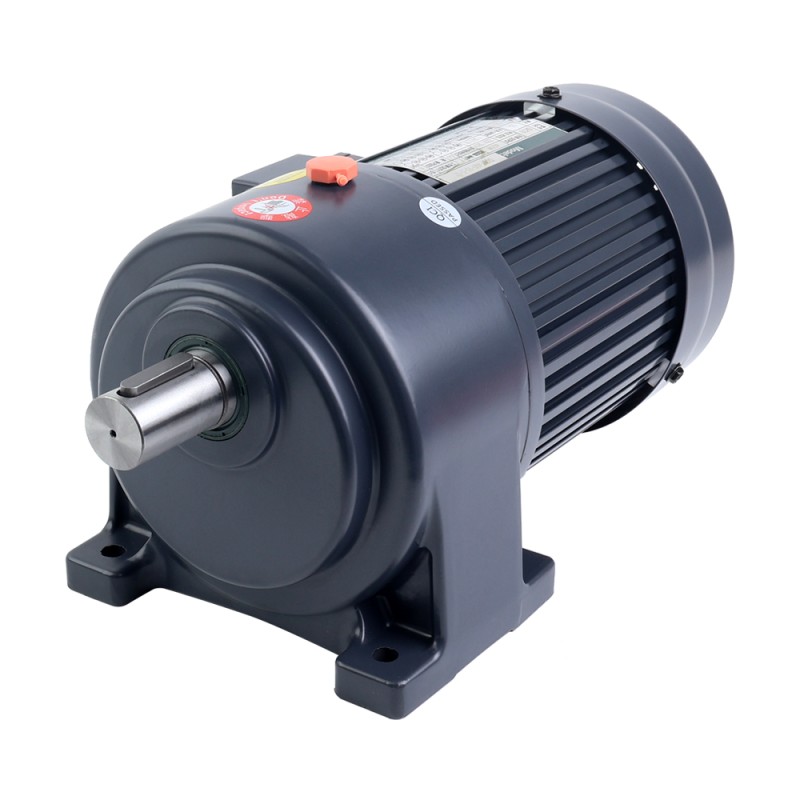

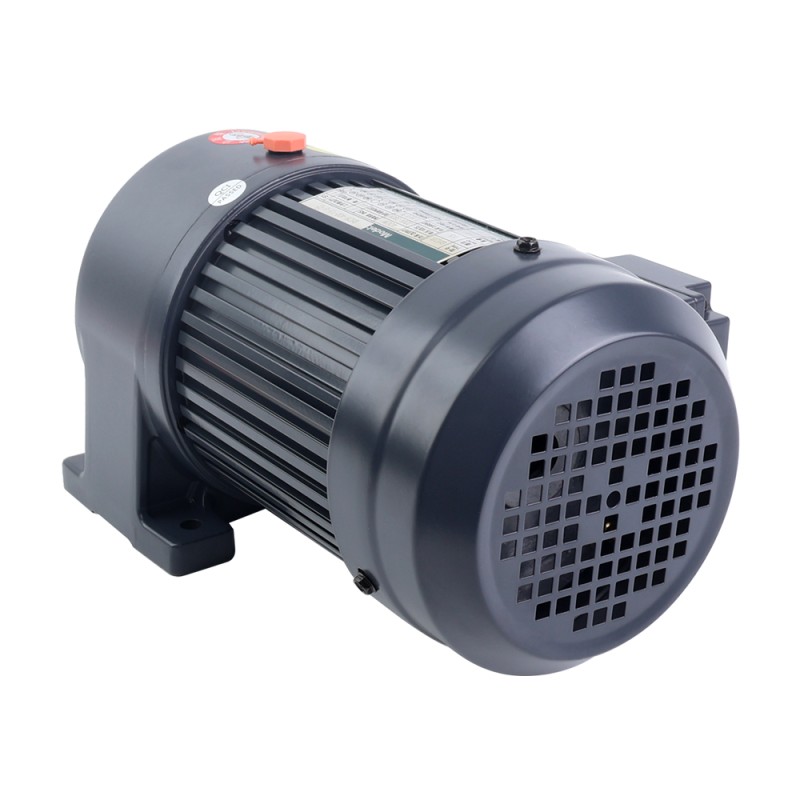

This GH series horizontal medium-sized geared motor with brake, featuring a wide reduction ratio range of 3 to 1800, power output of 100 to 3700W, and output shaft diameters from 18 to 50mm. This motor delivers smooth transmission, high load capacity, and superior efficiency, which make it ideal for industrial production, construction machinery, and marine applications.

1. Motor output torque for gear ratios between 3-200

Ratio
Output RPM
Output Torque
0.1KW
1/8HP
0.2KW
1/4HP
0.4KW
1/2HP
0.75KW
1HP
1.5KW
2HP
2.2KW
3HP
3.7KW
5HP
Hz
50
60
50
60
50
60
50
60
50
60
50
60
50
60
50
60
3
500
600
0.19
0.16
0.37
0.31
0.70
0.60
1.30
1.10
2.60
2.20
3.80
3.20
6.00
5.50
5
300
360
0.31
0.26
0.62
0.52
1.20
1.00
2.20
1.90
4.50
3.80
6.72
5.60
11.00
10.00
10
150
180
0.62
0.52
1.24
1.04
2.40
2.00
4.50
3.80
9.10
7.60
13.70
11.20
22.00
20.00
15
100
120
0.91
0.76
1.80
1.50
3.60
3.00
6.80
5.70
13.50
11.30
20.10
16.80
32.60
29.80
20
75
90
1.20
1.00
2.40
2.00
4.80
4.00
9.00
7.50
18.10
15.10
26.80
22.40
43.60
36.00
25
60
72
1.40
1.20
3.00
2.50
6.00
5.00
11.20
9.40
22.60
18.90
33.60
28.00
53.90
49.53
30
50
60
1.80
1.50
3.60
3.00
7.20
6.00
13.50
11.30
27.10
22.60
40.30
33.60
64.70
58.80
40
37
45
2.20
1.90
4.60
3.90
9.30
7.80
17.50
14.60
34.90
29.10
52.00
43.40
86.30
78.40
45
33
40
2.70
2.20
5.40
4.40
10.90
9.10
20.60
17.00
41.10
34.00
59.80
49.60
98.50
81.70
50
30
36
2.80
2.40
5.70
4.80
11.60
9.70
21.90
18.30
43.60
36.40
65.10
54.30
107.00
97.00
60
25
30
3.40
2.90
6.90
5.80
13.90
11.60
26.20
21.90
52.40
43.70
78.10
65.10
127.00
115.00
70
21
25
4.30
3.60
8.00
6.80
16.20
13.50
31.50
26.30
62.40
52.00
92.50
77.10
80
19
23
4.80
4.00
9.20
7.70
18.40
15.40
35.50
29.60
70.80
59.00
105.00
87.50
90
17
20
5.20
4.40
10.30
8.60
20.70
17.30
39.30
32.80
77.10
64.30
113.00
94.30
100
15
18
5.80
4.90
11.50
9.60
23.00
19.20
43.20
36.00
83.70
69.80
126.00
105.00
120
12
15
6.90
5.80
13.80
11.50
27.70
23.10
51.80
43.20
101.00
83.70
140
11
13
8.00
6.70
16.00
13.40
32.00
26.70
59.70
19.80
116.00
96.80
160
9
11
9.10
7.60
18.30
15.30
36.30
30.30
68.00
56.70
132.00
110.00
180
8
10
10.3
8.60
20.70
17.30
40.80
34.00
76.80
64.00
148.00
123.00
200
7
9
11.60
9.70
22.90
19.10
43.20
36.00
82.80
69.00

2. GH medium speed reduction motor naming rule

3. Universal size

STEPPERONLINE medium-sized geared motors support versatile customization. You can select the most suitable motor for your application based on the following parameters.

  • Output Shaft Diameter:

    Optioanl: 18mm, 22mm, 28mm, 32mm, 40mm, 50mm

  • Motor Power:

    Optioanl: 100W, 200W, 400W, 750W, 1500W, 2200W, 3700W

  • Gear Ratio:

    Optioanl: 3, 5, 10, 15, 20, 25, 30, 40, 45, 50, 60, 70, 80, 90, 100, 120, 140, 160, 180, 200, 250-1800

  • Operating Voltage:

    S: 220V/380V 3PH

    B: 220V 1PH

  • Direction of Junction box:

    G1: Left(standard)

    G2: Right

    G3: Up

    G4: Down

  • Inlet Direction:

    Optioanl: LD, LT, RD, RT, TL, TR, DL, DR, LF, LB, RF, RB, TF, TB, DF, DB

    Note:

    T: UP

    B: BACK

    D: DOWN

    L: LEFT

    F: FORWARD

    R: RIGHT

  • Air Hold Direction

Electrical Specification
Operating Voltage(V) 220V/380V 3PH, 220V 1PH
Power(W) 100, 200, 400, 750, 1500, 2200, 3700
Physical Specification
Gear Ratio(xx:1) 3, 5, 10, 15, 20, 25, 30, 40, 45, 50, 60, 70, 80, 90, 100, 120, 140, 160, 180, 200, 250-1800
Output Shaft Diameter(mm) 18, 22, 28, 32, 40, 50

1. GH Horizontal Type Plate 3-Phase(Brake) Motor


2. GH Horizontal Type High Ratio Type Plate 3-Phase(Brake) Motor


3. GH Horizontal Type Plate 1-Phase(Brake) Motor


File Size
Medium-Sized Geared Motor Selection Manual 1.19MB Download

Write a review

Note: HTML is not translated!
Bad Good
The product is currently Out-of-Stock. Enter your email address below and we will notify you as soon as the product is available.
Name
Email
Comments
