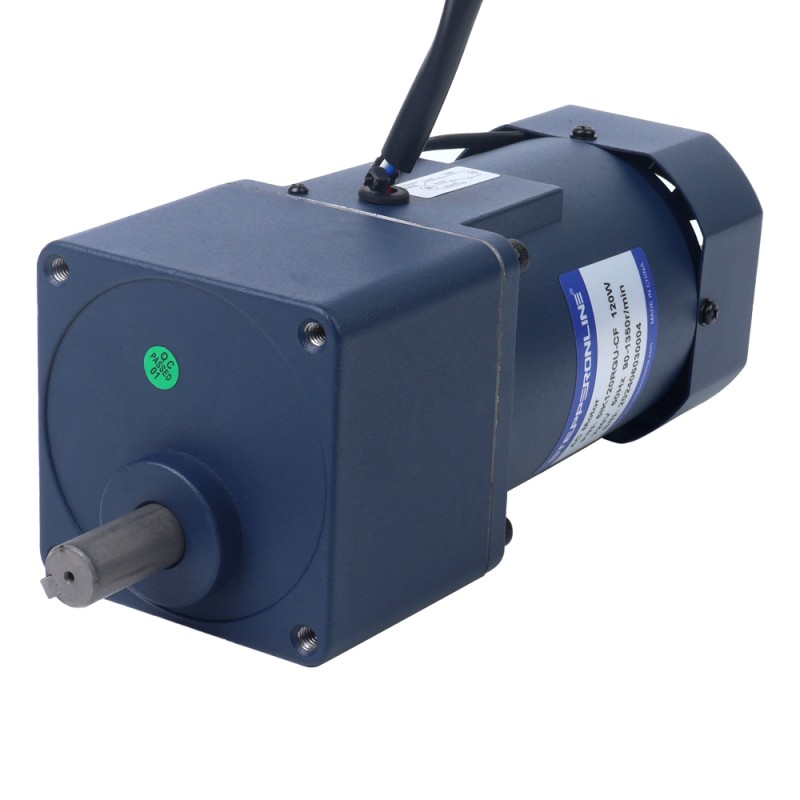

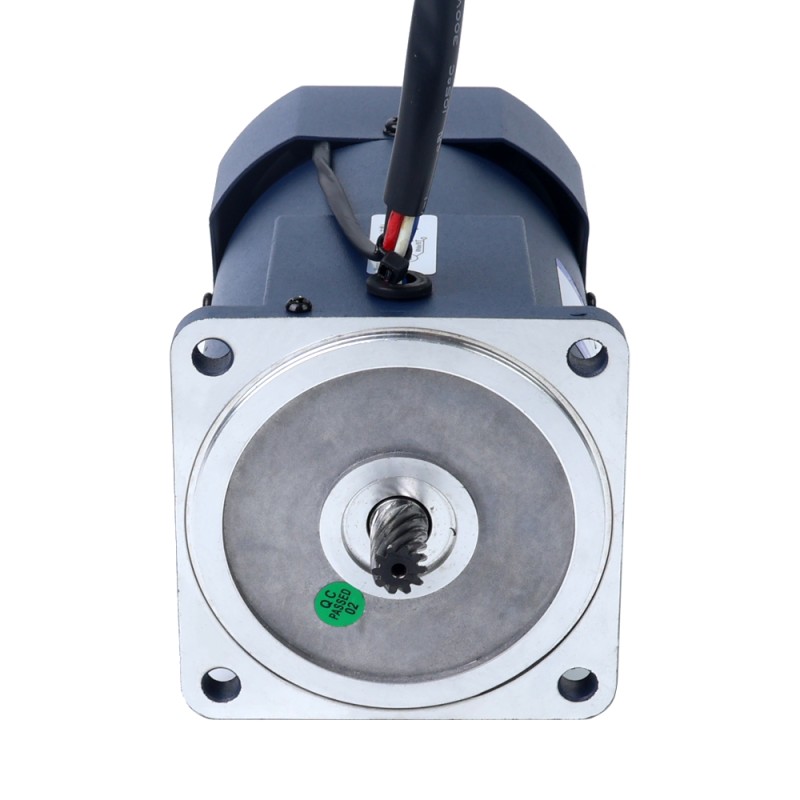

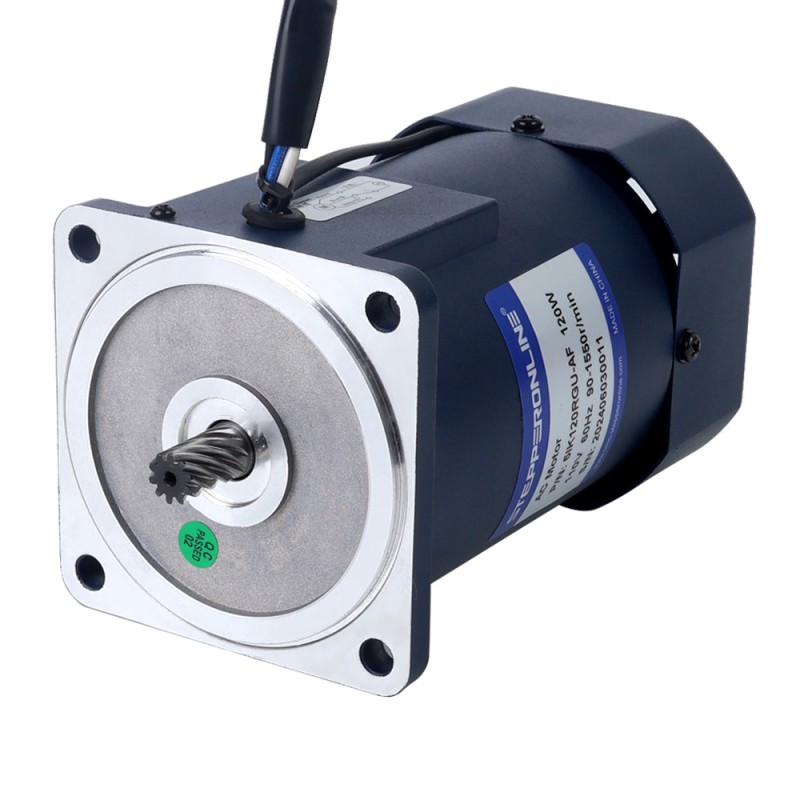

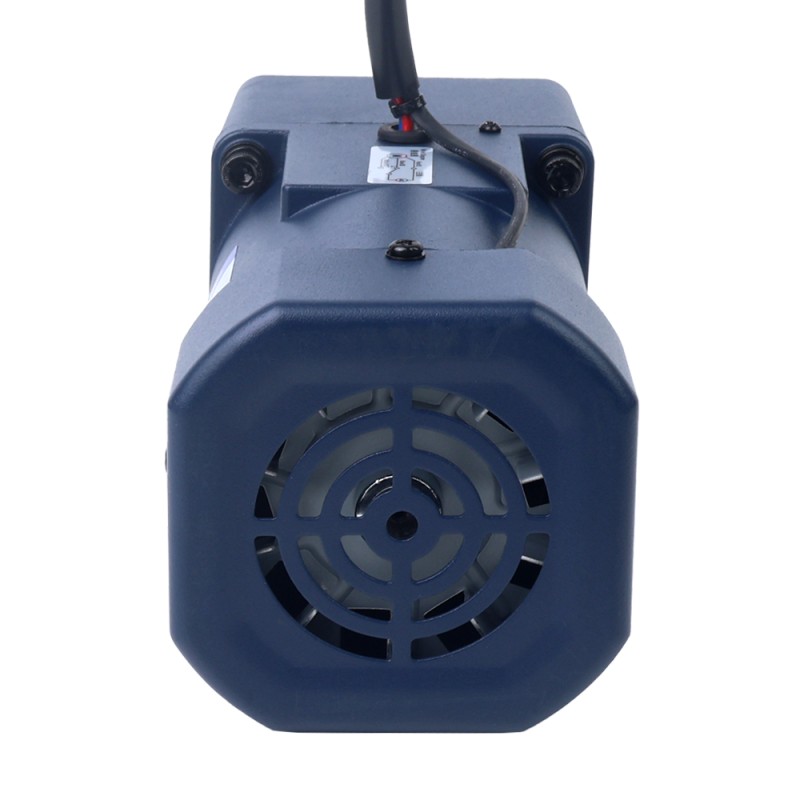

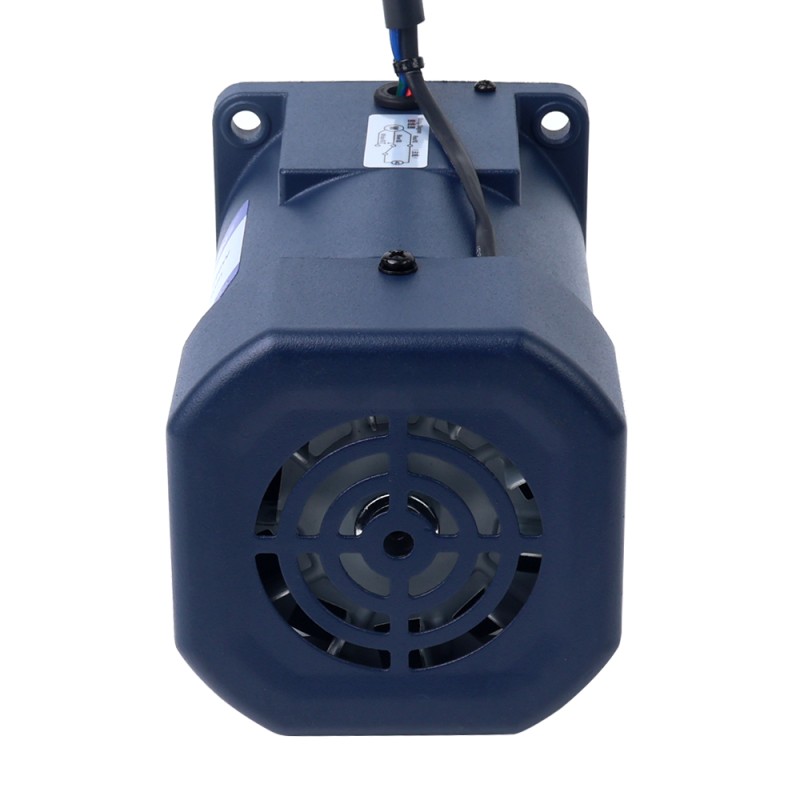

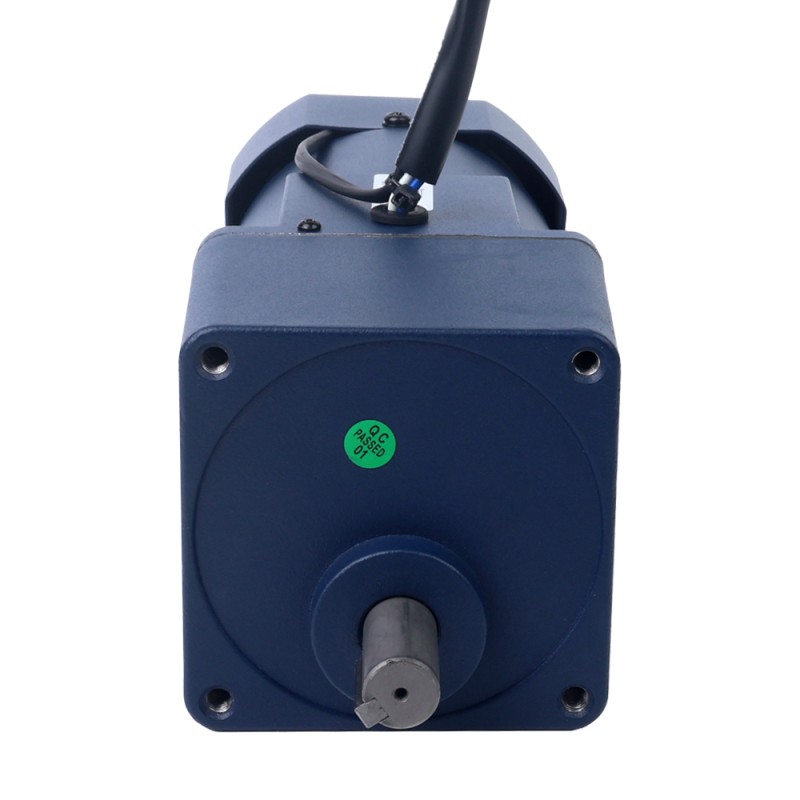

120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor

120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU10KB | StepperOnline CA
5IK120RGU-AF/5GU10KB
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)90 x 90
Current(A)1.65
Question

Downloads

5IK120RGU-XF_5GUXXKB_Manual.pdfPDF · 1.25MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK120RA-AFD1PH 110VAC90 x 901.65C$50.72In stock
5IK120RA-CFD1PH 220VAC90 x 900.87C$50.72In stock
5IK120RGU-AF/5GU100KBKeyway1PH 110VAC90 x 901.65C$87.44In stock
5IK120RGU-AF/5GU100RCHollow1PH 110VAC90 x 901.65C$114.65In stock
5IK120RGU-AF/5GU100RTKeyway1PH 110VAC90 x 901.65C$114.65In stock
5IK120RGU-AF/5GU10KBKeyway1PH 110VAC90 x 901.65C$80.58In stock
5IK120RGU-AF/5GU10RCHollow1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU10RTKeyway1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU15KBKeyway1PH 110VAC90 x 901.65C$80.58In stock
5IK120RGU-AF/5GU15RCHollow1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU15RTKeyway1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU180RCHollow1PH 110VAC90 x 901.65C$114.65In stock
5IK120RGU-AF/5GU180RTKeyway1PH 110VAC90 x 901.65C$114.65In stock
5IK120RGU-AF/5GU200KBKeyway1PH 110VAC90 x 901.65C$87.44In stock
5IK120RGU-AF/5GU20KBKeyway1PH 110VAC90 x 901.65C$83.74In stock
5IK120RGU-AF/5GU20RCHollow1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU20RTKeyway1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU30KBKeyway1PH 110VAC90 x 901.65C$83.74In stock
5IK120RGU-AF/5GU30RCHollow1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU30RTKeyway1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU3KBKeyway1PH 110VAC90 x 901.65C$76.60In stock
5IK120RGU-AF/5GU50KBKeyway1PH 110VAC90 x 901.65C$83.74In stock
5IK120RGU-AF/5GU50RCHollow1PH 110VAC90 x 901.65C$114.65In stock
5IK120RGU-AF/5GU50RTKeyway1PH 110VAC90 x 901.65C$114.65In stock
5IK120RGU-AF/5GU5KBKeyway1PH 110VAC90 x 901.65C$76.60In stock
5IK120RGU-CF/5GU100KBKeyway1PH 220VAC90 x 900.87C$87.44In stock
5IK120RGU-CF/5GU100RCHollow1PH 220VAC90 x 900.87C$114.65In stock
5IK120RGU-CF/5GU100RTKeyway1PH 220VAC90 x 900.87C$114.65In stock
5IK120RGU-CF/5GU10KBKeyway1PH 220VAC90 x 900.87C$80.58In stock
5IK120RGU-CF/5GU10RCHollow1PH 220VAC90 x 900.87C$111.74In stock
View all in category
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor
This 120W 90x90mm single-phase AC motor with adjustable speed control is operated with 110VAC. It ha... Read More
0 reviews • Write a review
from
C$80.58
5 + C$78.40
10 + C$76.36
50 + C$74.41
100 + C$72.56

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
This 120W 90x90mm single-phase AC motor with adjustable speed control is operated with 110VAC. It has a speed range of 9-155rpm and a gearbox with a gear ratio of 10. Designed for simple and easy wiring through quick connect and easy speed control through panel mounting. It is ideal for applications requiring precise speed control and is designed for easy operation and wiring. The simple brushless structure, high reliability, relatively high efficiency and long life make it an excellent and cost-effective choice for constant speed applications such as industrial equipment, home appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK120RGU-AF/5GU10KB
  • Gearbox Type: Spur Gearbox
  • Output Power: 120W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 1.65A
  • Gear Ratio: 10:1
  • Speed Range: 9-155rpm
  • Maximum Torque: 5.83Nm(825.60oz.in)
  • Capacitor: 25.0μF/250VAC

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 216mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ15mm
  • Shaft Length: 38mm
  • Weight: 5.15kg

Wiring

Electrical Specification
Current(A) 1.65
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Max. Torque(Nm) 5.83
Output Power(W) 120
Speed Range(rpm) 9-155
Physical Specification
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 10
Gearbox Type Spur Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
120W Single Phase 110VAC Motor Speed Controller for Variable Speed Motor
120W Single Phase 110VAC Motor Speed Controller for Variable Speed Motor
This motor speed controller comes with a voltage of single-phase 110VAC and is suitable for 120W variable speed motors. It features advanced PID contr..
from
C$14.73
Add to Cart
Add to Wish List Compare this Product
Quickview

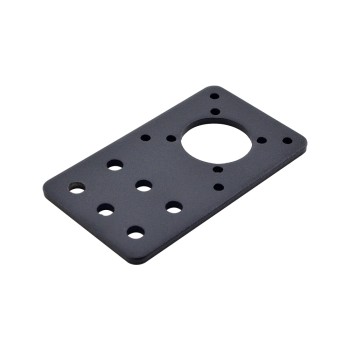

Mounting Plate and Bracket for Nema 17 Stepper Motor and PG Series Geared Stepper Motor
Mounting Plate and Bracket for Nema 17 Stepper Motor and PG Series Geared Stepper Motor
The new mounting plate or bracket is designed for NEMA 17 size standard stepper motors and PG serie geared stepper motors. It can also be used in comb..
from
C$2.07
Add to Cart
Add to Wish List Compare this Product
Quickview

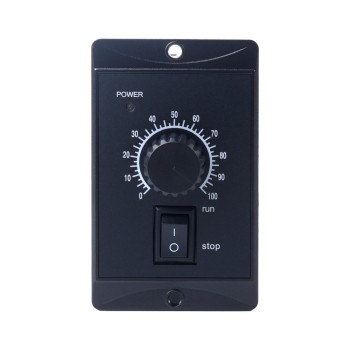

60W Single Phase 110VAC Motor Speed Controller for Variable Speed Motor
