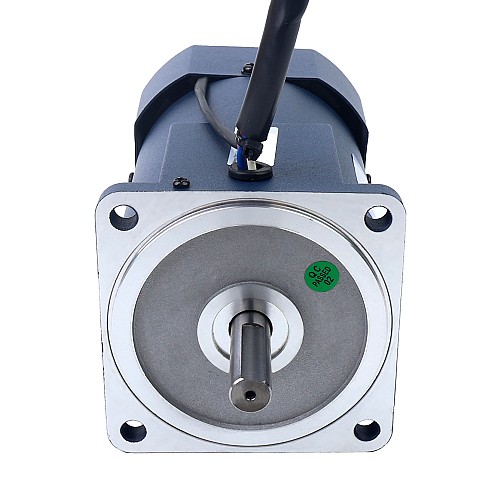

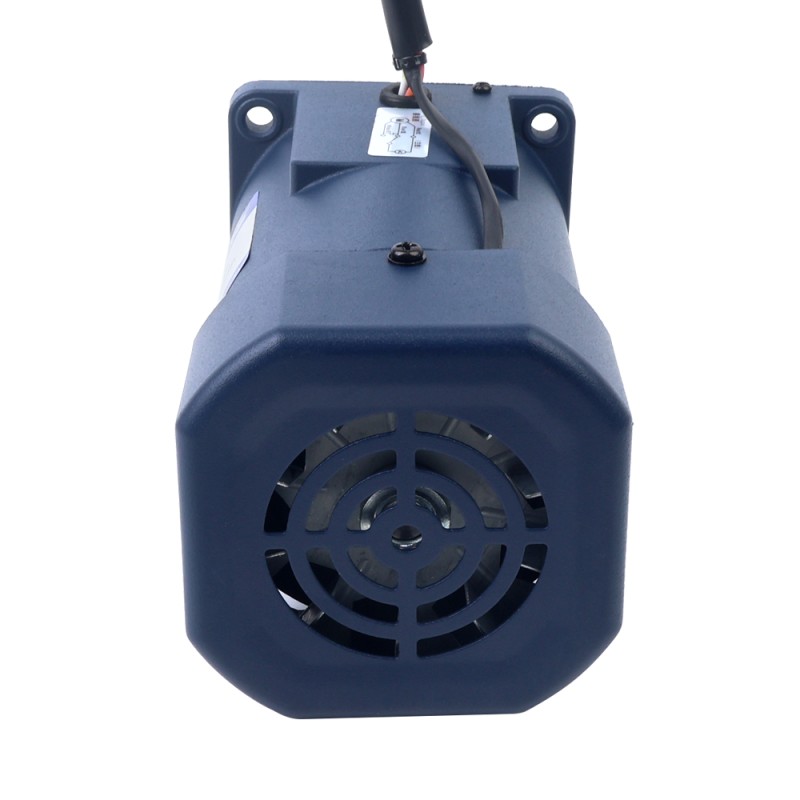

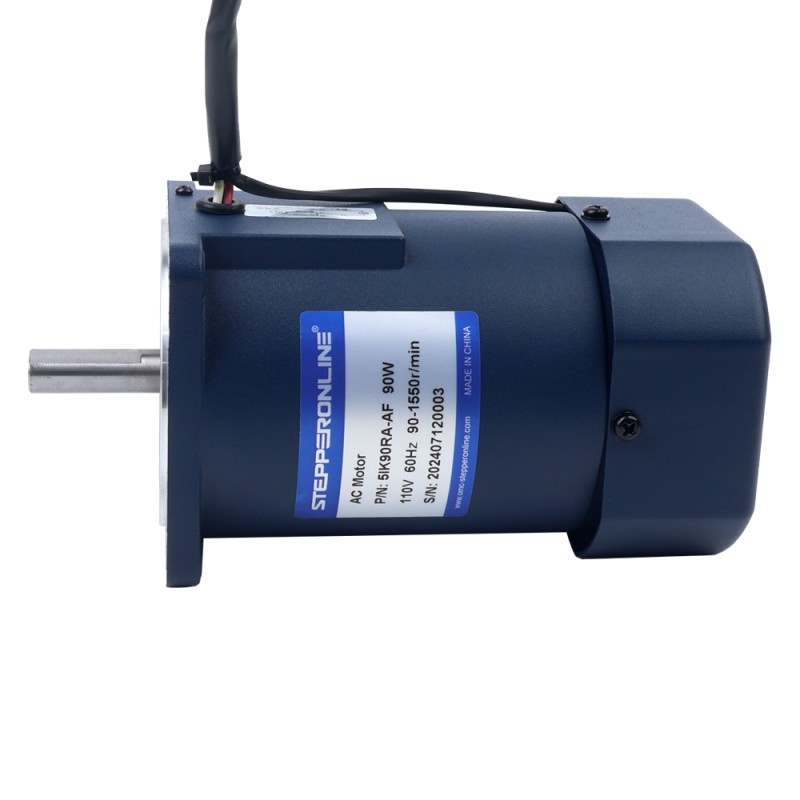

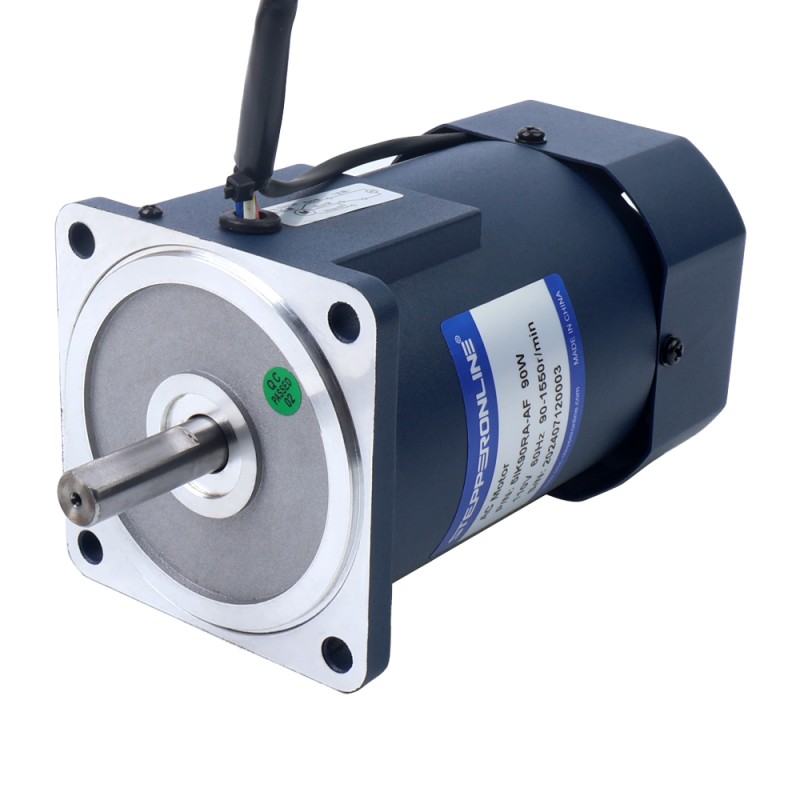

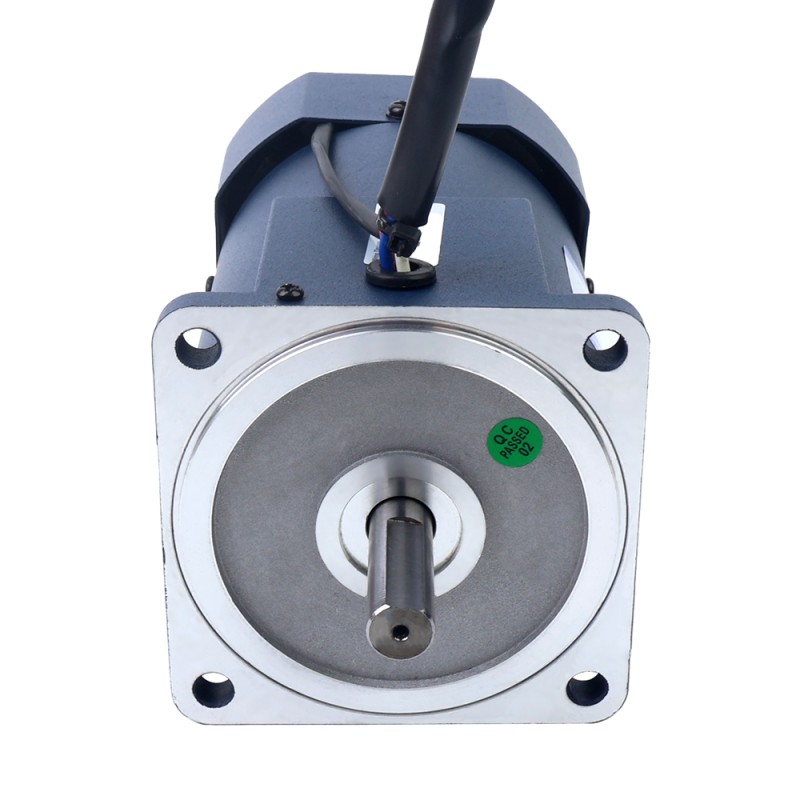

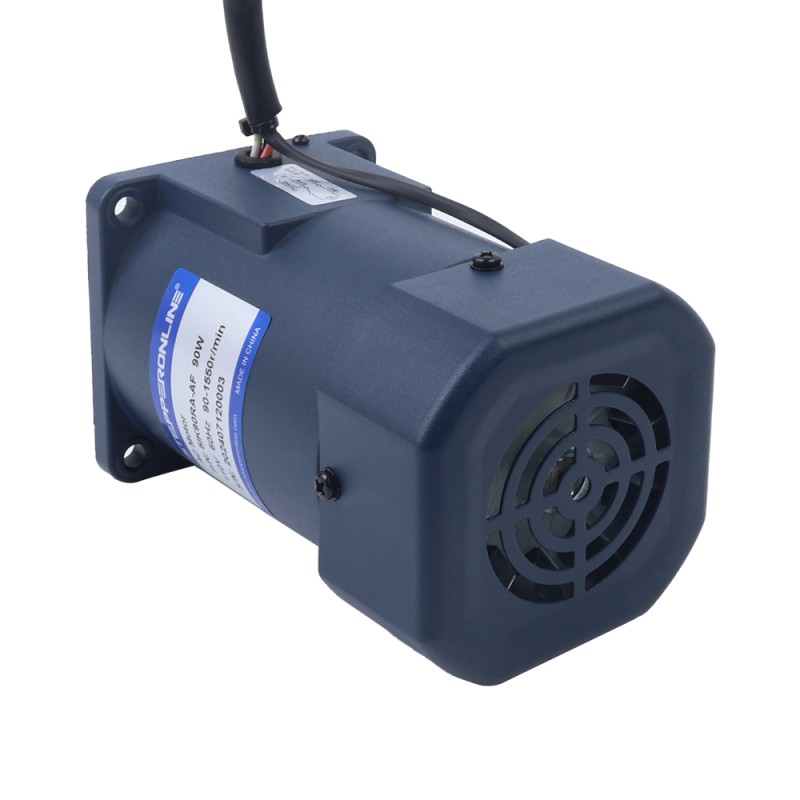

90W 110VAC 60Hz 90-1550RPM 0.54Nm(76.47oz.in) Flange 90mm Single-phase AC Variable Speed Motor

90W 110VAC 60Hz 90-1550RPM 0.54Nm(76.47oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK90RA-AF | StepperOnline CA
90W 110VAC 60Hz 90-1550RPM 0.54Nm(76.47oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK90RA-AF | StepperOnline CA
90W 110VAC 60Hz 90-1550RPM 0.54Nm(76.47oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK90RA-AF | StepperOnline CA
90W 110VAC 60Hz 90-1550RPM 0.54Nm(76.47oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK90RA-AF | StepperOnline CA
90W 110VAC 60Hz 90-1550RPM 0.54Nm(76.47oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK90RA-AF | StepperOnline CA
90W 110VAC 60Hz 90-1550RPM 0.54Nm(76.47oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK90RA-AF | StepperOnline CA
90W 110VAC 60Hz 90-1550RPM 0.54Nm(76.47oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK90RA-AF | StepperOnline CA
90W 110VAC 60Hz 90-1550RPM 0.54Nm(76.47oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK90RA-AF | StepperOnline CA
90W 110VAC 60Hz 90-1550RPM 0.54Nm(76.47oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK90RA-AF | StepperOnline CA
90W 110VAC 60Hz 90-1550RPM 0.54Nm(76.47oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK90RA-AF | StepperOnline CA
90W 110VAC 60Hz 90-1550RPM 0.54Nm(76.47oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK90RA-AF | StepperOnline CA
90W 110VAC 60Hz 90-1550RPM 0.54Nm(76.47oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK90RA-AF | StepperOnline CA
5IK90RA-AF
Output Shaft TypeD
Input Voltage(V)1PH 110VAC
Frame Size(mm)90 x 90
Current(A)1.4
Question

Downloads

5IK90RA-AF_Manual.pdfPDF · 13.52MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK60RGN-CF/5GN100KKeyway1PH 220VAC90 x 900.5C$69.21In stock
5IK60RGN-CF/5GN10KKeyway1PH 220VAC90 x 900.5C$64.19In stock
5IK60RGN-CF/5GN15KKeyway1PH 220VAC90 x 900.5C$64.19In stock
5IK60RGN-CF/5GN200KKeyway1PH 220VAC90 x 900.5C$69.21In stock
5IK60RGN-CF/5GN200K-SALEKeyway1PH 220VAC90 x 900.5C$70.31In stock
5IK60RGN-CF/5GN20KKeyway1PH 220VAC90 x 900.5C$66.57In stock
5IK60RGN-CF/5GN30KKeyway1PH 220VAC90 x 900.5C$66.57In stock
5IK60RGN-CF/5GN3KKeyway1PH 220VAC90 x 900.5C$64.19In stock
5IK60RGN-CF/5GN50KKeyway1PH 220VAC90 x 900.5C$69.21In stock
5IK60RGN-CF/5GN5KKeyway1PH 220VAC90 x 900.5C$64.19In stock
5IK90RA-AFD1PH 110VAC90 x 901.4C$46.49In stock
5IK90RA-CFD1PH 220VAC90 x 900.64C$46.49In stock
5IK90RGU-AF/5GU100KBKeyway1PH 110VAC90 x 901.4C$83.22In stock
5IK90RGU-AF/5GU100RCHollow1PH 110VAC90 x 901.4C$110.42In stock
5IK90RGU-AF/5GU100RTKeyway1PH 110VAC90 x 901.4C$110.42In stock
5IK90RGU-AF/5GU10KBKeyway1PH 110VAC90 x 901.4C$76.34In stock
5IK90RGU-AF/5GU10RCHollow1PH 110VAC90 x 901.4C$107.52In stock
5IK90RGU-AF/5GU10RTKeyway1PH 110VAC90 x 901.4C$107.52In stock
5IK90RGU-AF/5GU15KBKeyway1PH 110VAC90 x 901.4C$76.34In stock
5IK90RGU-AF/5GU15RCHollow1PH 110VAC90 x 901.4C$107.52In stock
5IK90RGU-AF/5GU15RTKeyway1PH 110VAC90 x 901.4C$107.52In stock
5IK90RGU-AF/5GU180RCHollow1PH 110VAC90 x 901.4C$110.42In stock
5IK90RGU-AF/5GU180RTKeyway1PH 110VAC90 x 901.4C$110.42In stock
5IK90RGU-AF/5GU200KBKeyway1PH 110VAC90 x 901.4C$83.22In stock
5IK90RGU-AF/5GU20KBKeyway1PH 110VAC90 x 901.4C$79.52In stock
5IK90RGU-AF/5GU20RCHollow1PH 110VAC90 x 901.4C$107.52In stock
5IK90RGU-AF/5GU20RTKeyway1PH 110VAC90 x 901.4C$107.52In stock
5IK90RGU-AF/5GU30KBKeyway1PH 110VAC90 x 901.4C$79.52In stock
5IK90RGU-AF/5GU30RCHollow1PH 110VAC90 x 901.4C$107.52In stock
5IK90RGU-AF/5GU30RTKeyway1PH 110VAC90 x 901.4C$107.52In stock
View all in category
90W 110VAC 60Hz 90-1550RPM 0.54Nm(76.47oz.in) Flange 90mm Single-phase AC Variable Speed Motor
This 90W 90x90mm single-phase AC motor with adjustable speed control is operated with 110VAC and has... Read More
0 reviews • Write a review
from
C$46.49
5 + C$45.24
10 + C$44.07
50 + C$42.93
100 + C$41.88

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
This 90W 90x90mm single-phase AC motor with adjustable speed control is operated with 110VAC and has a speed range of 90-1550rpm. Designed for simple and easy wiring through quick connect and easy speed control through panel mounting. It is ideal for applications requiring precise speed control and is designed for easy operation and wiring. The simple brushless structure, high reliability, relatively high efficiency and long life make it an excellent and cost-effective choice for constant speed applications such as industrial equipment, home appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK90RA-AF
  • Output Power: 90W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 1.40A
  • Speed Range: 90-1550rpm
  • Rated Torque(90rpm): 0.21Nm(29.74oz.in)
  • Rated Torque(1200rpm): 0.54Nm(76.47oz.in)
  • Capacitor: 20.0μF/250VAC

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 151mm
  • Shaft Type: D-cut
  • Shaft Diameter: Φ12mm
  • Shaft Length: 37mm
  • Cable Length: 300mm
  • Weight: 3.4kg

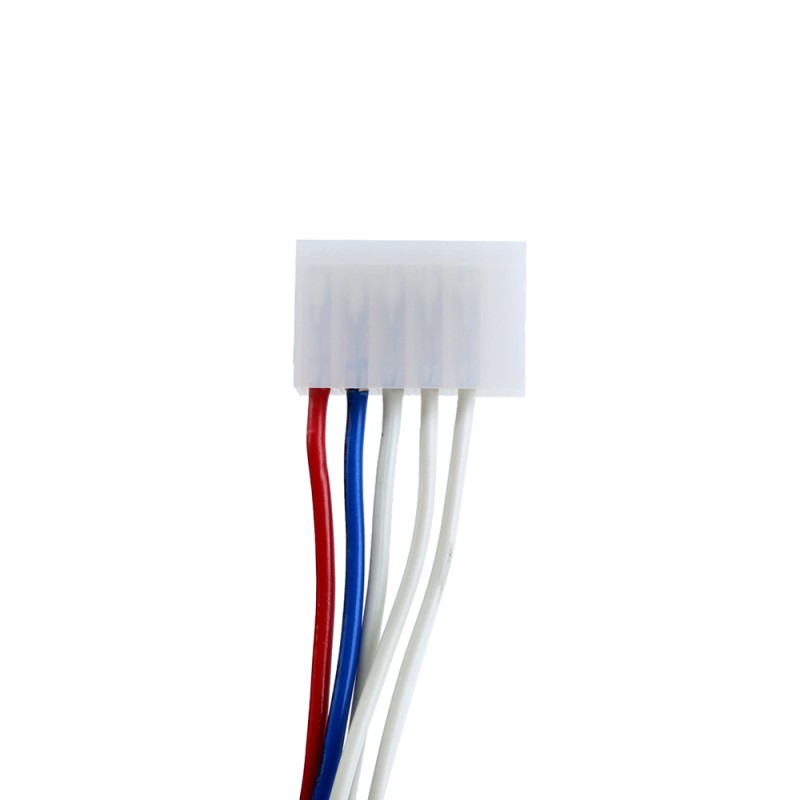

Wiring

Electrical Specification
Current(A) 1.4
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Max. Torque(Nm) 0.54
Output Power(W) 90
Speed Range(rpm) 90-1550
Physical Specification
Frame Size(mm) 90 x 90
Gearbox Type Without Gearbox
Output Shaft Type D

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
E Series Nema 23 Bipolar 1.8deg 2.0Nm(283.22oz.in) 2.8A 57x57x76mm 4 Wires
E Series Nema 23 Bipolar 1.8deg 2.0Nm(283.22oz.in) 2.8A 57x57x76mm 4 Wires
Electrical Specification Manufacturer Part Number: 23HE30-2804S Number Of Phase: 2 Step Angle: 1.8deg Holding Torque: 2.0Nm(283.22oz.in) Rated..
from
C$21.24
Add to Cart
Add to Wish List Compare this Product
Quickview
120W 220VAC/380VAC 50/60Hz 27/31RPM 20.00Nm(2832.23oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor
120W 220VAC/380VAC 50/60Hz 27/31RPM 20.00Nm(2832.23oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor
This 120W 90x90mm three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and has a gear ratio of 50. The simple brushless struc..
from
C$83.74
Add to Cart
Add to Wish List Compare this Product
Quickview
120W 220/380VAC 40.00Nm(5664.47oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor
120W 220/380VAC 40.00Nm(5664.47oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor
This 90x90mm keyway shaft three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and has a gear ratio of 100. The right angle g..
from
C$114.65
Add to Cart
Add to Wish List Compare this Product
Quickview
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor
120W 110VAC 60Hz 9-155RPM 5.83Nm(825.60oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor
This 120W 90x90mm single-phase AC motor with adjustable speed control is operated with 110VAC. It has a speed range of 9-155rpm and a gearbox with a g..
from
C$80.58
Add to Cart
Add to Wish List Compare this Product
Quickview
120W Single Phase 110VAC Motor Speed Controller for Variable Speed Motor
120W Single Phase 110VAC Motor Speed Controller for Variable Speed Motor
This motor speed controller comes with a voltage of single-phase 110VAC and is suitable for 120W variable speed motors. It features advanced PID contr..
from
C$14.73
Add to Cart
Add to Wish List Compare this Product
Quickview
TE Series Digital Stepper Driver 1.0-4.2A 24-50VDC for Nema 17, 23 Motor
TE Series Digital Stepper Driver 1.0-4.2A 24-50VDC for Nema 17, 23 Motor
The TE Series stepper drivers are upgraded versions based on the T Series, offering exceptional cost-effectiveness. While retaining nearly identical f..
from
C$23.72
Add to Cart
Add to Wish List Compare this Product
Quickview

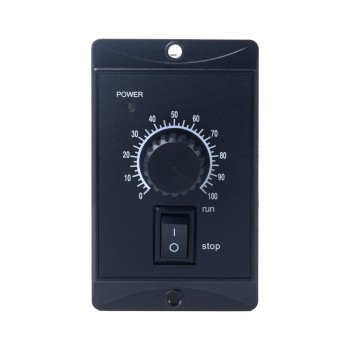

90W Single Phase 110VAC Motor Speed Controller for Variable Speed Motor
