3IK15GN-A/3GN5K
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)70 x 70
Current(A)0.35
Question

Downloads

3IK15GN-A_3GNXXK_manual.pdfPDF · 2.16MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
3IK15GN-A/3GN100KKeyway1PH 110VAC70 x 700.35C$41.21In stock
3IK15GN-A/3GN10KKeyway1PH 110VAC70 x 700.35C$36.99In stock
3IK15GN-A/3GN15KKeyway1PH 110VAC70 x 700.35C$36.99In stock
3IK15GN-A/3GN200KKeyway1PH 110VAC70 x 700.35C$41.21In stock
3IK15GN-A/3GN20KKeyway1PH 110VAC70 x 700.35C$39.09In stock
3IK15GN-A/3GN30KKeyway1PH 110VAC70 x 700.35C$39.09In stock
3IK15GN-A/3GN3KKeyway1PH 110VAC70 x 700.35C$36.99In stock
3IK15GN-A/3GN50KKeyway1PH 110VAC70 x 700.35C$39.09In stock
3IK15GN-A/3GN5KKeyway1PH 110VAC70 x 700.35C$36.99In stock
3IK15GN-C/3GN100KKeyway1PH 220VAC70 x 700.17C$41.21In stock
3IK15GN-C/3GN10KKeyway1PH 220VAC70 x 700.17C$36.99In stock
3IK15GN-C/3GN10K-SALEKeyway1PH 220VAC70 x 700.17C$37.57In stock
3IK15GN-C/3GN15KKeyway1PH 220VAC70 x 700.17C$36.99In stock
3IK15GN-C/3GN200KKeyway1PH 220VAC70 x 700.17C$41.21In stock
3IK15GN-C/3GN20KKeyway1PH 220VAC70 x 700.17C$39.09In stock
3IK15GN-C/3GN30KKeyway1PH 220VAC70 x 700.17C$39.09In stock
3IK15GN-C/3GN3KKeyway1PH 220VAC70 x 700.17C$36.99In stock
3IK15GN-C/3GN50KKeyway1PH 220VAC70 x 700.17C$39.09In stock
3IK15GN-C/3GN5KKeyway1PH 220VAC70 x 700.17C$36.99In stock
15W 110VAC 60Hz 310RPM 0.37Nm(52.40oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor
This 70x70mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 5, a ... Read More
0 reviews • Write a review
from
C$36.99
5 + C$35.99
10 + C$35.05
50 + C$34.16
100 + C$33.31

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

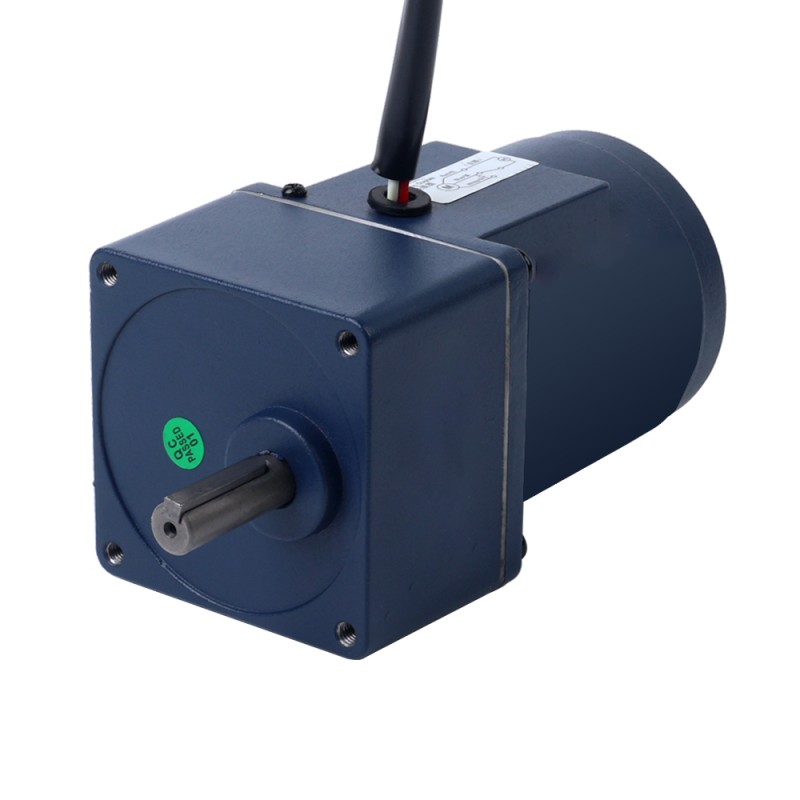

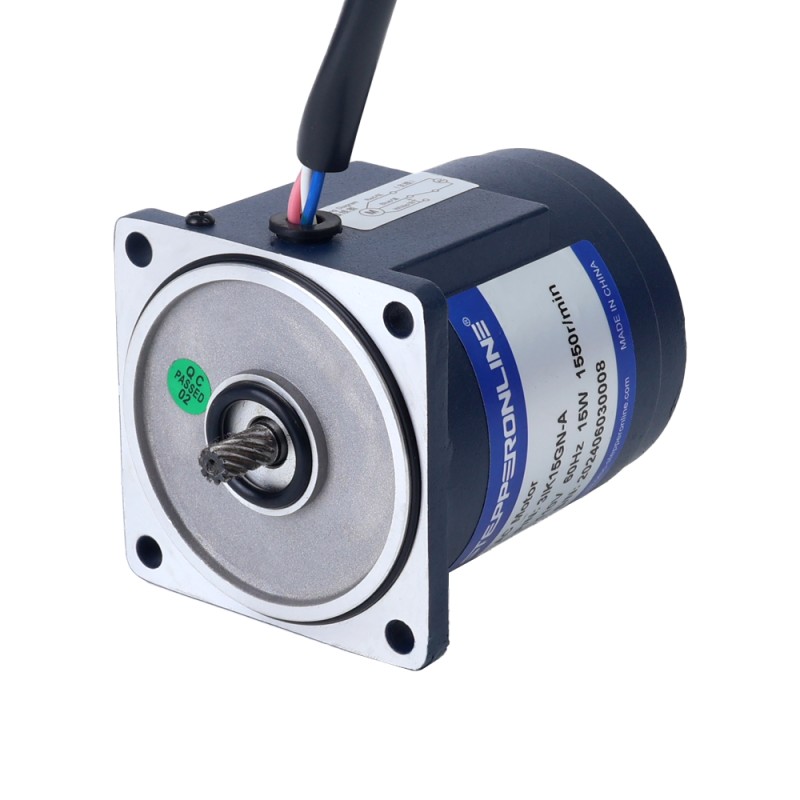

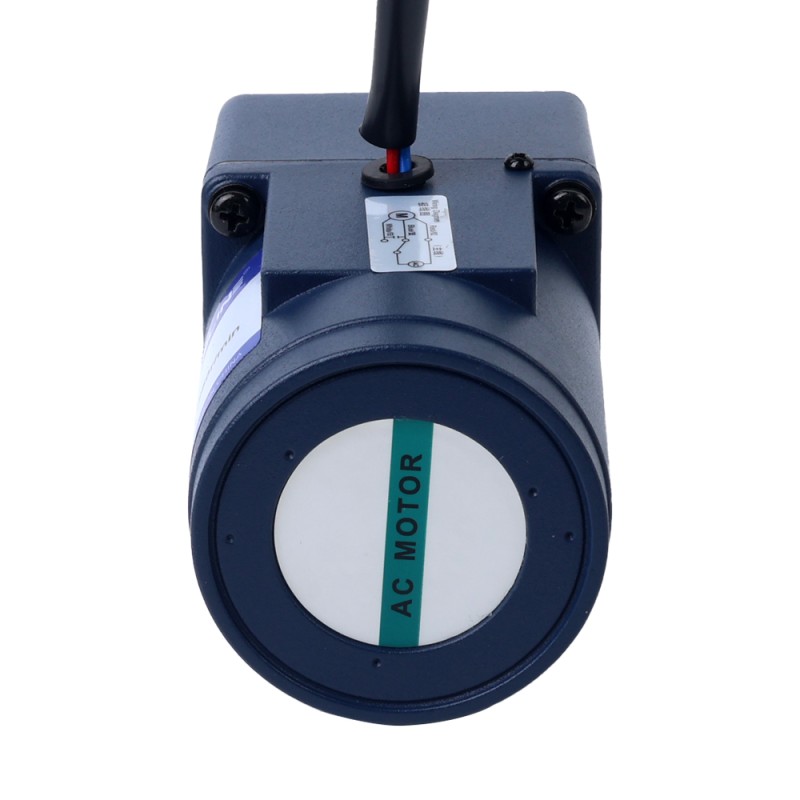

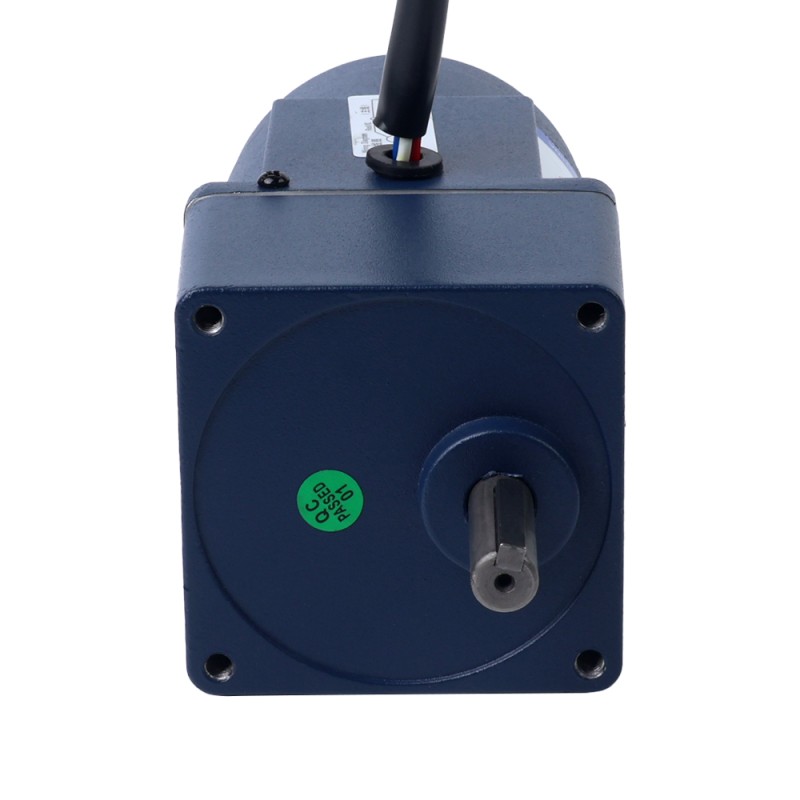

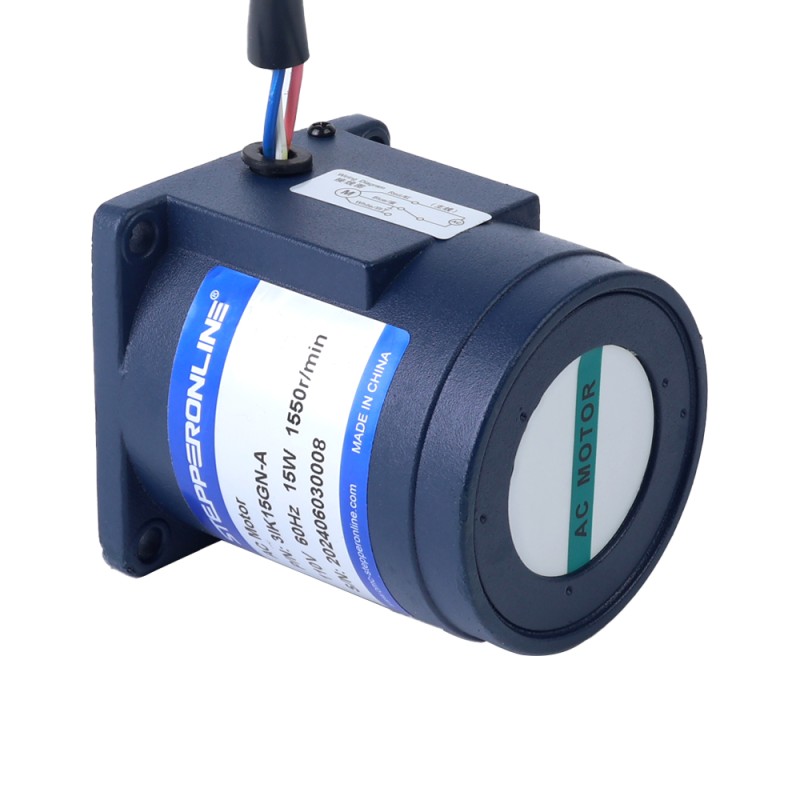

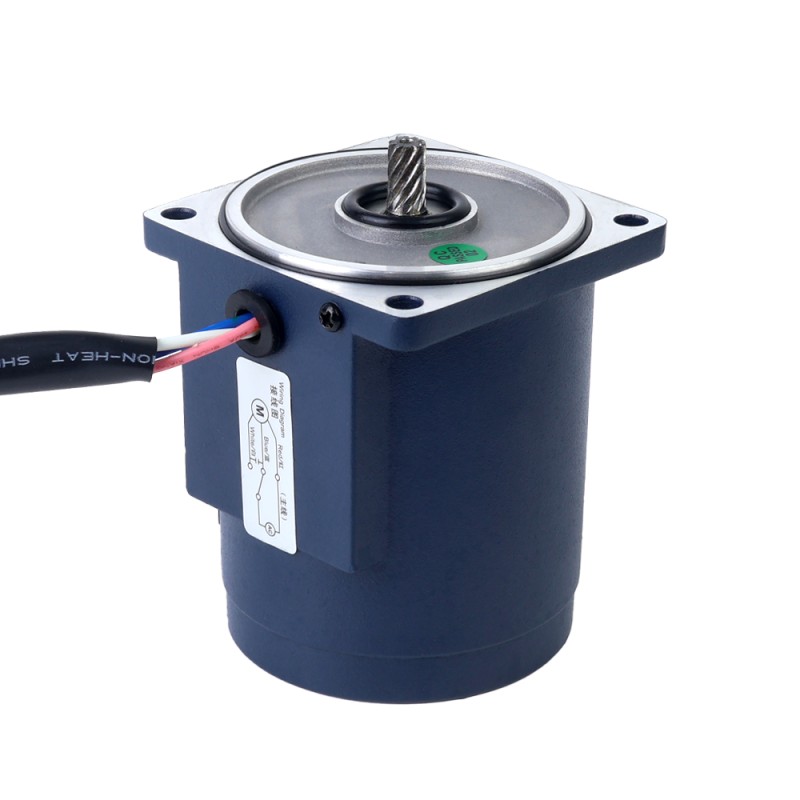

This 70x70mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 5, a torque of 0.37Nm(52.40oz.in) and a speed of 310rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 3IK15GN-A/3GN5K

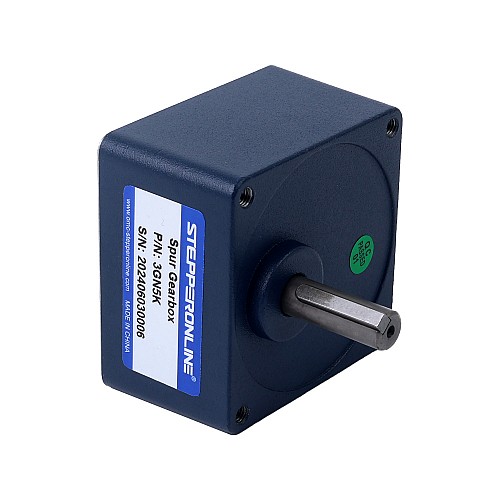

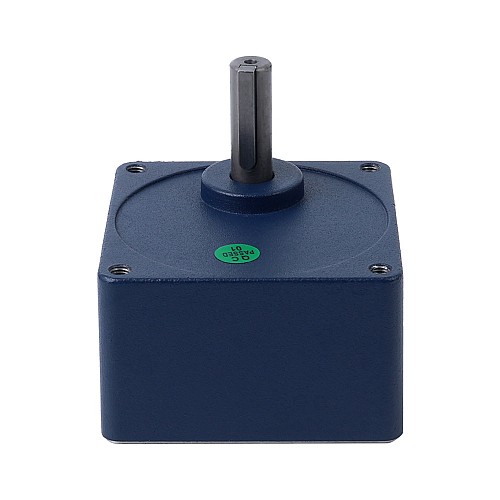

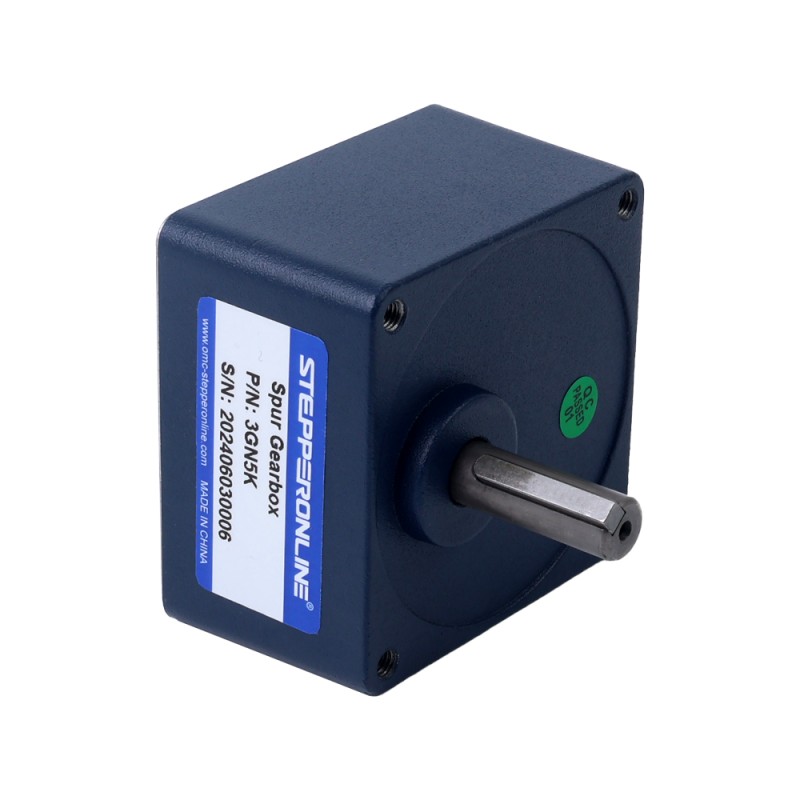

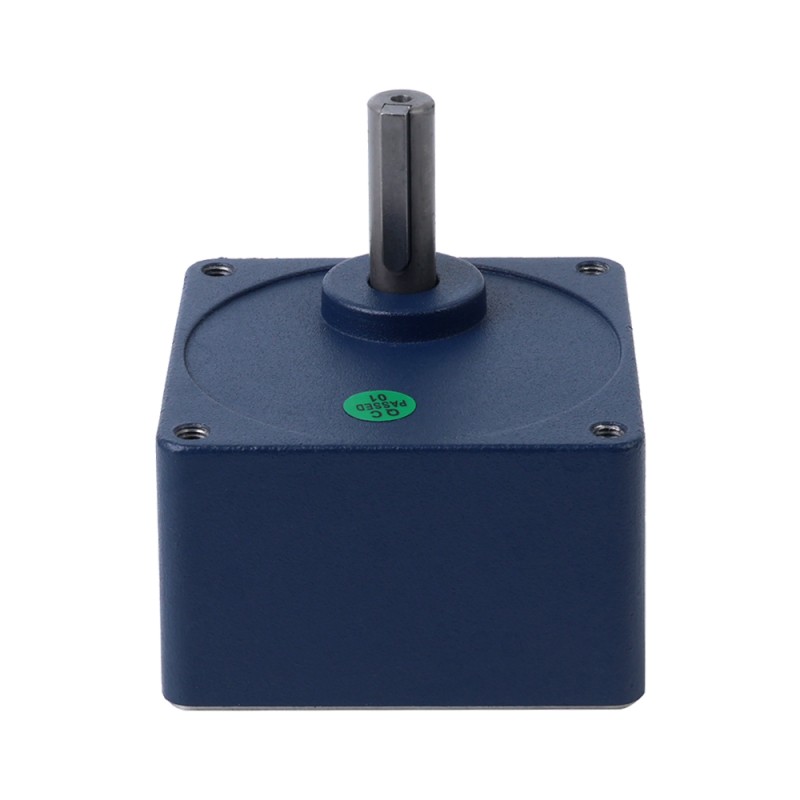

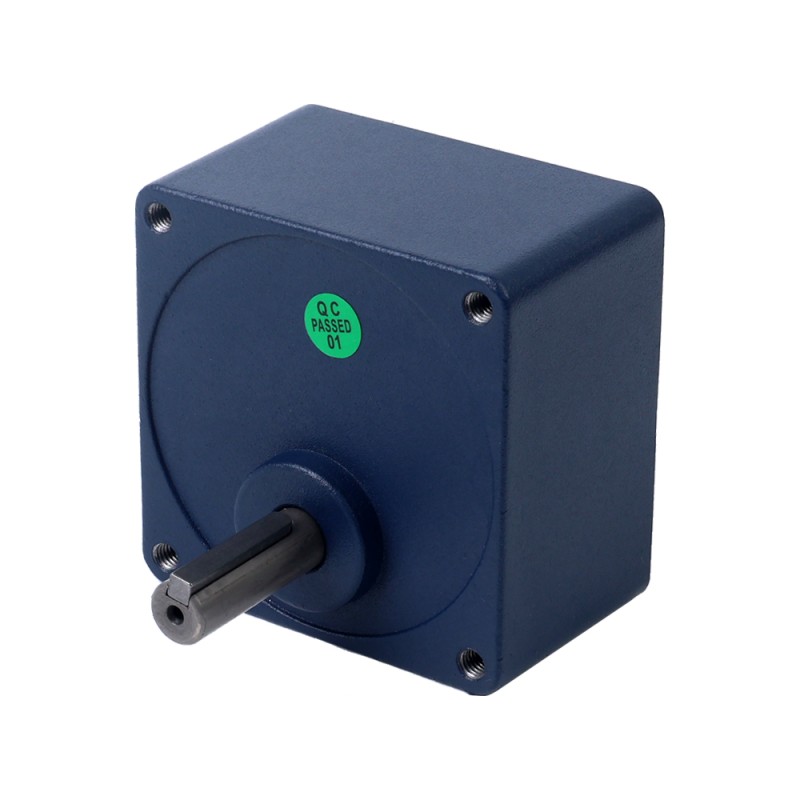

  • Gearbox Type: Spur Gearbox
  • Output Power: 15W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 0.35A
  • Gear Ratio: 5:1
  • Speed: 310rpm
  • Torque: 0.37Nm(52.40oz.in)

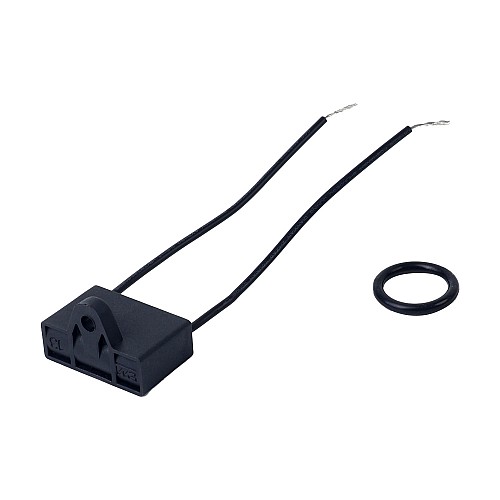

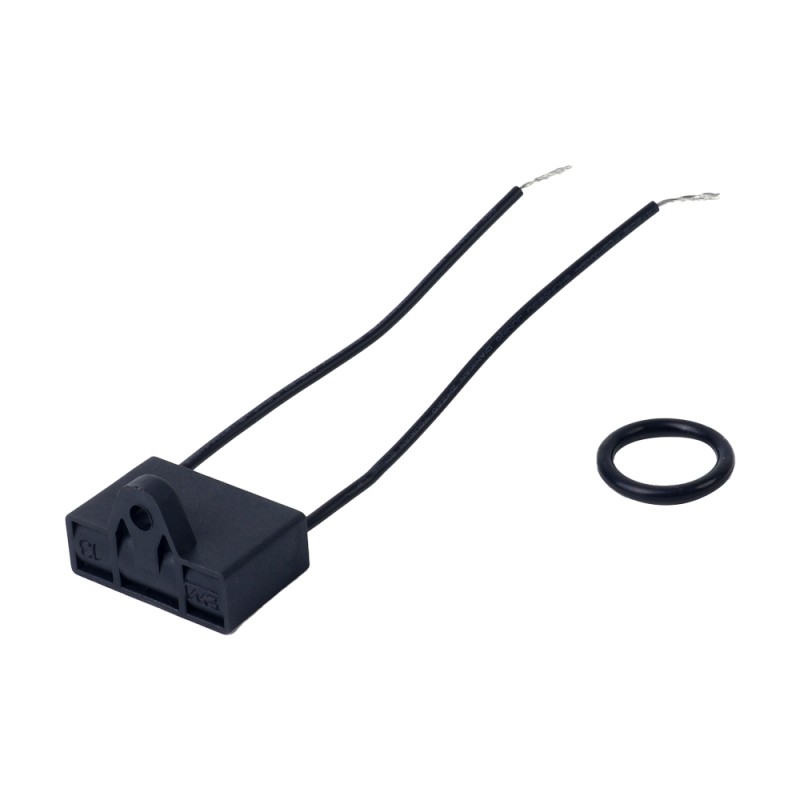

  • Capacitor: 5.0μF/250VAC

Physical Specifications

  • Frame Size: 70x70mm
  • Body Length: 124mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ10mm
  • Shaft Length: 33mm
  • Weight: 1.6kg

Wiring

Electrical Specification
Current(A) 0.35
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Output Power(W) 15
Speed(rpm) 310
Torque(Nm) 0.37
Physical Specification
Frame Size(mm) 70 x 70
Gear Ratio(xx:1) 5
Gearbox Type Spur Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
STEPPERONLINE CNC VFD 0.75KW 1HP 7.0A 110V Variable Frequency Drive Motor Inverter for Spindle Motor Speed Control
STEPPERONLINE CNC VFD 0.75KW 1HP 7.0A 110V Variable Frequency Drive Motor Inverter for Spindle Motor Speed Control
Specifications: Manufacturer Part Number: V70-0.75S1 Input Voltage: 110V(Single-phase) Input Frequency: 50/60Hz Power: 0.75KW Capacity of drive..
from
C$0.00
Add to Cart
Add to Wish List Compare this Product
Quickview
250W 24V 10A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
250W 24V 10A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
This professional 250W 24V 10A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System. 115V and 230V ca..
from
C$30.20
Add to Cart
Add to Wish List Compare this Product
Quickview

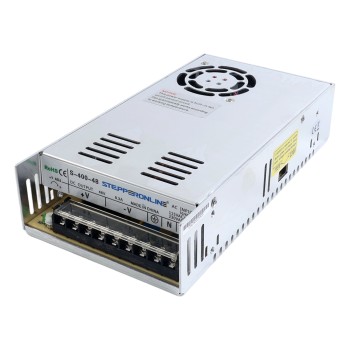

400W 48V 8.30A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
