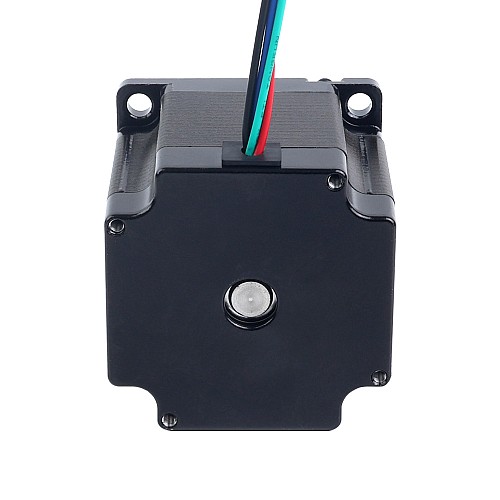

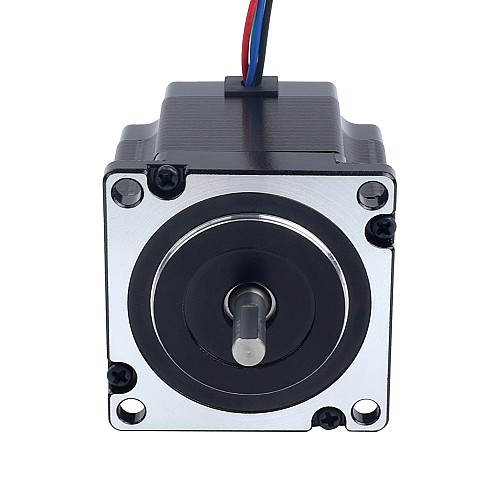

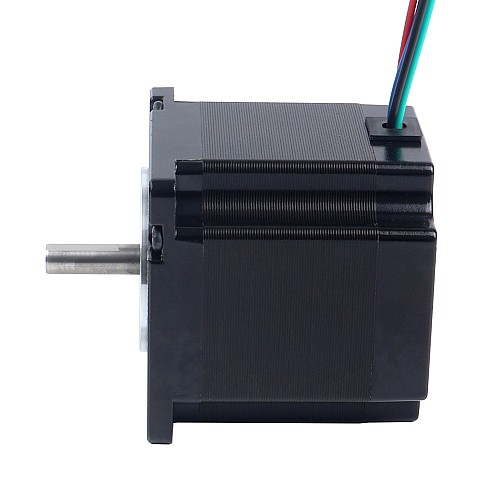

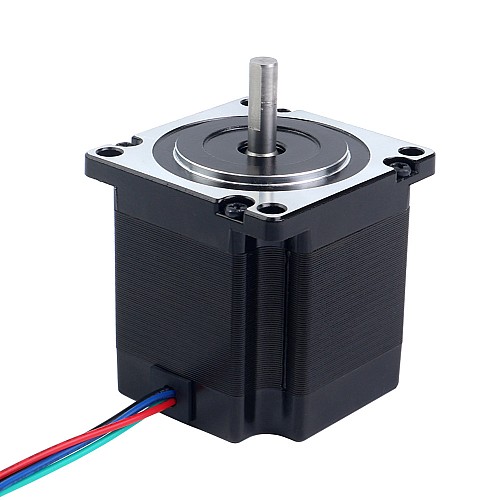

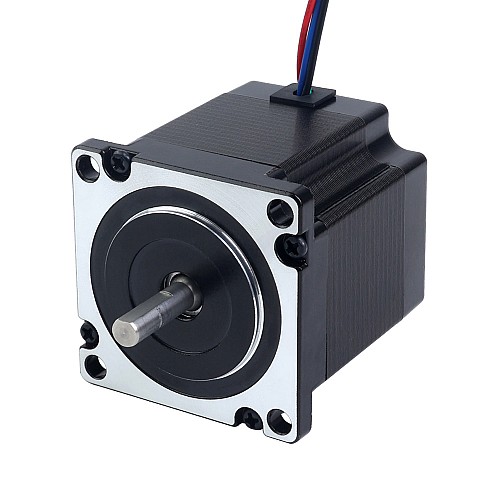

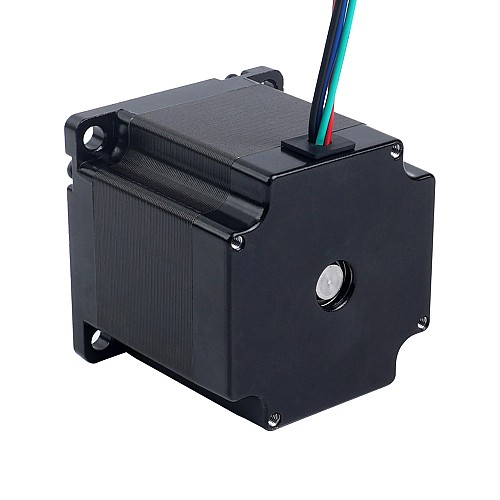

P Series Nema 23 Bipolar 1.8deg 1.20Nm(169.934oz.in) 2.8A 57x57x56mm 4 Wires

Hot

P Series Nema 23 Bipolar 1.8deg 1.20Nm(169.934oz.in) 2.8A 57x57x56mm 4 Wires

5 reviews - Write a review

C$26.74

5 + C$25.00

10 + C$23.46

50 + C$22.10

100 + C$20.88

In Stock: 10000
Model: 23HP22-2804S
Gross Weight: 0.79kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This P series Nema 23 stepper motor, with a rated current of 2.8A and holding torque of 1.20Nm(169.934oz.in), features a step angle of 1.8 degrees and compact dimensions of 57x57x56mm.
Our upgraded version incorporates an innovative winding design to enhance torque and load-driving capabilities. The front cover, crafted through integrated CNC machining, ensures long-term operational stability and basic protective performance. This motor is an ideal upgrade solution for precision motion control systems.

Electrical Specification

Manufacturer Part Number: 23HP22-2804S
Number Of Phase: 2
Step Angle: 1.8deg
Holding Torque: 1.20Nm(169.934oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 0.9ohms± 10%
Inductance: 2.6mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 56mm
Shaft Diameter: Φ6.35mm
Shaft Length: 21mm
D-CUT Shaft Length: 15mm
Number of Leads: 4
Cable Length: 500mm
Weight: 0.72kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

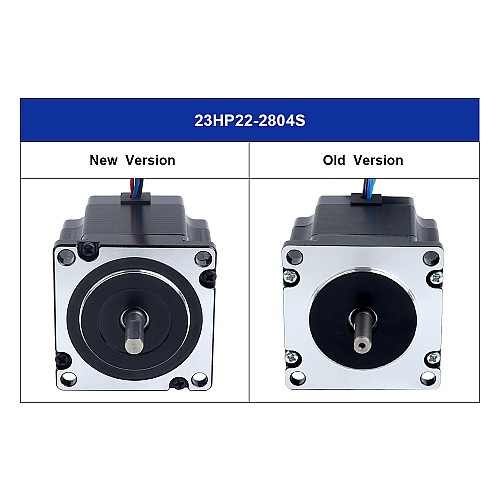

The new and old versions of this motor will be shipped randomly.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	126
Holding Torque(oz.in)	178.4
Inductance(mH)	2.6
Phase Resistance(ohms)	0.9
Rated Current(A)	2.8
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	56
Cable Length(mm)	500
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
No. of Lead	4
Output Shaft Type	D
Product Series	P
Shaft Diameter(mm)	6.35
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	721.5
