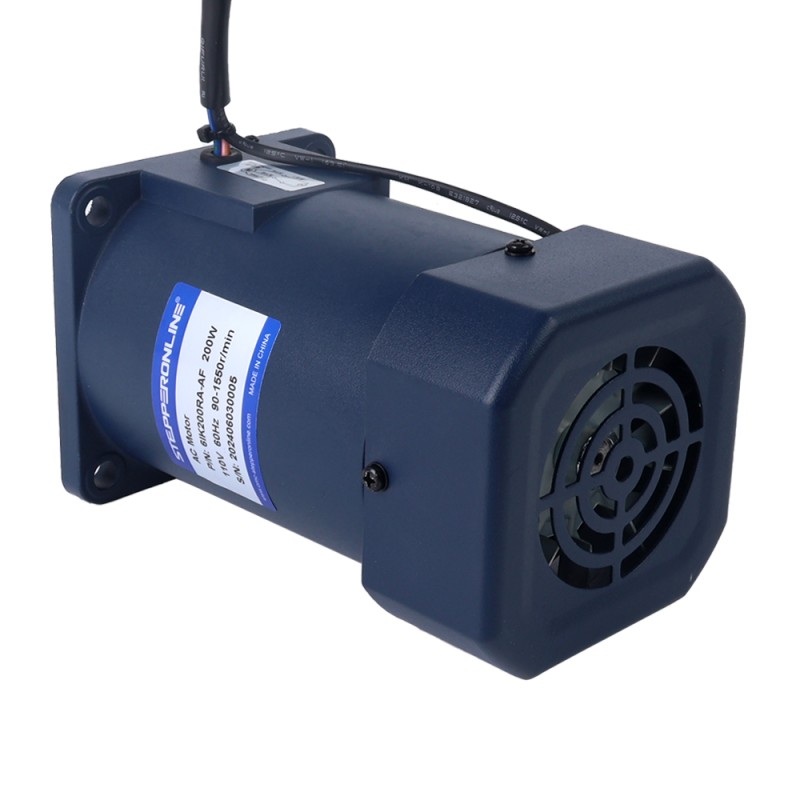

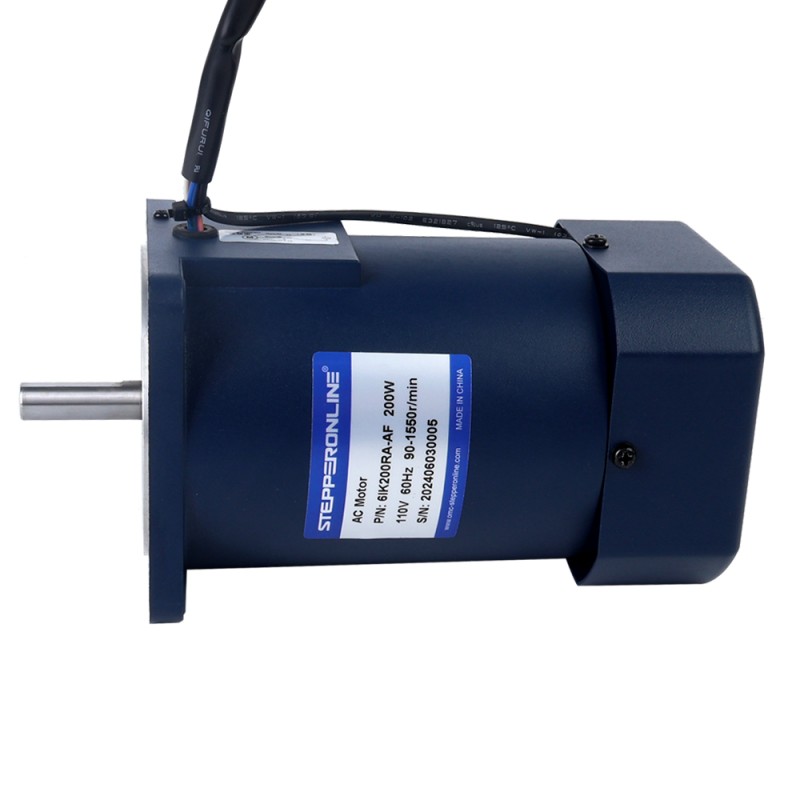

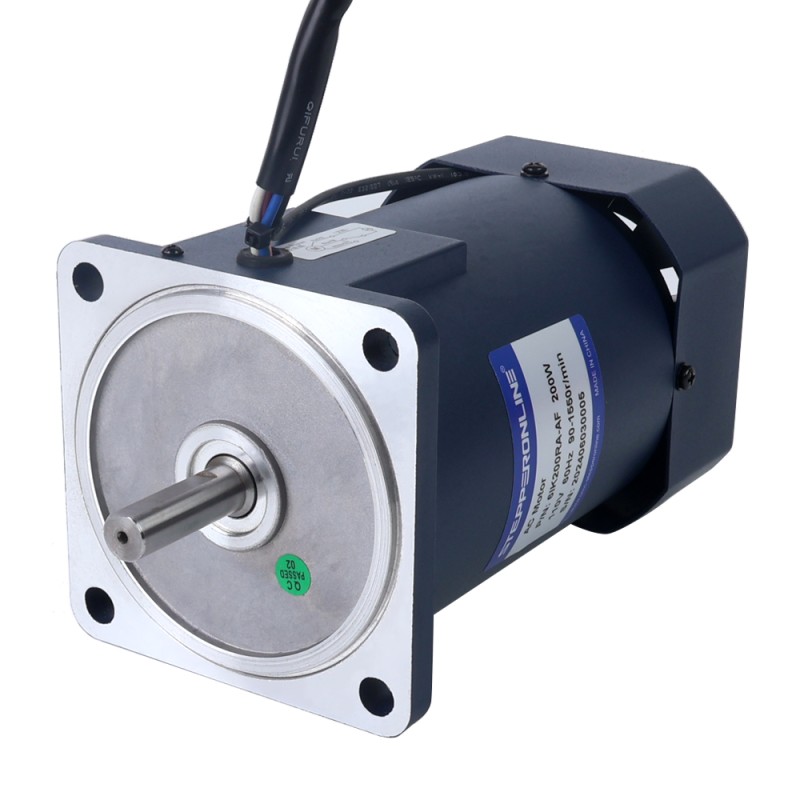

200W 110VAC 60Hz 90-1550RPM 1.20Nm(169.93oz.in) Flange 104mm Single-phase AC Variable Speed Motor

200W 110VAC 60Hz 90-1550RPM 1.20Nm(169.93oz.in) Flange 104mm Single-phase AC Variable Speed Motor - 6IK200RA-AF | StepperOnline CA
200W 110VAC 60Hz 90-1550RPM 1.20Nm(169.93oz.in) Flange 104mm Single-phase AC Variable Speed Motor - 6IK200RA-AF | StepperOnline CA
200W 110VAC 60Hz 90-1550RPM 1.20Nm(169.93oz.in) Flange 104mm Single-phase AC Variable Speed Motor - 6IK200RA-AF | StepperOnline CA
200W 110VAC 60Hz 90-1550RPM 1.20Nm(169.93oz.in) Flange 104mm Single-phase AC Variable Speed Motor - 6IK200RA-AF | StepperOnline CA
200W 110VAC 60Hz 90-1550RPM 1.20Nm(169.93oz.in) Flange 104mm Single-phase AC Variable Speed Motor - 6IK200RA-AF | StepperOnline CA
200W 110VAC 60Hz 90-1550RPM 1.20Nm(169.93oz.in) Flange 104mm Single-phase AC Variable Speed Motor - 6IK200RA-AF | StepperOnline CA
6IK200RA-AF
Output Shaft TypeD
Input Voltage(V)1PH 110VAC
Frame Size(mm)104 x 104
Current(A)2.7
Question

Downloads

6IK200RA-AF_Manual.pdfPDF · 12.83MB6IK200RA-AF.STEPSTEP · 1.67MBLog in to download
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
6IK200RA-AFD1PH 110VAC104 x 1042.7C$73.70In stock
6IK200RA-CFD1PH 220VAC104 x 1041.3C$73.70In stock
6IK200RGU-AF/6GU100KKeyway1PH 110VAC104 x 1042.7C$121.25In stock
6IK200RGU-AF/6GU100RCHollow1PH 110VAC104 x 1042.7C$154.80In stock
6IK200RGU-AF/6GU100RTKeyway1PH 110VAC104 x 1042.7C$154.80In stock
6IK200RGU-AF/6GU10KKeyway1PH 110VAC104 x 1042.7C$114.91In stock
6IK200RGU-AF/6GU10RCHollow1PH 110VAC104 x 1042.7C$151.90In stock
6IK200RGU-AF/6GU10RTKeyway1PH 110VAC104 x 1042.7C$151.90In stock
6IK200RGU-AF/6GU15KKeyway1PH 110VAC104 x 1042.7C$114.91In stock
6IK200RGU-AF/6GU15RCHollow1PH 110VAC104 x 1042.7C$151.90In stock
6IK200RGU-AF/6GU15RTKeyway1PH 110VAC104 x 1042.7C$151.90In stock
6IK200RGU-AF/6GU180RCHollow1PH 110VAC104 x 1042.7C$154.80In stock
6IK200RGU-AF/6GU180RTKeyway1PH 110VAC104 x 1042.7C$154.80In stock
6IK200RGU-AF/6GU200KKeyway1PH 110VAC104 x 1042.7C$121.25In stock
6IK200RGU-AF/6GU20KKeyway1PH 110VAC104 x 1042.7C$121.25In stock
6IK200RGU-AF/6GU20RCHollow1PH 110VAC104 x 1042.7C$151.90In stock
6IK200RGU-AF/6GU20RTKeyway1PH 110VAC104 x 1042.7C$151.90In stock
6IK200RGU-AF/6GU30KKeyway1PH 110VAC104 x 1042.7C$121.25In stock
6IK200RGU-AF/6GU30RCHollow1PH 110VAC104 x 1042.7C$151.90In stock
6IK200RGU-AF/6GU30RTKeyway1PH 110VAC104 x 1042.7C$151.90In stock
6IK200RGU-AF/6GU3KKeyway1PH 110VAC104 x 1042.7C$108.58In stock
6IK200RGU-AF/6GU50KKeyway1PH 110VAC104 x 1042.7C$121.25In stock
6IK200RGU-AF/6GU50RCHollow1PH 110VAC104 x 1042.7C$154.80In stock
6IK200RGU-AF/6GU50RTKeyway1PH 110VAC104 x 1042.7C$154.80In stock
6IK200RGU-AF/6GU5KKeyway1PH 110VAC104 x 1042.7C$108.58In stock
6IK200RGU-CF/6GU100KKeyway1PH 220VAC104 x 1041.3C$121.25In stock
6IK200RGU-CF/6GU100RCHollow1PH 220VAC104 x 1041.3C$154.80In stock
6IK200RGU-CF/6GU100RTKeyway1PH 220VAC104 x 1041.3C$154.80In stock
6IK200RGU-CF/6GU10KKeyway1PH 220VAC104 x 1041.3C$114.91In stock
6IK200RGU-CF/6GU10RCHollow1PH 220VAC104 x 1041.3C$151.90In stock
View all in category
200W 110VAC 60Hz 90-1550RPM 1.20Nm(169.93oz.in) Flange 104mm Single-phase AC Variable Speed Motor
This 104x104mm single-phase AC motor with adjustable speed control is operated with 110VAC and has a... Read More
0 reviews • Write a review
from
C$73.70
5 + C$71.72
10 + C$69.85
50 + C$68.06
100 + C$66.38

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This 104x104mm single-phase AC motor with adjustable speed control is operated with 110VAC and has a speed range of 90-1550rpm. Designed for simple and easy wiring through quick connect and easy speed control through panel mounting. It is ideal for applications requiring precise speed control and is designed for easy operation and wiring. The simple brushless structure, high reliability, relatively high efficiency and long life make it an excellent and cost-effective choice for constant speed applications such as industrial equipment, home appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 6IK200RA-AF
  • Output Power: 200W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 2.70A
  • Speed Range: 90-1550rpm
  • Rated Torque(90rpm): 0.45Nm(63.73oz.in)
  • Rated Torque(1200rpm): 1.2Nm(169.93oz.in)
  • Capacitor: 35.0μF/250VAC

Physical Specifications

  • Frame Size: 104x104mm
  • Body Length: 174mm
  • Shaft Type: D-cut
  • Shaft Diameter: Φ12mm
  • Shaft Length: 37mm
  • Cable Length: 300mm
  • Weight: 5.1kg

Wiring

Electrical Specification
Current(A) 2.7
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Max. Torque(Nm) 1.20
Output Power(W) 200
Speed Range(rpm) 90-1550
Physical Specification
Frame Size(mm) 104 x 104
Gearbox Type Without Gearbox
Output Shaft Type D
