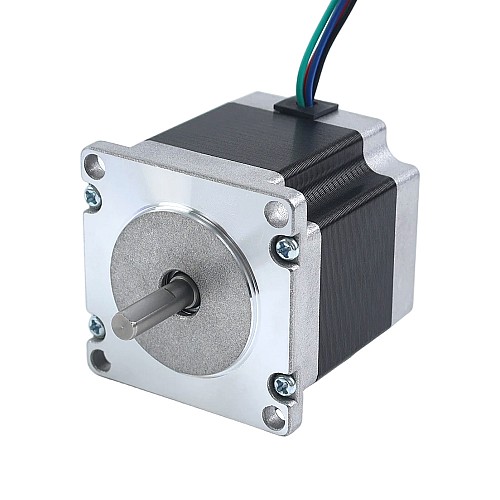

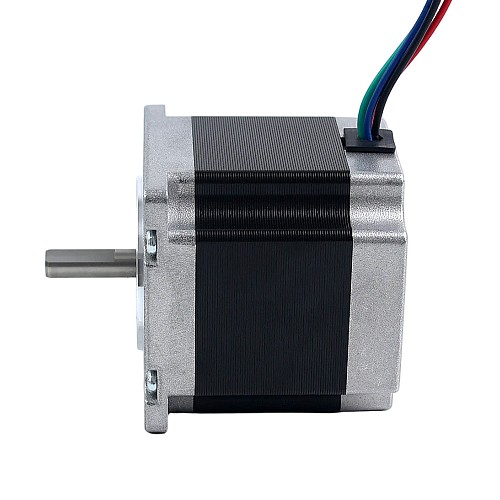

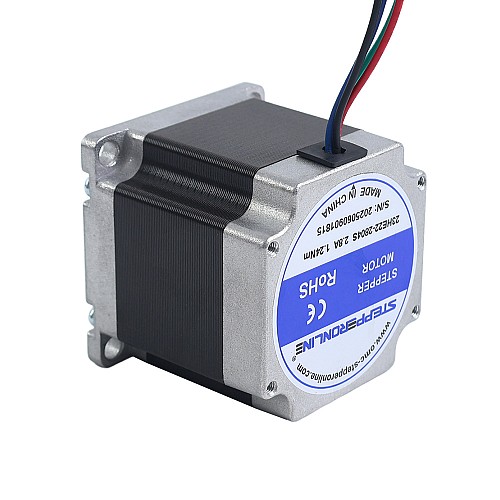

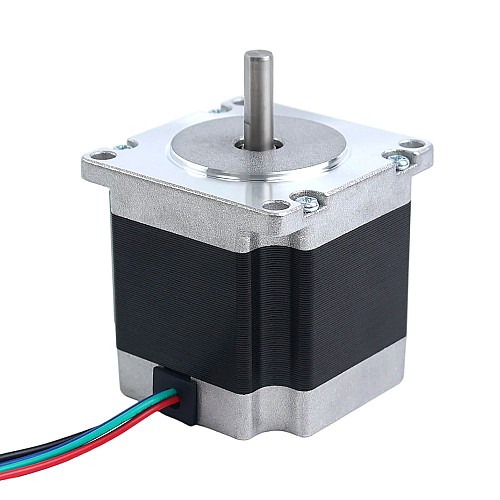

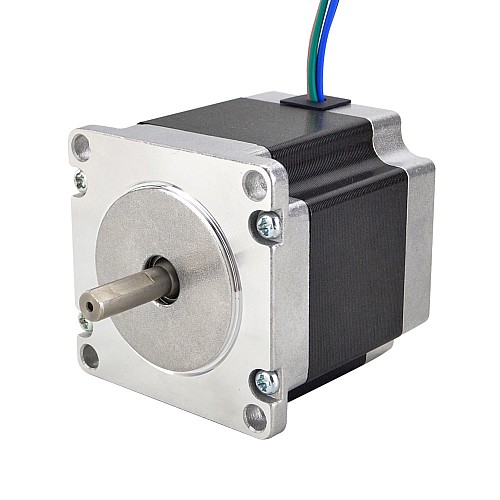

E Series Nema 23 Stepper Motor Bipolar 1.8deg 1.26Nm(178.4oz.in) 2.8A 57x57x56mm 4 Wires
6 reviews - Write a review
C$15.87
5 + C$15.27
10 + C$14.71
50 + C$14.18
100 + C$13.70
  • In Stock: 10000
  • Model: 23HE22-2804S
  • Gross Weight: 0.80kg
  • Certificated: ISO, CE, UKCA, RoHS
Sold: 3719

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

  • Manufacturer Part Number: 23HE22-2804S
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 1.26Nm(178.4oz.in)
  • Rated Current/phase: 2.8A
  • Phase Resistance: 0.9ohms± 10%
  • Inductance: 2.5mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 56mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 0.7kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
This motor is now available in a pack of 3. It has a better price. For more details, please see 3-23HE22-2804S.
Electrical Specification
Holding Torque(Ncm) 126
Rated Current(A) 2.8
Physical Specification
Lead Length(mm) 300
No. of Lead 4
Output Shaft Type D
Shaft Diameter(mm) 6.35
Shaft Length(mm) 21
Single Shaft/Dual Shaft Single Shaft
Weight(g) 700





  • Motor Shaft
  • Cable
  • Connector
  • Encoder
  • Brake
  • Gearbox


File Size
23HE22-2804S.STEP 1.81MB Download
23HE22-2804S_Torque_Curve.pdf 148.55KB Download
23HE22-2804S_Full_Datasheet.pdf 211.74KB Download
