220V 2.2KW Φ80x193.5mm Air Cooled Spindle Motor and 3HP 2.2KW 12.5A Variable Frequency Drive Kit

0 reviews - Write a review

C$0.00

In Stock: 1
Model: VSK-AR2.2B
Gross Weight: 6.30kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

This spindle kit includes:

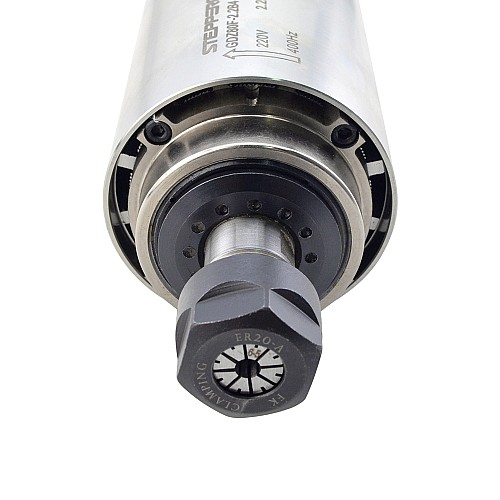

1 x GDZ80F-2.2B4 Spindle Motor Air Cooled 220V 2.2KW 24000RPM 400Hz ER20
1 x EV51S20022BX0 EV51 Series VFD 3HP 2.2KW 12.5A Single Phase 220V
1 x ER20 Φ3.175mm High Precision Collet
1 x ER20 Φ4mm High Precision Collet
1 x ER20 Φ6mm High Precision Collet
1 x ER20 Φ8mm High Precision Collet
1 x ER20 Φ10mm High Precision Collet
1 x ER20 Φ12.7mm High Precision Collet

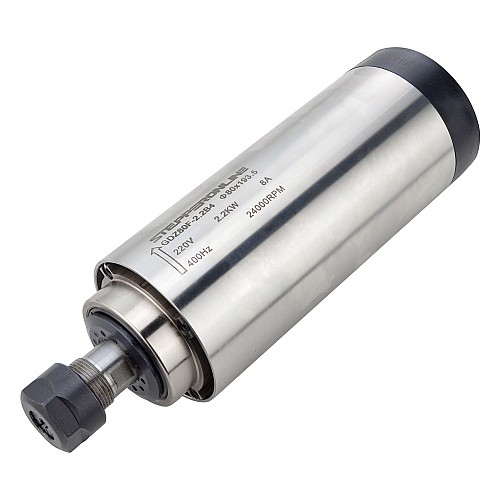

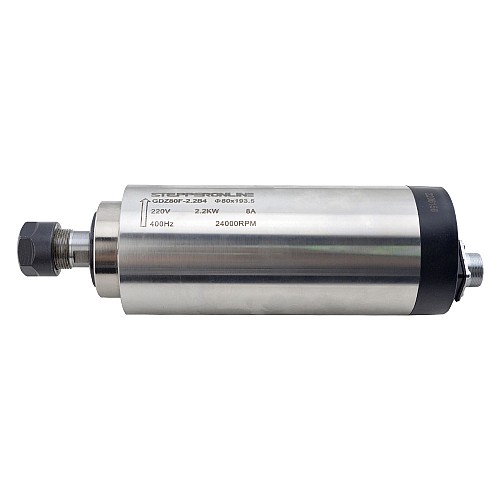

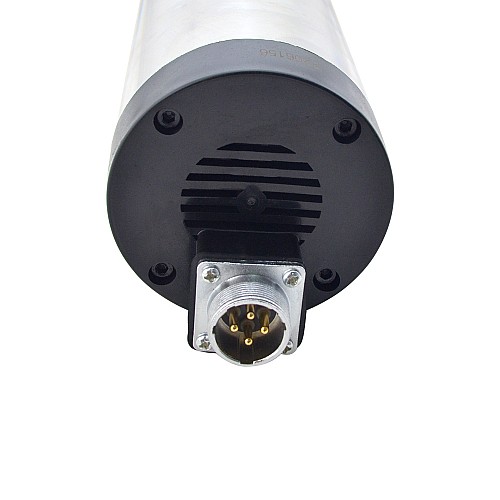

Spindle Motor Specification

Manufacturer Part Number: GDZ80F-2.2B4
Material: Stainless steel
Size: Ø80 x 193.5mm(Diameter: 80mm, Length: 193.5mm)
Power: 2.2KW
Voltage: 220VAC
Current: 8.0A
Frequency: 0 - 400Hz
Speed: 0 - 24000RPM
Cooling: Air Cooled
Bearing Lubrication: Grease
Collet size: ER20 Collet
Weight: 4.75kg

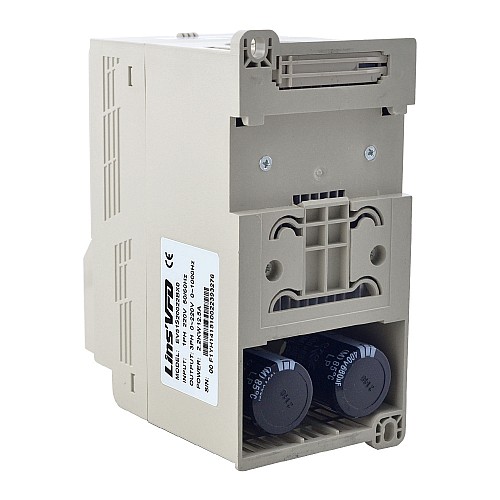

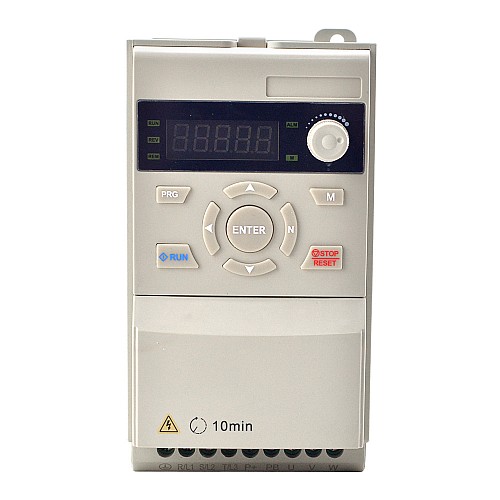

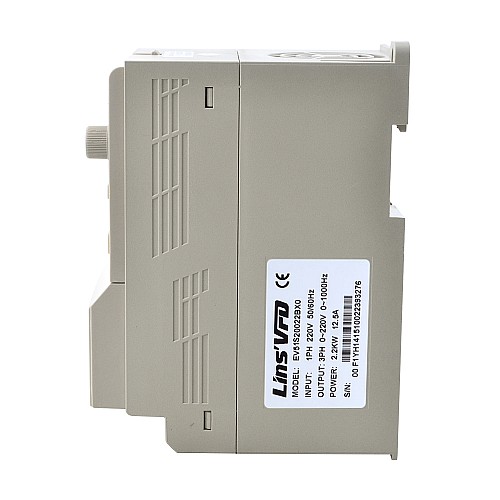

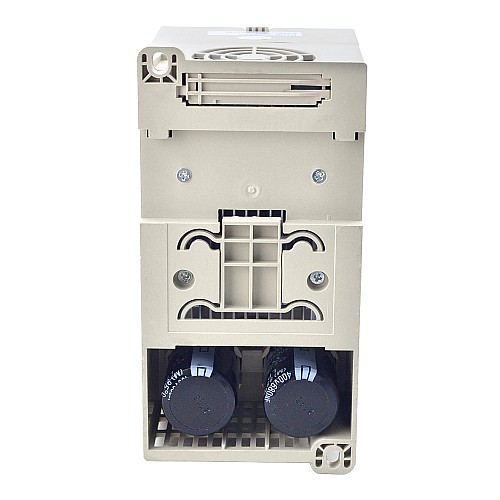

Variable Frequency Drive Specification

Manufacturer Part Number: EV51S20022BX0
Rated Input Voltage: 1 Phase 220V
Allowed Input Voltage: 180 - 260VAC
Input Frequency: 50/60Hz(+/-5%)
Input Current: 14A
Power: 3HP(2.2KW)
Output Current: 12.5A
Output Voltage: 0 - Rated Input Voltage
Output Frequency: 0 - 1000Hz
Output Capacity: 150% Rated Current 60s, 180% Rated Current 2s

Operating Environment
Cooling Method	Air cooled
Product Type
Product Type	Motor & VFD Kit
Spindle Motor Specification
Body Length(mm)	193.5
Collet Size	ER20
Power(Kw)	2.2
Shape	Round
Voltage(VAC)	220
Variable Frequency Drive Specification
Input Voltage	1PH 220VAC
Output Power	3HP / 2.2KW
Electrical Specification
Frequency(Hz)	0 - 400
Physical Specification
Inventory Method	Shared Inventory
