220V 1.5KW Φ80x193.5mm Air Cooled Spindle Motor and 2HP 1.5KW 7.0A Variable Frequency Drive Kit

0 reviews - Write a review

C$209.60

5 + C$203.47

10 + C$197.70

50 + C$192.25

100 + C$187.09

In Stock: Pre-order
Model: VSK-AR1.5B
Gross Weight: 5.49kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 5

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

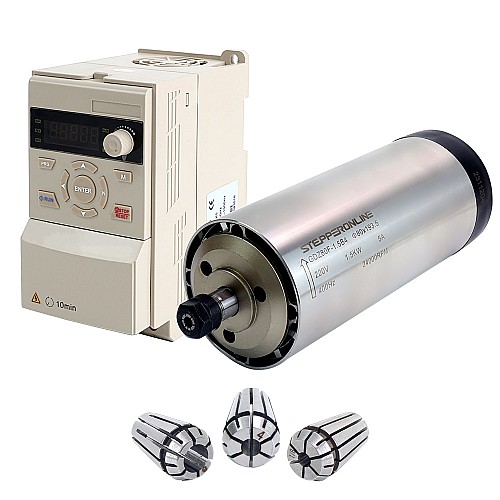

This spindle kit includes:

1 x GDZ80F-1.5B4 Spindle Motor Air Cooled 220V 1.5KW 24000RPM 400Hz ER11 Collet
1 x EV51S20015BX0 EV51 Series VFD 2HP 1.5KW 7.0A Single Phase 220V

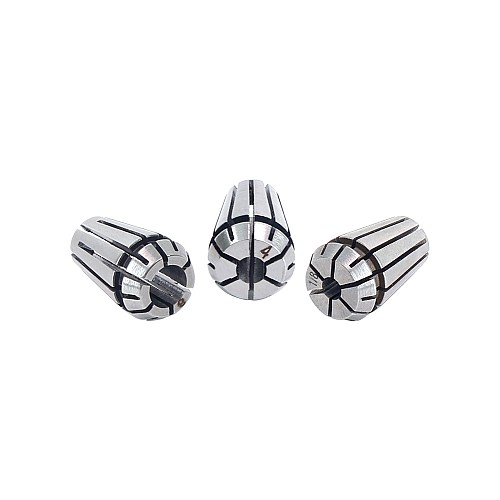

1 x ER11 Φ3.175mm High Precision Collet
1 x ER11 Φ4mm High Precision Collet
1 x ER11 Φ6mm High Precision Collet

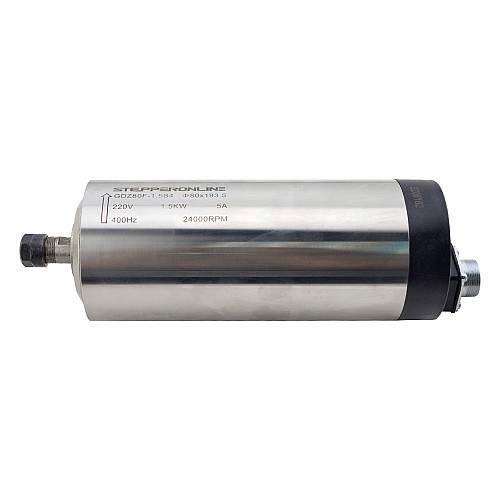

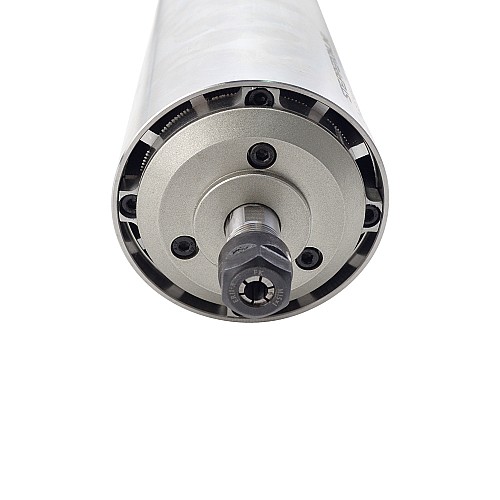

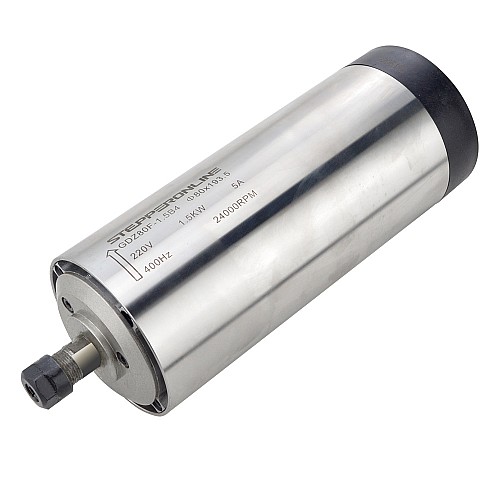

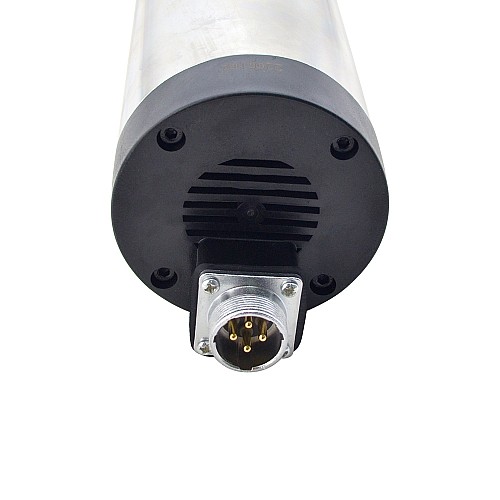

Spindle Motor Specification

Manufacturer Part Number: GDZ80F-1.5B4
Material: Stainless steel
Size: Ø80 x 193.5mm(Diameter: 80mm, Length:193.5mm)
Power: 1.5KW
Voltage: 220VAC
Current: 5.0A
Frequency: 0 - 400Hz
Speed: 0 - 24000RPM
Cooling: Air Cooled
Bearing Lubrication: Grease
Collet size: ER11 Collet
Weight: 4.05kg

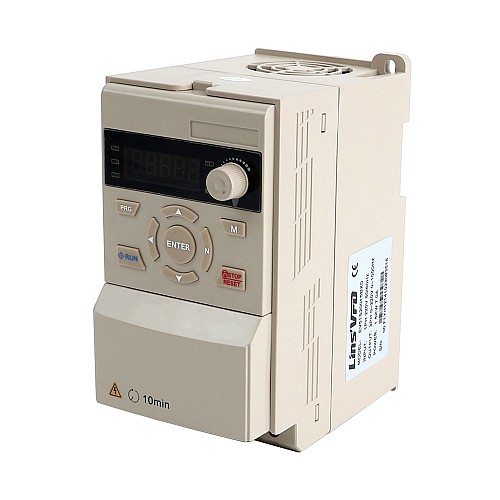

Variable Frequency Drive Specification

Manufacturer Part Number: EV51S20015BX0
Rated Input Voltage: 1 Phase 220V
Allowed Input Voltage: 180 - 260VAC
Input Frequency: 50/60Hz(+/-5%)
Input Current: 8.2A
Power: 2HP(1.5KW)
Output Current: 7.0A
Output Voltage: 0 - Rated Input Voltage
Output Frequency: 0 - 1000Hz
Output Capacity: 150% Rated Current 60s, 180% Rated Current 2s

Operating Environment
Cooling Method	Air cooled
Product Type
Product Type	Motor & VFD Kit
Spindle Motor Specification
Body Length(mm)	193.5
Collet Size	ER11
Power(Kw)	1.5
Shape	Round
Voltage(VAC)	220
Variable Frequency Drive Specification
Input Voltage	1PH 220VAC
Output Power	2HP / 1.5KW
Electrical Specification
Frequency(Hz)	0 - 400
Physical Specification
Inventory Method	Shared Inventory

File	Size
GDZ80F-1.5B4.pdf	75.79KB	Download
EV51_Series_Inverter_Easy_User_Manual.pdf	6.82MB	Download
ER11-D3.pdf	97.71KB	Download
ER11-D3.STEP	415.32KB	Download
ER11-D4.pdf	98.03KB	Download
ER11-D4.STEP	415.29KB	Download
ER11-D6.pdf	98.69KB	Download
ER11-D6.STEP	415.24KB	Download
