F55B150-24GU-30S/5GU30RC
Output Shaft TypeHollow
Rated Voltage(V)24
Rated Current(A)8.00
Frame Size(mm)90 x 90
Question

Downloads

F55B150-24GU-30S_5GU30RC_Full_Datasheet.pdfPDF · 66.36KB
Same series
ModelOutput Shaft TypeRated Voltage(V)Rated Current(A)Frame Size(mm)PriceStock
57BLR50-24-01-HG10Keyway245.00Nema 23 (57 x 57)C$0.00In stock
57BLR70-24-02-HG100Keyway2410.40Nema 23 (57 x 57)C$94.91In stock
57BLR90-24-01-HG100Keyway2414.00Nema 23 (57 x 57)C$101.69In stock
57BYA74-24-01-PG100Keyway245.7057 RoundC$100.83In stock
57BYA74-24-01-PG27Keyway245.7057 RoundC$93.63In stock
F2B15-24GN-30S/2GN100KD241.1060 x 60C$40.82In stock
F2B15-24GN-30S/2GN10KD241.1060 x 60C$36.90In stock
F2B15-24GN-30S/2GN15KD241.1060 x 60C$36.90In stock
F2B15-24GN-30S/2GN200KD241.1060 x 60C$40.82In stock
F2B15-24GN-30S/2GN20KD241.1060 x 60C$38.86In stock
F2B15-24GN-30S/2GN30KD241.1060 x 60C$38.86In stock
F2B15-24GN-30S/2GN3KD241.1060 x 60C$36.90In stock
F2B15-24GN-30S/2GN3K-SALED241.1060 x 60C$36.57In stock
F2B15-24GN-30S/2GN50KD241.1060 x 60C$38.86In stock
F2B15-24GN-30S/2GN50K-SALED241.1060 x 60C$38.51In stock
F2B15-24GN-30S/2GN5KD241.1060 x 60C$36.90In stock
F2B15-48GN-30S/2GN100KD480.6060 x 60C$40.82In stock
F2B15-48GN-30S/2GN10KD480.6060 x 60C$36.90In stock
F2B15-48GN-30S/2GN15KD480.6060 x 60C$36.90In stock
F2B15-48GN-30S/2GN200KD480.6060 x 60C$40.82In stock
F2B15-48GN-30S/2GN20KD480.6060 x 60C$38.86In stock
F2B15-48GN-30S/2GN30KD480.6060 x 60C$38.86In stock
F2B15-48GN-30S/2GN3KD480.6060 x 60C$36.90In stock
F2B15-48GN-30S/2GN50KD480.6060 x 60C$38.86In stock
F2B15-48GN-30S/2GN5KD480.6060 x 60C$36.90In stock
F2B40-24GL-30S/2GL150RCHollow242.5060 x 60C$60.39In stock
F2B40-24GL-30S/2GL30RCHollow242.5060 x 60C$60.39In stock
F3B40-24GN-30S/3GN100KKeyway242.5070 x 70C$48.92In stock
F3B40-24GN-30S/3GN10KKeyway242.5070 x 70C$44.46In stock
F3B40-24GN-30S/3GN15KKeyway242.5070 x 70C$44.46In stock
View all in category
24V 150W 100RPM Geared BLDC Motor 10.07Nm(1425.99oz.in) 30:1 Right Angle Gearbox
This is a 24V 150W brushless DC gear motor with a flange of 90x90mm. The built-in 30:1 hollow shaft ... Read More
0 reviews • Write a review
from
C$105.97
5 + C$102.96
10 + C$100.12
50 + C$97.43
100 + C$94.89

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

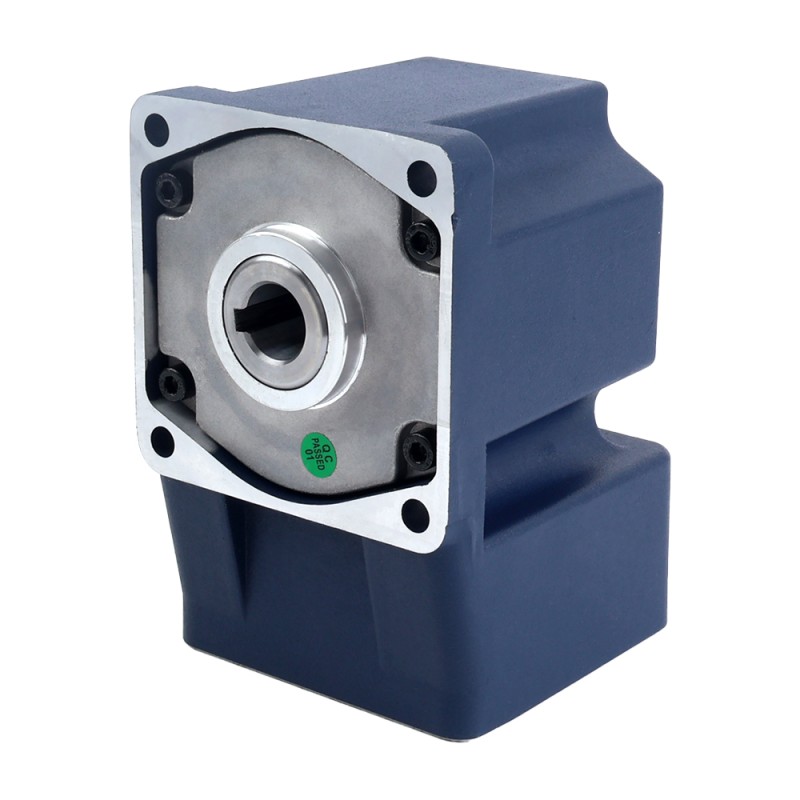

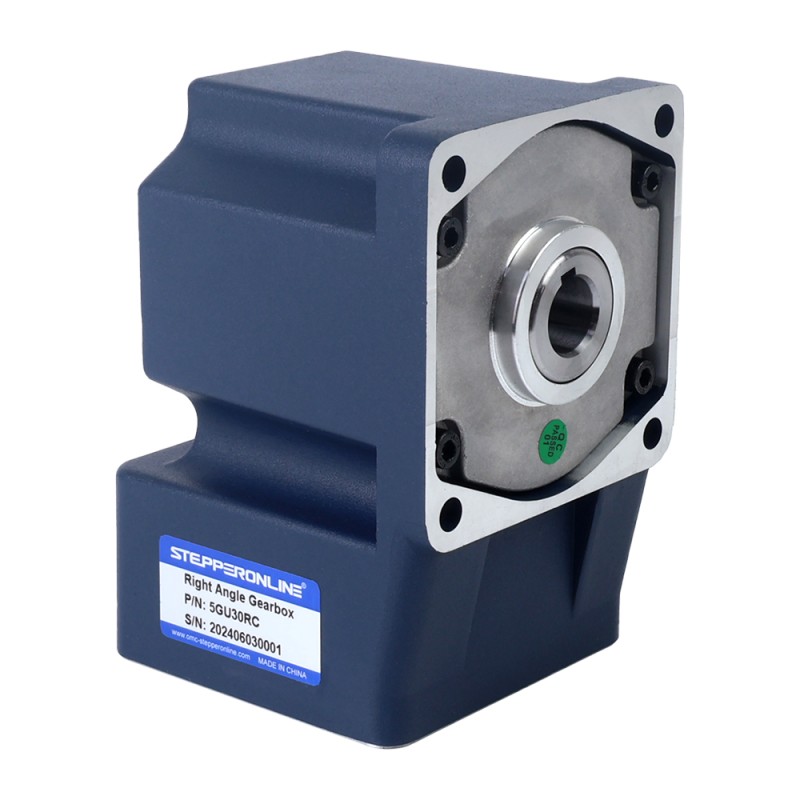

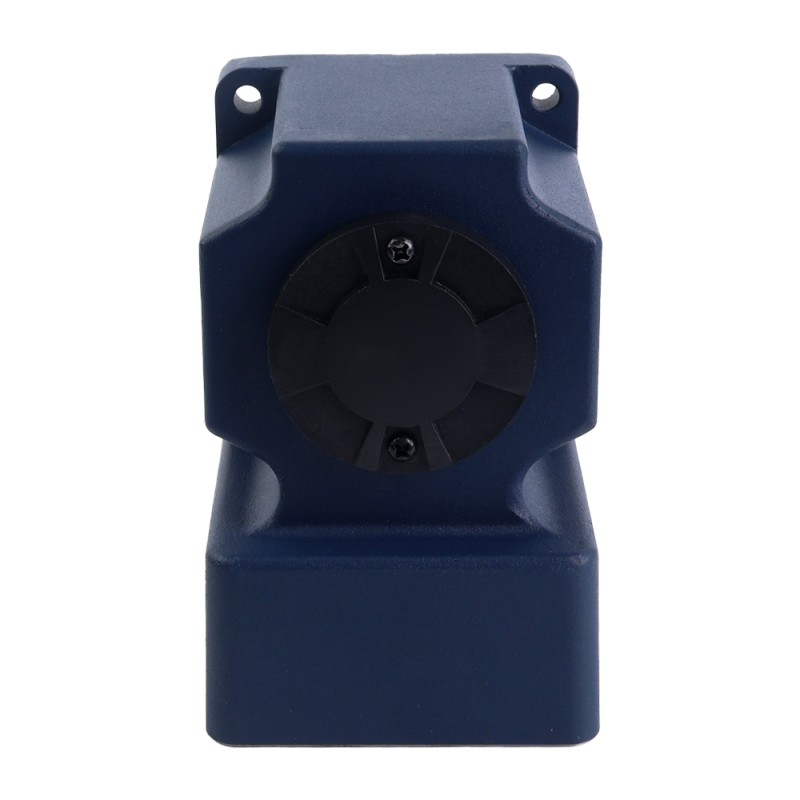

This is a 24V 150W brushless DC gear motor with a flange of 90x90mm. The built-in 30:1 hollow shaft right angle gearbox brings speed and torque to 100rpm and 10.07Nm(1425.99oz.in). The right-angle gearbox's advantages of efficient transmission, strong load-bearing capacity, ability to change transmission direction and long life make this motor widely used in industrial production automation, logistics packaging equipment, medical equipment, mechanical equipment, photography equipment and other fields.

The recommended BLDC driver to match this motor is BLD-510B.

Electrical Specifications

  • P/N: F55B150-24GU-30S/5GU30RC
  • Phase: 3
  • Poles: 10
  • Rated Current: 8.00A
  • Rated Voltage: 24V
  • Rated Speed: 100rpm
  • Rated Torque: 10.07Nm(1425.99oz.in)
  • Rated Power: 150W
  • Insulation Class: E 120°C[248°F]
  • Insulation Resistance: 50MΩ Min @500V
  • Sensor: Hall Sensor
  • Life: More than 5000 hours

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 210mm
  • Gearbox Type: Right Angle Gearbox
  • Gearbox Ratio: 30:1
  • Shaft Type: Hollow
  • Bore Diameter: Φ15mm
  • Bearing: Deep Groove Ball

Connection

1
2
3
4
5
6
7
8
U
W
Hb
Ha
V
-
Hc
+
Yellow(Thick)
Blue(Thick)
Green
Yellow
Green(Thick)
Black
Blue
Red
Product Type
Product TypeGeared BLDC Motor
Electrical Specification
No. of Phase3
Rated Current(A)8.00
Rated Power(W)150
Rated Speed(rpm)100
Rated Torque(Nm)10.07
Rated Voltage(V)24
Physical Specification
Body Length(mm)210
Frame Size(mm)90 x 90
Gear Ratio(xx:1)30
Gearbox TypeRight Angle Gearbox
Output Shaft TypeHollow
With GearboxYes
