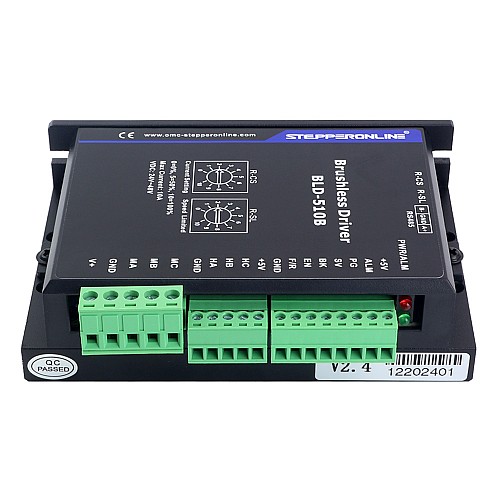

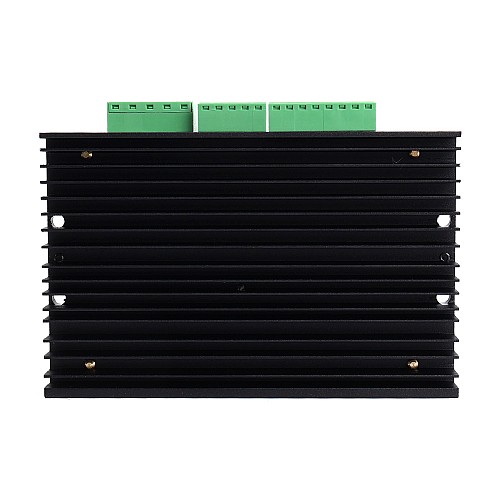

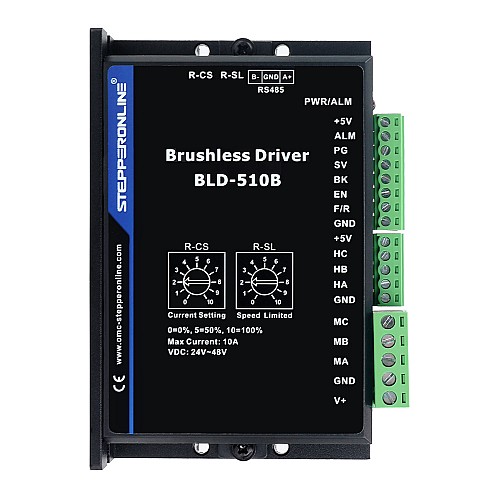

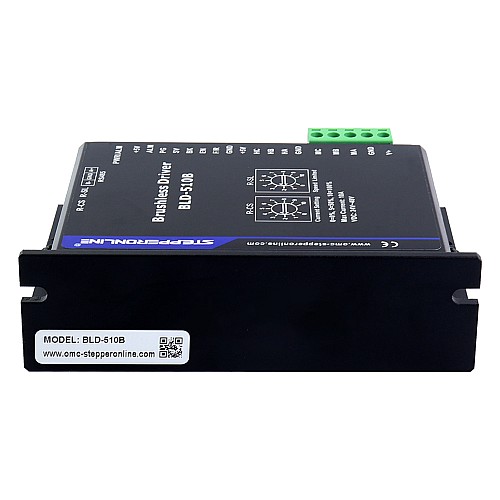

Digital Brushless DC Motor Driver 12V-48VDC Max 15.0A 400W

This 12V-48VDC 400W brushless motor driver is a driver independently developed by STEPPERONLINE to work with the field of modern industrial automatic control. It mainly uses high performance dedicated brushless DC motor driver chips, the latest IGBT and MOS power devices and adopts PWM technology. It is characterised by high integration, small size, complete protection, simple and clear wiring and high reliability. This driver is suitable for driving small and medium-sized brushless DC motors with a rated power of less than 400W.

BLD-510B is launched by STEPPERONLINE after cost optimization based on BLD-510S. In order to improve the market competitiveness of our products, we have replaced some components of the drive and selected suppliers with higher cost performance while ensuring product quality. In appearance and performance, the BLD-510B and BLD-510S are almost identical. Therefore, the BLD-510B is a low-power brushless driver with a higher cost performance.

Features

• 20kHz chopper frequency
• High performance at a low price
• Compatible with Hall and non-Hall sensors
• PID speed and current dual-loop regulator
• Support Modbus communication protocol, RS485 interface
• Stall protection and electric braking function make the motor respond quickly
• The overload multiple is greater than 2, and the torque can always reach the maximum at low speed
• Build with over-voltage, under-voltage, over-current, over-temperature, illegal Hall signal and other error alarm functions

Electrical Specification
