42BLS40-24-01
Output Shaft TypeO
Shaft Diameter(mm)5
Shaft Length(mm)20
Rated Voltage(V)24
Downloads
Same series
| Model | Output Shaft Type | Shaft Diameter(mm) | Shaft Length(mm) | Rated Voltage(V) | Price | Stock |
|---|---|---|---|---|---|---|
| 36BLR65-24-01 Discontinued | O | 4 | 15 | 24 | — | |
| 42BLR43-24-01 | O | 5 | 20 | 24 | C$28.81 | Backorder |
| 42BLS40-24-01 | O | 5 | 20 | 24 | C$24.88 | In stock |
| 42BLS60-24-01 | O | 5 | 20 | 24 | C$31.08 | In stock |
| 42BSA46-24-01 | O | 5 | 24 | 24 | C$23.04 | In stock |
| 42BSA62-24-01 | O | 5 | 24 | 24 | C$25.92 | In stock |
| 42BSA62-36-01 | O | 5 | 24 | 36 | C$25.92 | In stock |
| 42BSA78-24-01 | O | 5 | 24 | 24 | C$34.56 | In stock |
| 42BSA78-48-01 | O | 5 | 24 | 48 | C$34.56 | In stock |
| 42BSB101-24-01 | O | 5 | 20 | 24 | C$31.68 | In stock |
| 42BSB101-48-01 | O | 5 | 20 | 48 | C$31.68 | In stock |
| 42BSB41-24-01 | O | 5 | 20 | 24 | C$20.16 | In stock |
| 42BSB61-24-01 | O | 5 | 20 | 24 | C$23.04 | In stock |
| 42BSB61-48-01 | O | 5 | 20 | 48 | C$23.04 | In stock |
| 42BSB81-24-01 | O | 5 | 20 | 24 | C$28.80 | In stock |
| 42BSB81-48-01 | O | 5 | 20 | 48 | C$28.80 | In stock |
| 42BYA43-24-01 | O | 5 | 20 | 24 | C$21.60 | In stock |
| 42BYA51-24-01 | O | 5 | 20 | 24 | C$24.48 | In stock |
| 42BYA73-24-01 | O | 5 | 20 | 24 | C$34.56 | In stock |
| 57BLR110-36-01 | O | 8 | 25 | 36 | C$52.37 | In stock |
| 57BLR50-24-01 | O | 8 | 25 | 24 | C$32.20 | In stock |
| 57BLR50-36-01 | D | 8 | 25 | 36 | C$32.20 | In stock |
| 57BLR70-24-02 | O | 8 | 25 | 24 | C$45.76 | In stock |
| 57BLR70-36-01 | O | 8 | 25 | 36 | C$37.29 | In stock |
| 57BLY54-24-01 | O | 8 | 21 | 24 | C$27.12 | In stock |
| 57BSA100-36-01 | D | 8 | 21 | 36 | C$63.36 | In stock |
| 57BSA100-48-01 | D | 8 | 21 | 48 | C$63.36 | In stock |
| 57BSA58-24-01 | D | 8 | 21 | 24 | C$31.68 | In stock |
| 57BSA79-36-01 | D | 8 | 21 | 36 | C$46.08 | In stock |
| 57BSD116-36-01 | D | 8 | 21 | 36 | C$41.76 | In stock |

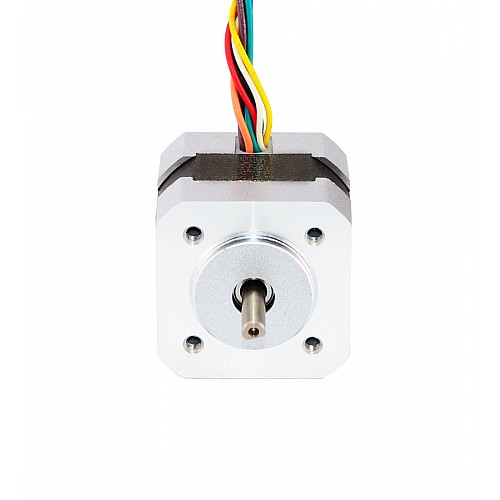

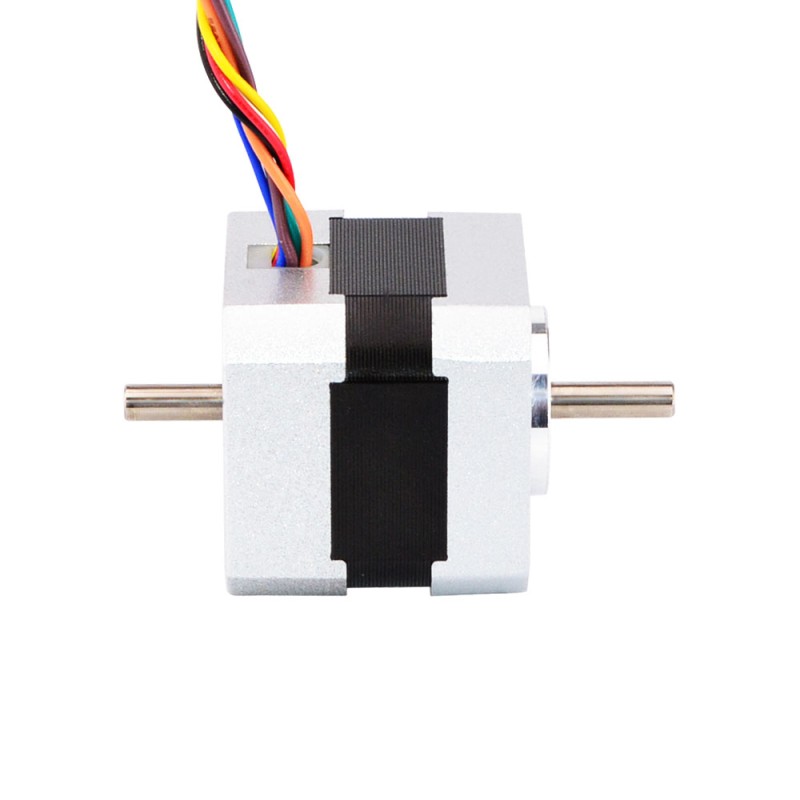

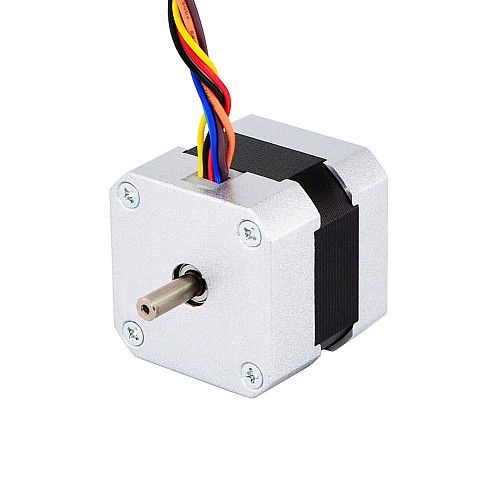

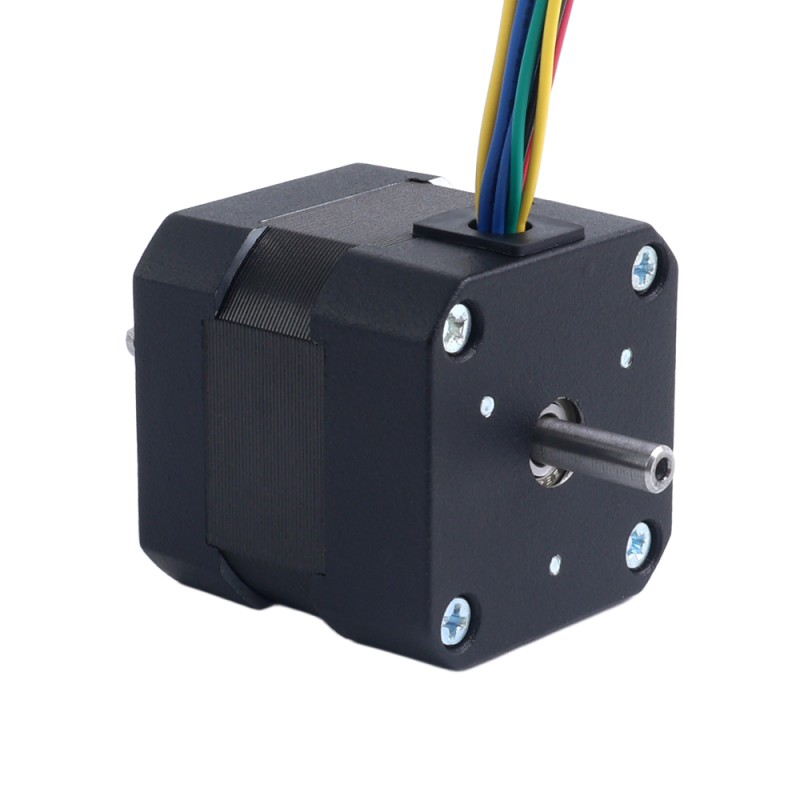

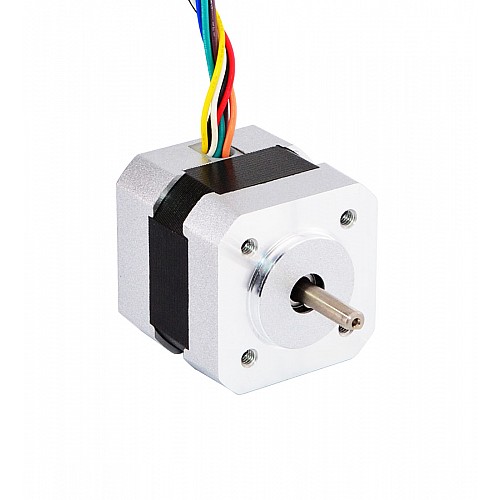

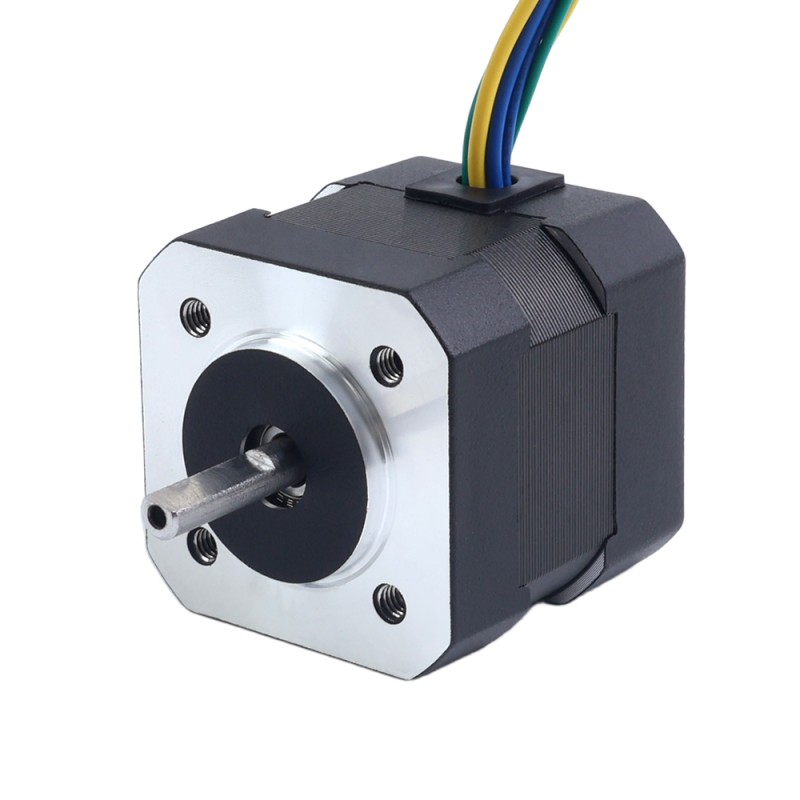

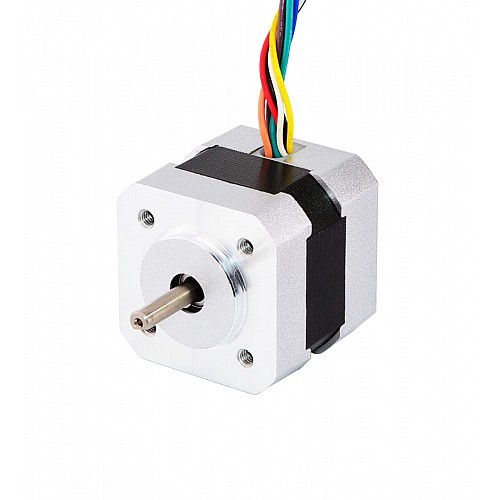

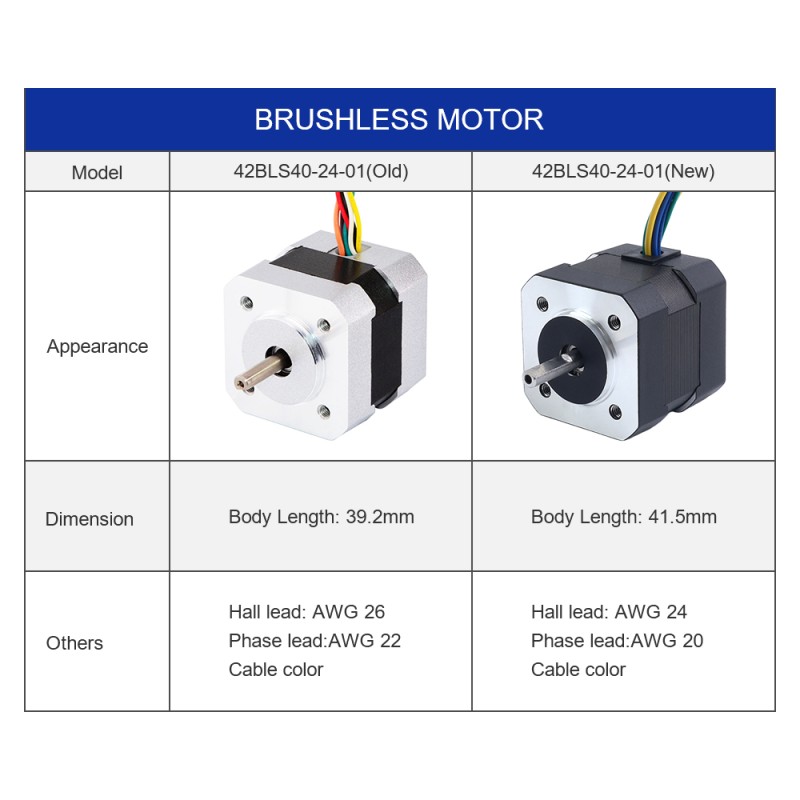

Please note that this motor is currently available in two different versions. The two versions differ in appearance, dimension and cable specifications. Please refer to the comparison chart below for detailed differences.

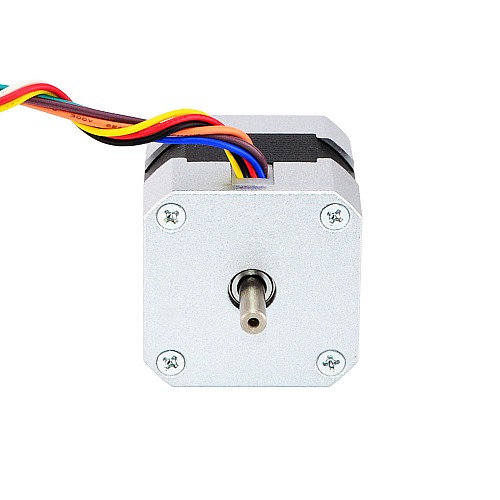

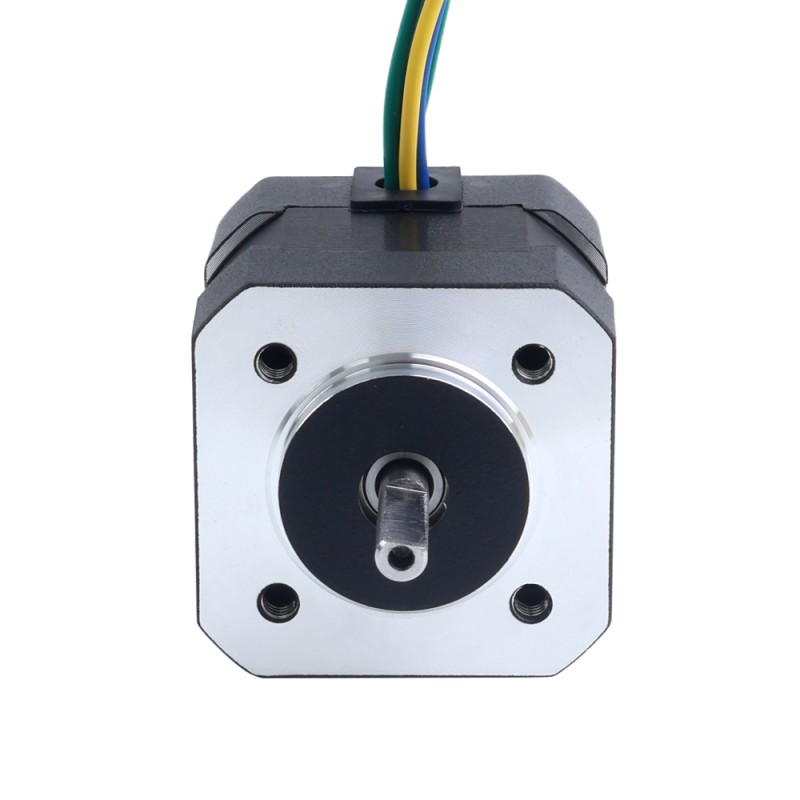

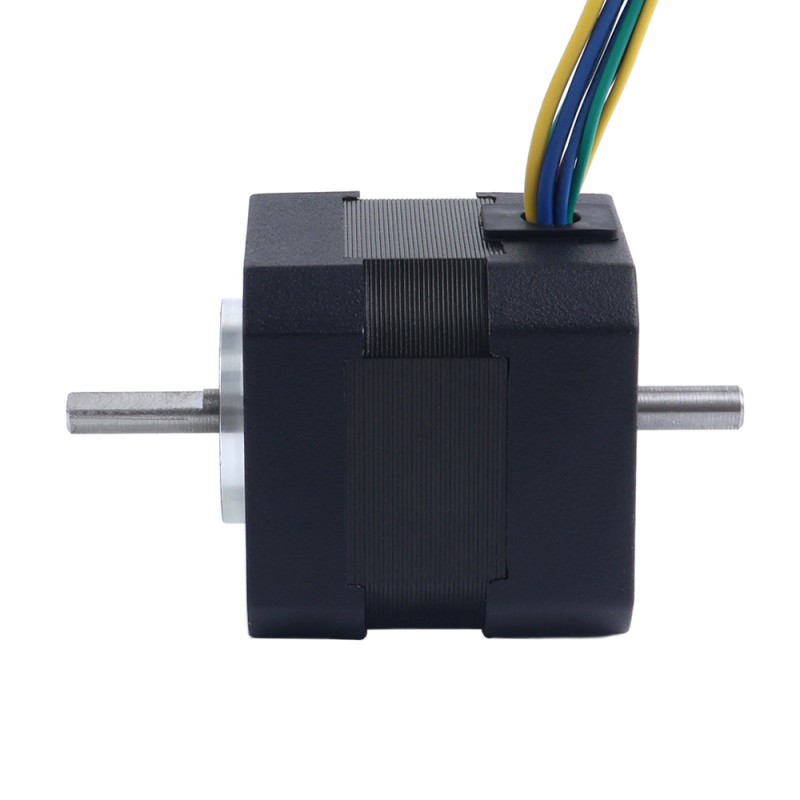

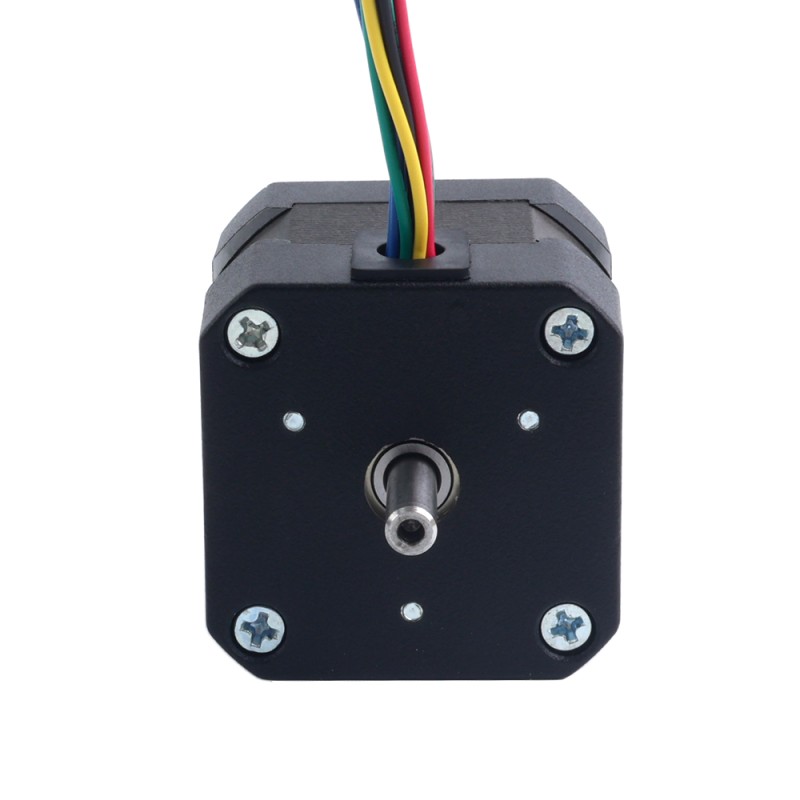

24V 4000RPM 0.0625Nm 26W 1.8A 42x42x39mm Brushless DC Motor
from
C$24.88
5 + C$24.03
10 + C$23.24
50 + C$22.49
100 + C$21.80
Electrical Specification
- Manufacturer Part Number: 42BLS40-24-01
- Phase: 3
- Poles: 8
- Rated Voltage: 24V
- Rated Speed: 4000±10%RPM
- Noload Speed: 6700RPM
- Rated Torque: 0.063Nm(8.92oz.in)
- Rated Current: 1.8±10%A
- Noload Current: 0.2A
- Rated Power: 26W
- Insulation Class: B 130°C[266°F]
- Insulation Resistance: 100MΩ Min @500VDC
- Dielectric Strength Test: 500VAC for 1 Minute
Physical Specification
- Frame Size: 42x42mm
- Body Length: 39.2mm
- Shaft Diameter: Φ5mm
- Shaft Length: 20mm
- Shaft Type: D-cut
- D-cut Length: 15mm
- Rear Shaft Length: 13.5mm
- Rear Shaft Diameter: Φ5mm
- Number of Leads: 8
- Lead Length: 300mm
- Bearing Type: NMB Ball Bearing, C3
- Sensor: Hall Sensor
Connection
U | V | W | +5V | GND | A | B | C |
Orange | Green | Brown | Red | Black | Yellow | White | Blue |
