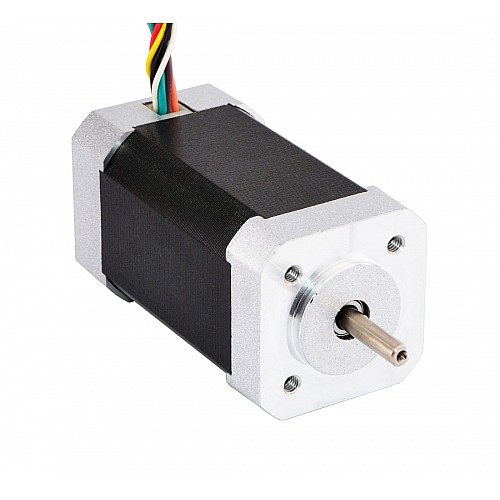

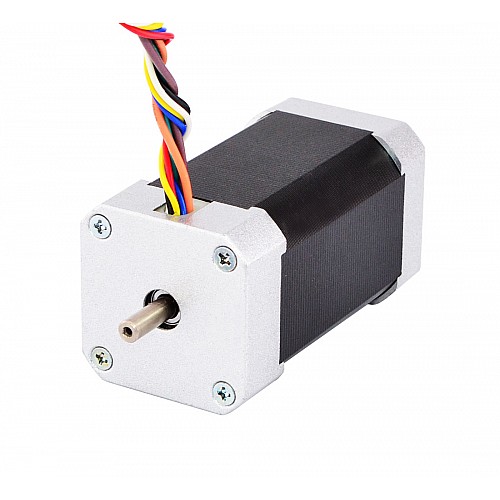

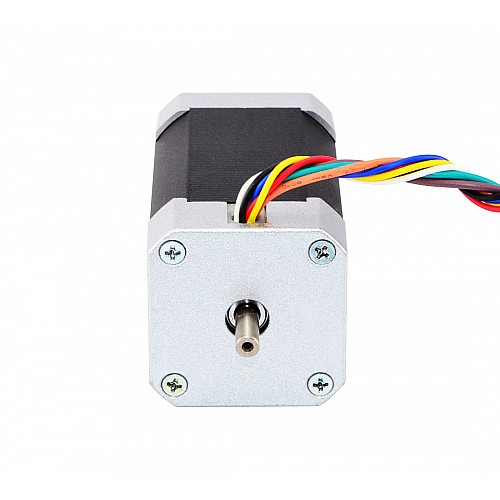

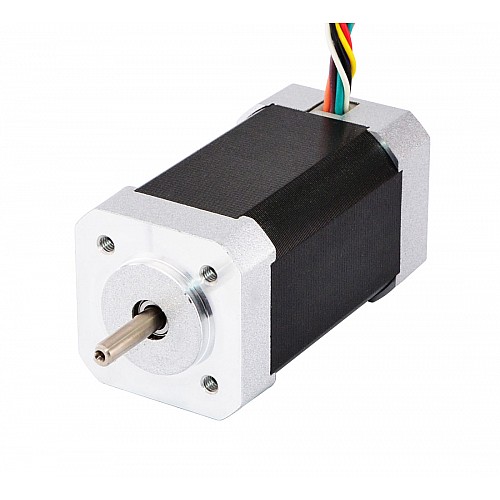

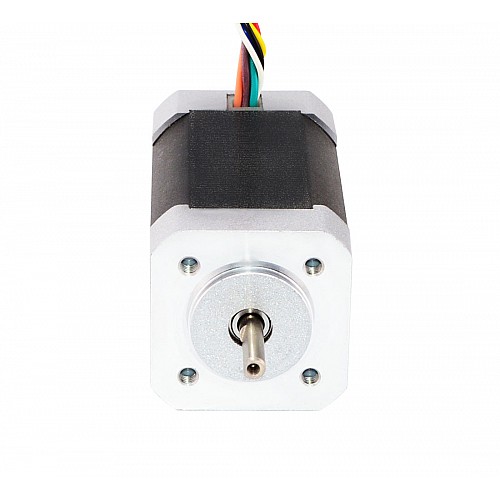

24V 4000RPM 0.185Nm 77.5W 4.8A 42x42x79mm Brushless DC Motor

Discontinued

24V 4000RPM 0.185Nm 77.5W 4.8A 42x42x79mm Brushless DC Motor

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 42BLS80-24-01
Gross Weight: 0.65kg
Certificated: ISO, CE

Sold: 90

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 42BLS80-24-01
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 4000±10%RPM
Noload Speed: 5900RPM
Rated Torque: 0.185Nm(26.2oz.in)
Rated Current: 4.8±10%A
Noload Current: 0.5A
Rated Power: 77.5W
Insulation Class: B 130°C[266°F]
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

Frame Size: 42x42mm
Body Length: 79.2mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
Shaft Type: D-cut
D-cut Length: 15mm

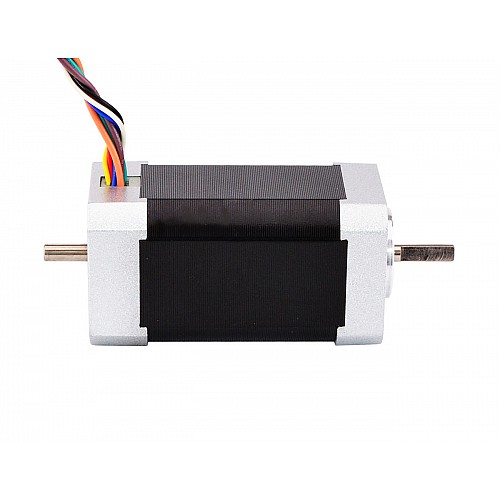

Rear Shaft Length: 13.5mm
Rear Shaft Diameter: Φ5mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Sensor: Hall Sensor

Connection

U	V	W	+5V	GND	A	B	C
ORG	GRN	BRW	RED	BLK	YEL	WHT	BLU

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	4.8
Rated Power(W)	77.5
Rated Speed(rpm)	4000
Rated Torque(Nm)	0.185
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	79.2
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	20
Output Shaft Type	O
Shaft Diameter(mm)	5
Shaft Length(mm)	20
With Gearbox	No
