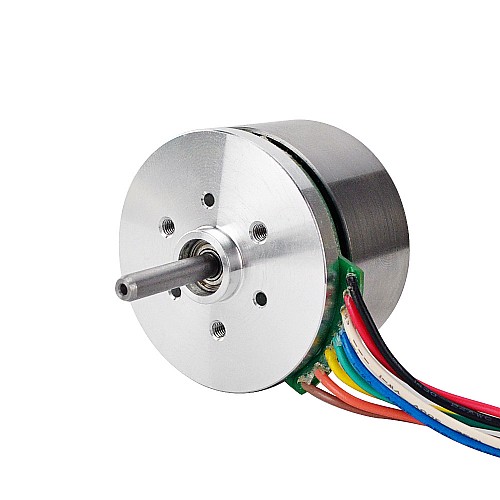

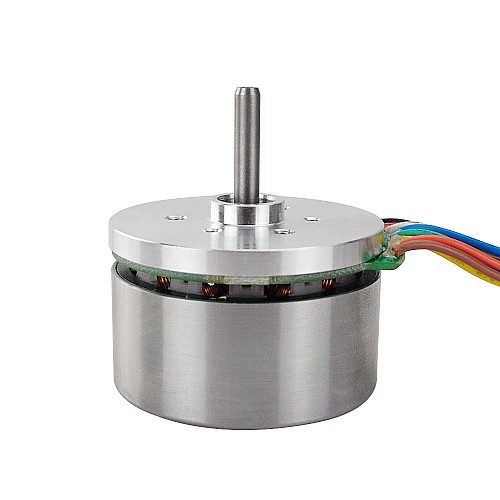

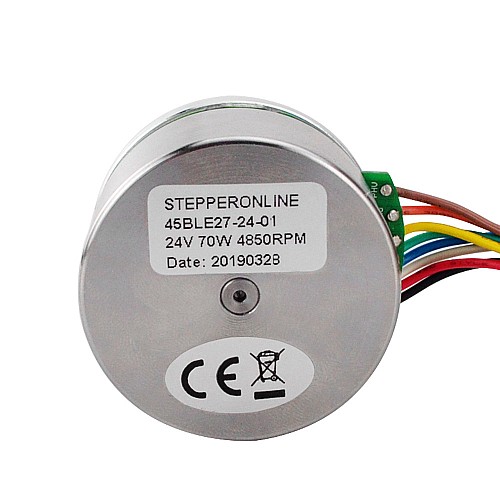

24V 4850RPM 0.13Nm 70W 3.6A Ф43.2x27mm External Rotor Motor
Electrical Specification Manufacturer Part Number: 45BLE27-24-01 Phase: 3 Poles: 16 Resistance... Read More
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

Electrical Specification

  • Manufacturer Part Number: 45BLE27-24-01
  • Phase: 3
  • Poles: 16
  • Resistance/Line: 0.56±0.1ohms@20℃
  • Inductance/Line: 0.27±0.1mH@1kHz
  • Rated Voltage: 24VDC
  • No Load Speed: 6100±10%RPM
  • No Load Current: 0.5A
  • Rated Torque: 130mN.m
  • Rated Speed: 4850RPM
  • Rated Current: 3.6A
  • Rated Power: 70W
  • Back EMF Constant: 2.75Vrms/kRPM
  • Torque Constant: 37.2mN.m/A
  • Rotor Inertia: 181g.cm2
  • Temperature Rise: Less than 80k
  • Insulation Class: B 130°C[266°F]
  • Dielectric Strength: 500VAC 1MIN
  • Insulation Resistance: 100MOhm @500VDC
  • Ambient Temperature: -25 ~ +50℃

Physical Specification

  • Frame Size: Φ43.2mm
  • Body Length: 27mm
  • Shaft Diameter: Φ4mm
  • Shaft Length: 20.6mm
  • Number of Leads: 8
  • Lead Length: 300mmMin.
  • Sensor: Hall Sensor
  • Weight: 150g

Connection

U
V
W
GND
2
1
3
VHall
Orange
Brown
Yellow
Black
Green
Blue
White
Red
Product Type
Product Type External Rotor Motor
Electrical Specification
No. of Phase 3
Rated Current(A) 3.6
Rated Power(W) 70
Rated Speed(rpm) 4850
Rated Torque(Nm) 0.13
Rated Voltage(V) 24
Physical Specification
Frame Size(mm) Φ43.2
Output Shaft Type O
Shaft Diameter(mm) 4
Shaft Length(mm) 20.6
