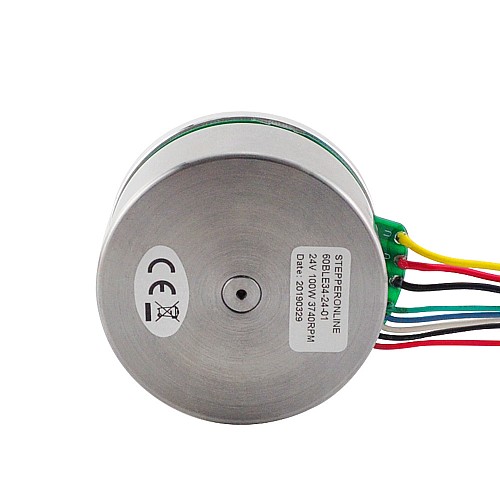

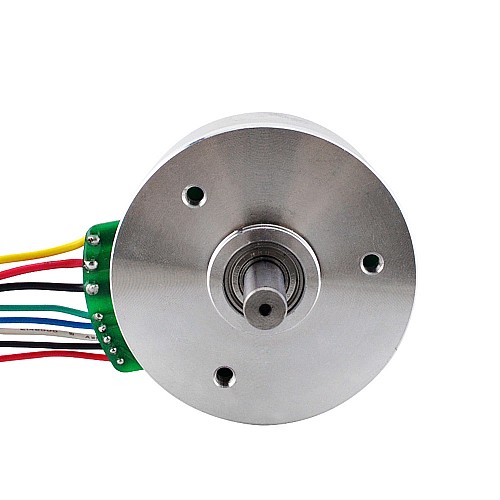

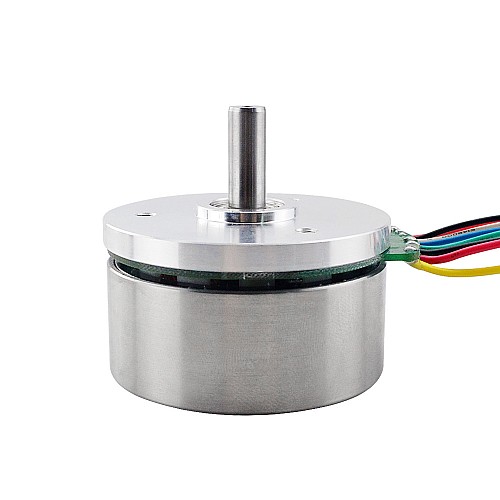

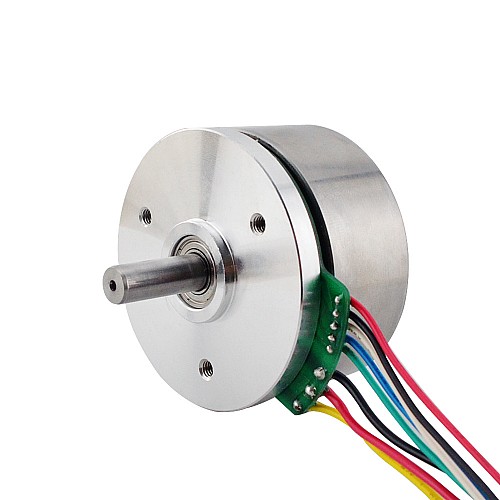

24V 3740RPM 0.284Nm 100W 5.3A Ф61.2x34mm External Rotor Motor

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 60BLE34-24-01
Gross Weight: 0.50kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Electrical Specification

Manufacturer Part Number: 60BLE34-24-01
Phase: 3
Poles: 14
Resistance/Line: 0.3±0.1ohms@20℃
Inductance/Line: 0.2±0.2mH@1kHz
Rated Voltage: 24VDC
No Load Speed: 4250±10%RPM
No Load Current: 0.8A
Rated Torque: 284mN.m
Rated Speed: 3740RPM
Rated Current: 5.0A
Rated Power: 100W
Back EMF Constant: 4.2Vrms/kRPM
Torque Constant: 56.7mN.m/A
Rotor Inertia: 1210g.cm²
Temperature Rise: Less than 80k
Insulation Class: B 130°C[266°F]
Dielectric Strength: 500VAC 1MIN
Insulation Resistance: 100MOhm @500VDC
Ambient Temperature: -25 ~ +50 ℃

Physical Specification

Frame Size: Φ61.2mm
Body Length: 34mm
Shaft Diameter: Φ8mm
Shaft Length: 23mm
Number of Leads: 8
Lead Length: 300mmMin.
Sensor: Hall Sensor
Weight: 400g

Connection

U	V	W	GND	2	1	3	VHall
Black	Yellow	Red	Black	Green	Blue	White	Red

Product Type
Product Type	External Rotor Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	5.0
Rated Power(W)	100
Rated Speed(rpm)	3740
Rated Torque(Nm)	0.284
Rated Voltage(V)	24
Physical Specification
Frame Size(mm)	Φ61.2
Inventory Method	Dedicated Inventory
Output Shaft Type	O
Shaft Diameter(mm)	8
Shaft Length(mm)	23
