4IK25GN-AT/4GN200K
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)80 x 80
Current(A)0.5
Question

Downloads

4IK25GN-XXT_4GNXXK_manual.pdfPDF · 2.21MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
4IK25GN-AT/4GN100KKeyway1PH 110VAC80 x 800.5C$53.10In stock
4IK25GN-AT/4GN10KKeyway1PH 110VAC80 x 800.5C$48.08In stock
4IK25GN-AT/4GN15KKeyway1PH 110VAC80 x 800.5C$48.08In stock
4IK25GN-AT/4GN200KKeyway1PH 110VAC80 x 800.5C$53.10In stock
4IK25GN-AT/4GN20KKeyway1PH 110VAC80 x 800.5C$48.08In stock
4IK25GN-AT/4GN30KKeyway1PH 110VAC80 x 800.5C$50.72In stock
4IK25GN-AT/4GN3KKeyway1PH 110VAC80 x 800.5C$48.08In stock
4IK25GN-AT/4GN50KKeyway1PH 110VAC80 x 800.5C$50.72In stock
4IK25GN-AT/4GN5KKeyway1PH 110VAC80 x 800.5C$48.08In stock
4IK25GN-CT/4GN100KKeyway1PH 220VAC80 x 800.24C$53.10In stock
4IK25GN-CT/4GN10KKeyway1PH 220VAC80 x 800.24C$48.08In stock
4IK25GN-CT/4GN15KKeyway1PH 220VAC80 x 800.24C$48.08In stock
4IK25GN-CT/4GN15K-SALEKeyway1PH 220VAC80 x 800.24C$48.84In stock
4IK25GN-CT/4GN200KKeyway1PH 220VAC80 x 800.24C$53.10In stock
4IK25GN-CT/4GN20KKeyway1PH 220VAC80 x 800.24C$48.08In stock
4IK25GN-CT/4GN30KKeyway1PH 220VAC80 x 800.24C$50.72In stock
4IK25GN-CT/4GN30K-SALEKeyway1PH 220VAC80 x 800.24C$51.52In stock
4IK25GN-CT/4GN3KKeyway1PH 220VAC80 x 800.24C$48.08In stock
4IK25GN-CT/4GN50KKeyway1PH 220VAC80 x 800.24C$50.72In stock
4IK25GN-CT/4GN5KKeyway1PH 220VAC80 x 800.24C$48.08In stock
4IK25GN-S/S3T/4GN100KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$53.10In stock
4IK25GN-S/S3T/4GN10KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$48.08In stock
4IK25GN-S/S3T/4GN15KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$48.08In stock
4IK25GN-S/S3T/4GN200KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$53.10In stock
4IK25GN-S/S3T/4GN20KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$48.08In stock
4IK25GN-S/S3T/4GN30KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$50.72In stock
4IK25GN-S/S3T/4GN3KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$48.08In stock
4IK25GN-S/S3T/4GN50KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$50.72In stock
4IK25GN-S/S3T/4GN5KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$48.08In stock
25W 110VAC 60Hz 7.75RPM 8.00Nm(1132.89oz.in) Flange 80mm Spur Gearbox Single-phase AC Induction Motor
This 80x80mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 200, ... Read More
0 reviews • Write a review
from
C$53.10
5 + C$51.68
10 + C$50.32
50 + C$49.04
100 + C$47.82

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

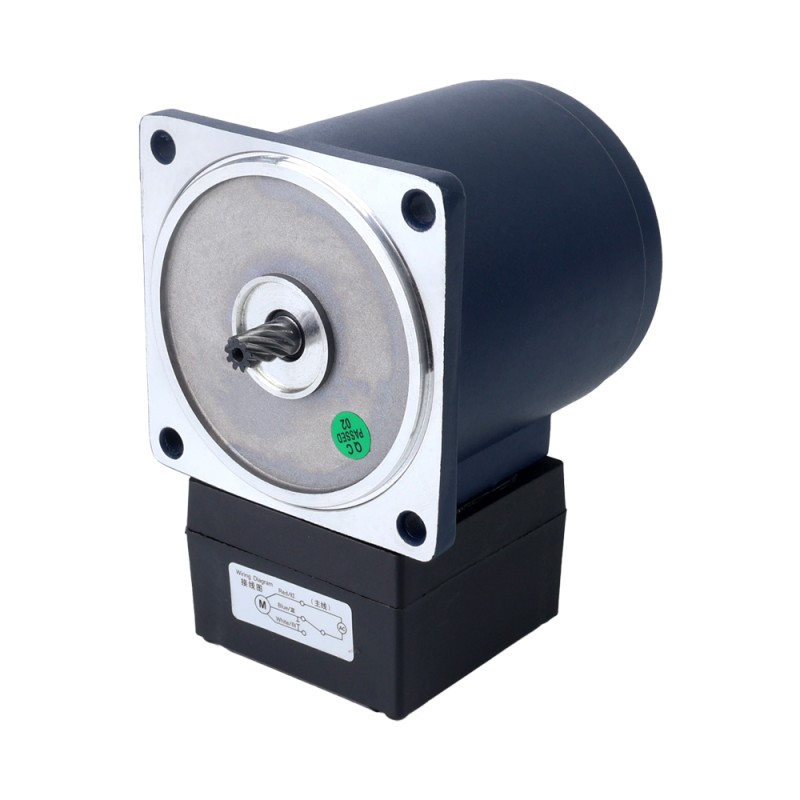

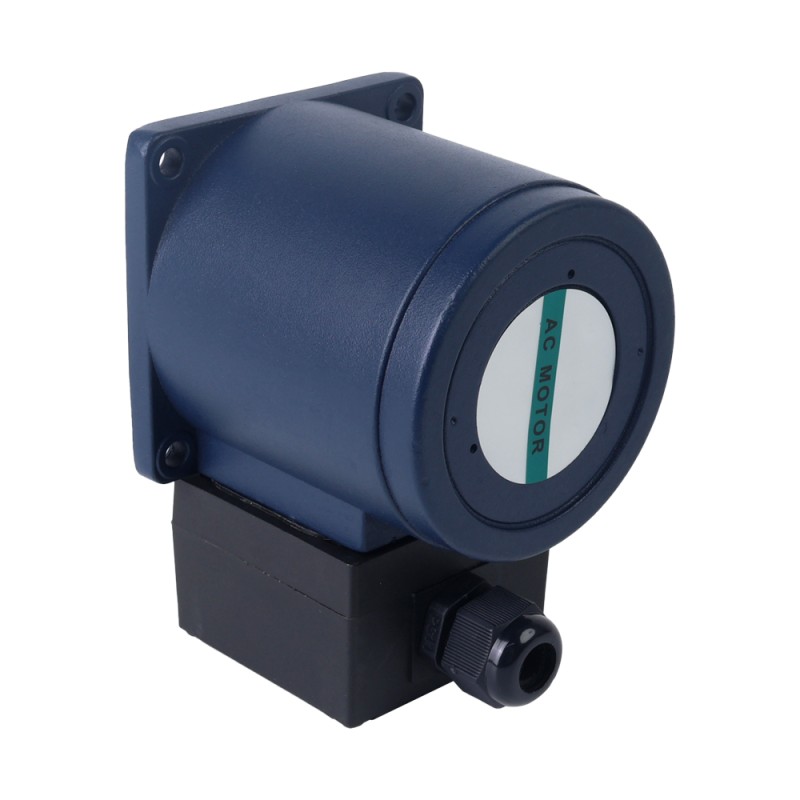

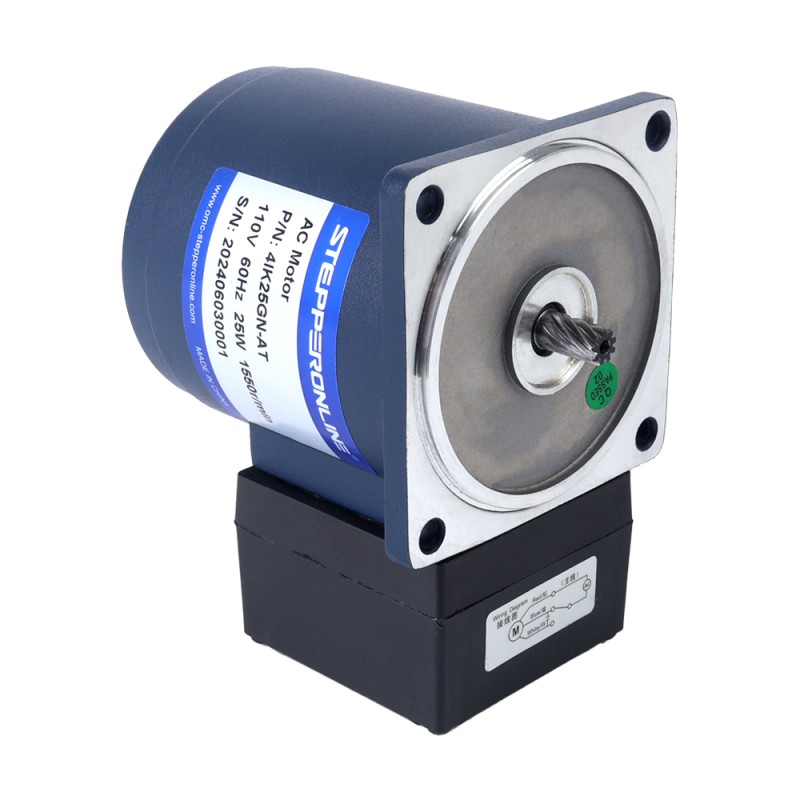

This 80x80mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 200, a torque of 8.00Nm(1132.89oz.in) and a speed of 7.75rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 4IK25GN-AT/4GN200K
  • Gearbox Type: Spur Gearbox
  • Output Power: 25W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 0.50A
  • Gear Ratio: 200:1
  • Speed: 7.75rpm
  • Torque: 8.00Nm(1132.89oz.in)
  • Capacitor: 7.0μF/250VAC

Physical Specifications

  • Frame Size: 80x80mm
  • Body Length: 129.5mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ10mm
  • Shaft Length: 33mm
  • Weight: 2.55kg

Wiring

Electrical Specification
Current(A) 0.5
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Output Power(W) 25
Speed(rpm) 7.75
Torque(Nm) 8
Physical Specification
Frame Size(mm) 80 x 80
Gear Ratio(xx:1) 200
Gearbox Type Spur Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Dual Shaft Nema 23 Uni/Bipolar 1.8deg 2.83Nm(400oz.in) 4A 57x57x84mm 8 Wires
Dual Shaft Nema 23 Uni/Bipolar 1.8deg 2.83Nm(400oz.in) 4A 57x57x84mm 8 Wires
This nema 23 stepper motor with step angle 1.8deg, a holding torque(bipolar) of 2.83Nm(400oz.in), a holding torque(unipolar) of 2.0Nm(283oz.in) and si..
from
C$38.83
Add to Cart
Add to Wish List Compare this Product
Quickview
2.7m(106") AWG20 Motor and Encoder Extension Cable Kit for Nema 23 and 24 Closed Loop Stepper Motors
2.7m(106") AWG20 Motor and Encoder Extension Cable Kit for Nema 23 and 24 Closed Loop Stepper Motors
2.7m(106") Motor Extension Cable and 2.7m(106") Encoder Extension Cable for Nema 23 and 24 Closed Loop Stepper Motors. This Cable Kit included:2.7m..
from
C$22.04
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 14 Bipolar 1.8deg 12.5Ncm(17.7oz.in) 1.0A 35x35x28mm 4 Wires
Nema 14 Bipolar 1.8deg 12.5Ncm(17.7oz.in) 1.0A 35x35x28mm 4 Wires
This bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x28mm. It has 4 wires, each phase draws 1 A, with holding torque 12.5Ncm(17.7o..
from
C$14.69
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 14 Bipolar 1.8deg 23Ncm(32.57oz.in) 0.5A 35x35x42mm 4 Wires
Nema 14 Bipolar 1.8deg 23Ncm(32.57oz.in) 0.5A 35x35x42mm 4 Wires
This bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x42mm. It has 4 wires, each phase draws 0.5A, with holding torque 23Ncm(32.57o..
from
C$15.14
Add to Cart
Add to Wish List Compare this Product
Quickview

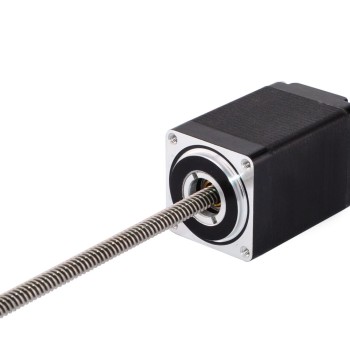

Nema 11 Non-captive 46mm Stack 0.75A Lead 5.08mm(0.2") Length 250mm
