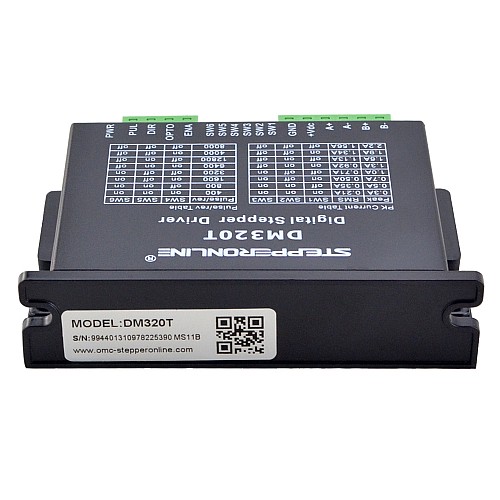

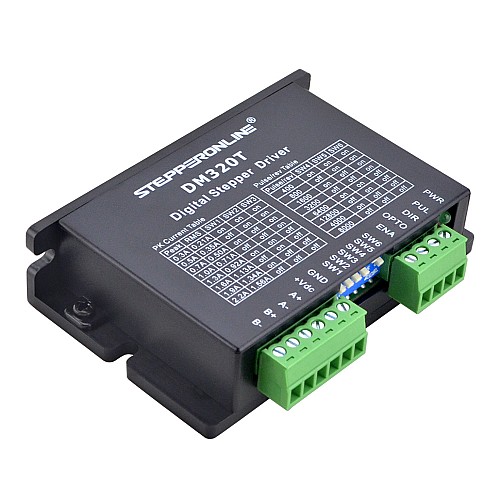

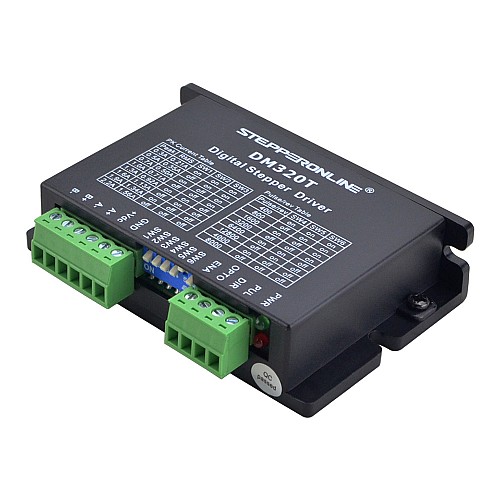

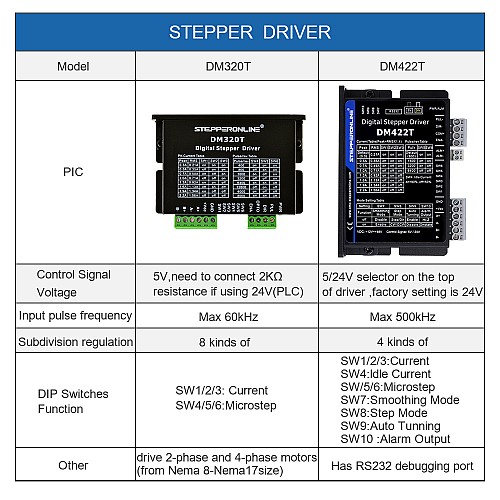

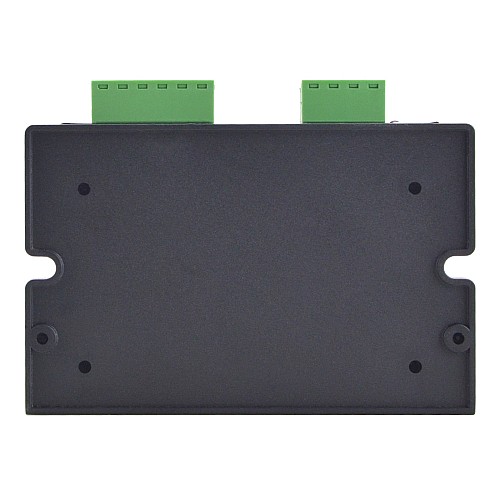

Digital Stepper Driver 0.3-2.2A 10-30VDC for Nema 8, 11, 14, 16, 17 Stepper Motor

This is a digital stepper drive implemented with advanced stepper control technology. It is easy to use and it can be used to drive 2-phase and 4-phase motors(from Nema 8-Nema 17 size) smoothly with less heat and noise. It works with 10 - 30VDC voltage and can provide max 2.2A peak current. You can set the DIP switches to get the current and microsteps you need.

Key Features

• Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
• Motor auto-identification and parameter auto-configuration for optimal torque from wide-range motors
• Step & direction(PUL/DIR) control
• Multi-Stepping for smooth motor movement
• Optically isolated inputs
• Input voltage 10 - 30VDC

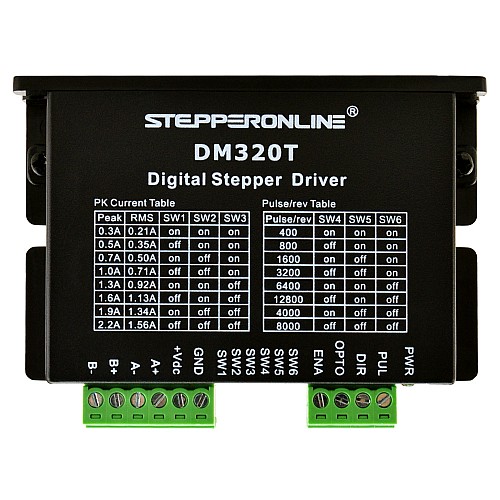

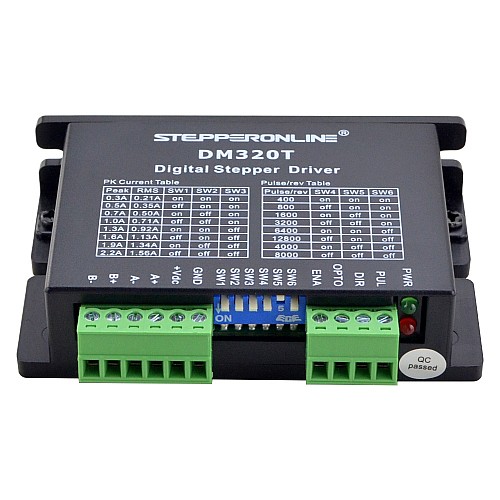

• 8 selectable micro-step resolutions of 400 -12800 via DIP switches
• 8 selectable output current settings of 0.3 – 2.2A via DIP switches
• Soft-start with no "jump" when powered on
• Pulse input frequency up to 60KHz
• Automatic idle-current reduction
• Protections for over-voltage and over-current

Electrical Specifications

• Output Peak Current: 0.3~2.2A(1.6RMS)
• Input Voltage: +10~30VDC
• Logic Signal Current: 7~16mA(Typical 10mA)
• Pulse Input Frequency: 0~60kHz
• Isolation Resistance: 100MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

• Cooling: Natural Cooling or Forced cooling
• Environment: Avoid dust, oil fog and corrosive gases
• Ambient Temperature: 0℃ － 65℃
• Humidity: 40%RH－90%RH
• Operating Temperature: 50℃ MAX
• Vibration: 10 - 50Hz / 0.15mm
• Storage Temperature: -20℃ － 65℃
• Weight: Approx.90g(3.5oz)
