4IK25GN-CT/4GN50RC
Output Shaft TypeHollow
Input Voltage(V)1PH 220VAC
Frame Size(mm)80 x 80
Current(A)0.24
Question

Downloads

4IK25GN-XXT_4GNXXRX_manual.pdfPDF · 1.71MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
4IK25GN-AT/4GN50RCHollow1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN50RTKeyway1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-CT/4GN100RCHollow1PH 220VAC80 x 800.24C$80.04In stock
4IK25GN-CT/4GN100RTKeyway1PH 220VAC80 x 800.24C$80.04In stock
4IK25GN-CT/4GN10RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN10RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN15RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN15RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN180RCHollow1PH 220VAC80 x 800.24C$80.04In stock
4IK25GN-CT/4GN180RTKeyway1PH 220VAC80 x 800.24C$80.04In stock
4IK25GN-CT/4GN20RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN20RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN30RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN30RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN50RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN50RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-S/S3T/4GN100RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$80.04In stock
4IK25GN-S/S3T/4GN100RTKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$80.04In stock
4IK25GN-S/S3T/4GN10RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN10RTKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN15RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN15RTKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN180RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$80.04In stock
4IK25GN-S/S3T/4GN180RTKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$80.04In stock
4IK25GN-S/S3T/4GN20RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN20RTKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN30RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN30RTKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN50RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN50RTKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
View all in category
25W 220VAC 50Hz 27RPM 6.50Nm(920.48oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor
This 80x80mm hollow shaft single-phase AC induction gear motor is powered by 220VAC and has a gear r... Read More
0 reviews • Write a review
from
C$77.92
5 + C$75.84
10 + C$73.85
50 + C$71.98
100 + C$70.18

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This 80x80mm hollow shaft single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 50, a torque of 6.50Nm(920.48oz.in) and a speed of 27rpm. The right angle gearboxes are compact in size, run smoothly and can handle high torques. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 4IK25GN-CT/4GN50RC
  • Gearbox Type: Right Angle Gearbox
  • Output Power: 25W
  • Voltage: 1PH 220VAC
  • Frequency: 50Hz
  • Current: 0.24A
  • Gear Ratio: 50:1
  • Speed: 27rpm
  • Torque: 6.50Nm(920.48oz.in)
  • Capacitor: 1.8μF/450VAC

Physical Specifications

  • Frame Size: 80x80mm
  • Body Length: 201mm
  • Shaft Type: Hollow
  • Bore Diameter: Φ15mm
  • Weight: 3.6kg

Wiring

Electrical Specification
Current(A) 0.24
Frequency(Hz) 50
Input Voltage(V) 1PH 220VAC
Output Power(W) 25
Speed(rpm) 27
Torque(Nm) 6.5
Physical Specification
Frame Size(mm) 80 x 80
Gear Ratio(xx:1) 50
Gearbox Type Right Angle Gearbox
Output Shaft Type Hollow

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

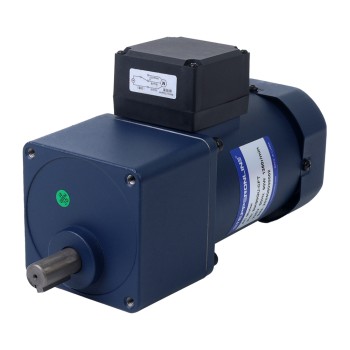

90W 220VAC 50Hz 6.75RPM 20.00Nm(2832.23oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor
90W 220VAC 50Hz 6.75RPM 20.00Nm(2832.23oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor
This 90W 90x90mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 200, a torque of 20.00Nm(2832.23oz.in) and a speed ..
from
C$83.22
Add to Cart
Add to Wish List Compare this Product
Quickview
TG Series 60mm 5:1 Planetary Gearbox Backlash 10arc-min for Servo Motors
TG Series 60mm 5:1 Planetary Gearbox Backlash 10arc-min for Servo Motors
This high-precision 60mm planetary gearbox is belong to TG series gearbox, with a gear ratio 5:1 and a maximum 10arc-min backlash. It's an excellent c..
from
C$49.43
Add to Cart
Add to Wish List Compare this Product
Quickview
TG Series 60mm 50:1 Planetary Gearbox Backlash 15arc-min for Servo Motors
TG Series 60mm 50:1 Planetary Gearbox Backlash 15arc-min for Servo Motors
This high-precision 60mm planetary gearbox is belong to TG series gearbox, with a gear ratio 50:1 and a maximum 15arc-min backlash. It's an excellent ..
from
C$67.96
Add to Cart
Add to Wish List Compare this Product
Quickview
HTG Series 90mm 100:1 Helical Planetary Gearbox Backlash 5arcmin for Servo Motors IP65
HTG Series 90mm 100:1 Helical Planetary Gearbox Backlash 5arcmin for Servo Motors IP65
The HTG series helical planetary gearbox features a 100:1 gear ratio with 5arcmin backlash. It is designed for servo motors with a size of 80mm and a ..
from
C$237.12
Add to Cart
Add to Wish List Compare this Product
Quickview
TG Series 60mm 10:1 Planetary Gearbox Backlash 10arc-min for Servo Motors
TG Series 60mm 10:1 Planetary Gearbox Backlash 10arc-min for Servo Motors
This high-precision 60mm planetary gearbox is belong to TG series gearbox, with a gear ratio 10:1 and a maximum 10arc-min backlash. It's an excellent ..
from
C$49.43
Add to Cart
Add to Wish List Compare this Product
Quickview
TG Series 60mm 20:1 Planetary Gearbox Backlash 15arc-min for Servo Motors
TG Series 60mm 20:1 Planetary Gearbox Backlash 15arc-min for Servo Motors
This high-precision 60mm planetary gearbox is belong to TG series gearbox, with a gear ratio 20:1 and a maximum 15arc-min backlash. It's an excellent ..
from
C$67.96
Add to Cart
Add to Wish List Compare this Product
Quickview

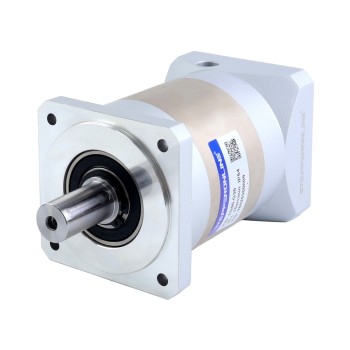

TG Series 90mm 30:1 Planetary Gearbox Backlash 15arc-min for Servo Motors
