HTG Series 90mm 100:1 Helical Planetary Gearbox Backlash 5arcmin for Servo Motors IP65

0 reviews - Write a review

C$242.02

5 + C$233.14

10 + C$224.89

50 + C$217.20

100 + C$210.03

In Stock: 10000
Model: HTG90-G100
Gross Weight: 5.64kg
Certificated: ISO, CE, REACH

Sold: 2

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

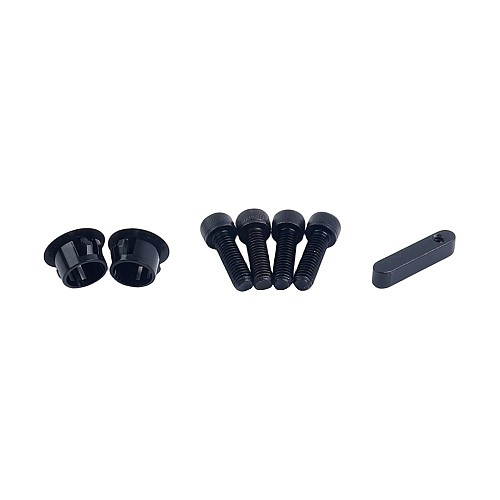

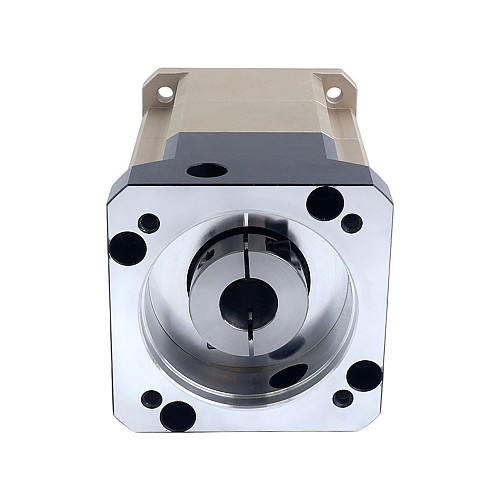

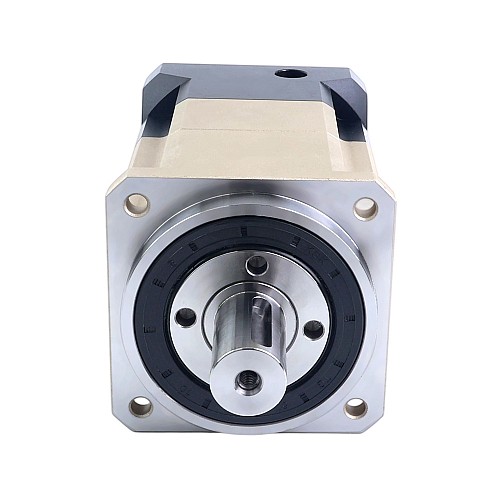

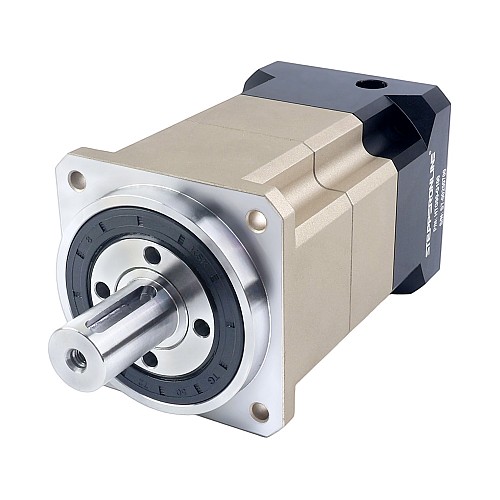

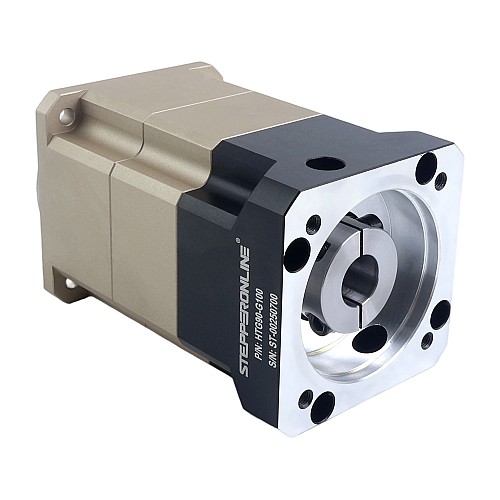

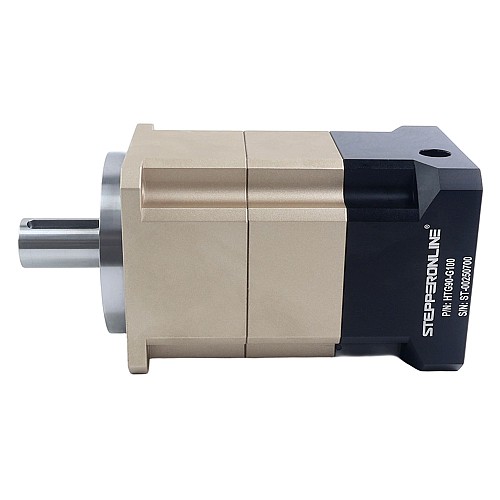

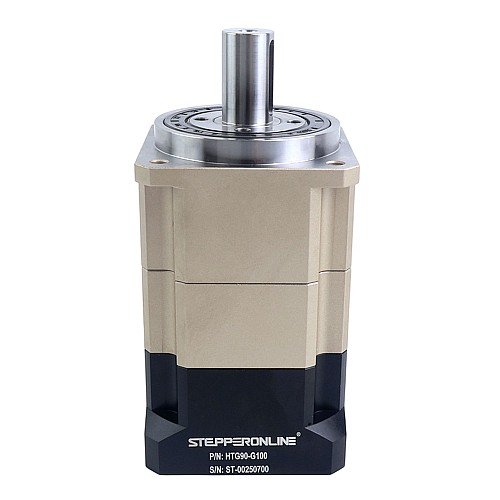

The HTG series helical planetary gearbox features a 100:1 gear ratio with 5arcmin backlash. It is designed for servo motors with a size of 80mm and a shaft diameter of 19mm, compatible with 80/90mm servo motors. It delivers stable transmission, low-noise operation, precision helical gearing design, high power density, enhanced load capacity and efficient torque transfer, etc.
Ideal for high-speed/high-torque scenarios: Automotive transmissions, heavy truck drivetrains, aerospace systems, and other demanding industrial uses.

Gearbox Specifications

Part Number: HTG90-G100
Gearbox Type: Helical Planetary
Gear Material: Alloy Steel
Gear Ratio: 100:1
Efficiency: 97%
Backlash at No-load: <=5arcmin
Rated Input Speed: 3000rpm
Maximum Input Speed: 6000rpm
Max.Permissible Torque: 76Nm(672.66lb-in)
Moment Permissible Torque: 152Nm(1345.31lb-in)
Shaft Maximum Axial Load: 1300N
Shaft Maximum Radial Load: 3250N
Waterproof Rating: IP65
Lifetime: 20000hours

Physical Specifications

Frame Size: 90 x 90mm
Gearbox Length: 141mm
Output Shaft Diameter: Φ22mm
Output Shaft Length: 48mm
Output Shaft Type: Keyway
Input Shaft Diameter: Φ19mm
Input Shaft Length: Max. 44mm

Physical Specification
Backlash at No-load	<=5arcmin
Frame Size(mm)	90 x 90
Gear Material	Alloy Steel
Gear Ratio(xx:1)	100
Gearbox Length(mm)	141
Gearbox Type	Helical Planetary
Input Shaft Diameter(mm)	19
Input Shaft Length(mm)	44
Inventory Method	Dedicated Inventory
Matching Motor Size	Frame 80 Servo Motor
Output Shaft Diameter(mm)	22
Output Shaft Length(mm)	48
Output Shaft Type	Keyway
Product Series	HTG
