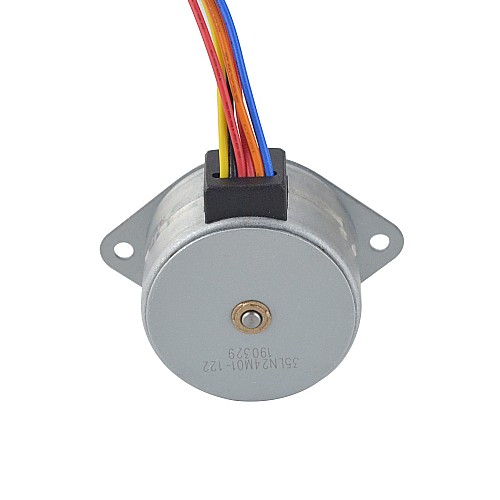

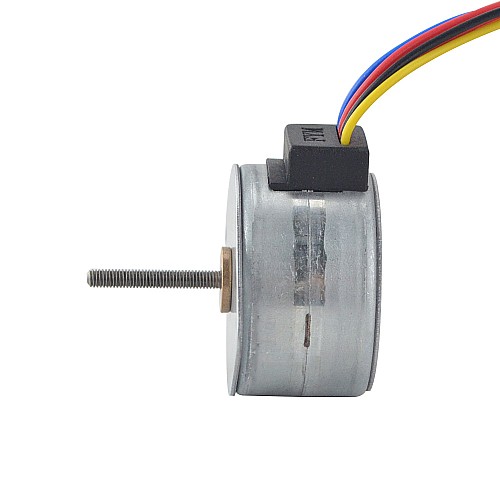

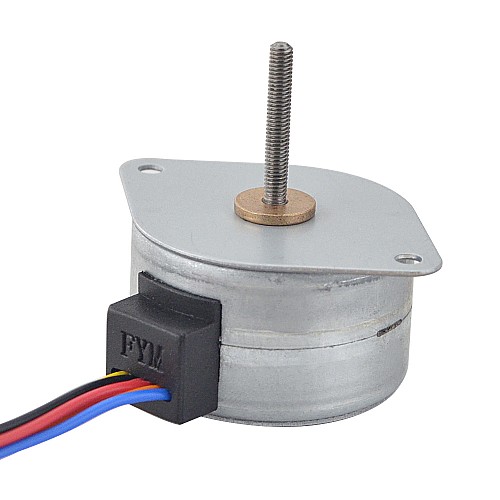

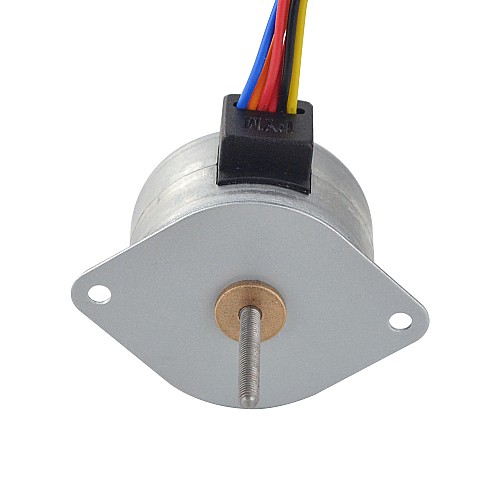

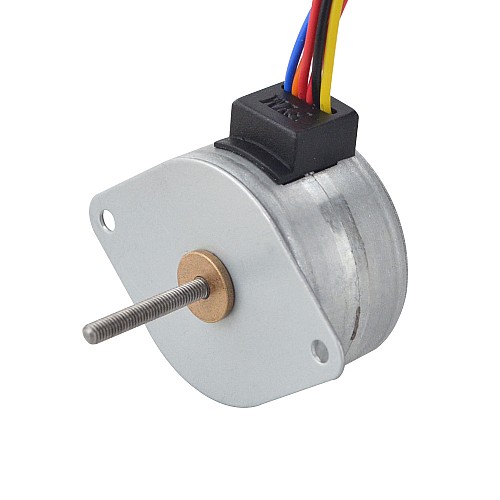

Φ35x22mm PM External Linear Stepper Motor 0.28A Lead 0.5mm/0.0197" Length 21.5mm

0 reviews - Write a review

C$11.77

5 + C$11.06

10 + C$10.42

50 + C$9.86

100 + C$9.35

In Stock: 10000
Model: 35LN24M01-122
Gross Weight: 0.15kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 35LN24M01-122
Motor Type: PM External Linear Stepper
Phase: 2
Step Angle: 15deg
Rated Current/phase: 0.28A
Holding Torque: 44.1mN.m(6.246oz.in)
Phase Resistance: 85±7%ohms(20℃)
Inductance: 32.9mH±20%
Life: 3000h

Physical Specification

Frame Size: Φ35mm
Body Length: 22mm
Lead Screw Length: 21.5mm(0.846")
Lead Screw Diameter: Φ3mm(0.118")
Lead/Revolution: 0.5mm(0.0197")
Lead/Step: 0.0208mm(0.0008")

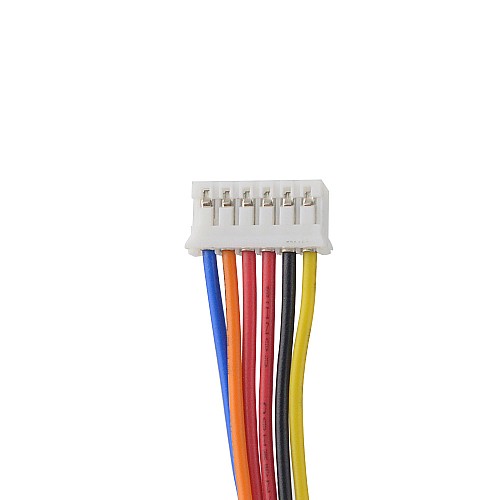

Number of Leads: 6 with connector PH-6Y
Lead Length: 240mm
Weight: 89.7g

Connection

A+	O+	A-	B+	O-	B-
Yellow	Red	Orange	Black	Red	Blue

Electrical Specification
Holding Torque(mN.m)	44.1
Holding Torque(oz.in)	6.246
Inductance(mH)	32.9
No. of Phase	2
Phase Resistance(ohms)	85
Rated Current(A)	0.28
Step Angle(deg.)	15
Physical Specification
Body Length(mm)	22
Frame Size(mm)	Φ35
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	240
Lead Screw Diameter(mm)	3
Lead Screw Length(mm)	21.5
Lead Travel/Revolution(mm)	0.5
Lead Travel/Step(mm)	0.0208
Linear Motor Type	PM External
No. of Lead	6

Lead Screw End Machining
- Male/female threaded ends to specified thread and pitch
- Custom-machined journals and ring groove
- Hex or square ends
- Keyways and cross holes

Anti-Backlash Nut

STEPPERONLINE provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).
There should be a nominal backlash between lead screw and STEPPERONLINE standard plastic nut after millions of cycles. STEPPERONLINE guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, STEPPERONLINE provides spring pressure structure of anti-backlash nut.

Encoders

According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.
Also various resolution can be chosen freely for easier and precise positioning.
All STEPPERONLINE standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.

Brakes

Especially Vertical applications or holding motors from sudden power-off status, STEPPERONLINE standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

Wiring, Cabling and Connectors

Flying wire leads or connectors
Twisting wire leads
Heat shrink or expandable tubing
Cable housings

Teflon Coated Screw

If customer's applications require greaseless screw and nut combination, STEPPERONLINE offers teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options in STEPPERONLINE and all types of linear actuators such as External, Non-Captive, and Captive.
In addition, Anti-backlash nut also can be combined with teflon coated screw too.
