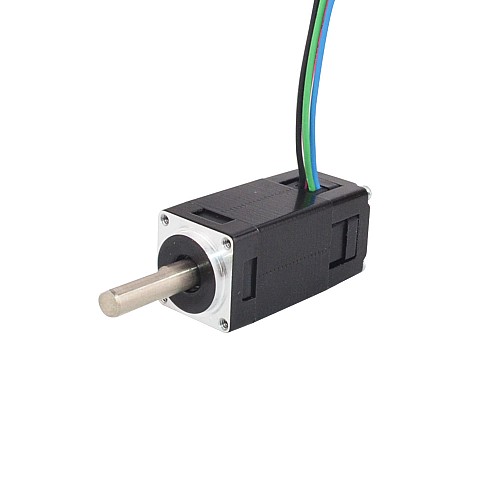

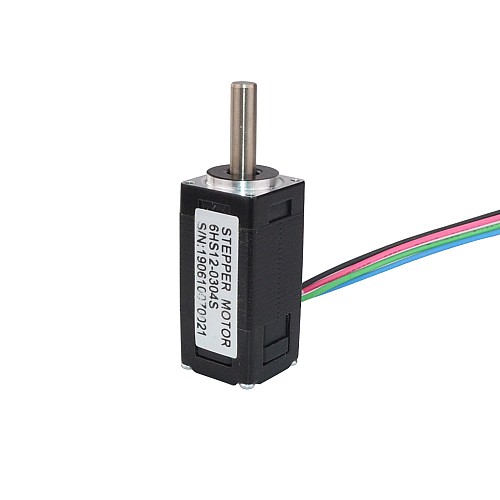

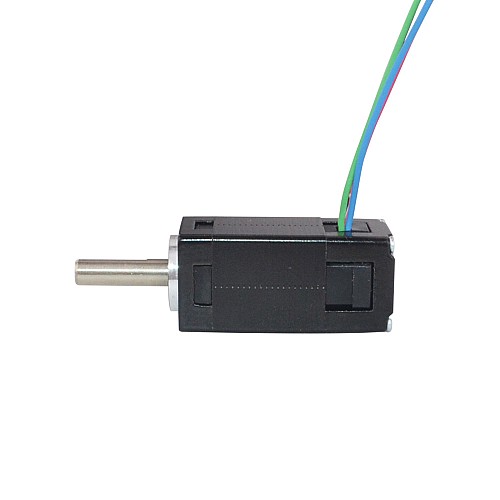

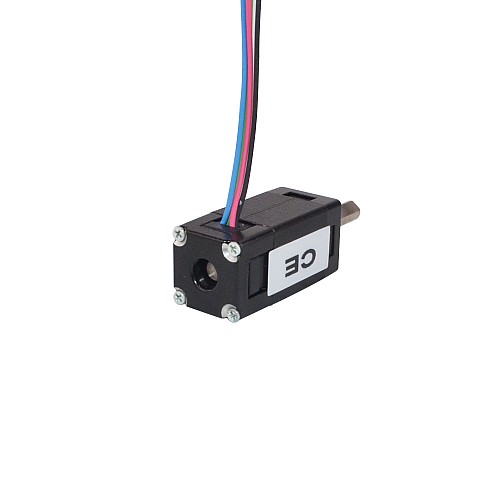

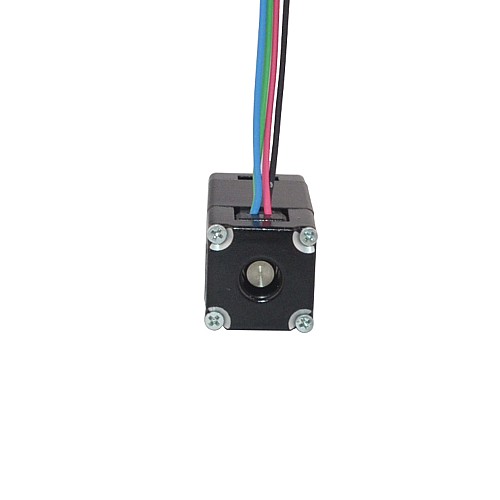

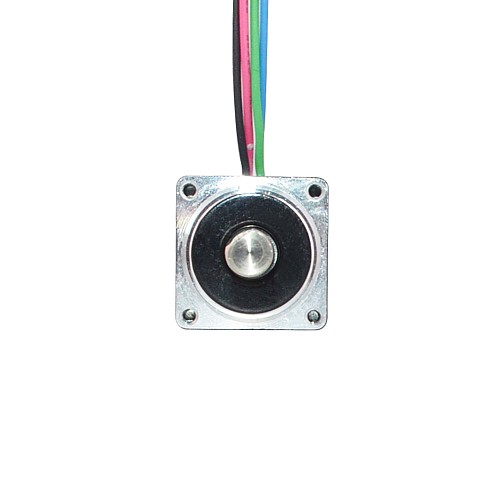

Nema 6 Bipolar 1.8deg 0.58Ncm(0.82oz.in) 0.3A 14x14x30mm 4 Wires

Hot

Nema 6 Bipolar 1.8deg 0.58Ncm(0.82oz.in) 0.3A 14x14x30mm 4 Wires

2 reviews - Write a review

C$96.41

5 + C$91.39

10 + C$86.88

50 + C$82.79

100 + C$79.08

In Stock: 10000
Model: 6HS12-0304S
Gross Weight: 0.08kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 735

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 6HS12-0304S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 0.58Ncm(0.82oz.in)
Rated Current/phase: 0.3A
Phase Resistance: 22ohms
Inductance: 4.2mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 14 x 14mm
Body Length: 30mm
Shaft Diameter: Φ4mm
Shaft Length: 15mm
D-cut Shaft Length: 10mm
Number of Leads: 4
Cable Length: 300mm
Weight: 30g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	0.58
Holding Torque(oz.in)	0.82
Inductance(mH)	4.2
Phase Resistance(ohms)	22
Rated Current(A)	0.3
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	30
Frame Size(mm)	Nema 06 (14 x 14)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	4
Shaft Length(mm)	15
Single Shaft/Dual Shaft	Single Shaft
