36V 3000RPM 0.45Nm 141W 5.40A 57x57x96mm Brushless DC Motor
0 reviews - Write a review
C$41.77
5 + C$40.39
10 + C$39.10
50 + C$37.89
100 + C$36.75
  • In Stock: 10000
  • Model: 57BSD96-36-01
  • Gross Weight: 0.91kg
  • Certificated: ISO, CE
Sold: 2

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

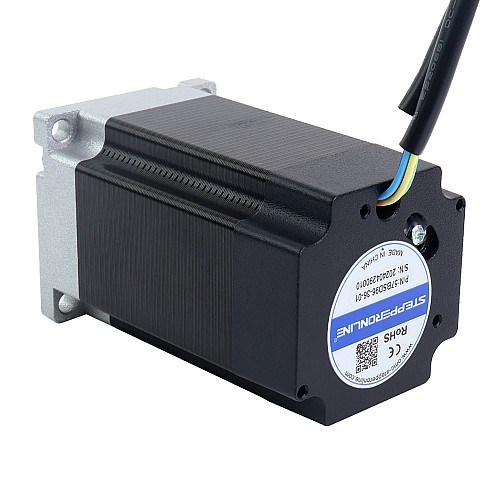

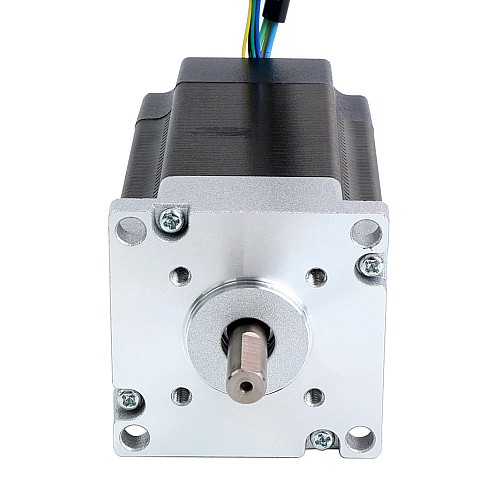

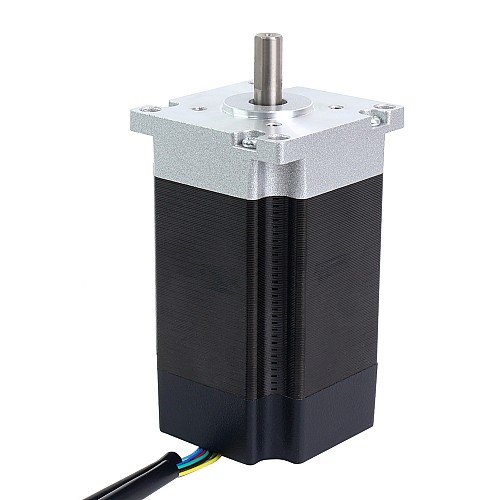

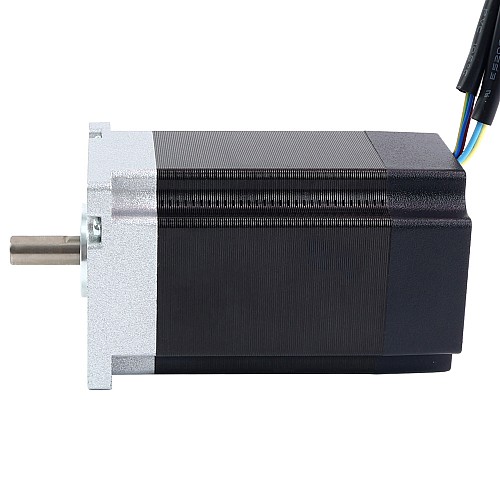

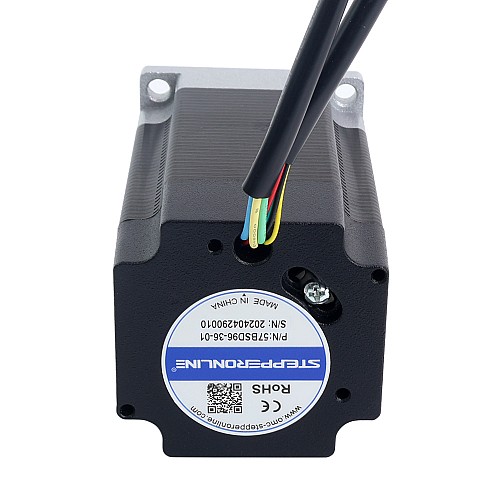

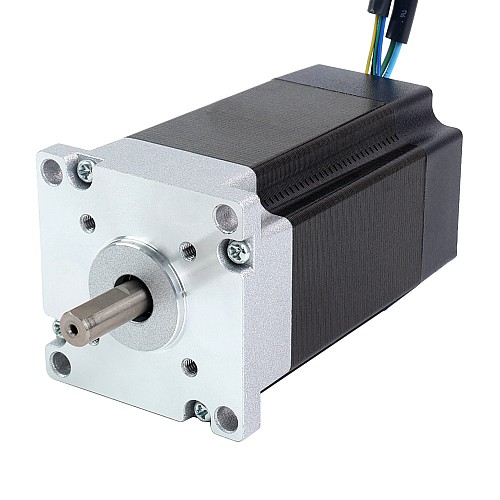

This is a 36V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.45Nm(63.73oz.in).
57BSD series brushless motors are cost-effective and high-performance motors that are suitable for low-torque applications such as cooling fans, air pumps and other household appliances.

Electrical Specification

  • Manufacturer Part Number: 57BSD96-36-01
  • Phase: 3
  • Poles: 8
  • Rated Voltage: 36V
  • Rated Torque: 0.45Nm(63.73oz.in)
  • Rated Power: 141W
  • Rated Speed: 3000±10%RPM
  • Rated Current: 5.40A
  • No-load Speed: 4400±10%RPM
  • Resistance/phase: 0.91±10%Ohms
  • Inductance/phase: 0.95±20%mH
  • BACK EMF: 5.7±5%V/krpm
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 96mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • Shaft Type: D-cut
  • Number of Leads: 8
  • Lead Length: 500mm
  • Sensor: Hall Sensor
  • Weight: 0.81kg

Connection

U
V
W
+5V
GND
A
B
C
Yellow
Green
Blue
Red
Black
Yellow
Green
Blue
Product Type
Product Type BLDC Motor
Electrical Specification
No. of Phase 3
Rated Current(A) 5.4
Rated Power(W) 141
Rated Speed(rpm) 3000
Rated Torque(Nm) 0.45
Rated Voltage(V) 36
Physical Specification
Body Length(mm) 96
Frame Size(mm) Nema 23 (57 x 57)
Inventory Method Dedicated Inventory
IP Rating 20
Output Shaft Type D
Shaft Diameter(mm) 8
Shaft Length(mm) 21
With Gearbox No


File Size
57BSD96-36-01_Full_Datasheet.pdf 120.34KB Download
