4 Axis CNC Router Kit 3.0Nm(425oz.in) Nema 23 Stepper Motor & Driver

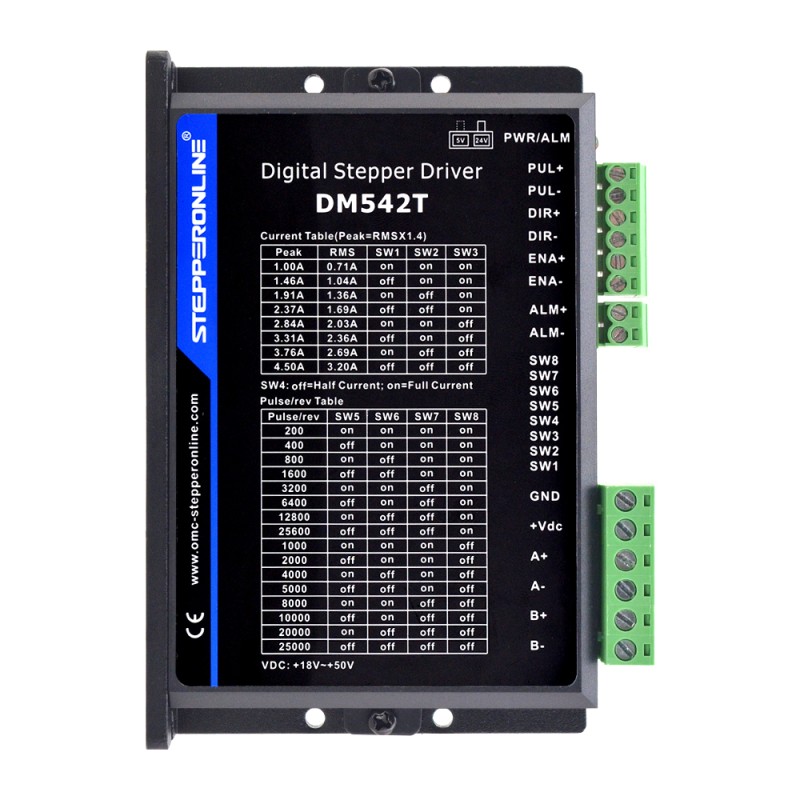

This CNC kit included: 4 x Digital Stepper Drive 1.0-4.2A 20-50VDC for Nema 17, 23, 24 Stepper Mo... Read More
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

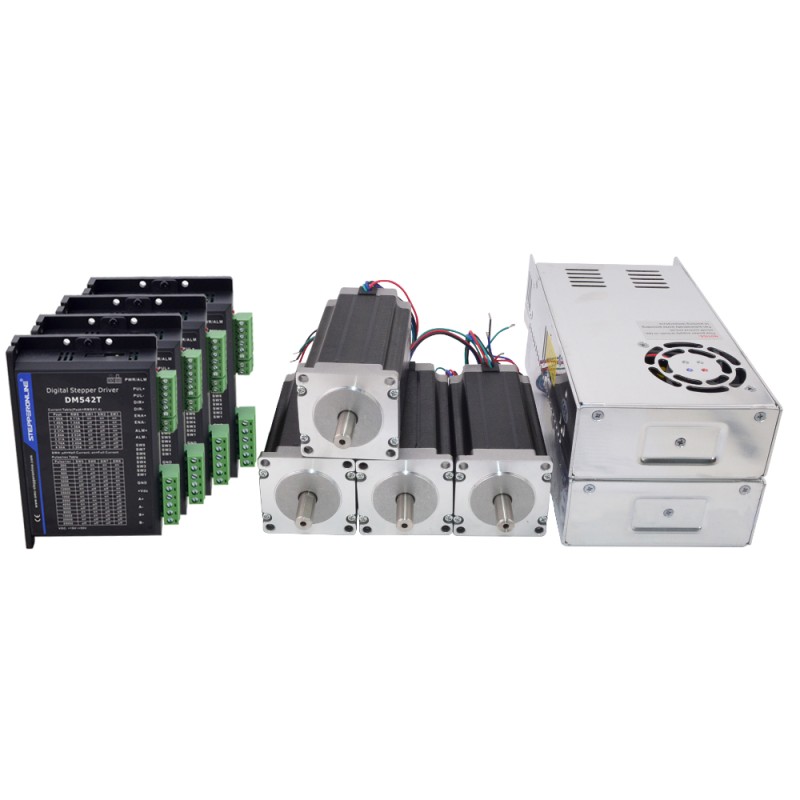

This CNC kit included:
  • 4 x Digital Stepper Drive 1.0-4.2A 20-50VDC for Nema 17, 23, 24 Stepper Motor
  • 4 x 3Nm(425oz.in) of Nema 23 Stepper Motor

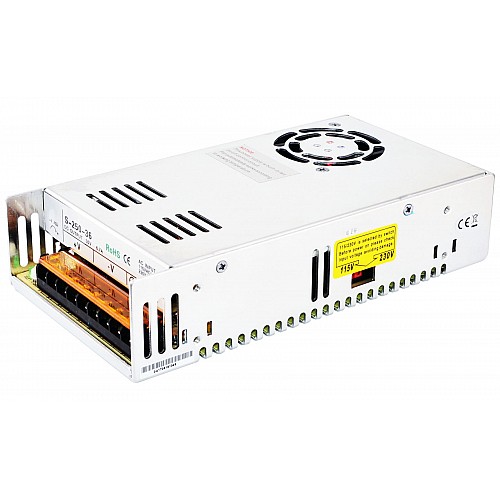

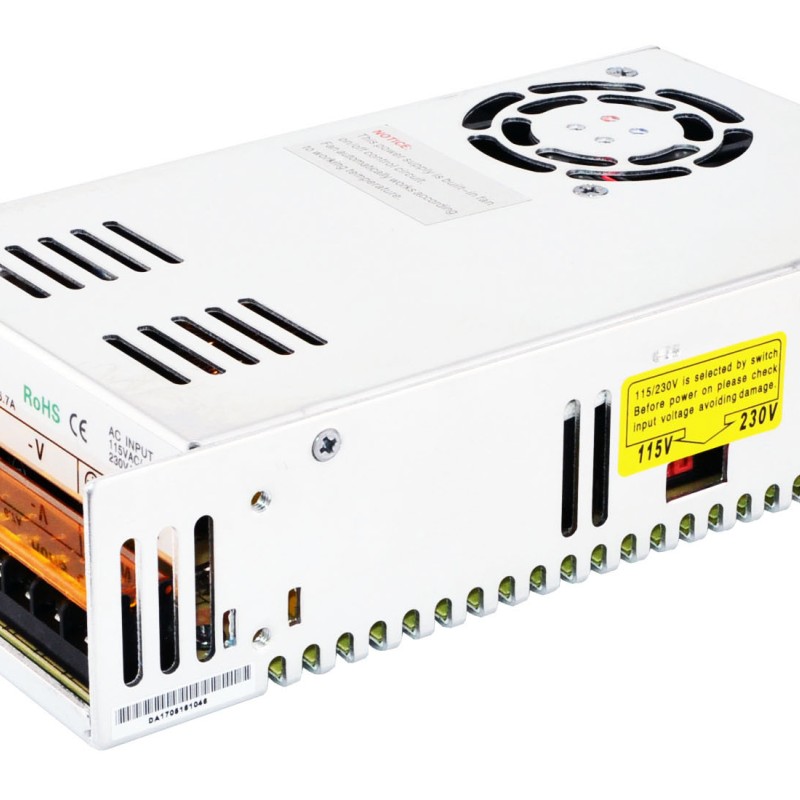

  • 2 x 250W 36V 7A 115/230V Switching Power Supply

Driver Specification

  • Input voltage 20-50VDC
  • Anti-Resonance provides optimal torque and nulls mid-range instability
  • Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
  • Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
  • 15 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000
  • Soft-start with no "jump" when powered on
  • 8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A
  • Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
  • Automatic idle-current reduction
  • Suitable for 2-phase and 4-phase motors
  • Support PUL/DIR mode
  • Over-voltage and over-current protections

Motor Specification

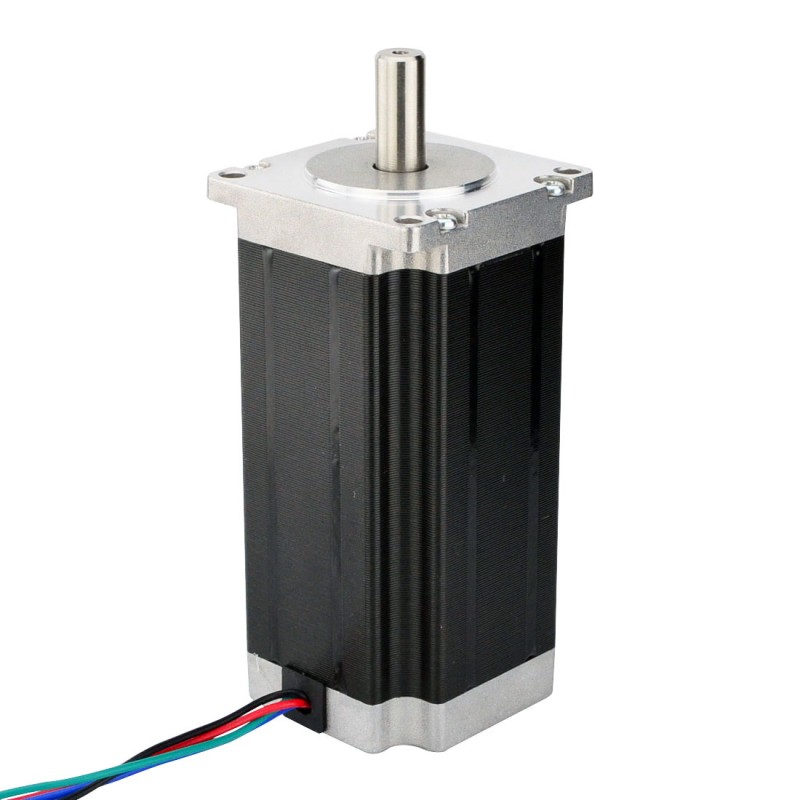

  • Manufacturer Part Number: 23HS45-3504S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 3Nm(425oz.in)
  • Rated Current/phase: 3.5A
  • Phase Resistance: 1.2ohms
  • Inductance: 5mH±20%(1KHz)
  • Frame Size: 57 x 57mm
  • Body Length: 113mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 24mm
  • D-cut Length: 20mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 1.6kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Power Specification

  • 36V DC 7A output
  • AC input voltage range: 90~132V/180~264VAC
  • 115V/230V AC selected by switch
  • High efficiency low cost
  • Forced air cooling by built-in DC fan
  • Low output ripple and yawp
  • Over current, over voltage, short circuit and overheat protections
  • 215*115*50mm(L*W*H)
<
Product Type
Product Type Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 300
Holding Torque(oz.in) 425
Input Voltage Reference(V) 24 - 48DC
No. of Phase 2
Number of Axes 4
Physical Specification
Frame Size(mm) Nema 23 (57 x 57)
Output Shaft Type D
Product Series TS Series
Shaft Diameter(mm) 10
