4 Axis CNC Router Kit 4.5Nm(637oz.in) Nema 34 Stepper Motor & Driver
This CNC kit included: 4 x Digital Stepper Drive 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC ... Read More
0 reviews • Write a review
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

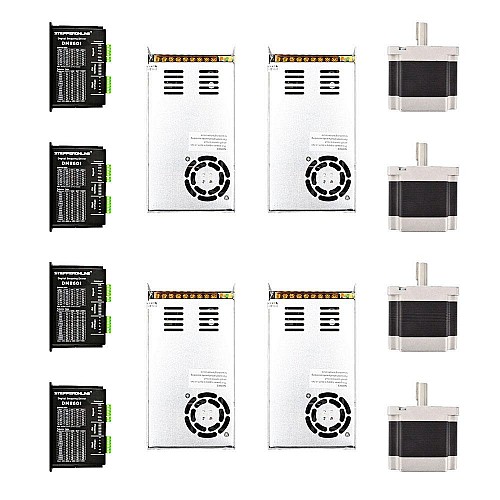

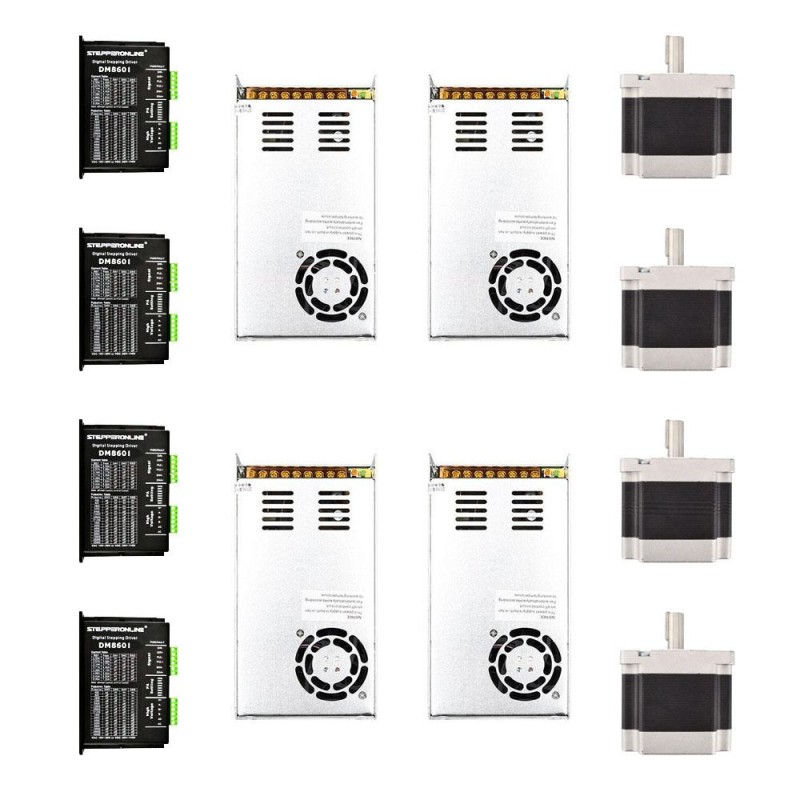

This CNC kit included:
  • 4 x Digital Stepper Drive 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC Kit
  • 4 x 4.5Nm(637oz.in) of Nema 34 Stepper Motor
  • 4 x 350W 60V 5.9A 115/230V Switching Power Supply

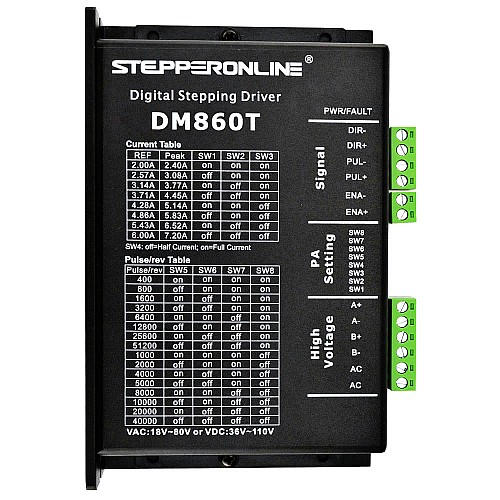

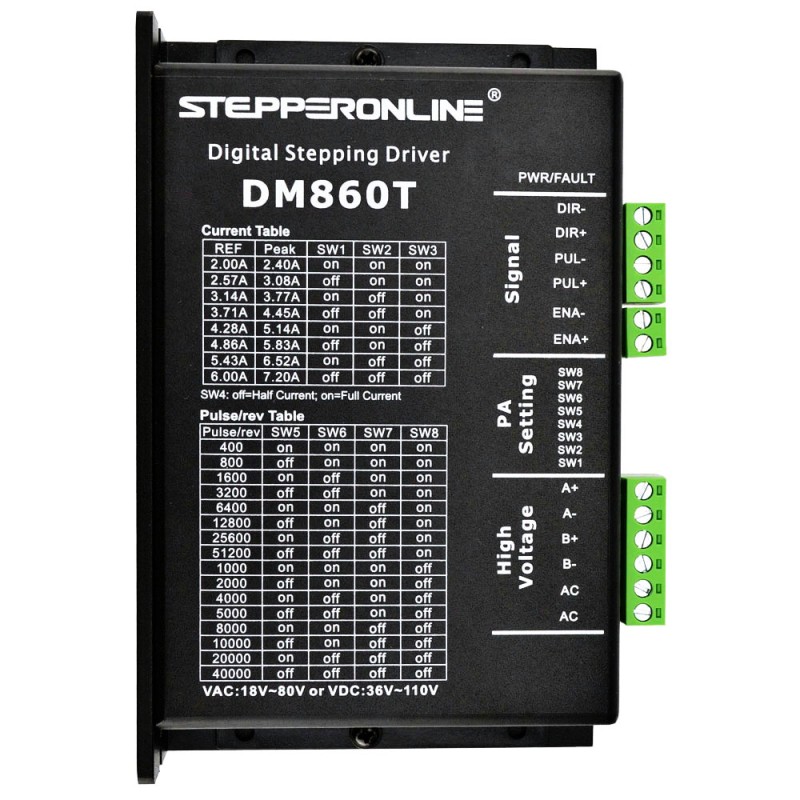

Driver Specification

  • Anti-Resonance provides optimal torque and nulls mid-range instability
  • Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
  • Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
  • 16 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000
  • Soft-start with no "jump" when powered on
  • Input voltage 20-80VDC
  • 8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
  • Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
  • Automatic idle-current reduction
  • Suitable for 2-phase and 4-phase motors
  • Support PUL/DIR and CW/CCW modes
  • Over-voltage, over-current protection

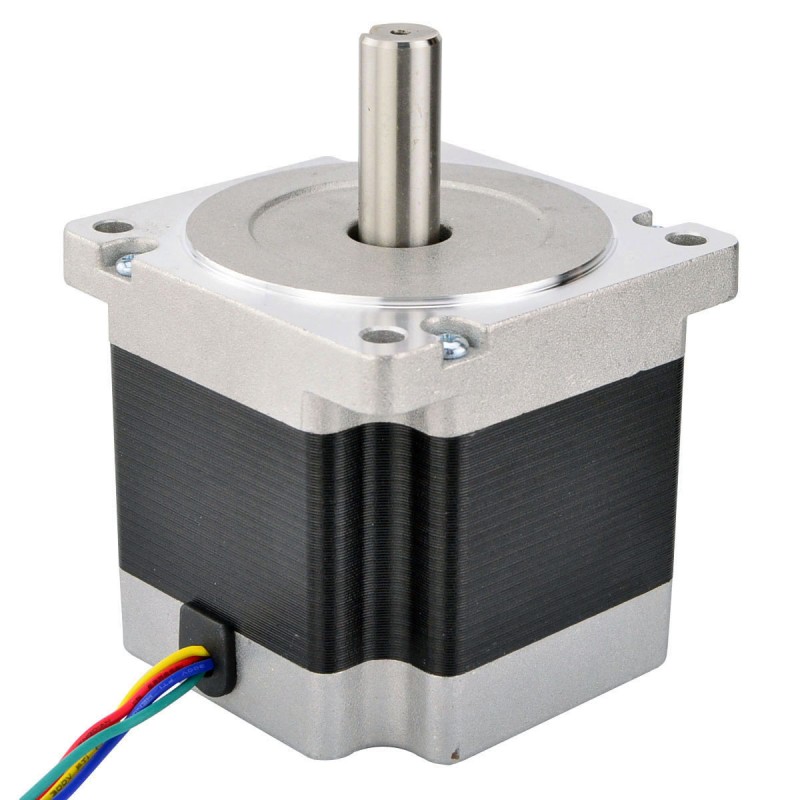

Motor Specification

  • Manufacturer Part Number: 34HS31-5504S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 4.5Nm(637oz.in)
  • Rated Current/phase: 5.5A
  • Phase Resistance: 0.4ohms
  • Inductance: 3.5mH±20%(1KHz)
  • Frame Size: 86 x 86mm
  • Body Length: 80mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 35mm
  • D-cut Length: 25mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 2.3kg

Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue

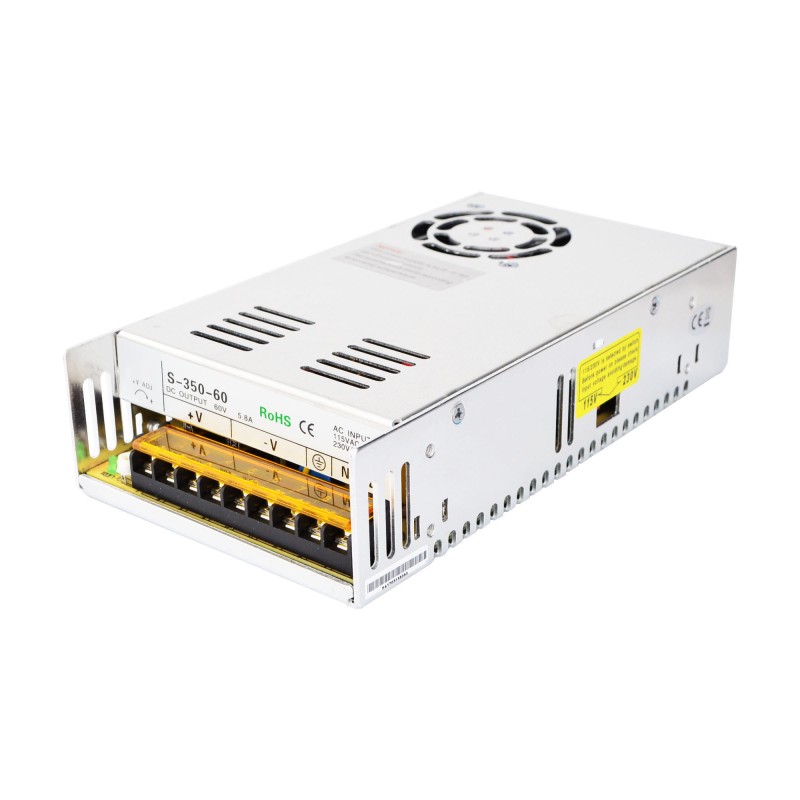

Power Specification

  • 60V DC 5.9A output
  • AC input voltage range: 93~132V/176~264VAC
  • 115V/230V AC selected by switch
  • High efficiency low cost
  • Forced air cooling by built-in DC fan
  • Low output ripple and yawp
  • Over current, over voltage, short circuit and overheat protections
  • 215*115*50mm(L*W*H)
Product Type
Product Type Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 450
Holding Torque(oz.in) 637
Input Voltage Reference(V) 24 - 80DC
No. of Phase 2
Number of Axes 4
Physical Specification
Frame Size(mm) Nema 34 (86 x 86)
Output Shaft Type D
Product Series TS Series
Shaft Diameter(mm) 14

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

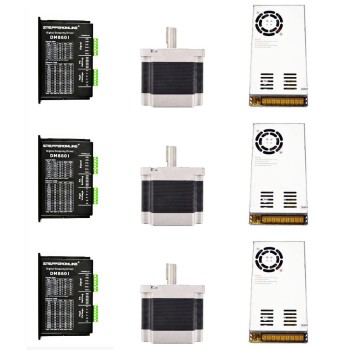

3 Axis CNC Router Kit 4.5Nm(637oz.in) Nema 34 Stepper Motor & Driver
